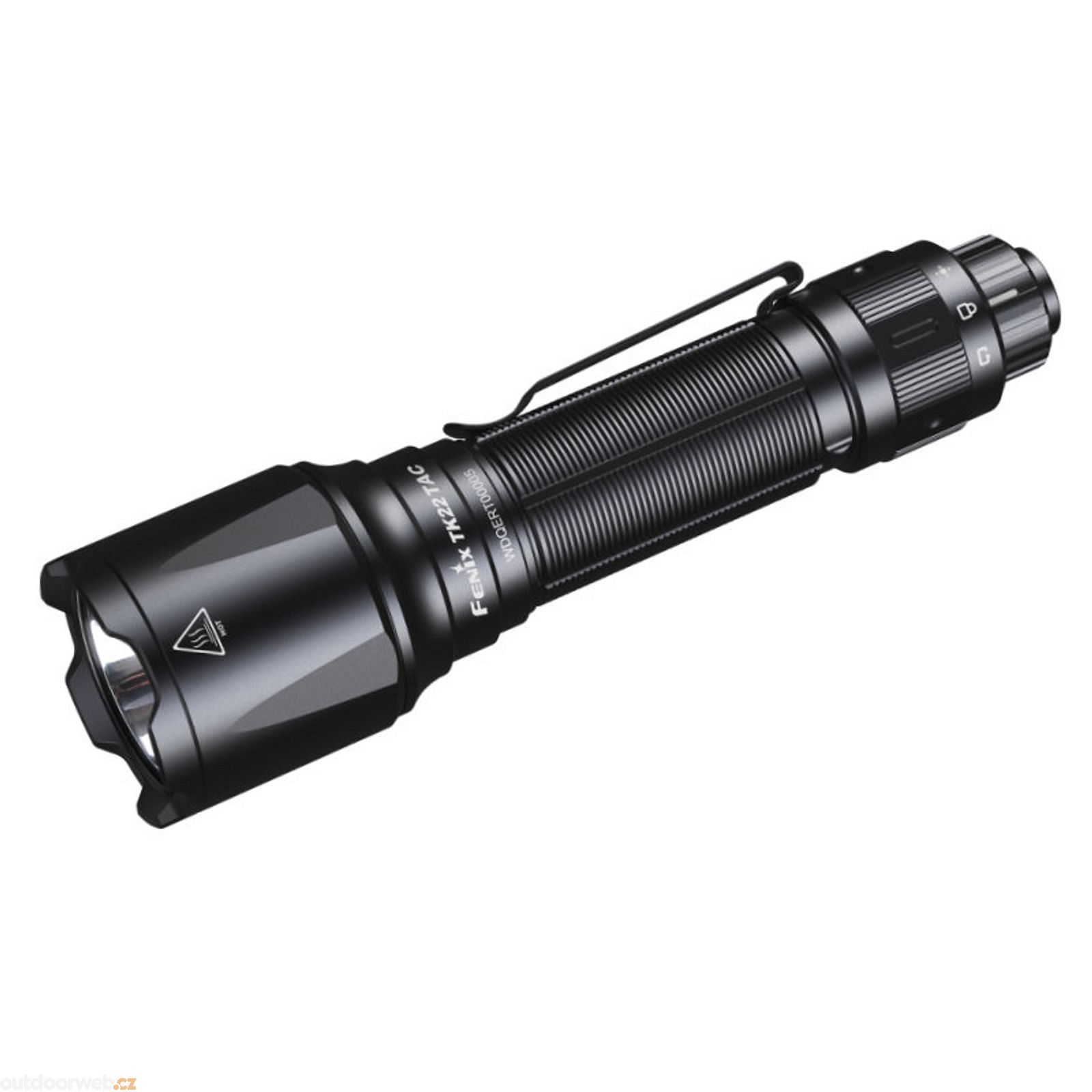

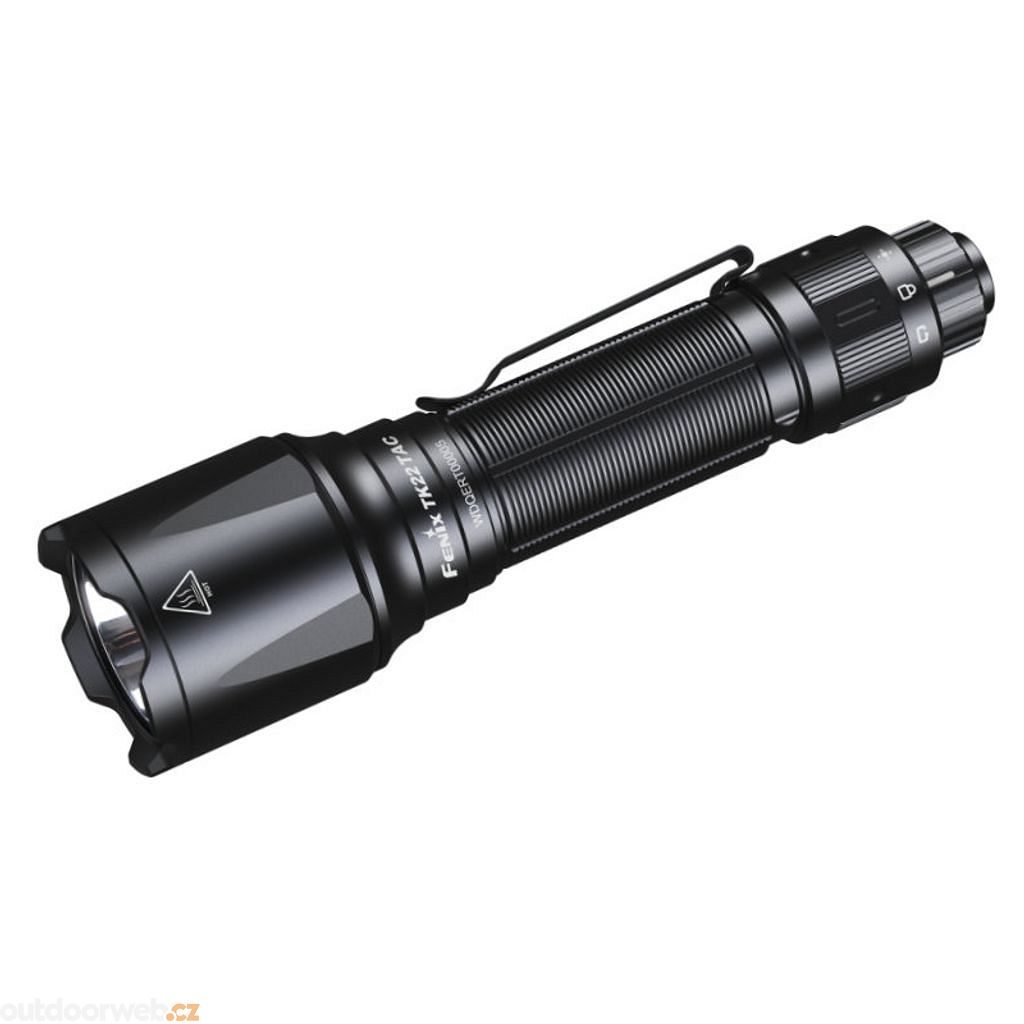

FENIX TK22 TAC - Tactical flashlight

Maximize your tactical gear with the Fenix TK22 TAC - a tactical pen that won't disappoint!

Do you like devices that are always ready for action as much as you do? The Fenix TK22 TAC is a tactical penlight that will amaze you with its power and flexibility. With an incredible light output of up to 2800 lumens and a range of 540 meters, it allows you to see and be seen in any conditions.

Forget complicated charging, with the included 21700 Li-ion battery and USB-C connector, recharging is fast and efficient. The intuitive rotary dial lets you easily switch between tactical and duty mode, whether you need full power or longer battery life.

In tactical mode, you can instantly activate the full 2800 lumen output or the variable strobe to disorient your opponent. In duty mode, you have a choice of four light levels, with the flashlight lasting up to 49.5 hours on the lowest setting.

The Fenix TK22 TAC is designed for the harshest outdoor conditions, with a precision and waterproof design, ready for long gun mounting. This flashlight is the perfect choice for security forces, rescue workers, hunters and anyone who needs reliable and powerful lighting.

All specifications of the Fenix TK22 TAC flashlight are certified to ANSI/NEMA FL 1-2009, which means quality and performance are guaranteed.

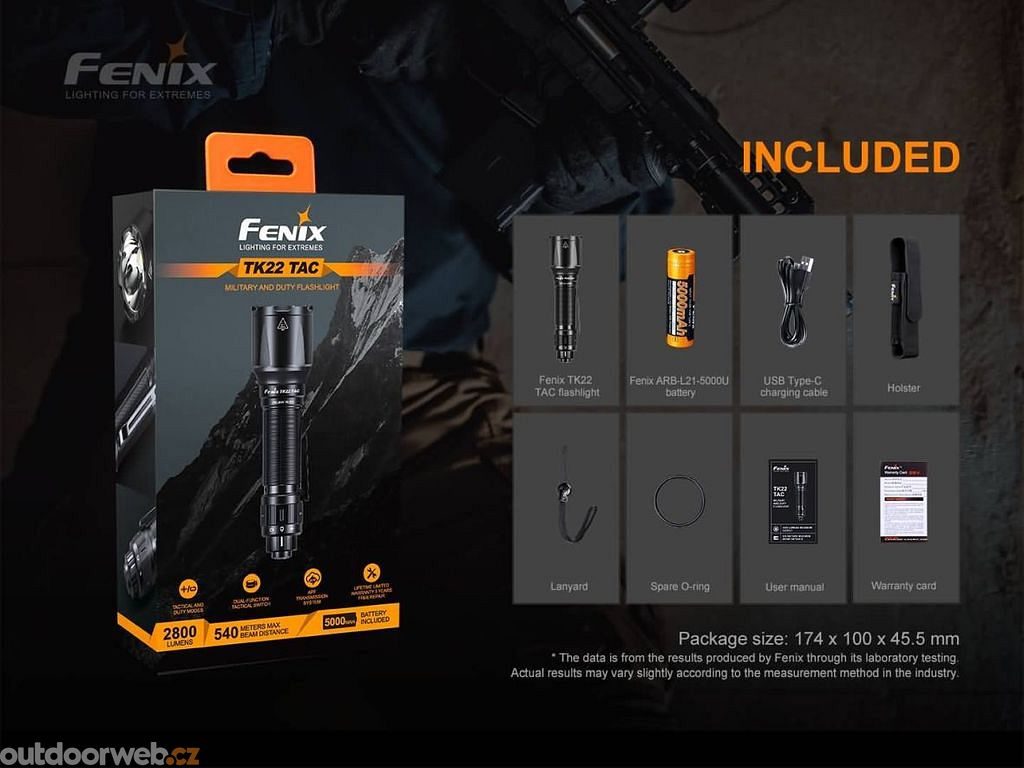

Package contents: flashlight, Fenix ARB-L21-5000U battery with USB-C connector, USB-C cable, replacement o-ring and belt pouch.

Warranty: five years on the flashlight, two years on the battery.

1. Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
2. Tactical switch at the end of the flashlight (instant on/off function by pressing).
3. Fixed buckle for safe and easy carrying of the flashlight on a belt or pocket (removable).
4. Highly efficient smooth cone light reflector with a range of up to 540 meters (74000 cd).

• A powerful Luminus SFT-70 LED with a lifetime of 50000 hours is used.
• Intelligent overheat protection.
• Low battery warning.
• Weight 228 grams (including battery), 156 grams (without battery).
• Solid body construction in A6061-T6 aerospace hardened aluminium.
• Durable hard scratch resistant surface - Type III hard anodized.
• Shock resistant to drops from a height of 1 metre.
• Tempered ultra clear glass lens with anti-reflective coating.
• Highly wear-resistant flat-bevel threads.
• Endurance times are measured with a rechargeable Li-ion battery type 21700 with a capacity of 5000 mAh.

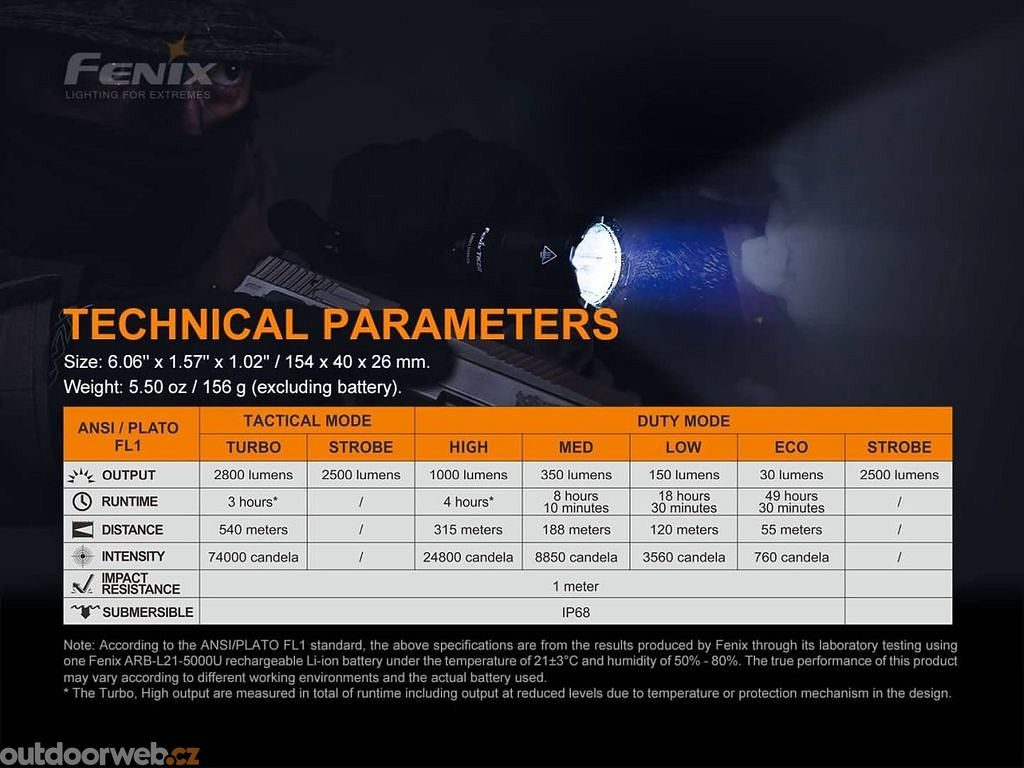

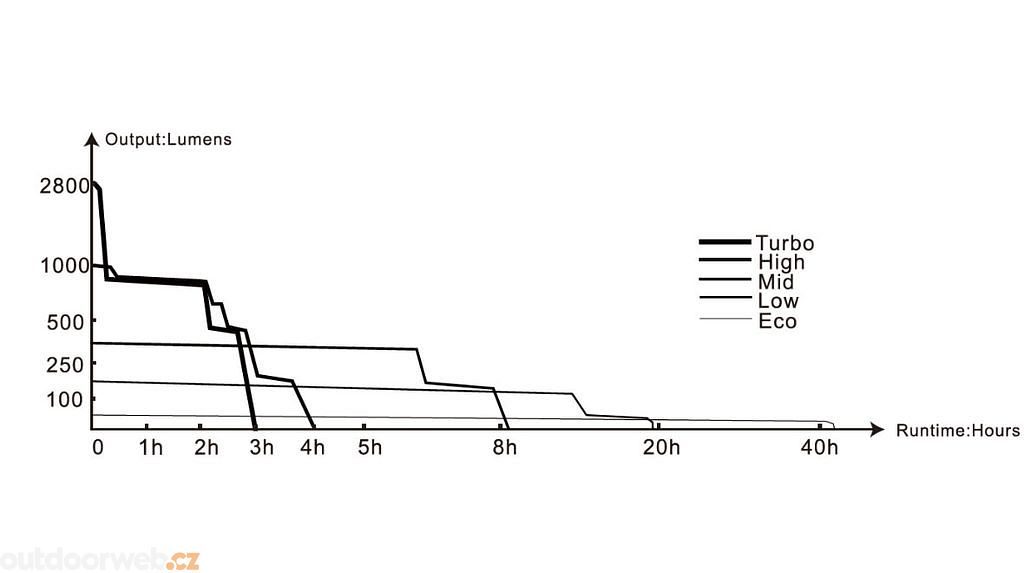

Two lighting modes:
Tactical mode: 2800 lumens (3 hours) -> 2500 lumens strobe.
Service mode: 1000 lumens (4 hours) -> 350 lumens (8.1 hours) -> 150 lumens (18.5 hours) -> 30 lumens (49.5 hours) -> 2500 lumens strobe

Specifications:

Power: 2800 lm
Range: 540 m
Max battery life: 49.5 hrs
Power: 1x 21700, USB rechargeable
Number of modes: 6
Waterproof: IP68 (2 m immersion)
Light color: Daylight white (5500-6500 K)
Light source: Luminus SFT-70
Weight: 156 g
Dimensions: 15.4 cm (length) x 4 cm (head diameter) x 2.6 cm (body diameter)

Usage
There may be an insulating cap inside the flashlight on the battery pack from the factory. Remove it from the battery pack before first use.
The rotary dial on the end of the flashlight allows you to select between light modes that have different controls.
Tactical mode (rotary dial in left position). The flashlight will always activate in the highest mode. To activate the strobe, hold the button down for 0.8 seconds (even from off). Pressing it returns the flashlight to its original mode. Press the button to turn the flashlight off.
Servicemode (rotary control in right position). The flashlight remembers the last selected mode (except strobe). The light modes (except strobe) can be cycled by pressing the button. To activate the strobe, hold the button for 0.8 seconds (even from off). Pressing the button returns the flashlight to its original mode. Pressing the button turns the flashlight off.
The control button can be locked in the middle position of the rotary control. The flashlight cannot be switched on if it is switched off. If it is on, the control will lock in the currently set light mode and the control button will not respond. To reactivate the tactical button, the control must be turned to tactical or duty mode.
When using the AER-05 cable switch, only the highest continuous light mode is available.
Intelligent overheat protection - if the temperature of the flashlight exceeds 60°C, it will reduce power by itself in incremental steps until the temperature drops below a safe limit. Once the flashlight has cooled below 60°C, full power can be used again.
Low Battery Warning - the flashlight automatically switches to the lowest power setting in a step-by-step manner and flashes 3 times every five minutes.

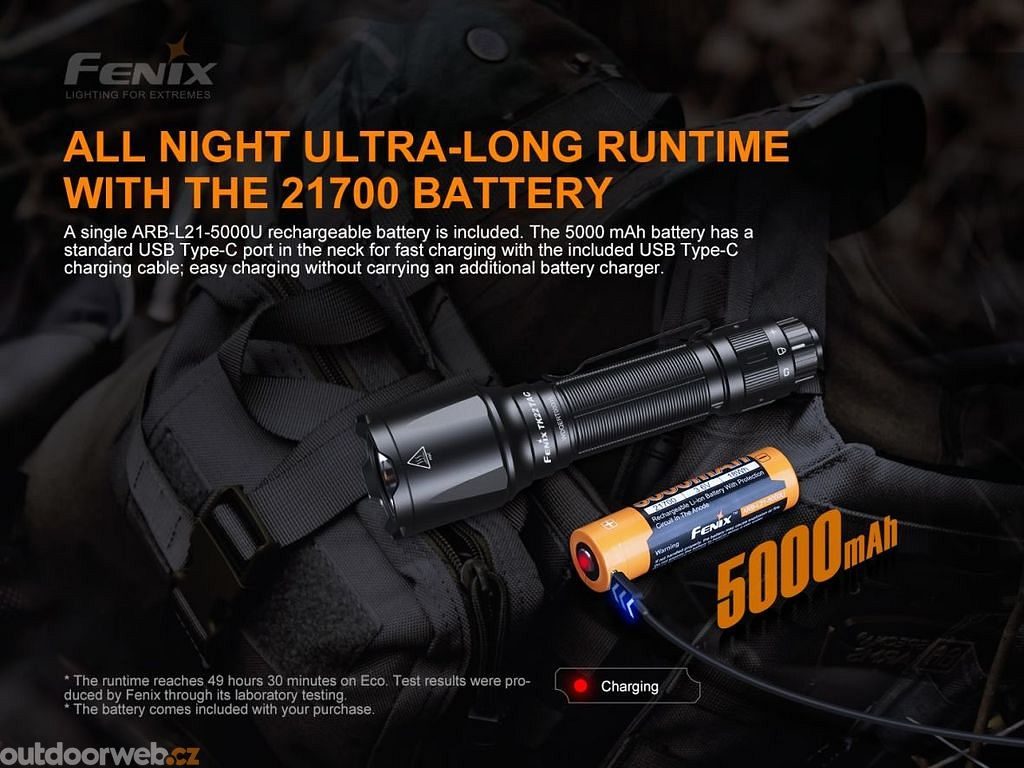

Charging - remove the battery from the flashlight and plug the included USB cable into the side USB-C connector. During charging, the indicator light in the plus pole of the battery pack glows red. When full charge is reached, it will glow blue or green. The charging currents of the built-in USB-C connector are 2A. Charging time takes approximately 3-4 hours.

Warning
Do not disassemble the sealed parts in the flashlight head yourself, it will violate the warranty.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
- The battery is dead, charge it.
- The contacts inside the flashlight are clogged - clean them with a cotton swab dipped in alcohol.
- The back of the flashlight is loose, tighten it.
