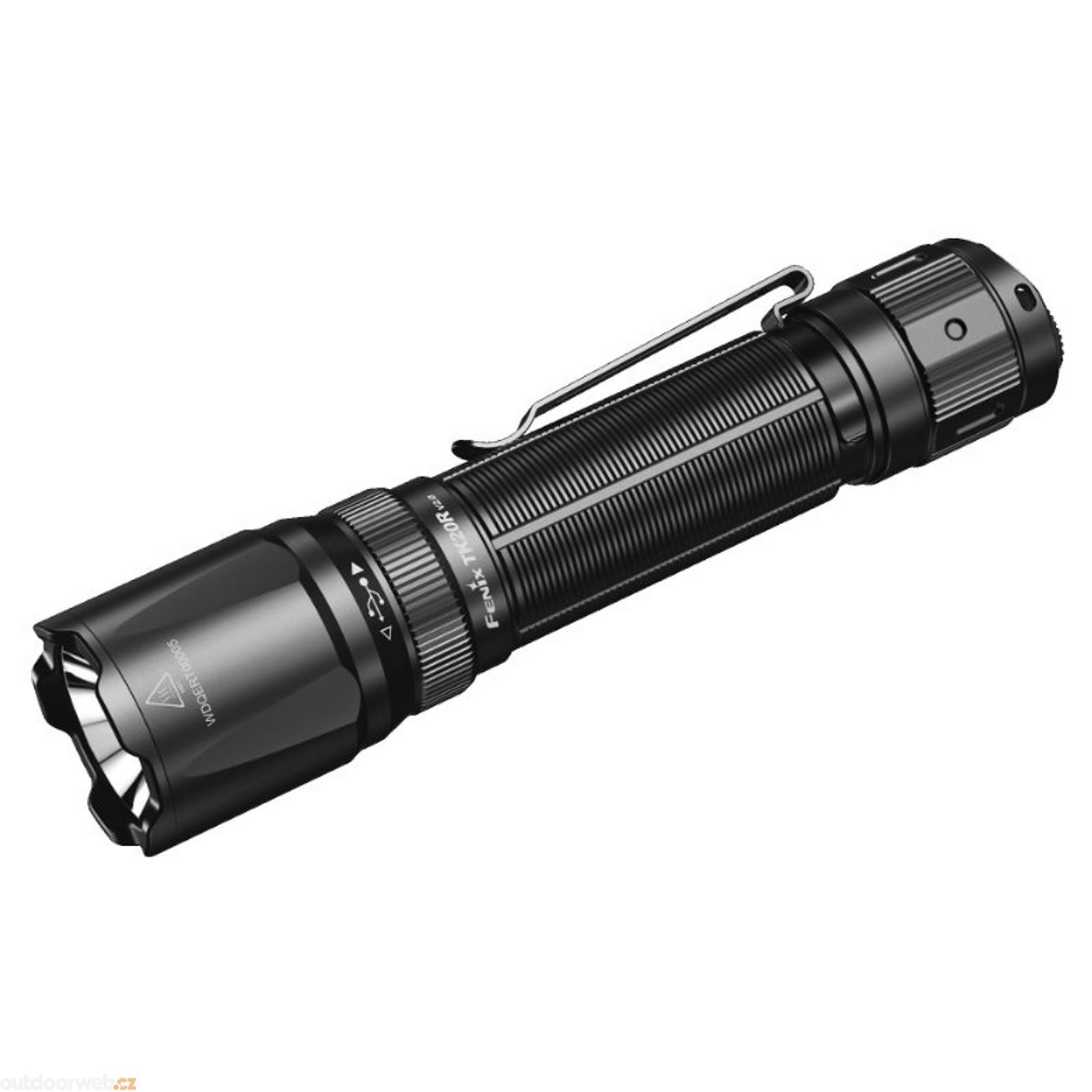

FENIX TK20R V2.0 - Tactical rechargeable flashlight

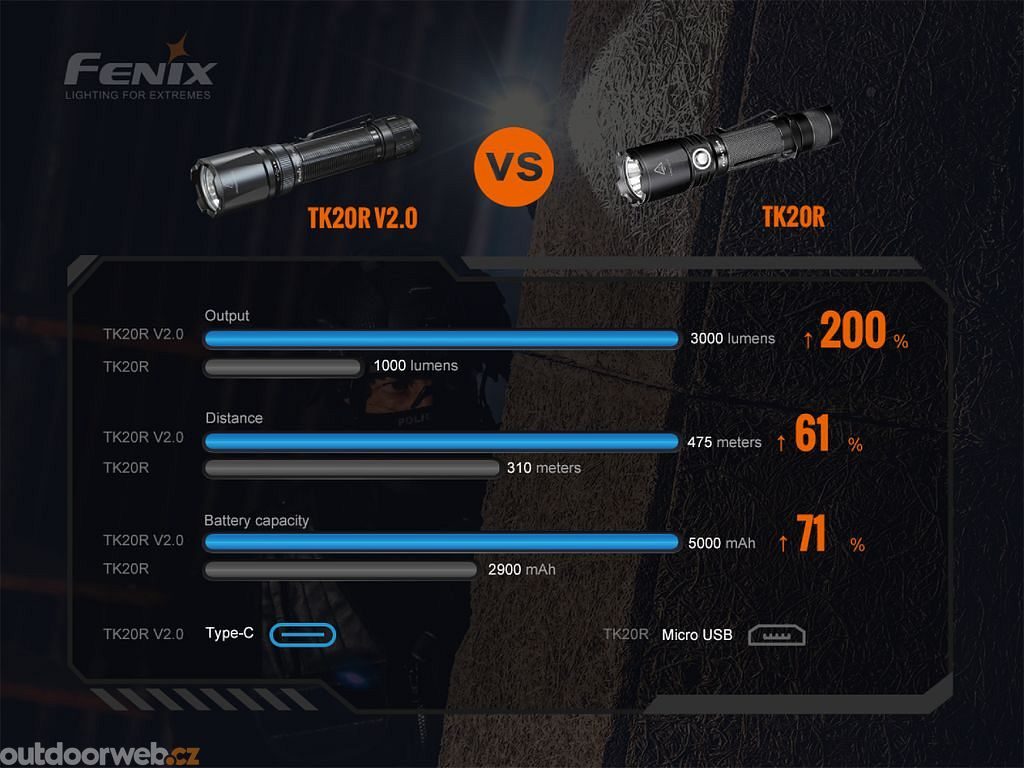

Looking for a reliable and powerful flashlight that won't let you down even in the most demanding situations? The Fenix TK20R V2.0 is the answer to your search. With a stunning light output of up to 3000 lumens (ANSI standard) and a range of 475 meters, this lighting giant is a guarantee of safety and visibility in any situation.

With a state-of-the-art USB-C connector, charging is a breeze and battery swapping in the field is a thing of the past. Thanks to the powerful 21700 Li-ion battery with a 5000 mAh capacity, you'll have enough power for long hours of use.

The tactical dual switch allows intuitive operation and instant access to the strobe function, which is invaluable in critical moments. With six lighting modes including strobe, you can be sure you have the right type of lighting for every situation.

You won't have to worry about the TK20R V2.0 succumbing to water or dust thanks to the screw-on protective nut on the charging socket. Its rugged construction makes it suitable for use in the harshest conditions and on long guns, which will be especially appreciated by professional users.

Every parameter of this tactical pearl has been carefully measured and certified to ANSI/NEMA FL 1-2009 standards, ensuring that the performance offered by the Fenix TK20R V2.0 is truly as impressive as it promises.

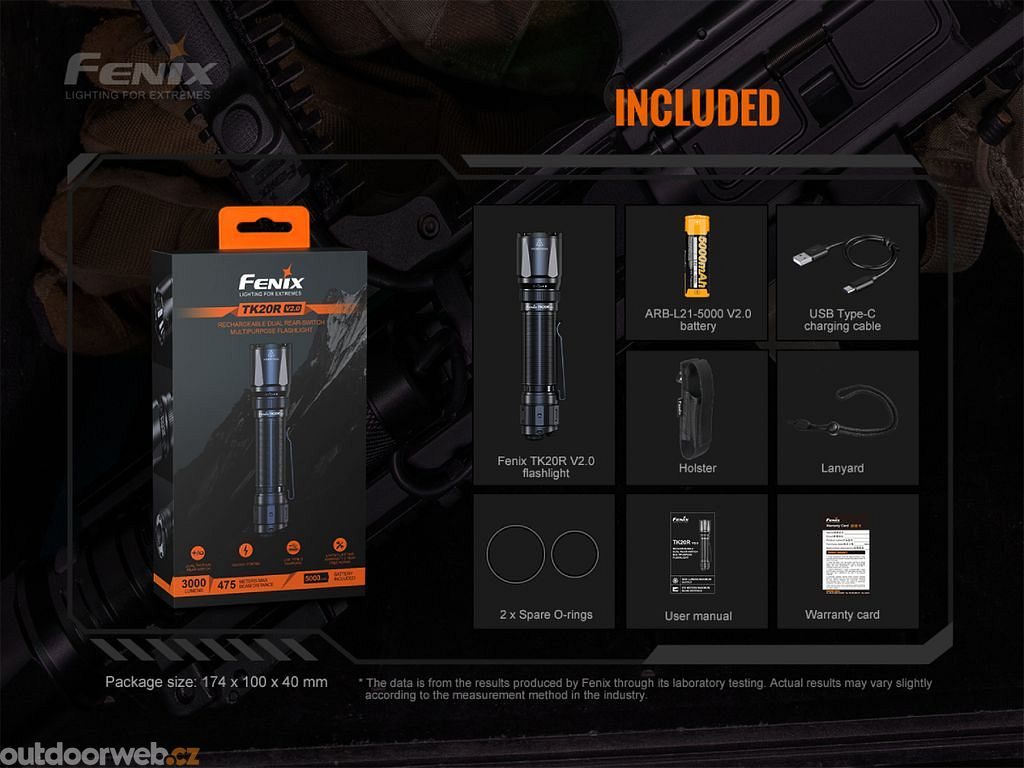

Package contents: flashlight, wrist lanyard, belt holster, replacement o-ring, USB charging cable, Fenix Li-ion 21700 5000 mAh battery.

Warranty: five years on the flashlight, two years on the battery.

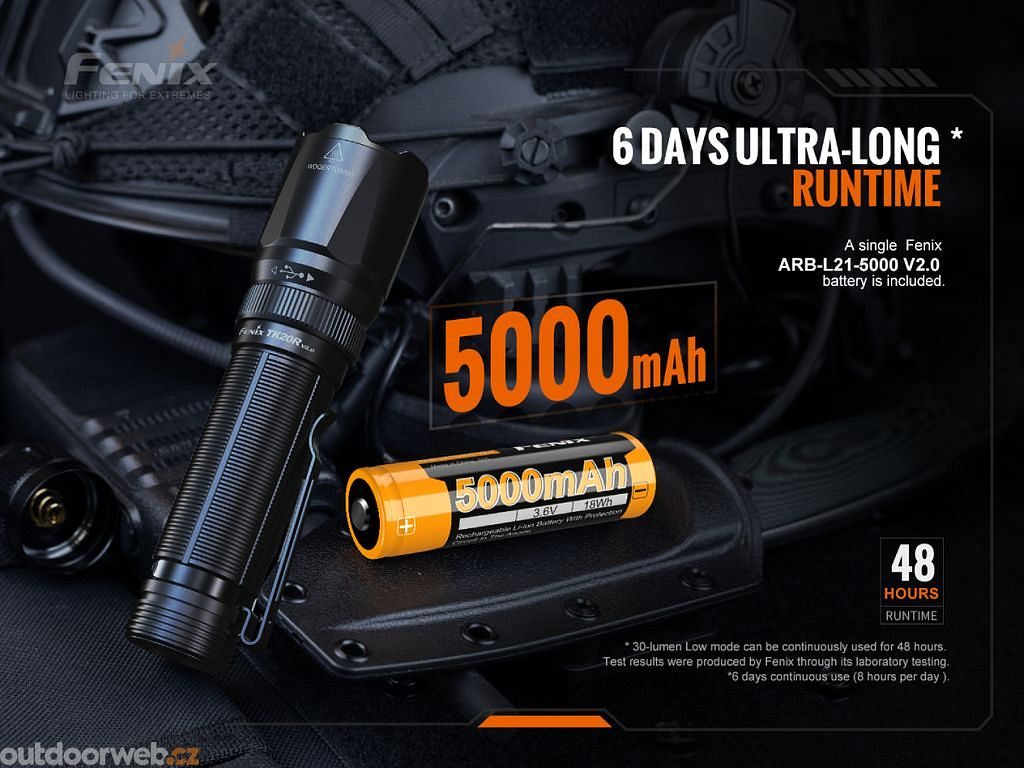

1. Uses one rechargeable high-capacity Li-ion 21700 5000 mAh battery included for power.
2. Parabolic aluminum reflector for a perfect light cone with a range of up to 475 meters (56600 cd).
3. Flashlight has memory and will always turn on in the last set mode (not valid for strobe).
4. The body of the flashlight is made of aerospace hardened aluminum, the head of the flashlight is completed with a striking rim in black.

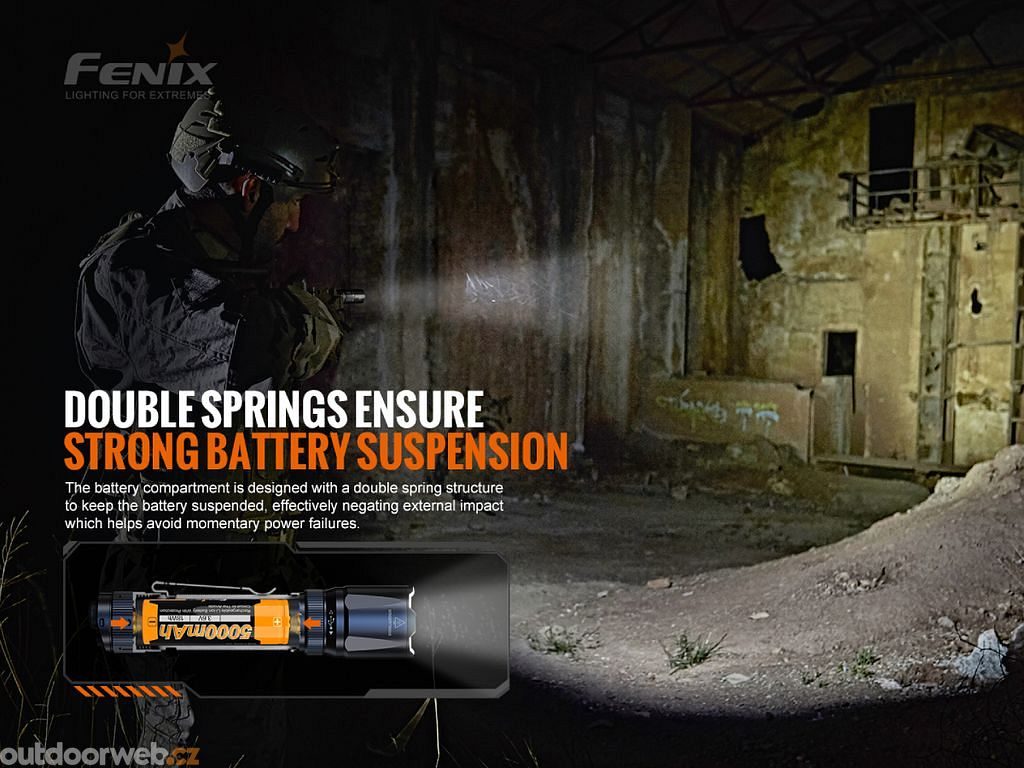

5. The battery pack is housed between two springs - it easily withstands recoil when used on a gun.
6. Waterproof and dustproof according to IP68 standard (tested under water at a depth of 2 meters for 30 minutes).
7. Dual tactical switch on the end of the flashlight (momentary on/off function).

• The powerful Luminus SFT-70 LED with a lifetime of 50000 hours is used.
• Charging via sealed USB-C connector with battery charge status indication.
• Electronics with digital constant power control and overheat protection.
• Weight 204 grams including battery.
• Shockproof against falls from a height of 1.5 metres.
• Highly wear-resistant, flat-headed threads.
• Hard scratch resistant surface - Type III hard anodized.
• Tempered ultra clear glass lens with anti-reflective coating.
• Fixed clip for safe and easy carrying of the flashlight (removable).
• Thanks to its design, the flashlight does not slip in the hand and does not rotate when put down.

Six power modes:
3000 lumens (2.8 hours) -> 1000 lumens (3.1 hours) -> 350 lumens (7 hours) -> 150 lumens (21.3 hours) -> 30 lumens (48 hours) -> 3000 lumen strobe.

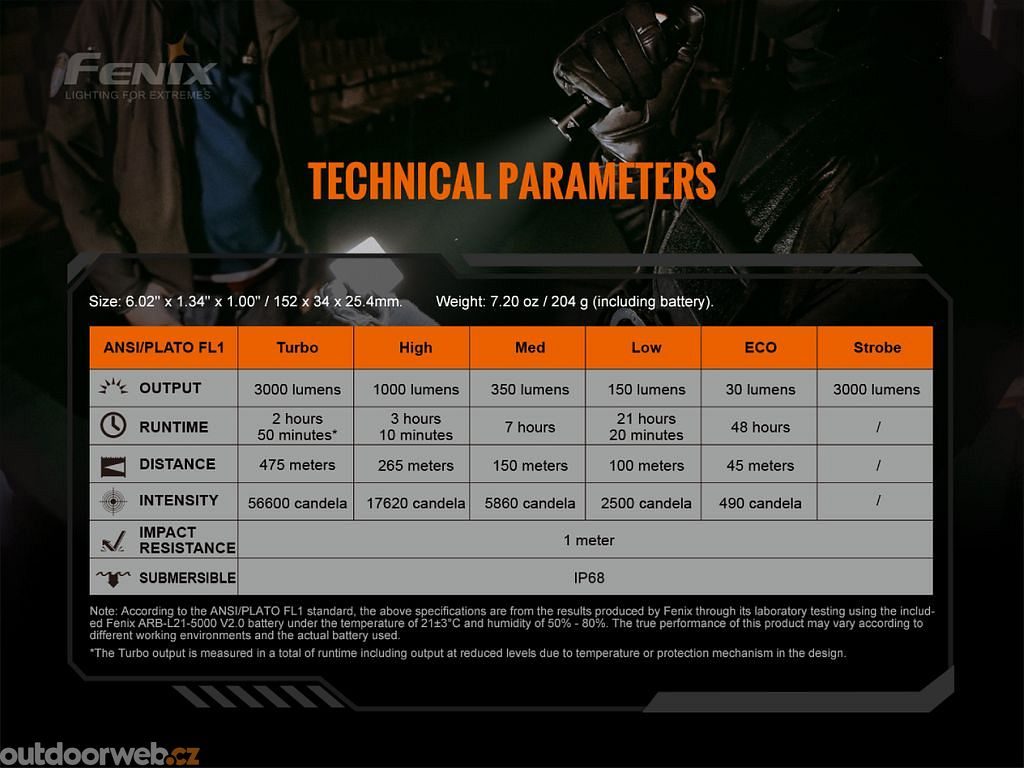

Specifications:

Power: 3000 lm
Range: 475 m
Max battery life: 48 hrs
Power: 1x 21700, USB rechargeable
Number of modes: 6
Waterproof: IP68 (2m immersion)
Light color: Daylight white (5500-6500 K)
Light source: Luminus SFT-70
Weight: 204 g
Dimensions: 15.2 cm (length) x 3.4 cm (head diameter) x 2.54 cm (body diameter)

Using the Fenix TK20R V2.0 flashlight
There may be a black insulating cap on the battery inside the flashlight from the factory. Remove it from the battery pack before first use.
To turn on , press the larger tactical button located on the end of the flashlight, press the button for immediate activation. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to flash mode (strobe) with the flashlight on, hold the toggle button for approximately 0.5 seconds. To switch the flashlight directly to strobe mode, press and hold the switch button.
Intelligent overheat protection - due to the flashlight's huge 3000 lumens output, the flashlight experiences a temperature rise. If the temperature exceeds 60°C, the power will be automatically reduced. Once the temperature drops below 60°C, the highest power can be used again.
Battery charge indication - the charge indicator is hidden under the protective nut of the charging connector for tactical reasons, so the nut must be unscrewed to check it. The flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%), and flashing red indicates a critically low battery (25% - 1%). If the battery is low, the flashlight will automatically switch to lower power modes, then flash 3 times every five minutes in the lowest mode.
Charging the flashlight - Unscrew the protective nut under the head of the flashlight and use the included USB-C cable to plug it into a computer, USB AC adapter or USB car adapter (not included). Alternatively, any mobile phone charger with a USB-C connector can be used to charge the flashlight. During charging, the indicator LED opposite the charging connector glows red, and when fully charged it glows green. Charging a fully discharged battery takes approximately 3.5 hours. The Li-ion battery used does not suffer from a memory effect, so the flashlight can be recharged at any time. The torch cannot be switched on while charging.

Caution
Only use high-quality 21700 Li-ion batteries to prevent damage to the flashlight, for example due to battery leakage.
Insert the batteries with the positive terminal facing the flashlight head.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
- The battery is almost dead - charge it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The back of the flashlight is loose, tighten it.
