Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.

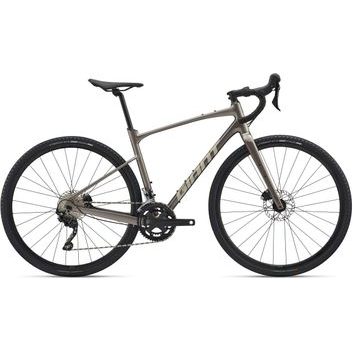

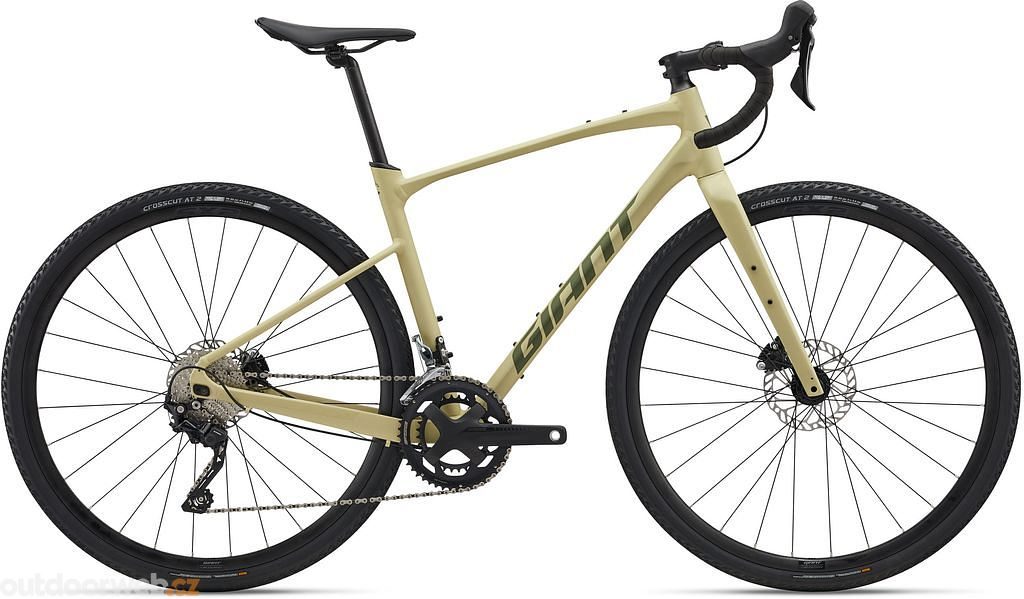

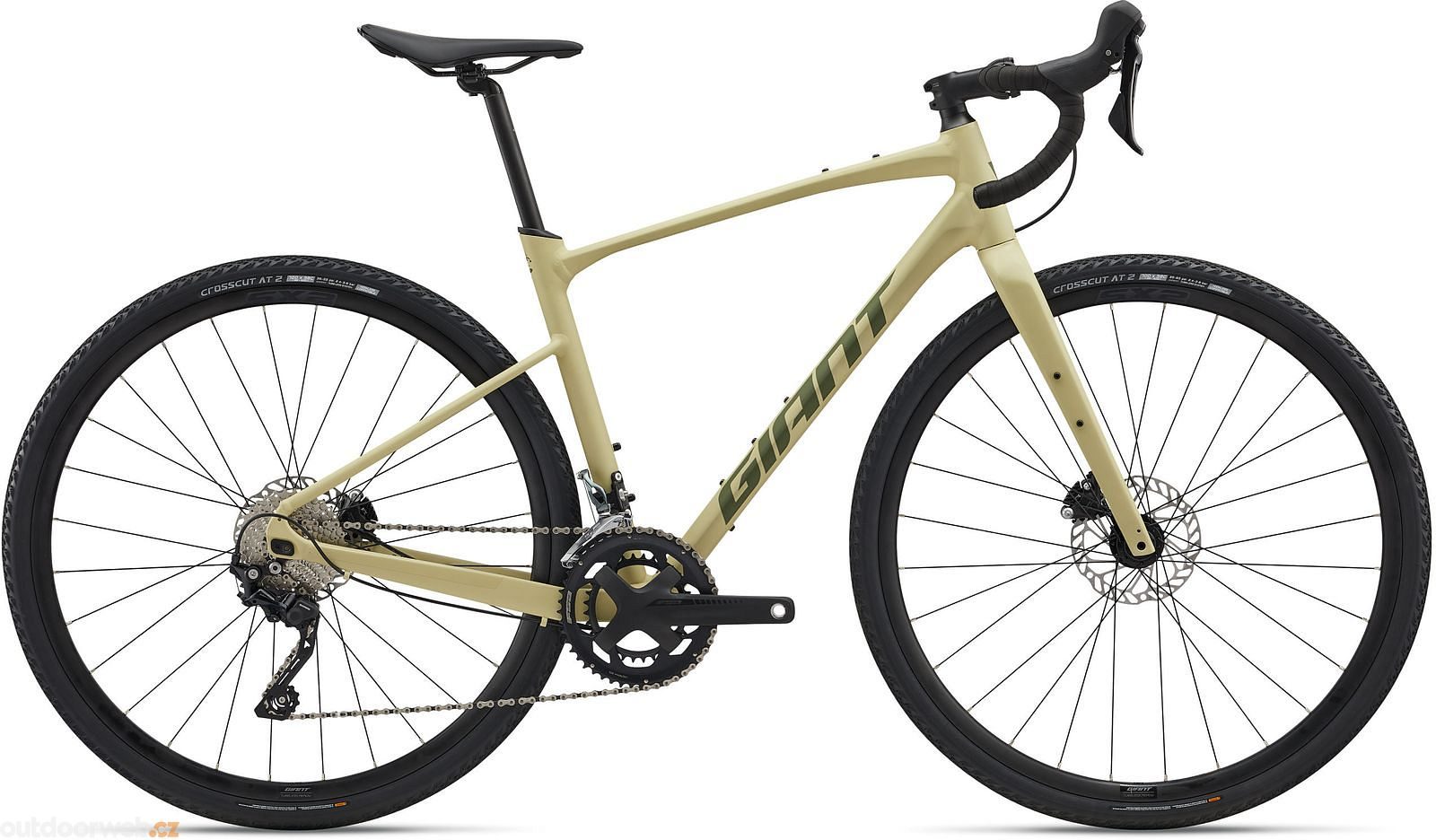

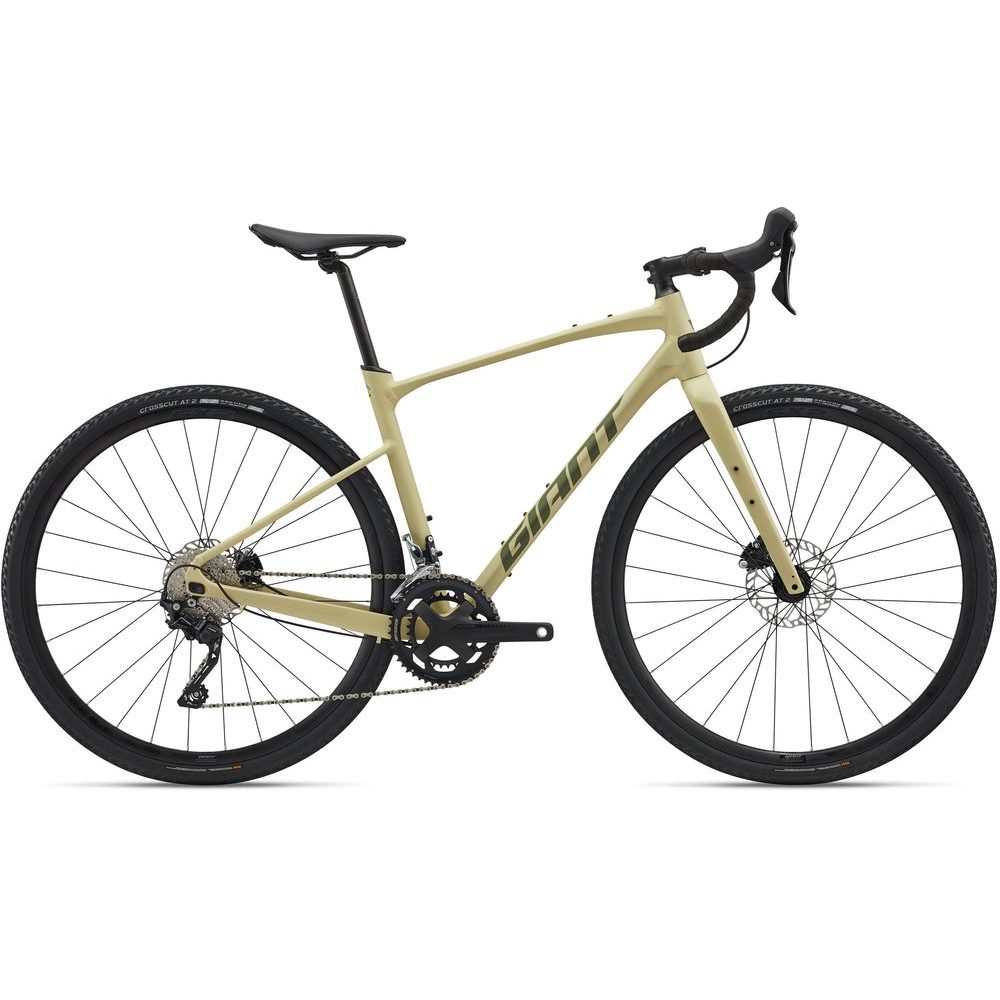

The versatile and comfortable Revolt gravel bike will be the perfect companion for exploring roads and trails you've always thought about but never ridden. Its comfortable aluminium frame with carbon fork provides the option of changing wheelbase as well as the option of a telescopic seatpost.

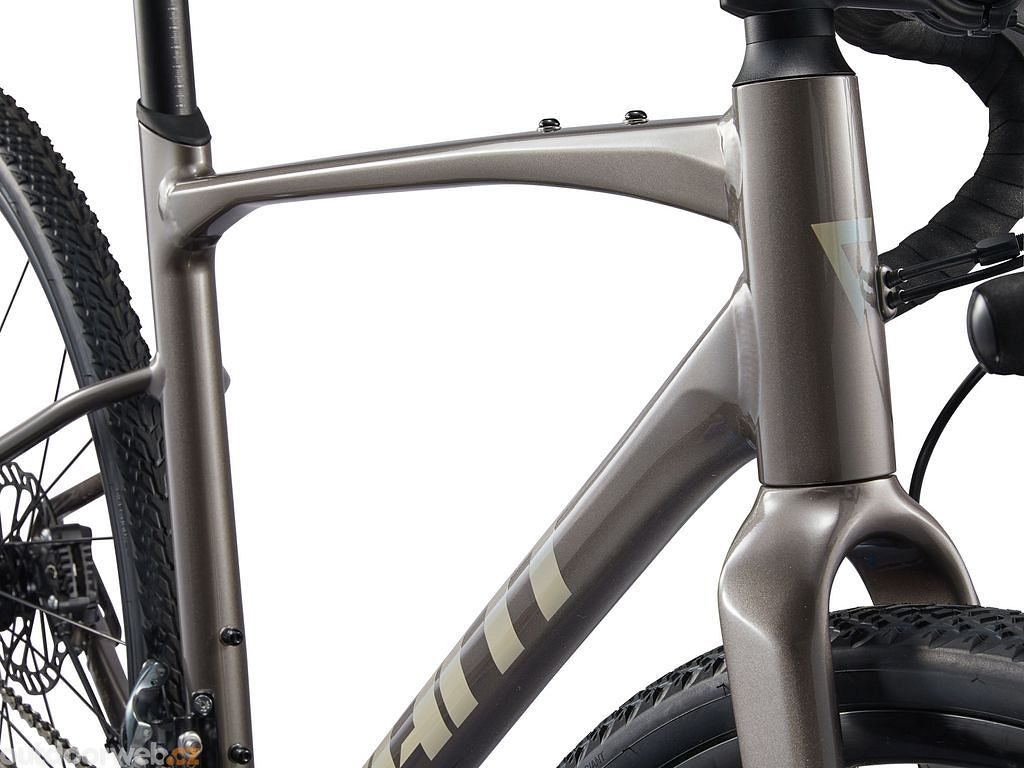

The lightweight ALUXX aluminium frame combined with an all-carbon fork delivers the perfect balance of stiffness for maximum pedalling efficiency and compliance for high comfort. The geometry combines an endurance riding position with a shorter rear structure for precise handling, agility and perfect bike control. Longer reach, shorter stem and lower centre improve stability in rougher terrain.
ALUXX Aluminum Technology | ![]() |
![]() | Giant Tubeless System |
D-Fuse Technology | ![]() |
![]() | Overdrive |
Flip Chip Rear Footpegs | ![]() |
The frame has smaller diameter seatstays positioned lower for even better shock and vibration absorption. The specially shaped D-Fuse seatpost and Contact XR D-Fuse handlebars also help to improve comfort - both work together as a system and spring slightly under load, but without reducing stiffness when cornering, climbing or riding out of the saddle.
The rear stays allow you to change the wheelbase thanks to the flip chip system. A shorter wheelbase gives a more agile bike, and setting it to a longer wheelbase improves stability at higher speeds, while increasing rear tire space (up to 53 mm). The frame also allows you to choose the type of seatpost - either the Giant D-Fuse "spring" seatpost or the standard 30.9 mm round seatpost can be used, i.e. telescopic.
Founded in 1972, Giant is the largest bicycle manufacturer in the world.
Giant is the world's leading brand of high quality bicycles and cycling equipment. As part of the Giant Group, founded in 1972, the Giant brand combines craftsmanship, advanced technology and innovative design.
Giant has long been one of the leading innovators in cycling. They introduced lighter and stronger aluminium frames at a time when steel was the industry standard. They were the first to make carbon fibre bikes widely available to the world. They defined modern road bike design with Compact Road geometry. And the patented Maestro suspension revolutionized the full-suspension bike segment.
| Velikosti | XS, S, M, M/L, L, XL |
| Barva | Metal/Shoreline, Pale Olive |
| Rám | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Vidlice | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Řídítka | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Gripy | cork tape with gel |
| Představec | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Sedlovka | Giant D-Fuse, alloy, 14mm offset |
| Sedlo | Giant Approach |
| Řazení | Shimano GRX RX-400, 2x10 |
| Přesmykač | Shimano Tiagra |
| Přehazovačka | Shimano GRX RX-400 |
| Brzdy | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brzdové páky | Shimano GRX RX-400 hydraulic |
| Kazeta | Shimano HG500, 11x34 |
| Řetěz | KMC X10 with Missing Link |
| Kliky | FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Střed | FSA Mega EXO |
| Ráfky | Giant S-X2 Disc wheelset, alloy |
| Náboje | Giant alloy, 12mm thru-axle |
| Dráty | stainless |
| Pláště | Giant CrossCut AT 2, 700x38c, tubeless |
| Doplňky | tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
| Hmotnost | Bohužel neexistuje žádný standard vážení kol, kterého by se drželi všichni výrobci, a uvedené hmotnosti jsou často nepřesné. Pro zjištění přesné hmotnosti kola v dané velikosti je třeba nechat kolo zvážit na prodejně a stejně tak i model konkurenční značky – jedině tak budete mít pro porovnání hmotností přesná čísla. |
