GIANT Revolt 1 Metal

10790111

Gravel bike

In stock Doprava at the latest. 12. 2. at your place
1 827,53 €
You have to choose the color You have to choose the size

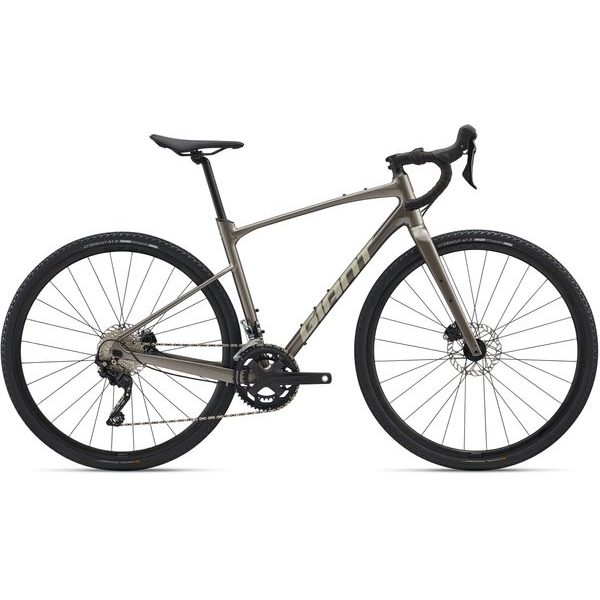

Revolt 1 Metal

Revolt 1 Metal

1 827,53 €

Ready to ride

The bike is always professionally tuned and ready to go.

We will be happy to advise you

We provide expert advice on selection and configuration.

Free warranty inspection

Free warranty inspection after driving 200–500 km

Official TREK Store

Lifetime warranty on the frame, Crash Replacement, Carbon Care.

Detailed description
Components
Specifications
Brand

The versatile and comfortable Revolt gravel bike will be the perfect companion for exploring roads and trails you've always thought about but never ridden. Its comfortable aluminium frame with carbon fork provides the option of changing wheelbase as well as the option of a telescopic seatpost.

The lightweight ALUXX aluminium frame combined with an all-carbon fork delivers the perfect balance of stiffness for maximum pedalling efficiency and compliance for high comfort. The geometry combines an endurance riding position with a shorter rear structure for precise handling, agility and perfect bike control. Longer reach, shorter stem and lower centre improve stability in rougher terrain.

ALUXX Aluminum Technology
The performance-focused frame material features 6061 alloy with single reinforced tubing. It is used to produce strong and lightweight framesets for a variety of bike types and riding styles.

Giant Tubeless System
Fewer flats. Better tire grip. Less rolling resistance, more comfortable and faster ride. With Giant's tubeless system, you can enjoy all these benefits. The rims come with tubeless tape and valves from the factory, so all you have to do is apply sealant and your wheels are fully ready for tubeless.

D-Fuse Technology
The D-Fuse saddle and handlebars work together as a system to dampen vibration and absorb shock from different riding surfaces to make your ride more comfortable and efficient. Thanks to the specific "D" shape, the seatpost and handlebars spring slightly under load without sacrificing stiffness in corners, on climbs or when riding from the saddle.

Overdrive
The oversize front fork post technology is designed to increase the stiffness of the front of the frameset and steering for precise bike handling. It includes oversize headset bearings (lower 1 1/4" and upper 1 1/8" on road bikes and lower 1 1/2" and upper 1 1/8" on MTB bikes) and a tapered fork post for optimal steering stiffness.

Flip Chip Rear Footpegs
The flip chip system are eccentric two-position inserts in the rear footpegs of the frame that allow you to easily change the wheelbase. A shorter wheelbase gives a more "agile" wheel, and setting it to a longer wheelbase improves stability at higher speeds while increasing rear tire space (up to 53mm wide). For more information, please see the link below.

The frame has smaller diameter seatstays positioned lower for even better shock and vibration absorption. The specially shaped D-Fuse seatpost and Contact XR D-Fuse handlebars also help to improve comfort - both work together as a system and spring slightly under load, but without reducing stiffness when cornering, climbing or riding out of the saddle.

The rear stays allow you to change the wheelbase thanks to the flip chip system. A shorter wheelbase gives a more agile bike, and setting it to a longer wheelbase improves stability at higher speeds, while increasing rear tire space (up to 53 mm). The frame also allows you to choose the type of seatpost - either the Giant D-Fuse "spring" seatpost or the standard 30.9 mm round seatpost can be used, i.e. telescopic.

Founded in 1972, Giant is the largest bicycle manufacturer in the world.

Giant is the world's leading brand of high quality bicycles and cycling equipment. As part of the Giant Group, founded in 1972, the Giant brand combines craftsmanship, advanced technology and innovative design.

Giant has long been one of the leading innovators in cycling. They introduced lighter and stronger aluminium frames at a time when steel was the industry standard. They were the first to make carbon fibre bikes widely available to the world. They defined modern road bike design with Compact Road geometry. And the patented Maestro suspension revolutionized the full-suspension bike segment.

colour: grey
Material: Aluminium
Code:10790111
Brand: GIANT
SizesXS, S, M, M/L, L, XL
ColorMetal/Shoreline, Pale Olive
FrameALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HandlebarGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Gripscork tape with gel
StemGiant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 90 mm
SeatpostGiant D-Fuse, alloy, 14 mm offset
SaddleGiant Approach
ShiftersShimano GRX RX-400, 2x10
Front derailleurShimano Tiagra
Rear derailleurShimano GRX RX-400
BrakesShimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake leversShimano GRX RX-400 hydraulic
CassetteShimano HG500, 11x34
ChainKMC X10 with Missing Link
CranksFSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracketFSA Mega EXO
RimsGiant S-X2 Disc wheelset, alloy
HubsGiant alloy, 12mm thru-axle
Spokesstainless
TiresGiant CrossCut AT 2, 700x38c, tubeless
Accessoriestubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
WeightUnfortunately, there is no standard for weighing bikes that all manufacturers adhere to, and the weights listed are often inaccurate. To find out the exact weight of a bike in a given size, you need to have the bike weighed at the store, as well as a model from a competing brand – this is the only way to get accurate figures for weight comparison.
