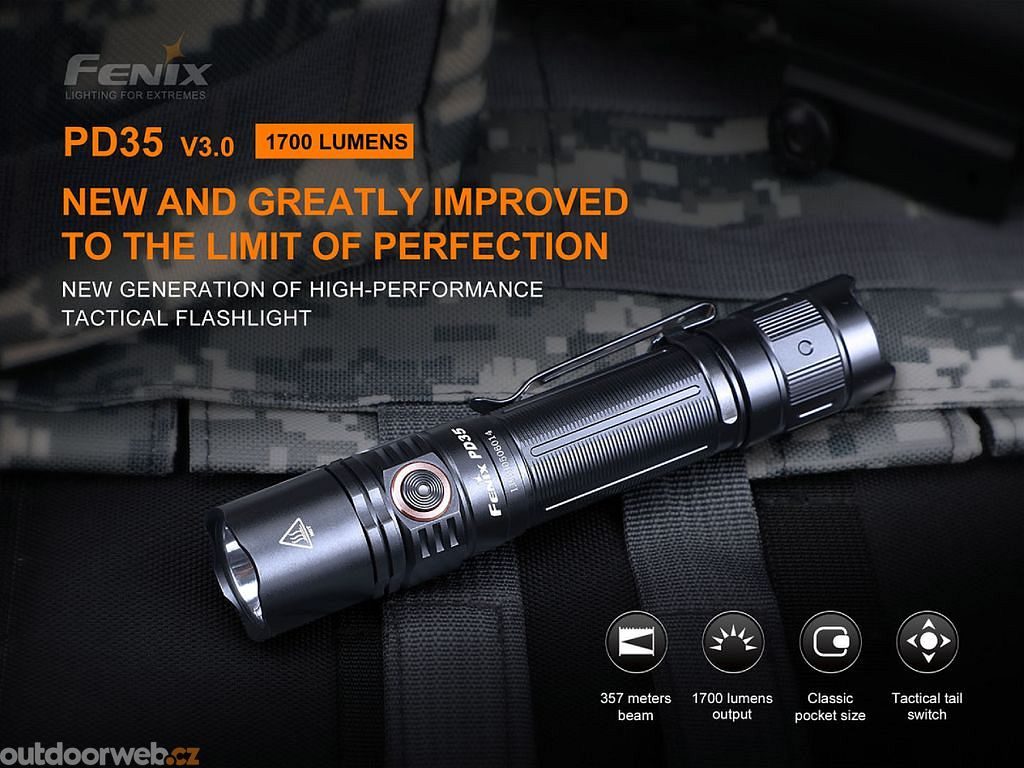

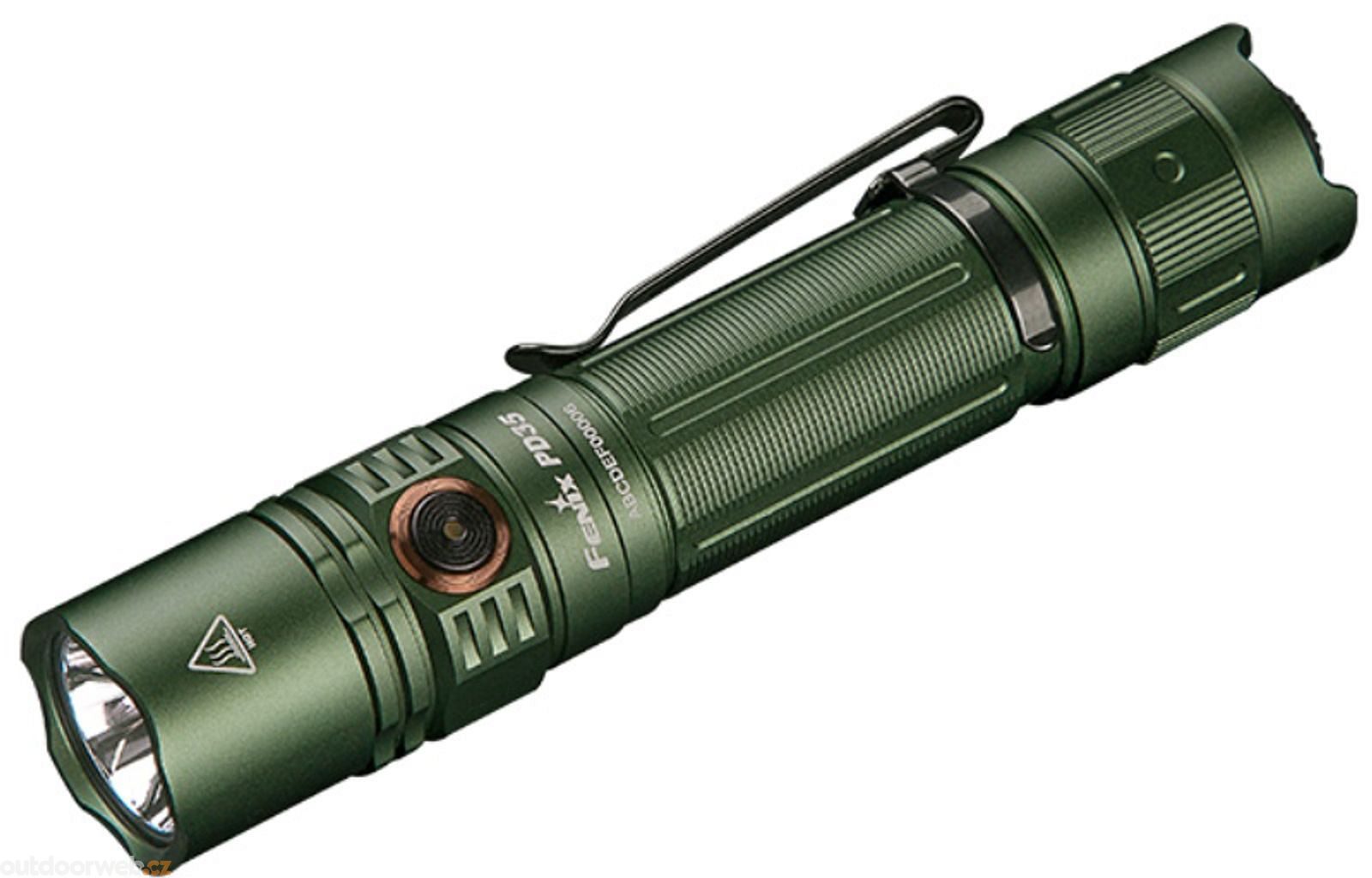

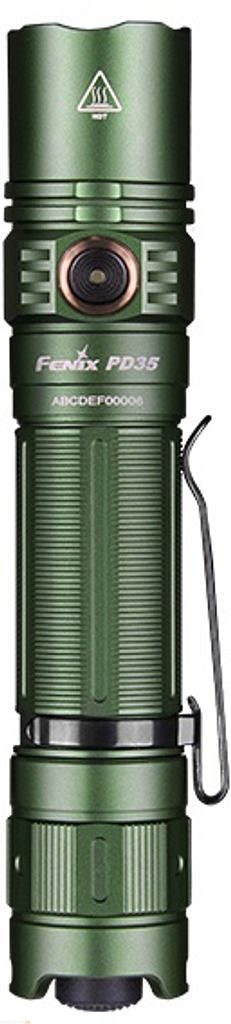

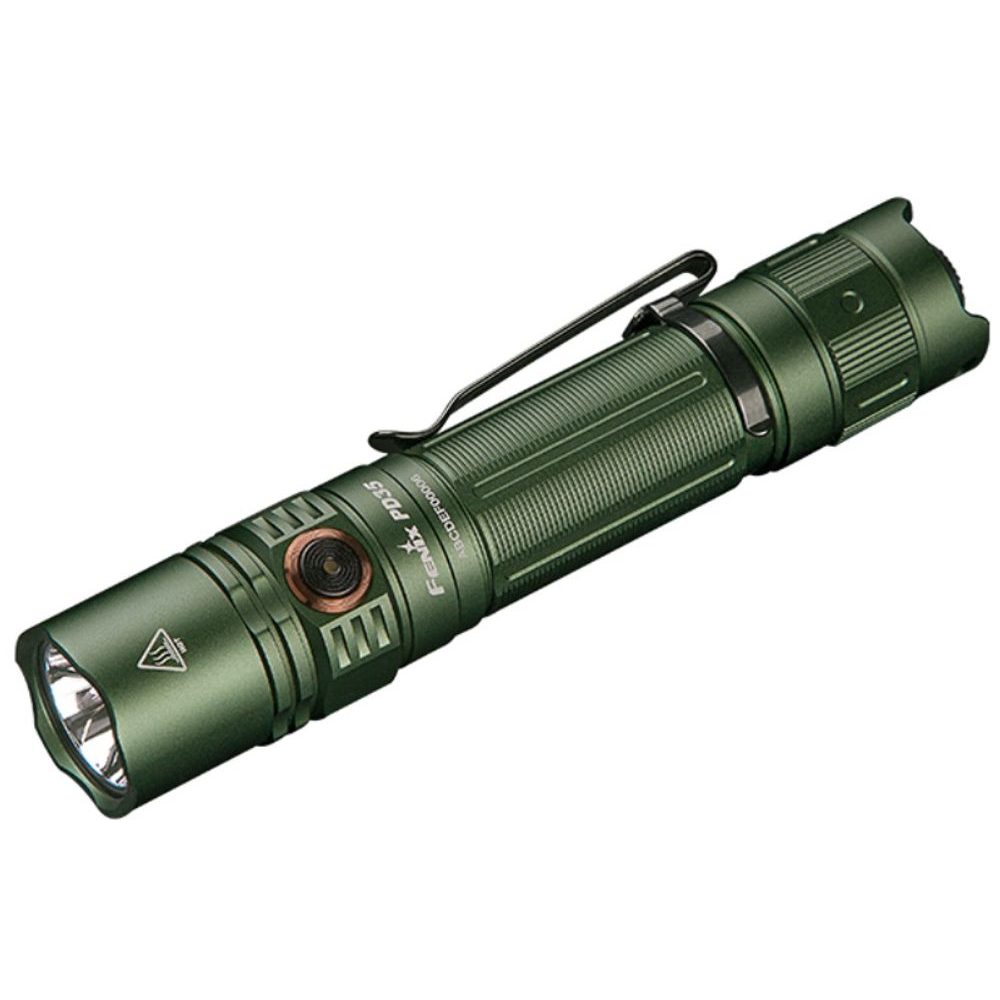

The latest generation of the high-performance Fenix PD35 V3.0 pocket flashlight delivers up to 1700 lumens (ANSI) and a range of up to 357 meters. Excellent light output has been achieved using the latest Luminus SFT-40 LED. The flashlight is powered by a Li-ion 18650 2600 mAh battery (included), with its own micro-USB charging connector.

The Fenix PD35 V3.0 has six different light modes, allowing you to choose between high power and long lasting, up to 230 hours. One of the light modes is a strobe, which is suitable for emergency situations. The flashlight is powered by a digitally regulated constant current to guarantee a constant light output even when the voltage in the batteries is reduced (when they are slowly discharging), when it is also equipped with an indication of the state of charge of the batteries.

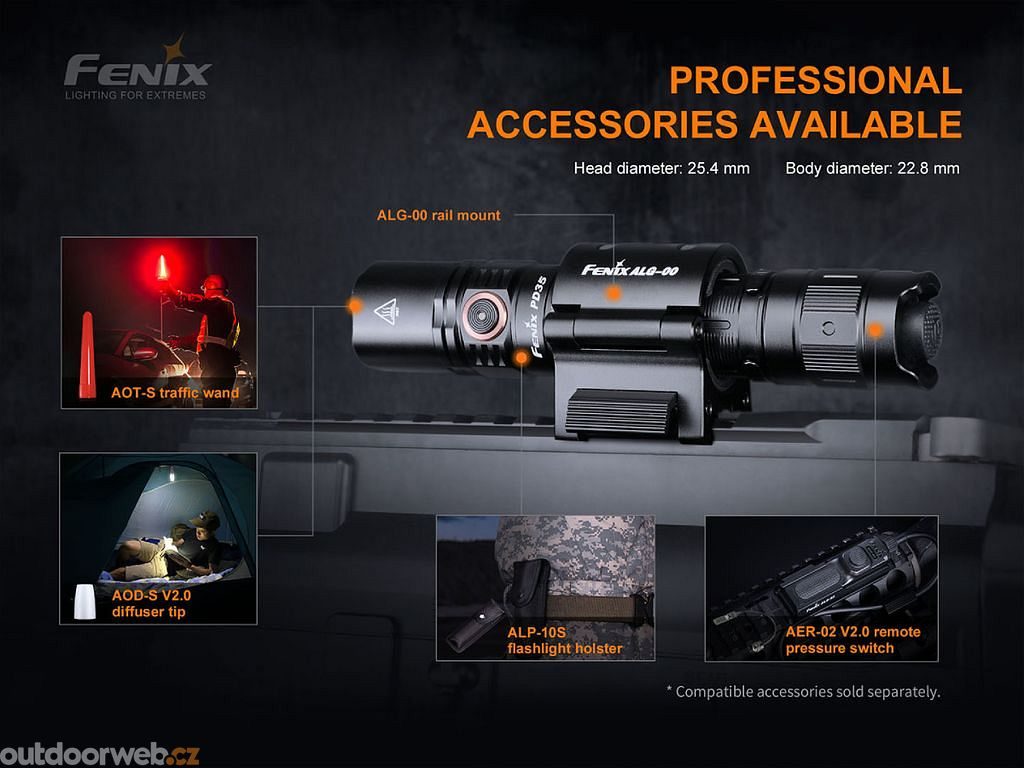

The PD35 V3.0 impresses not only with its small size and high power, but also with its tactical switch and the possibility of attaching the Fenix AER-02 cable switch. We can therefore recommend it not only for all outdoor enthusiasts, but it will certainly find use in security forces and hunting.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009 standard.

Package contents: flashlight, wrist lanyard, belt pouch, replacement o-rings, Fenix 18650 2600 mAh battery with USB and micro USB charging cable.

Warranty: five years on flashlight, two years on battery

• A high-performance Luminus SFT-40 LED with a lifetime of 50,000 hours is used.
• Six lighting modes
• Luminous flux and run times are measured with a Fenix 18650 rechargeable Li-ion battery with a capacity of 2600mAh(included).
• Digitally regulated for constant brightness, intelligent overheat protection.
• Power supply: one 18650 Li-ion battery or two disposable CR123A batteries.
• Supported supply voltage 2.8-6.4V, low battery warning.
• Due to the mechanical protection against reverse polarity , the battery must have a protruding positive terminal. Older Fenix batteries with a flat plus pole can therefore not be used.

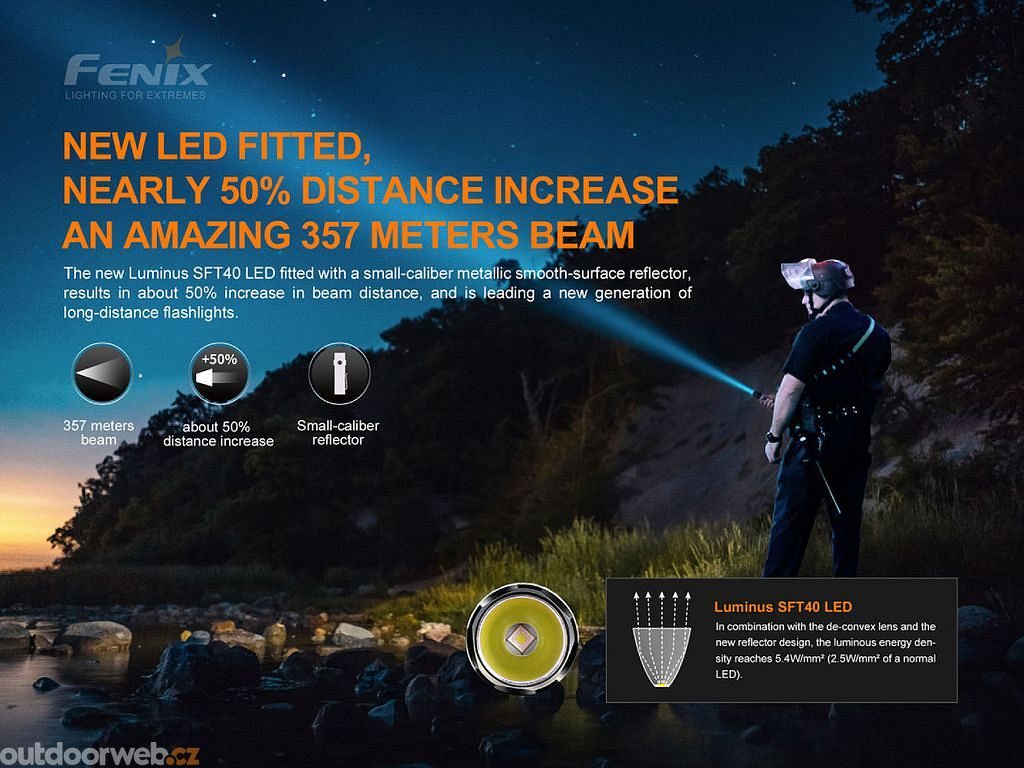

• Smooth parabolic reflector for light cone with a range of 357 metres (31900 cd).
• The flashlight has memory and always turns on in the last set mode (not valid for strobe).
• The LED indicator in the side button always displays the battery charge status when the flashlight is turned on (calibrated to use 18650 Li-ion batteries).
• Odd-numbered threads with increased wear resistance.
• Durable surface - Type III hard anodized.
• Shock resistant to drops from a height of 1 metre.

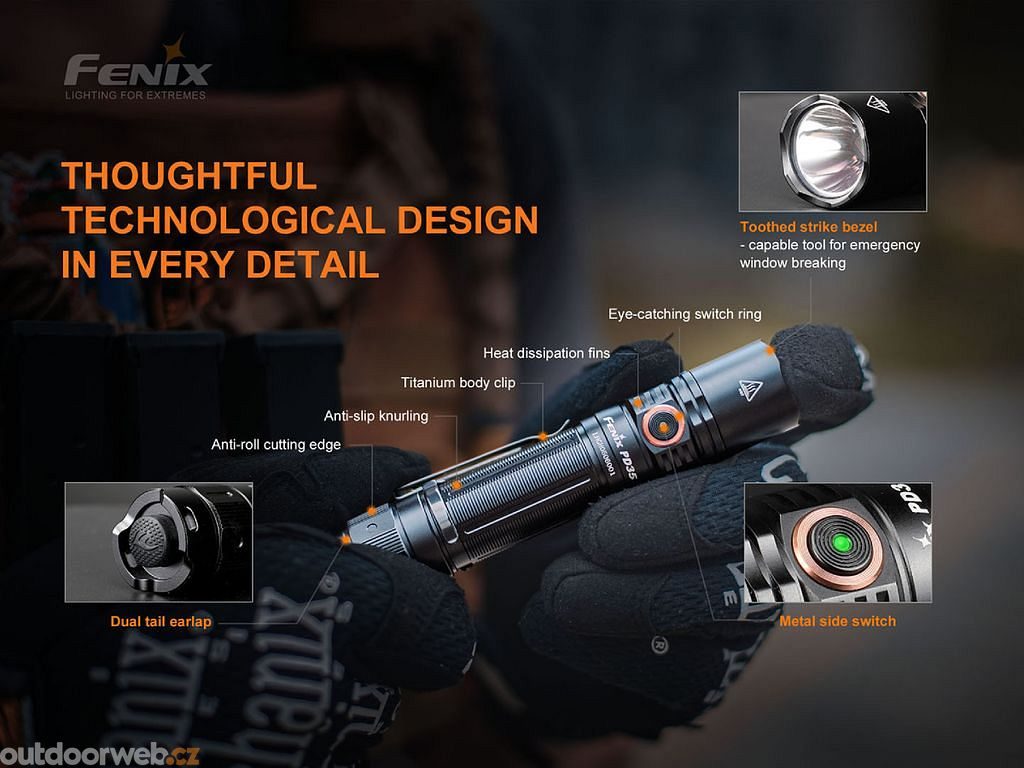

• Distinctive surface grooves for better grip, design prevents the flashlight from rotating on uneven surfaces.
• Waterproof and dustproof to IP68 standard (tested underwater at 2 metres for 30 minutes).
• Removable steel clasp.
• Tempered ultra clear glass lens with anti-reflective surface.
• Tactical switch at the end of the flashlight (momentary on/off function).

Lighting modes:

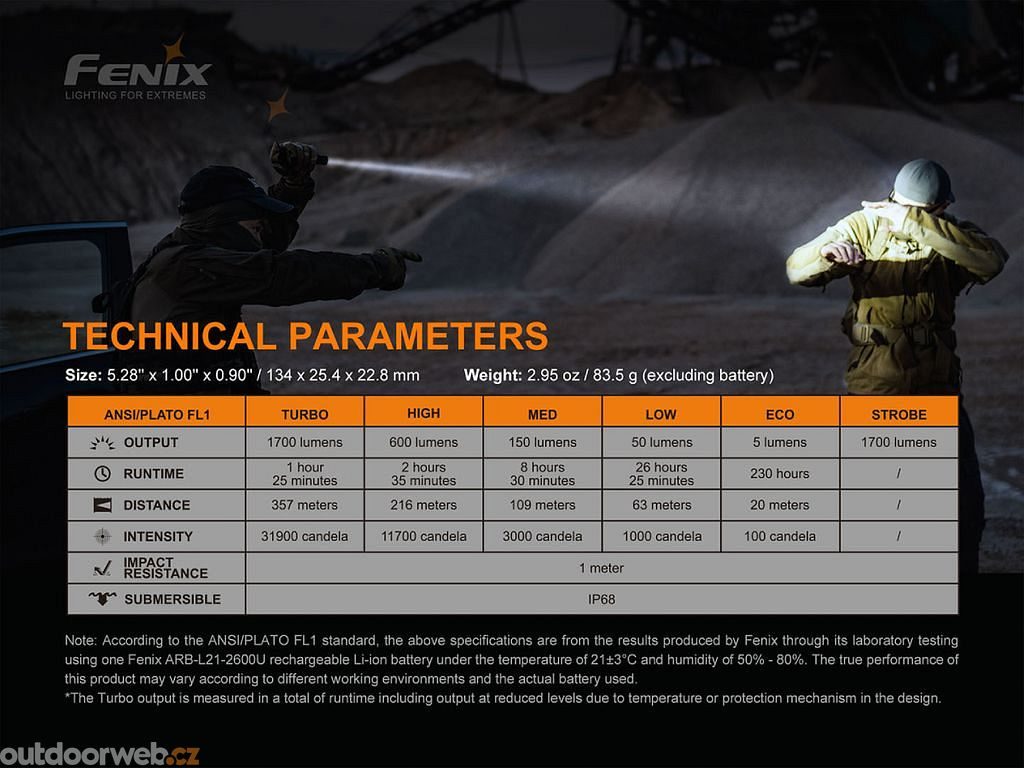

Turbo 1700 lumens (1.5 hours) -> 600 lumens (2.5 hours) -> 150 lumens (8.5 hours) -> 50 lumens (26.5 hours) -> 5 lumens (230 hours) - Strobe 1700 lumens (variable frequency strobe).

Luminous flux: 1700 lm
Range: 357 m

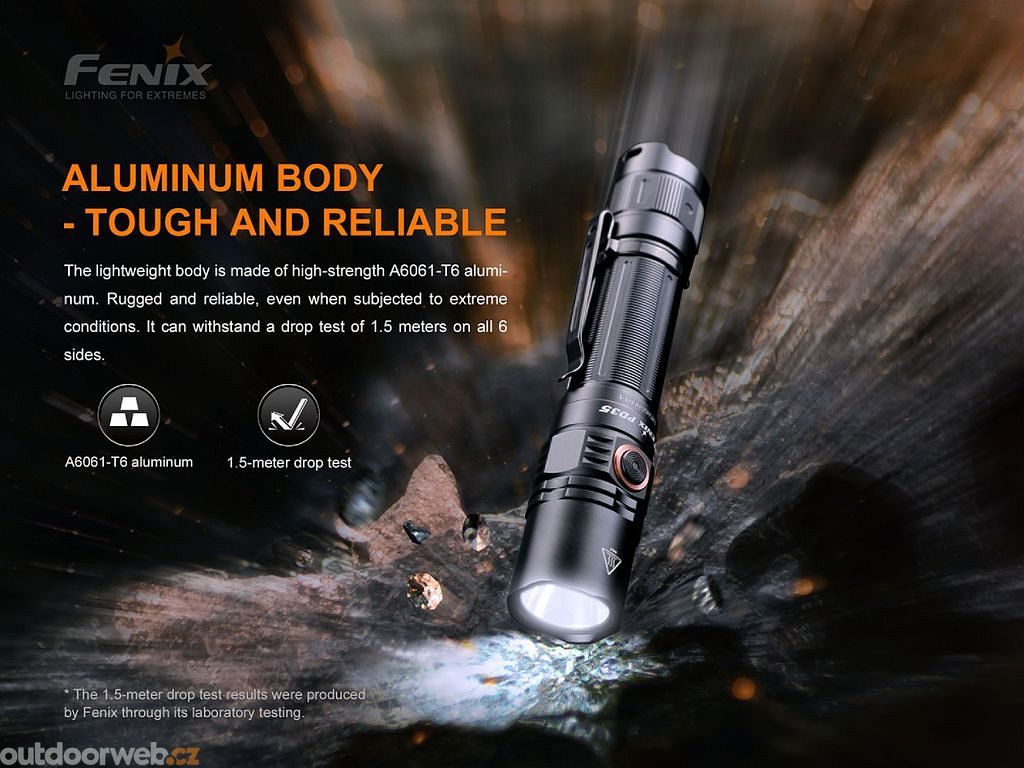

Material: aerospace hardened aluminum

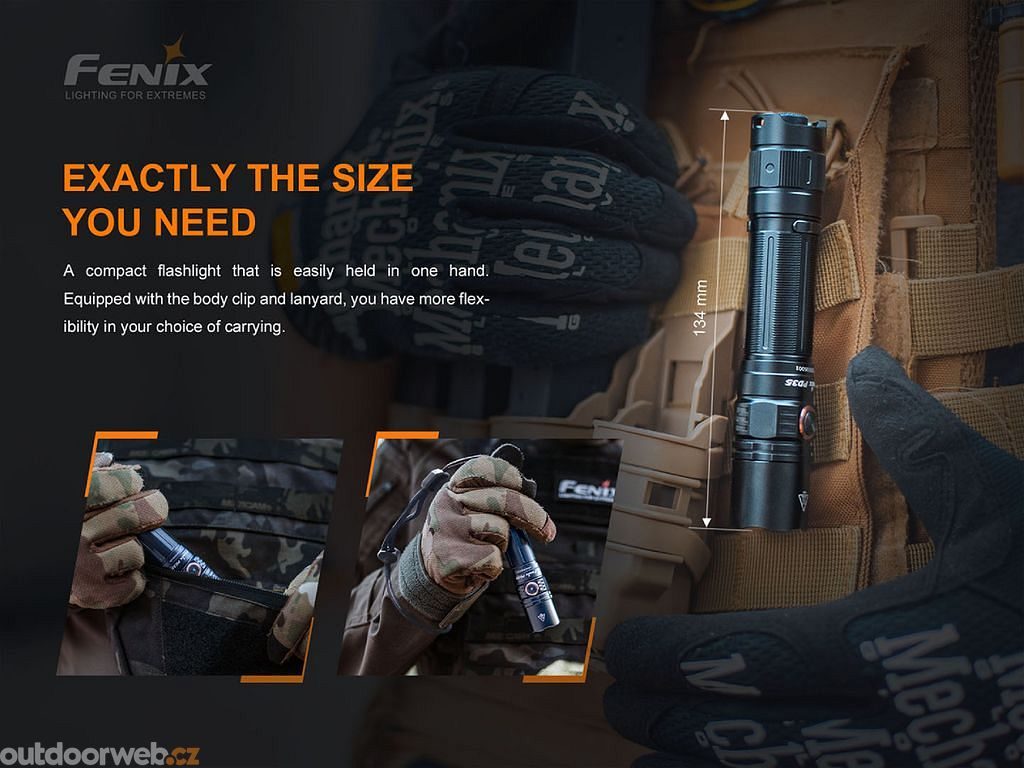

Dimensions: 13.4 cm (length) x 2.28 cm (body diameter) x 2.54 cm (head)
Weight: 83.5 grams (without battery) or 133.5 grams (including battery).

Usage
There may be a black insulating cap inside the flashlight on the battery pack from the factory. Remove it from the battery pack before first use.

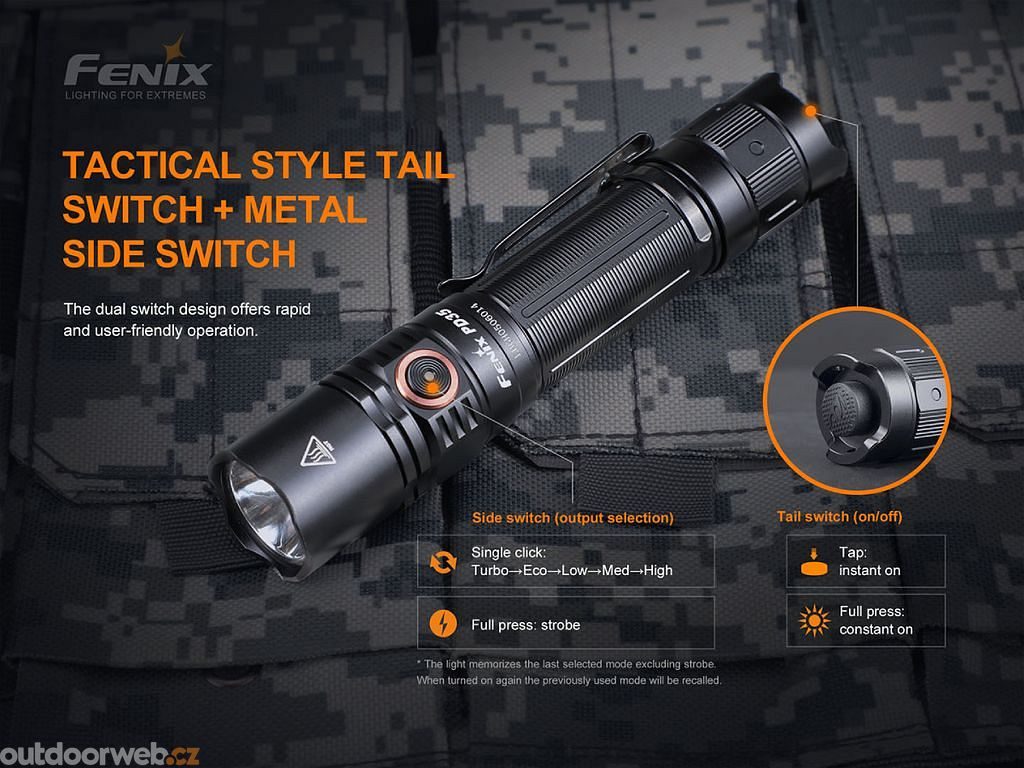

To turn on, press the switch located at the end of the flashlight, press the button for immediate activation. Press the side button at the head of the flashlight to cycle through the five permanent light modes at any time during operation. To switch to strobe mode, hold the side button for approximately 0.5 seconds.
Intelligent overheat protection - if the flashlight temperature rises above 60°C, it will automatically begin to reduce power in gradual steps until the temperature stabilizes. As soon as the flashlight temperature drops below 60°C, the power will automatically increase again to the original level.
Battery charge indication - each time the flashlight is switched on, the indicator LED in the side button of the flashlight is activated for three seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing indicates 50-85% capacity. If it glows red, it is 25-50% charged. Red flashing indicates less than 25% battery capacity remaining (only works when using a 18650 Li-ion battery).
Low Battery Warning - the flashlight will automatically switch to the lowest mode over time, then in the lowest mode the indicator LED in the button will flash red three times every 10 minutes. This indicates the need to recharge the battery or replace it with a fully charged one.
Charging - Plug the USB cable into the side micro-USB connector on the battery pack, the indicator light on the top of the battery pack glows red during charging. When the battery reaches full charge, it will glow green or blue. Charging time for a fully discharged battery is 3-3.5 hours.

Caution
Do not disassemble the sealed parts in the flashlight head yourself, it will violate the warranty.
Use only a high quality 18650 Li-ion battery or 3V CR123A battery to avoid damaging the flashlight.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher modes, or does not light up, it may be due to one of the following reasons:
- The batteries are almost dead - charge the battery or replace it.
- The contacts inside the flashlight are clogged - clean them with a sponge dipped in alcohol.
- The head, body or back of the flashlight is loose - add lubricant to the sealing rings and tighten both the head and the end of the flashlight firmly.
