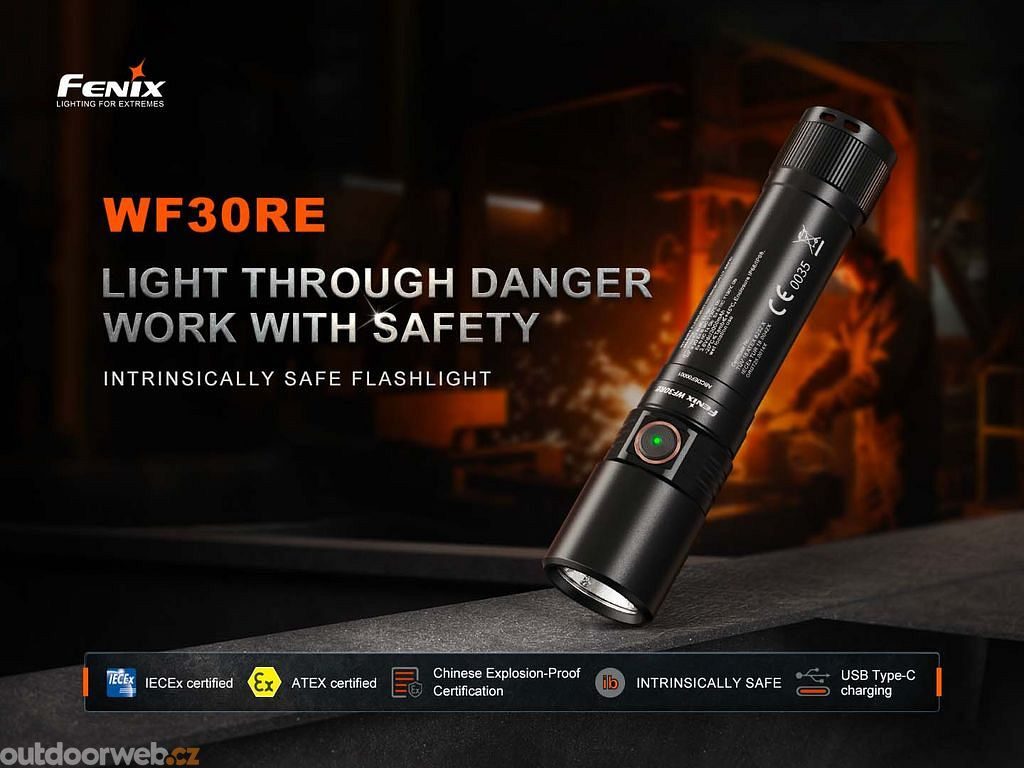

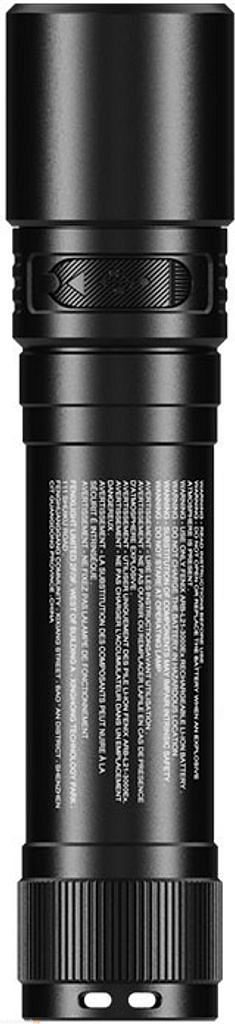

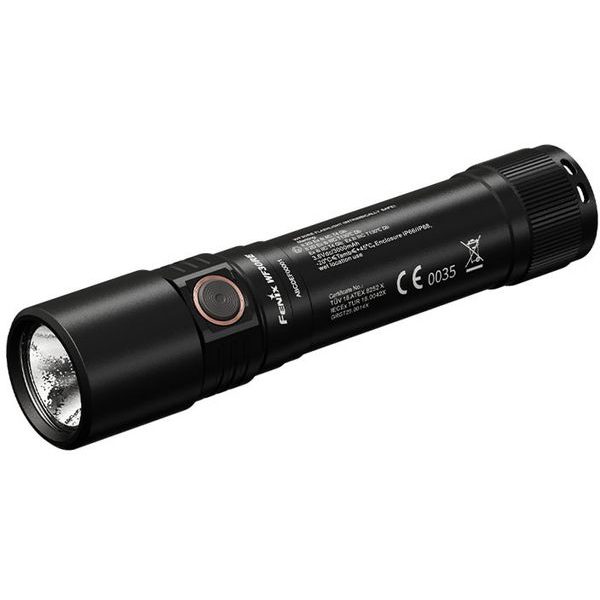

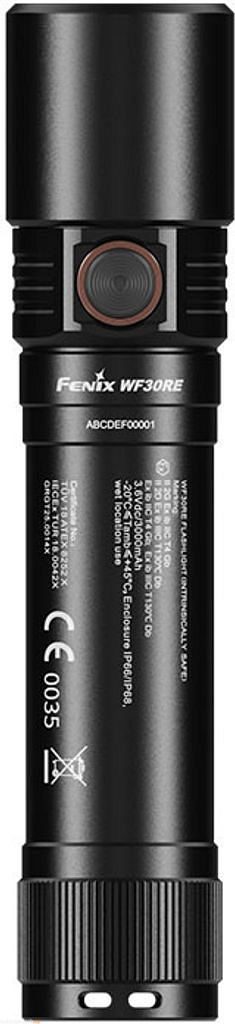

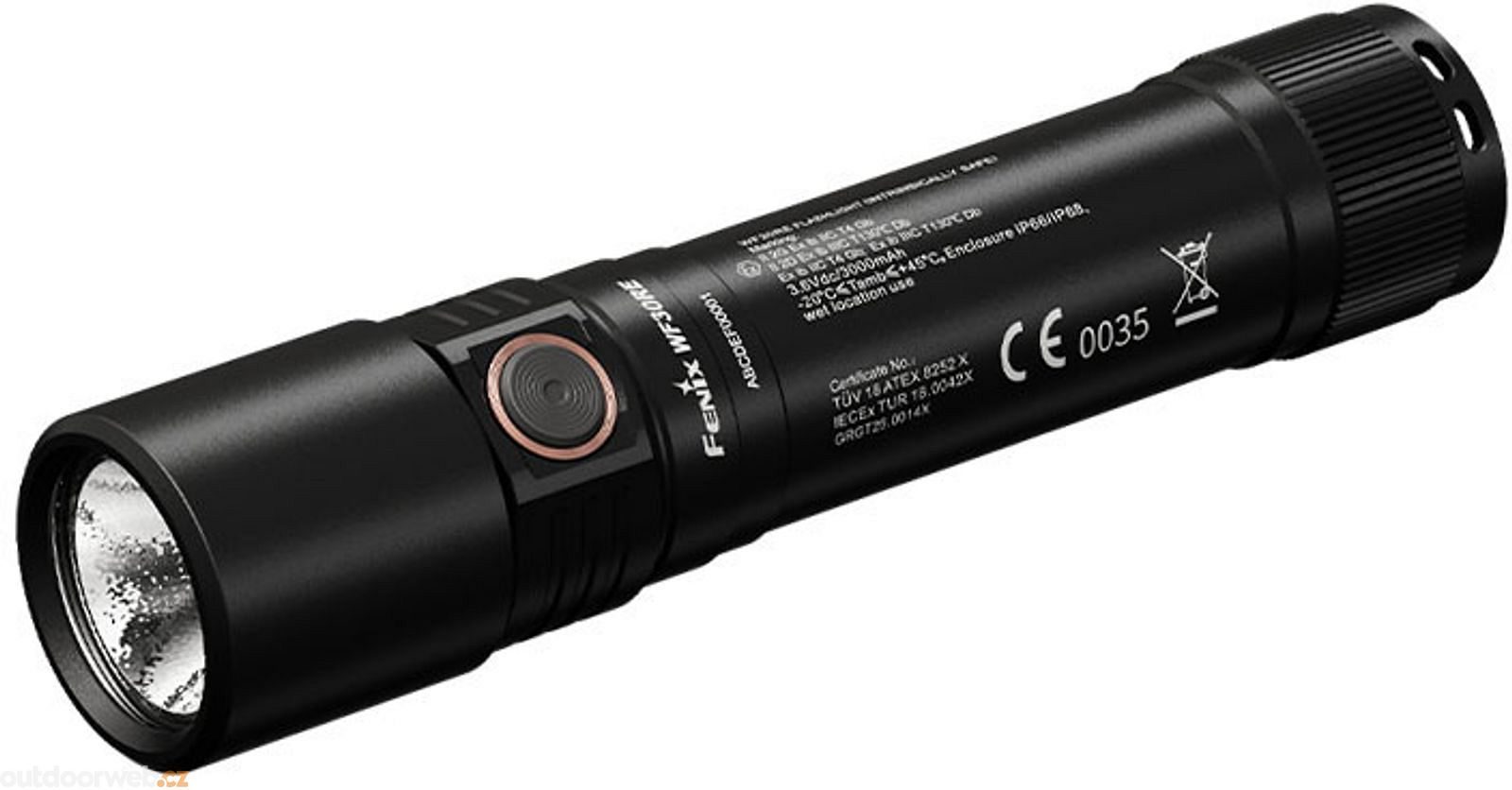

The Fenix WF30RE is a professional rechargeable torch designed for work in environments where there is a risk of explosion – it meets strict ATEX and IECEx certifications, making it an ideal tool for firefighters, rescuers and industrial workers. With a light output of up to 300 lumens and a beam distance of 149 metres, it provides reliable, powerful illumination even in the most demanding conditions.

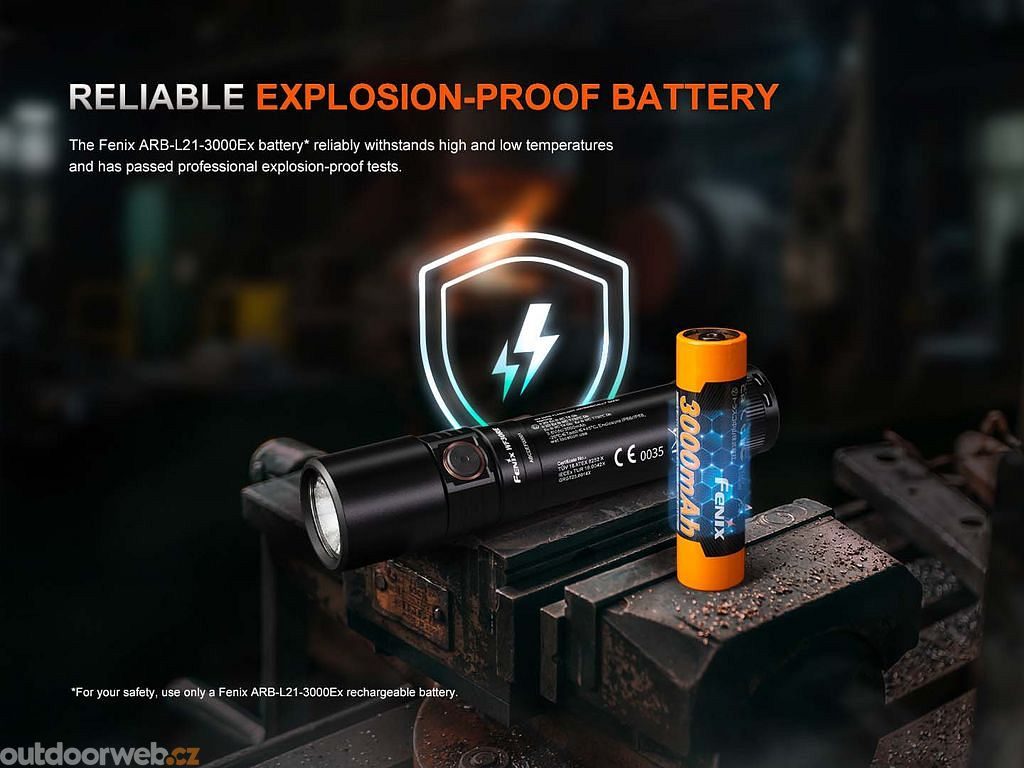

The torch is powered by a specially certified ARB-L21-3000Ex Li-ion rechargeable battery with a capacity of 3000 mAh, which can be conveniently recharged directly in the torch via the USB-C connector. The body is made from A6061-T6 aerospace aluminium with a Type III hard-anodised finish, so it withstands impacts, dust and immersion to a depth of 2 metres.

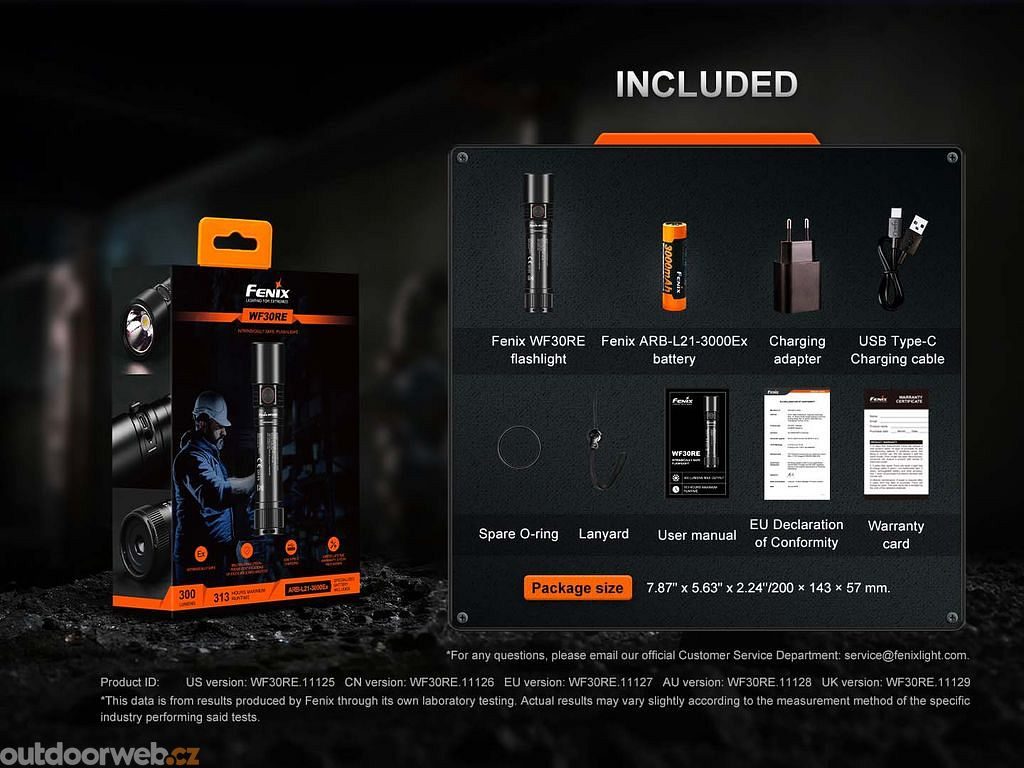

Package contents: torch, ARB-L21-3000Ex battery, USB adaptor, USB-C cable, spare O-ring, wrist lanyard, EU declaration of conformity, user manual, warranty card

Warranty: five years for the torch, two-year warranty for the battery

1. Certified safety for explosive environments

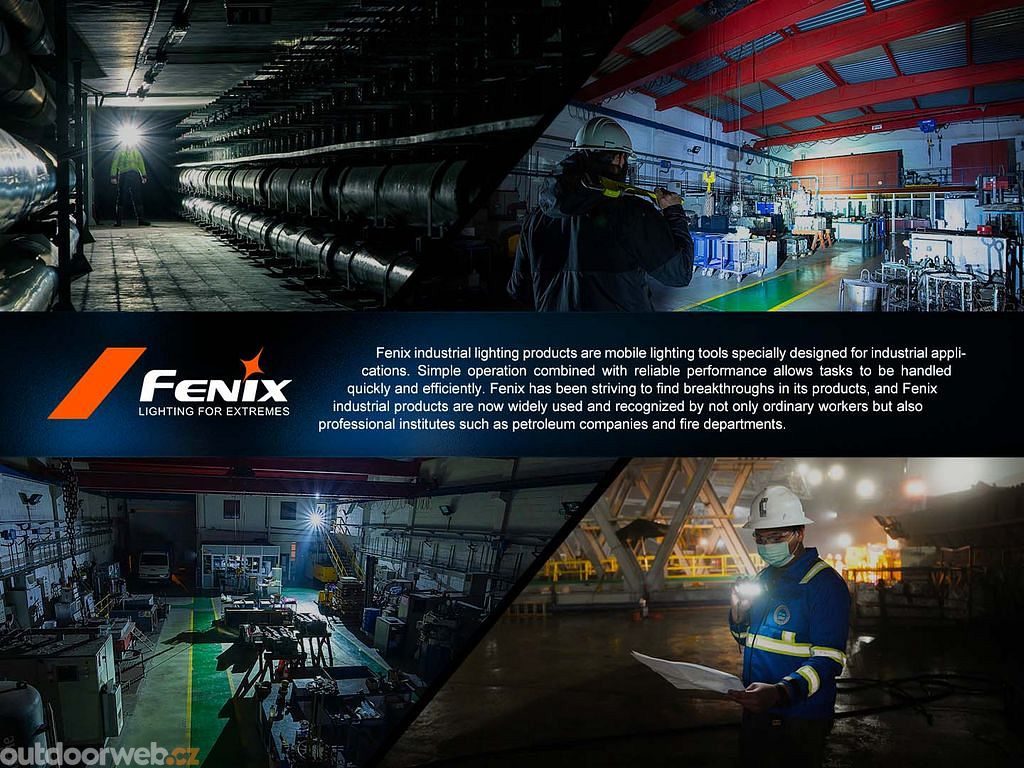

   The Fenix WF30RE meets internationally recognised ATEX, IECEx, CSA, NEPSI and GRGT certifications, authorising use in zones 1–2 for explosive gases and zones 21–22 for explosive dust, making it a reliable helper in chemical plants, refineries, mills, paper mills, metallurgical operations and power stations.
2. Long runtime and intelligent power management
   Five output modes – from 300 lumens with a runtime of 7.3 hours down to an economical 5 lumens with a runtime of over 313 hours – combined with deep-discharge protection and automatic step-down to a lower mode ensures the torch will operate reliably throughout a full shift and beyond.

• ATEX, IECEx, CSA, NEPSI, GRGT certifications
• Light output up to 300 lumens, beam distance 149 m
• 5 output modes including SOS
• Cree XP-G3 LED, 50,000-hour lifespan
• ARB-L21-3000Ex battery, 3000 mAh capacity
• Charging directly in the torch via USB-C

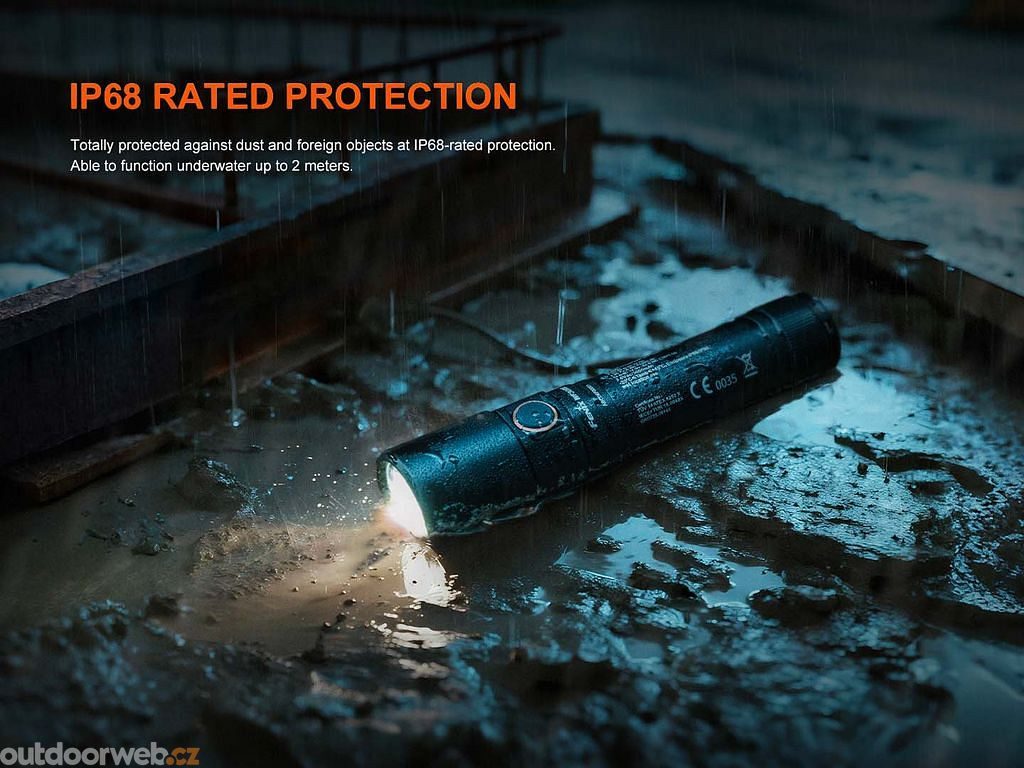

• IP68 waterproofing, submersible 2 m / 30 minutes

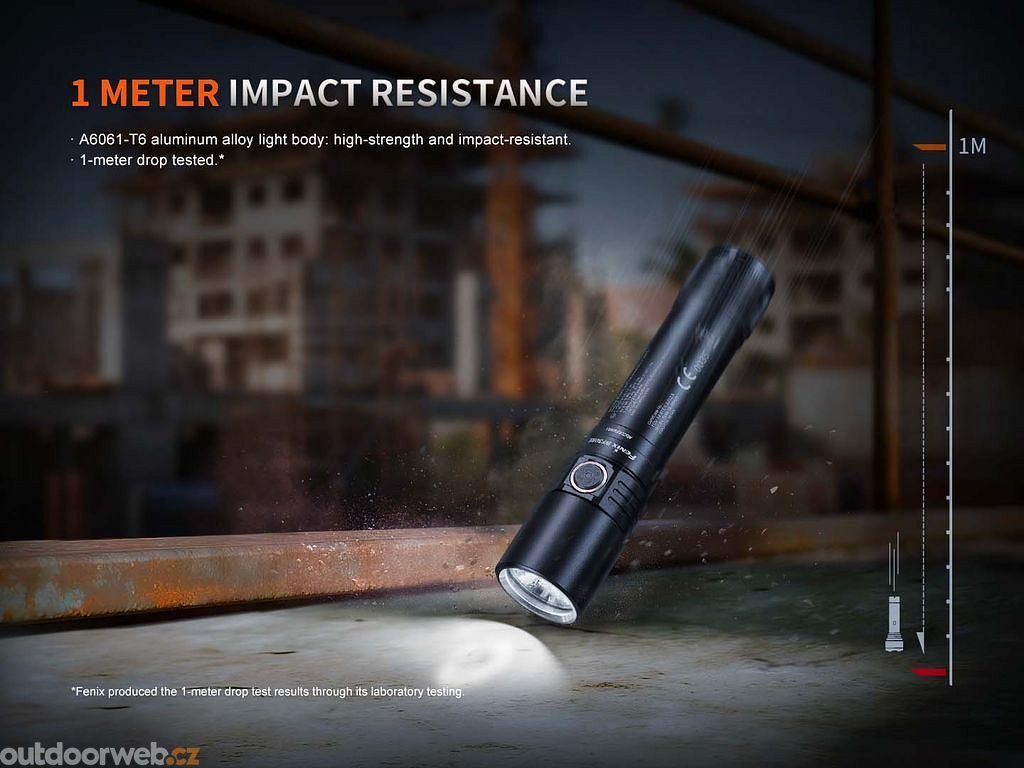

• Impact resistant, drops from 1 metre
• A6061-T6 aerospace aluminium, hard-anodised finish
• Last-used mode memory
• Battery charge status indication
• Weight only 218 g including battery
• Compatible with the Fenix ALD-05 helmet strap

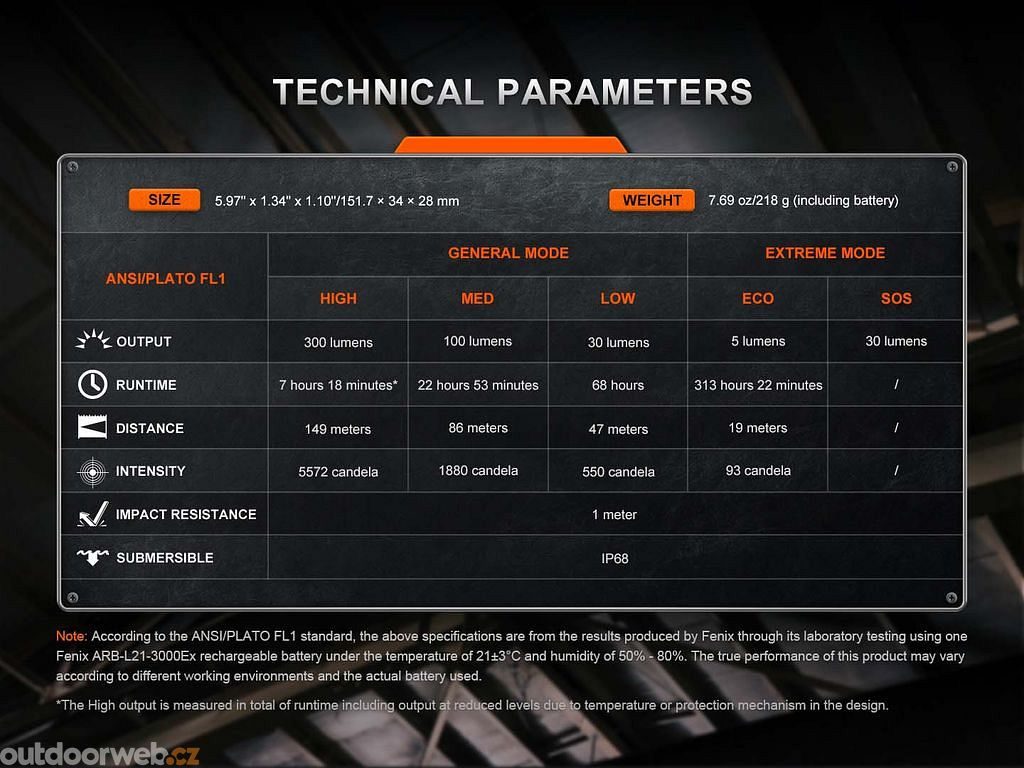

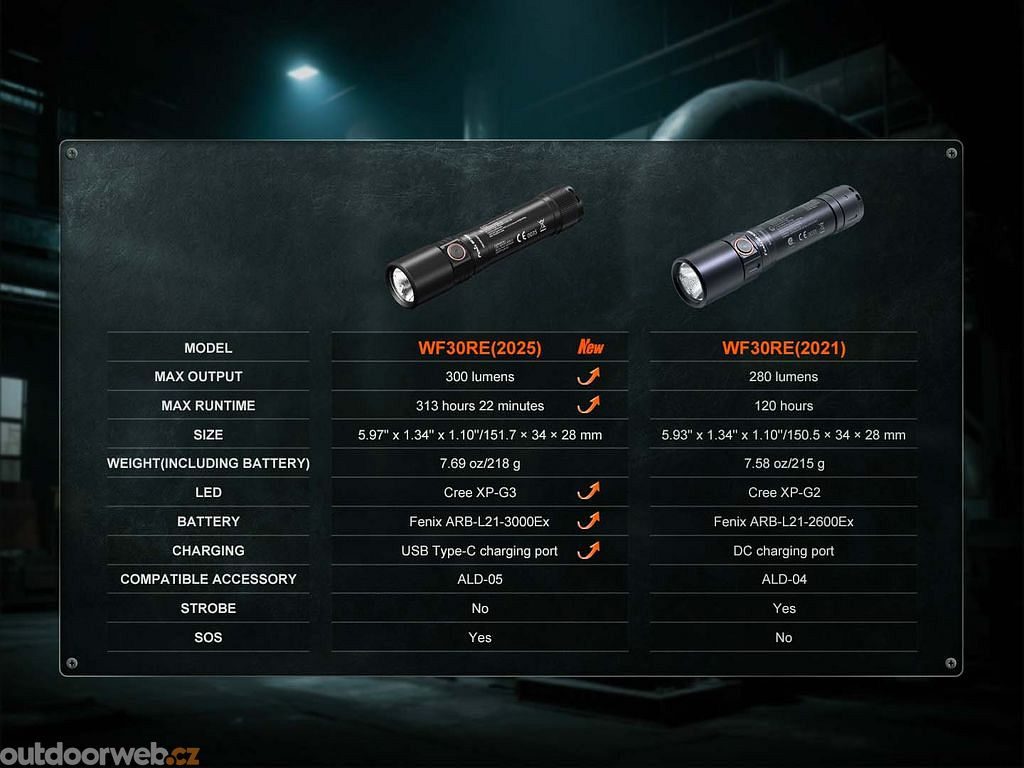

Specifications:

Light output: 300 / 100 / 30 / 5 lm + SOS (30 lm)
Beam distance: 149 m (5572 cd)
Runtime: 7.3 h / 22.8 h / 68 h / 313.3 h
Light source: Cree XP-G3, neutral white (4000–5000 K)
Power: 1× Fenix ARB-L21-3000Ex (3000 mAh, Li-ion)
Charging: USB-C connector directly in the torch
Waterproof rating: IP68 (submersible 2 m / 30 min)
Impact resistance: 1 m drop
Body material: A6061-T6 aerospace aluminium, Type III hard anodised
Dimensions: 151.7 mm (length) × 34 mm (head diameter) × 28 mm (body diameter)
Weight: 218 g (including battery)
Certifications: ATEX TÜV 18 ATEX 8252X, IECEx TUR 18.0042X, CSA, NEPSI, GRGT
Certified zones: 1–2 (explosive gases), 21–22 (explosive dust)

Operation:

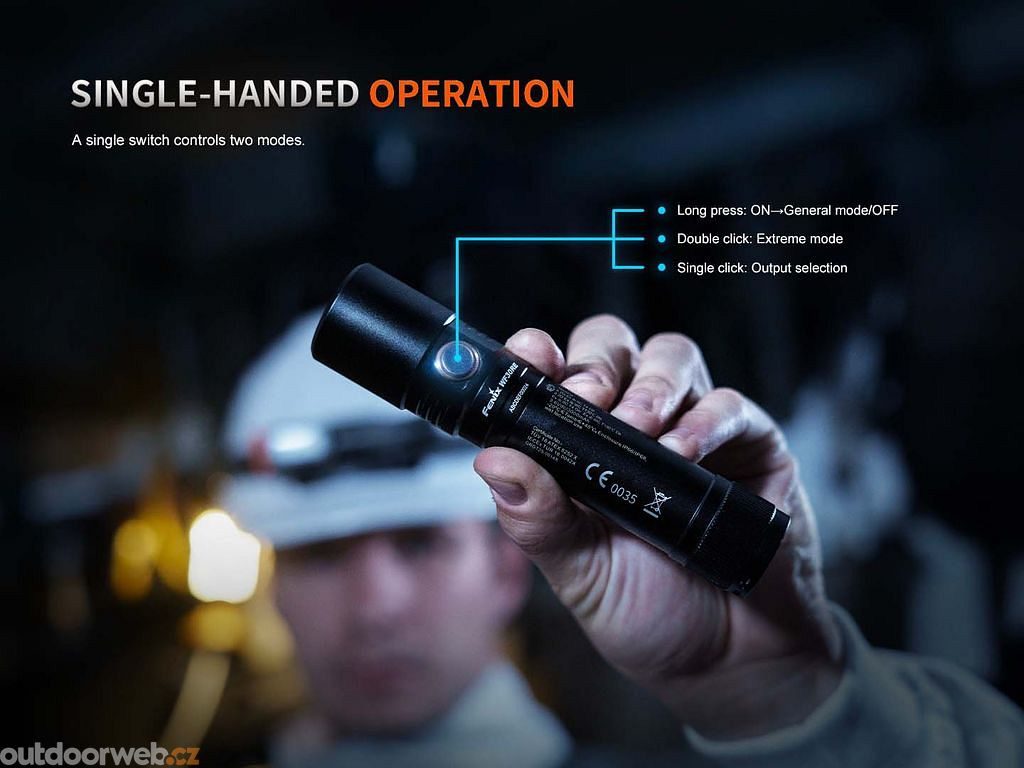

With the torch switched off, press and hold the switch for 0.5 seconds to turn on in the last-used regular output mode (General mode). With the torch switched off, quickly press the switch twice to turn on in the emergency 5-lumen mode (Extreme mode). You can switch output modes at any time during operation by pressing the side button within the selected group of modes. With the torch switched on, press and hold the switch for 0.5 seconds to switch off.
Battery charge status indication – press the torch button (with the torch switched off). If the indicator LED lights green, the battery is charged to more than 85%. Flashing green means 50–85% capacity. If it lights red, it is charged to 25–50%. Flashing red indicates less than 25% battery capacity remaining.
Low battery warning - the torch will gradually automatically switch to the lowest mode and the indicator in the button will start flashing red.

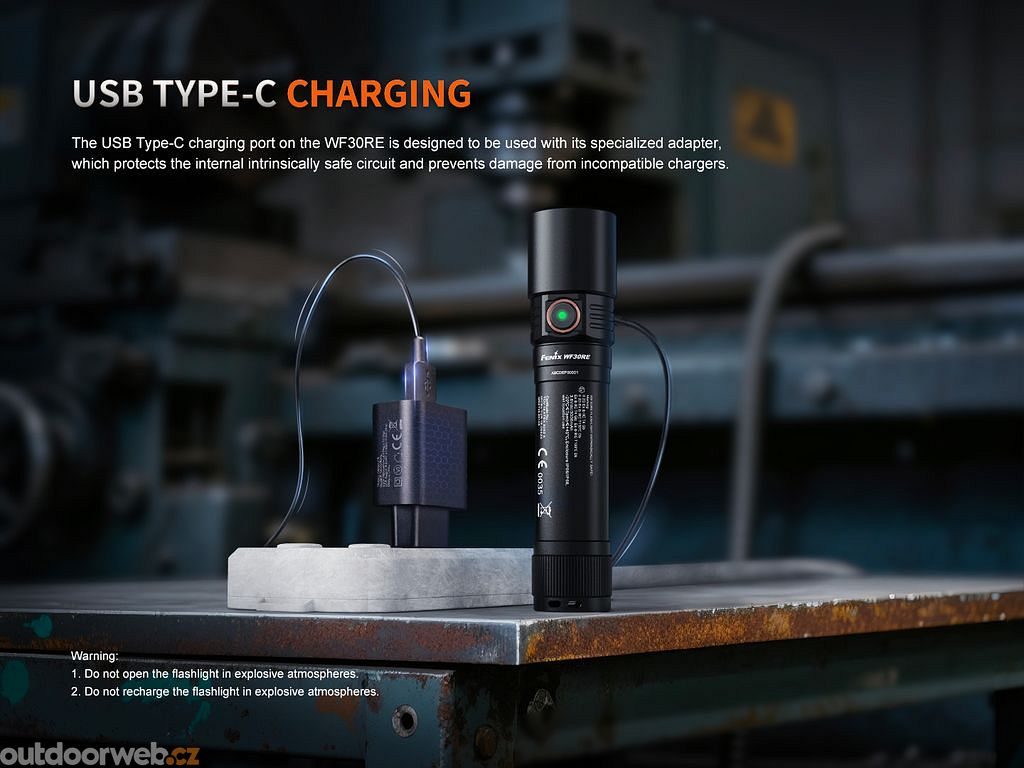

Charging - Lift the dust cover and plug the USB-C charging cable into the charging port. After charging is complete, fit the dust cover back in place. During charging, the indicator in the button lights red. When fully charged, it lights green. Do not charge the torch in an explosive environment. When charging, use the supplied charging USB adaptor to ensure safety.
To replace the battery, unscrew the torch tailcap using an Allen key with a diameter of 8 mm. Never replace the battery in an explosive environment.

Warning
Carry out all servicing, charging and battery replacement outside explosive environments!
Use only the manufacturer-certified Fenix battery.
If the sealing rubber O-ring on the torch cap thread is damaged, replace it with the spare included with the torch.
If the torch flashes, does not switch to higher output modes or does not turn on, it may be due to one of the following reasons:
- The battery is discharged; recharge it or replace it.
