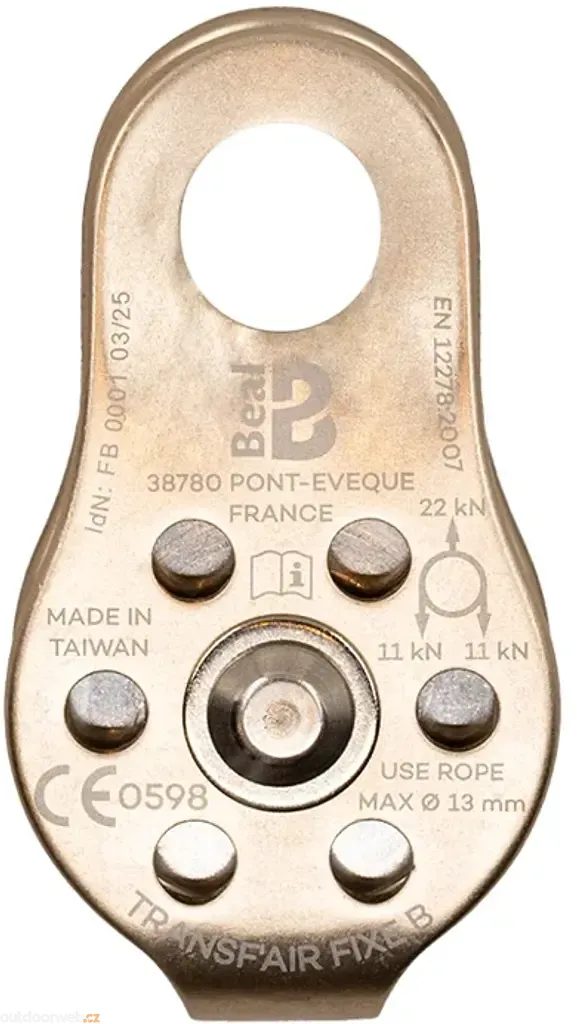

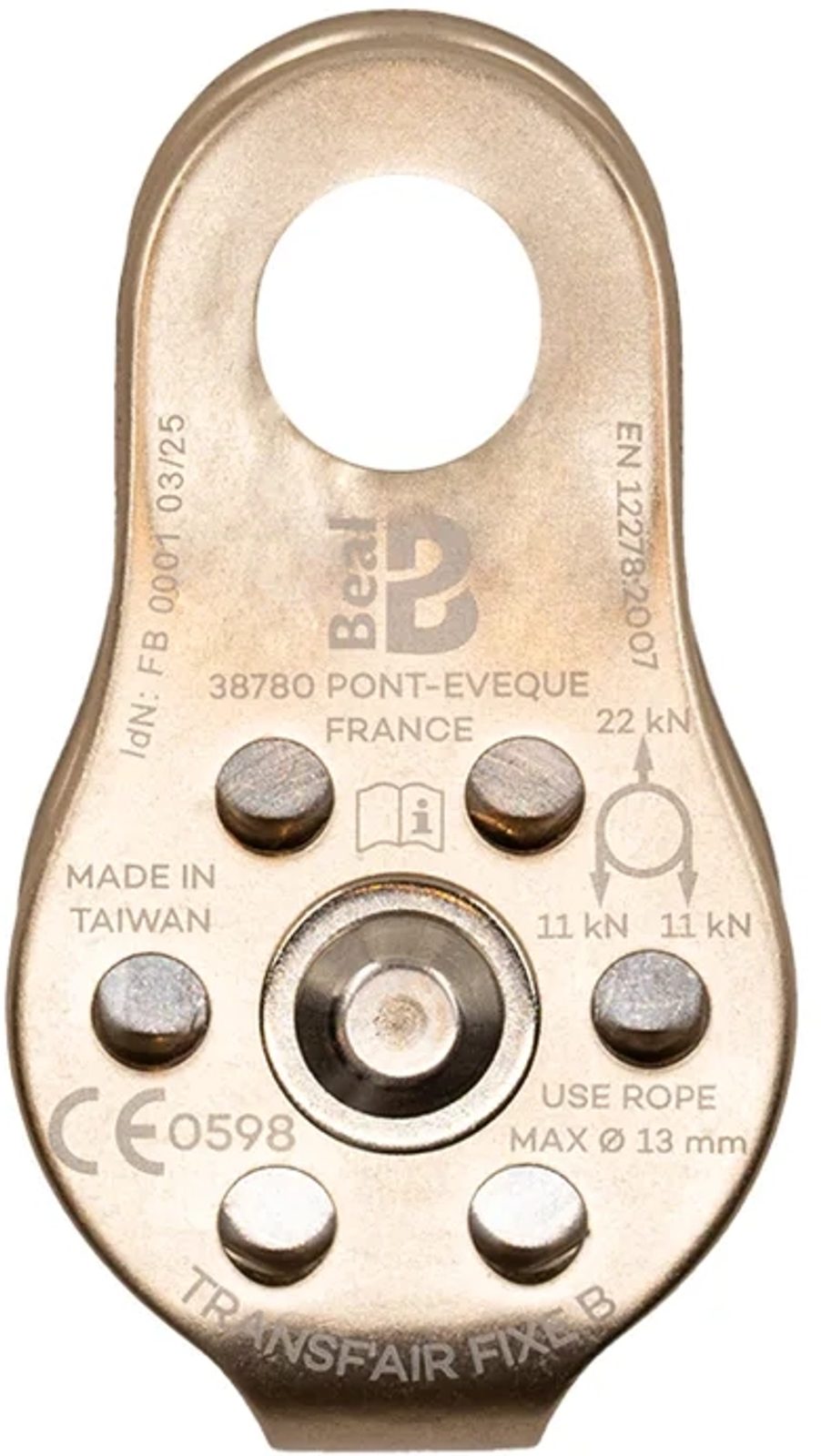

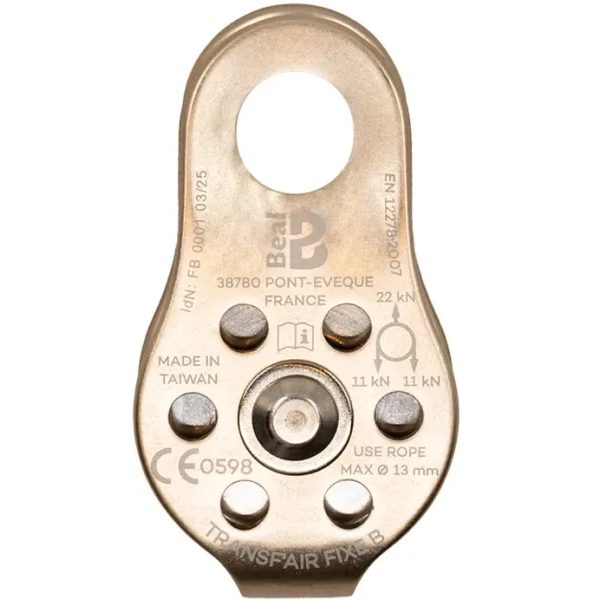

Transf Air Fixe is a compact pulley designed for quick integration into a hauling system – light, reliable and ready for demanding conditions.

1. Exceptional efficiency
   Ball bearings ensure smooth running with efficiency up to 97%, so you get the most out of your hauling system.
2. Compact and lightweight design
   With a weight of just 120 g and rigid side plates, you can handle the pulley one-handed even in exposed terrain.

• 97% efficiency – ball bearings
• Rigid, non-rotating side plates
• Maximum load 20 kN
• For ropes up to 13 mm diameter
• EN 12278 certification

Specifications:

Weight: 120 g
Dimensions: 45 × 82 mm
Maximum load: 20 kN
Rope diameter: < 13 mm
Material: bronze, stainless steel, aluminium (sheave)
Standard: EN 12278
Warranty period: 2 years
