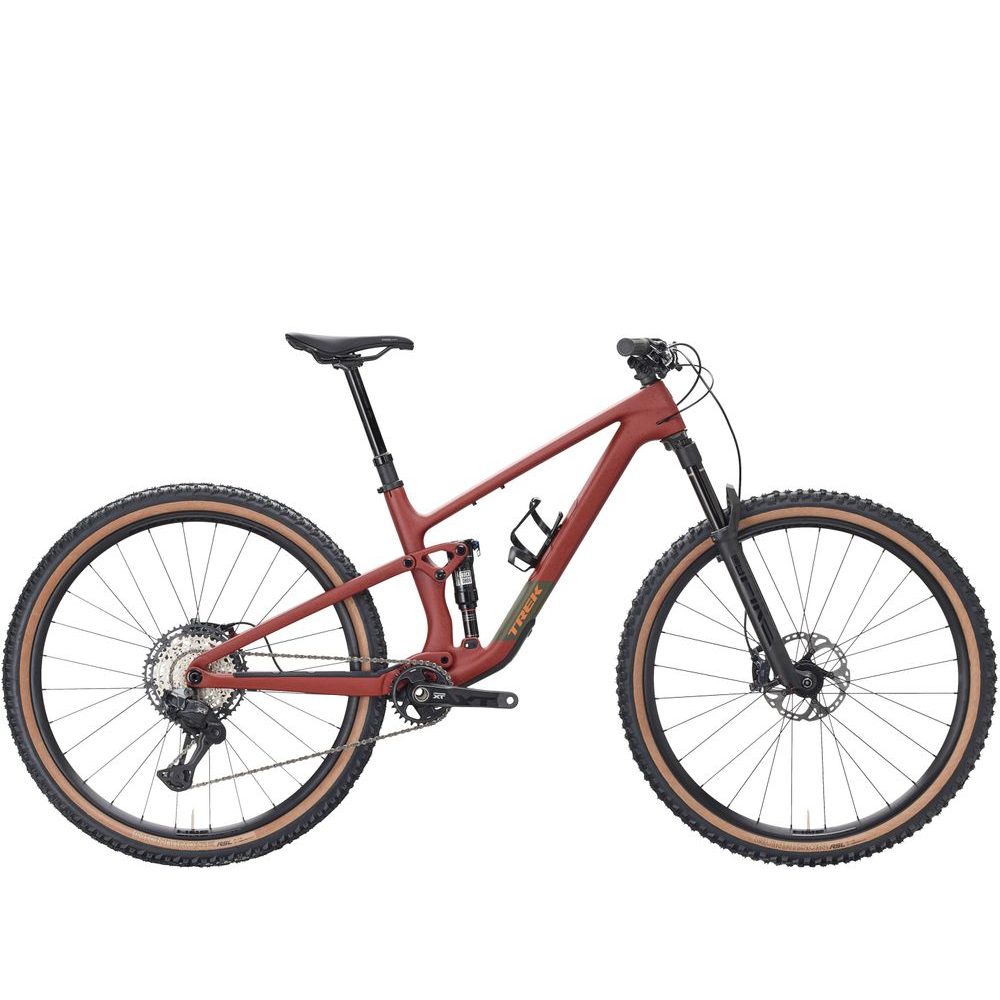

Top Fuel 9.8 Matte Sedona Red/ Pennyflake
Top Fuel 9.8 Matte Sedona Red/ Pennyflake
Top Fuel 9.8 Matte Sedona Red/ Pennyflake
Top Fuel 9.8 Matte Sedona Red/ Pennyflake
Top Fuel 9.8 Matte Sedona Red/ Pennyflake
-10%
Top Fuel 9.8 Matte Sedona Red/ Pennyflake

TREK Top Fuel 9.8 Matte Sedona Red/ Pennyflake

52231, Matte Sedona Red/ Pennyflake

Mountain Bike 2026

1
2
3
4
5
0 rating
Ship in a week Doprava First 1. 5. at your place
5 363,17 € 5 959,08 €
You have to choose the color Select an option
Top Fuel 9.8 Matte Sedona Red/ Pennyflake

Top Fuel 9.8 Matte Sedona Red/ Pennyflake

5 363,17 € 5 959,08 €

Ready to ride

The bike is always professionally tuned and ready to go.

We will be happy to advise you

We provide expert advice on selection and configuration.

Free warranty inspection

Free warranty inspection after driving 200–500 km

Official TREK Store

Lifetime warranty on the frame, Crash Replacement, Carbon Care.

Detailed description
Components
Specifications
Brand

The Top Fuel 9.8 is a lightweight carbon trail bike that makes light work of any climb and lets you have fun on the descents. Thanks to the RockShox suspension set with 120 mm rear travel and 130 mm front travel, Pike Select+ fork, and Deluxe Ultimate shock absorber, you can confidently ride over all roots and rocks. You'll also love the exceptionally fast and smooth Shimano XT Di2 wireless shifting.

You enjoy everything – long climbs to mountain passes, forest slaloms over roots, and fast XC singletracks. You want a bike that can handle hills with ease, but isn't afraid of descents either. Low weight is one of the most important things for you, so you want a carbon frame and the best components, such as the iconic Shimano XT Di2 wireless groupset.High-quality components such as the iconic Shimano XT Di2 wireless groupset and RockShox suspension make the Top Fuel the bike of your wildest dreams.The Top Fuel Gen 4 is incredibly light and offers improved storage space in the frame and better adjustability for different riding styles and body types.

  • Thanks to 120 mm rear and 130 mm front RockShox suspension, the riding characteristics are optimally balanced. So you can look forward to efficiency on the climbs and playfulness on the descents. The four-position Mino Link makes it easy to adjust the geometry and leverage ratio to suit your riding style and location.With space for a larger 140 mm fork and shocks with longer rear travel of up to 130 mm, as well as space for a very long dropper post, the bike can be customized even further to suit your needs.If you're looking for a lightweight, playful, and capable carbon trail bike, then the Top Fuel 9.8 XT Gen 4 is definitely the one for you. The exceptionally lightweight frame with a four-position Mino Link element on the lower rear suspension mount allows you to adjust the geometry and leverage ratio. You'll also get precise shifting thanks to the new Shimano XT Di2 wireless groupset and a great RockShox suspension setup.

    Customize your Top Fuel
    Choose a lightweight Top Fuel model with light components and a 120mm fork, or a more versatile 140mm fork and 130mm rear shock with longer travel. With room for a longer dropper seatpost and MX tires, you can customize your Top Fuel perfectly for trail riding.

    Four-position Mino Link
    You can easily adjust the suspension and geometry in four different ways depending on where and how you ride. Simply turn the switch to set progressive suspension and adjust the geometry by reducing the head tube angle and lowering the BB or increasing the head tube angle and raising the BB.

    New BITS bags offer internal storage space
    Thanks to the internal storage space, you no longer need to take a bag with you. You can carry everything you need while riding.

    Active Braking Pivot
    The Active Braking Pivot system allows our engineers to tune the suspension to respond independently to acceleration and braking. The result is reliable handling.

    Shimano XT Di2
    Looking for the latest speed-enhancing technology? The XT Di2 set offers lightness, lightning-fast shifting, and incredible reliability. Plus, it's wireless and allows for countless adjustments to suit your riding style.


    • The goods are in the following categories:

    TREK TOP FUEL mountain bikes TREK all

    In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.

    TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone.  Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.



    colour: Red
    Model year: 2026
    Code:52231, Matte Sedona Red/ Pennyflake
    Brand: TREK

    Rám

    Rám Karbon OCLV pro horská kola, vnitřní úložný prostor, kónická hlavová trubka, vnitřní vedení lanek, chránič dolní rámové trubky, slitinový kolébkový spoj, čtyřpolohový prvek Mino Link 4, ABP, Boost148, zdvih 120 mm.
    Vidlice RockShox Pike Select+, pružina DebonAir, tlumení Charger 3.1 RC2, kónický sloupek, offset 44 mm, Boost110, Maxle Stealth 15 mm, zdvih 130 mm.
    Tlumič RockShox Deluxe Ulitmate RCT, 185 mm x 50 mm.
    Maximální kompatibilní zdvih vidlice Max. 140 mm, min. 120 mm

    Zapletená kola-výplety

    *Přední kolo Velikost: S
    Bontrager Line Comp 30, možnost použití bezdušových plášťů, 6 děr, Boost110, 15mm pevná osa, 27,5 palce.
    Velikost: M, ML, L, XL
    Bontrager Line Comp 30, možnost použití bezdušových plášťů, 6 děr, Boost110, 15mm pevná osa, 29 palců.
    *Zadní kolo Velikost: S
    Bontrager Line Comp 30, možnost použití bezdušových plášťů, Rapid Drive 108, 6 děr, ořech Freehub Shimano MicroSpline, Boost148, 12mm pevná osa, 27,5 palců.
    Velikost: M, ML, L, XL
    Bontrager Line Comp 30, možnost použití bezdušových plášťů, Rapid Drive 108, 6 děr, ořech Freehub Shimano MicroSpline, Boost148, 12mm pevná osa, 29 palců.
    Zadní rychloupínák Pevná osa Bontrager Switch, odstranitelná páčka.
    *Plášť Velikost: S
    Bontrager Gunnison RSL XT, možnost použití bezdušových plášťů, ze tří směsí, aramidová patka, 120 tpi, 27,5 x 2,40 palce.
    Velikost: M, ML, L, XL
    Bontrager Gunnison RSL XT, možnost použití bezdušových plášťů, ze tří směsí, aramidová patka, 120 tpi, 29 x 2,40 palce.
    Velikost: M, ML, L, XL
    Bontrager Montrose RSL XT, možnost použití bezdušových plášťů, ze tří směsí, aramidová patka, 120 tpi, 29 x 2,40 palce.
    Díl pláště Těsnicí tmel Bontrager TLR, 6 oz.
    Páska do ráfku Bontrager TLR
    Maximální velikost pláště Rám: 29 x 2,50 palce, vidlice: viz výrobce.

    Pohon

    Řazení Shimano XT Di2 M8250, 12 rychlostí.
    Přehazovačka Shimano XT M8250, dlouhé ramínko.
    Klika Shimano XT 8200, 30 zubů, řetězová linka 55 mm, délka 170 mm.
    Středové složení BSA Shimano BB-MT501 BSA.
    Kazeta Shimano XT M8200, 10-51, 12 rychlostí.
    Řetěz Shimano XT M8100, 12 rychlostí.
    Maximální rozměry převodníku 1x: 34 zubů, min 30 zubů

    Komponenty

    Sedlo Verse Short Comp, ocelové ližiny, šířka 145 mm.
    *Sedlovka Velikost: S
    Teleskopická sedlovka Bontrager Line, zdvih 100 mm, MaxFlow, vnitřní vedení, 34,9 mm, délka 310 mm.
    Velikost: M, ML
    Teleskopická sedlovka Bontrager Line, zdvih 170 mm, MaxFlow, vnitřní vedení, 34,9 mm, délka 450 mm.
    Velikost: L, XL
    Teleskopická sedlovka Bontrager Line, zdvih 200 mm, MaxFlow, vnitřní vedení, 34,9 mm, délka 515 mm.
    Řídítka Bontrager Line Pro, karbon OCLV, 35 mm, prohnutí 27,5 mm, šířka 780 mm.
    Gripy Trek Line Elite, lock-on
    Představec Bontrager Line Pro, 35 mm, kompatibilní se systémem Blendr, 0 stupňů, délka 35 mm.
    Brzda Shimano XT M8200, čtyřpístkové hydraulické kotoučové.
    Brzdový rotor Shimano RT86, 6 děr, 180 mm.
    Rozměry kotouče Maximální velikost brzdových kotoučů – rám: 200 mm, min. 180 mm.

    Hmotnost

    Hmotnost M - 14.00 kg / 30.86 lbs (s těsnicím tmelem TLR, bez duší)
    Hmotnostní limit Kolo má maximální celkový hmotnostní limit 136 kg (kombinovaná hmotnost kola, jezdce a nákladu).

    Related

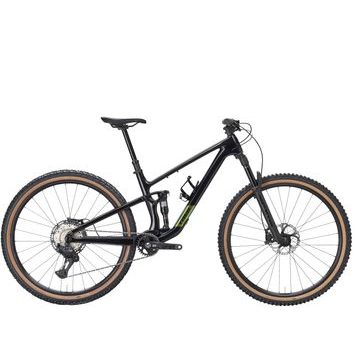

    TREK Top Fuel 9.8 Dark Star
