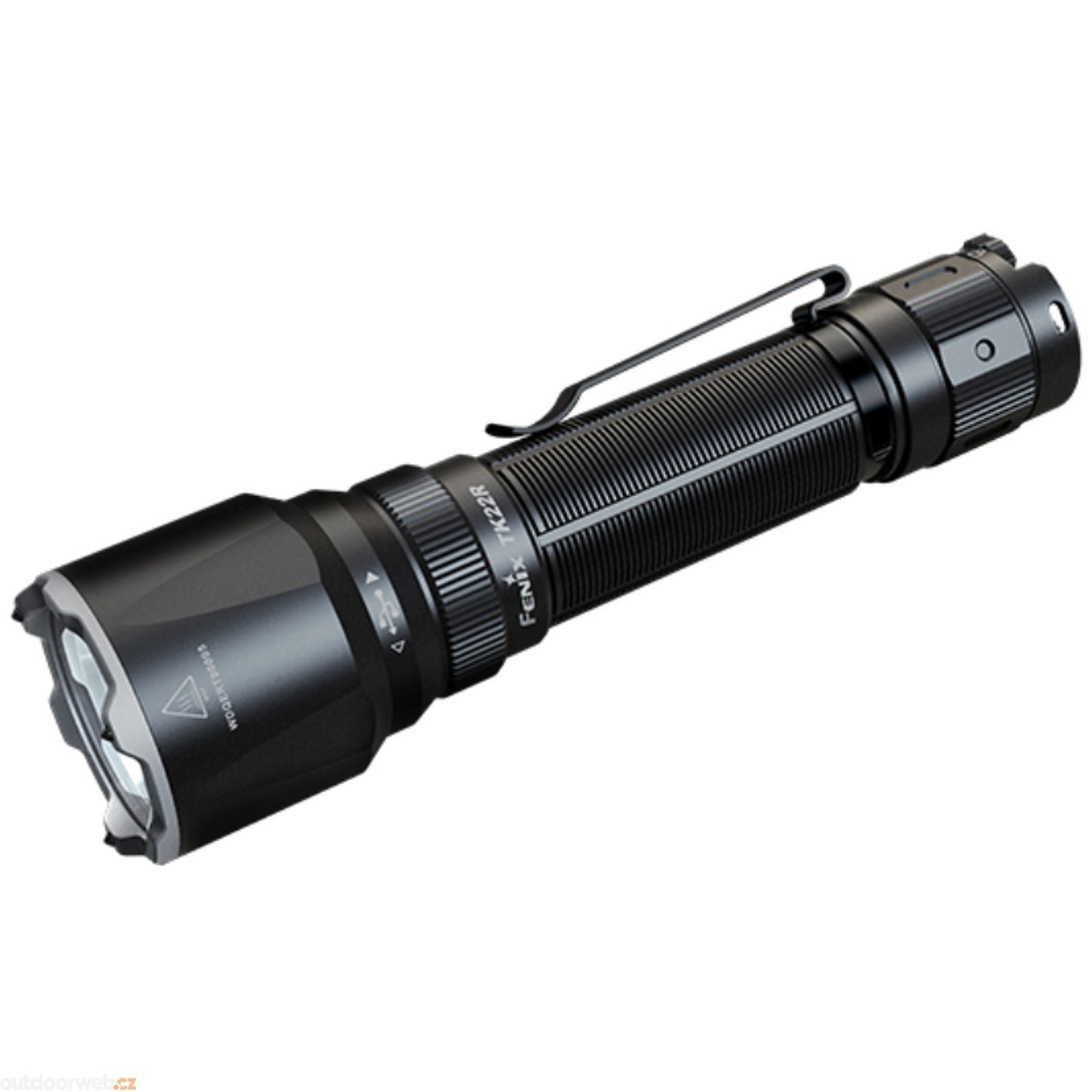

FENIX TK22R - Tactical rechargeable flashlight

Join the elite with our Fenix TK22R tactical rechargeable flashlight, which offers an incredible light output of up to 3200 lumens. The high-performance Luminus SST-70 LED coupled with a smooth reflector ensures a bright light cone with a staggering range of 480 meters.

The flashlight features a powerful 21700 Li-ion battery with a 5000 mAh capacity that conveniently charges via the USB-C connector directly in the flashlight. A screw nut protects the charging port from water and dirt.

The flashlight features a tactical switch and a FlexiSensa control toggle lever that allows you to lock the flashlight and choose from two modes of use. In tactical mode, you can turn the flashlight on to 3200 lumens or variable frequency strobe. In duty mode, you can choose between four light modes with up to 50 hours of runtime.

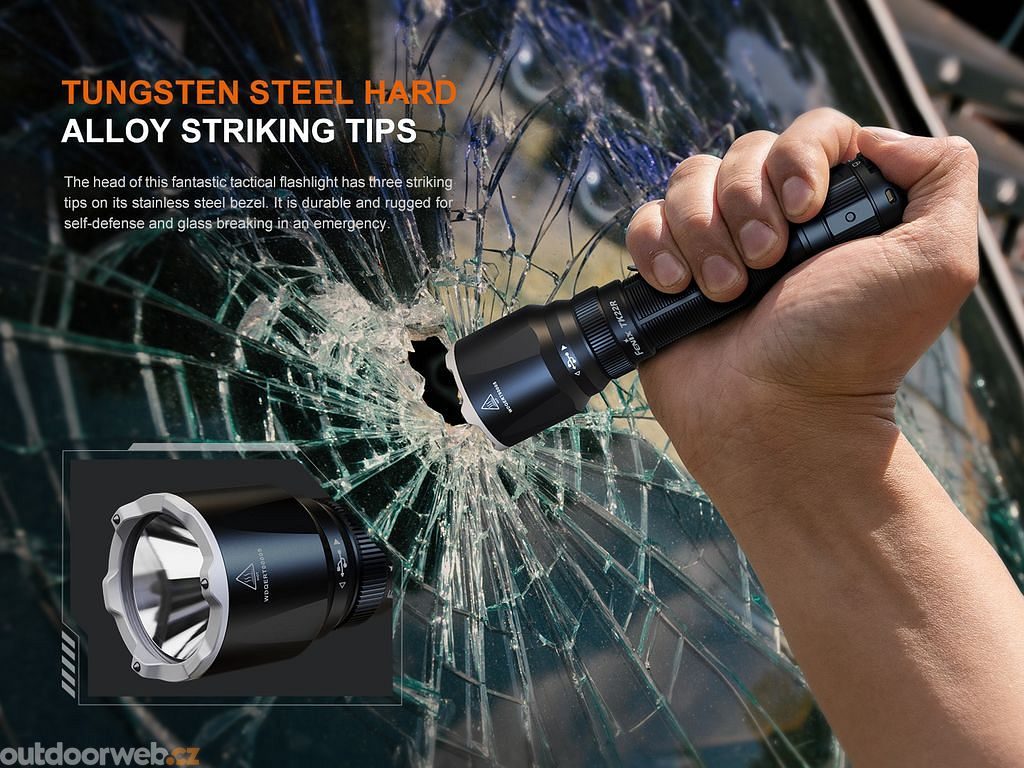

The flashlight head features a striking steel rim with three tungsten tips, making the flashlight a useful tool for breaking through glass in crisis situations or for self-defense. The rugged design of the flashlight makes it a tank-strength tool, ideal for professionals, armed forces and hunters.

All flashlight parameters have been measured in accordance with ANSI/NEMA FL 1-2009 for maximum confidence in its performance. Feel free to discover a new level of performance and durability with the Fenix TK22R Tactical Rechargeable Flashlight!

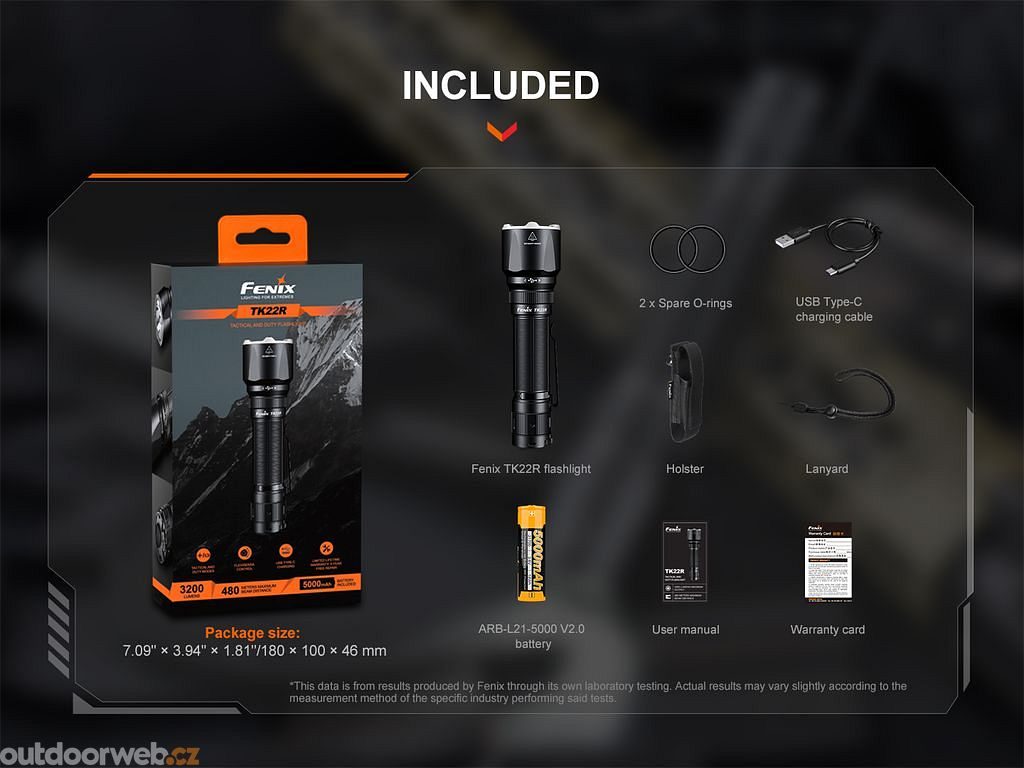

Package includes: flashlight, wrist lanyard, belt pouch, replacement o-rings, USB-C charging cable, Fenix ARB-L21-5000 V2 battery.0.

Warranty.

1. Uses one rechargeable high-capacity Li-ion 21700 5000 mAh battery included for power.
2. Body of the flashlight made of aerospace hardened aluminum, the head of the flashlight is complemented by a steel striking rim with tungsten tips.
3. The flashlight has a memory and will always turn on in the last set mode (also applies to strobe in tactical mode).
4. Battery stored between two springs - easily withstands recoil when used on a weapon.
5. Parabolic aluminum reflector for a perfect light cone with a range of up to 480 meters (57400 cd).
6. Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters).
7. Tactical FlexiSensa control switch at the end of the flashlight for switching modes and locking the flashlight.

• The powerful Luminus SST-70 LED with a lifetime of 50000 hours is used.
• Charging via sealed USB-C connector with battery charge status indication.
• Electronics with digital power control and overheat protection.
• Insensitive to drops from a height of 1 meter.
• Highly wear-resistant flat-bearing threads.
• Hard scratch resistant surface - Type III hard anodized.
• Hardened ultra clear glass lens with anti-reflective surface.
• Solid clip for safe and easy carrying of the flashlight (removable).
• The flashlight does not slip in the hand due to its design and does not rotate when placed.

Two lighting modes:
Tactical mode: 3200 lumens (2.25 hours) -> 3200 lumen strobe.
Service Mode: 3200 lumens (2.25 hours) -> 1000 lumens (2.5 hours) -> 350 lumens (7.75 hours) -> 30 lumens (50 hours).

Specifications:

Lumen output: 3200 lm
Range: 480 m
Max life: 50 hrs
Power: 1x 21700
Number of modes: 5
Waterproof: IP68 (2 m immersion)
Light color: Daylight white (5500-6500 K)
Light source: Luminus SST-70
Weight: 218 g including battery
Dimensions: 15.8 cm (length) x 4 cm (head diameter) x 2.54 cm (body diameter).

Using the Fenix TK22R
From the factory, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.

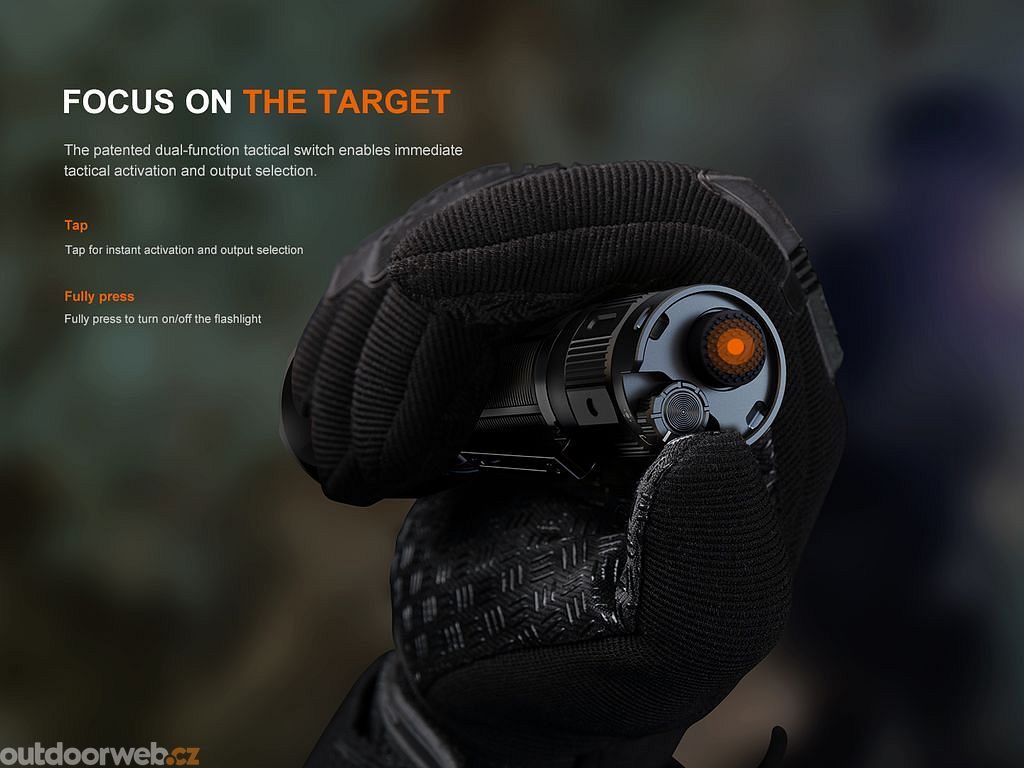

Press the tactical button on the end of the flashlight to turn it on, press the button for immediate activation. The FlexiSensa control toggle lever on the end of the flashlight can be used to select between tactical and duty modes and to lock the flashlight.
Duty Mode - the flashlight turns on in the last selected light mode, the four power modes can be cycled by pressing the button.
Tactical Mode - the flashlight turns on in the last selected light mode, strobe and 3200 lumens maximum output are available. Press the button to switch between modes.
Lock - the third position on the rotary dial locks the flashlight and cannot be switched on - useful for example when transporting in luggage. The flashlight can be locked in the off and on state, locking also turns the flashlight off. Unlocking also switches the flashlight on in the last used mode of the respective mode.
Intelligent overheating protection- due to the fact that the flashlight reaches a huge power of 3200 lumens, it experiences a temperature rise. If the temperature exceeds 60°C, the power will be automatically reduced. As soon as the temperature drops below 60°C, the highest power can be used again.
Battery charge indication- the charge indicator is hidden under the protective nut of the charging connector for tactical reasons, so the nut must be unscrewed to check it. The flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), flashing green (85% - 50%), steady red (50% - 25%) and flashing red indicates a critically discharged battery (25% - 1%). If the battery is discharged, the flashlight will gradually switch automatically to lower power modes, then flash 3 times every five minutes in the lowest mode.
Charging the flashlight - Unscrew the protective nut under the head of the flashlight and use the included USB-C cable to plug it into a computer, USB AC adapter or USB car adapter (not included). Alternatively, any mobile phone charger with a USB-C connector can be used to charge the flashlight. During charging, the indicator LED opposite the charging connector glows red, after a full charge it glows green. Charging a fully discharged battery takes approximately 3.5 hours. The Li-ion battery used does not suffer from a memory effect, so the flashlight can be recharged at any time. The flashlight cannot be switched on while charging.

Caution
Use only high-quality 21700 Li-ion batteries to prevent damage to the flashlight, for example due to battery leakage.
Insert the batteries with the positive pole facing the flashlight head.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
- The battery is almost dead - charge it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The back of the flashlight is loose, tighten it.
