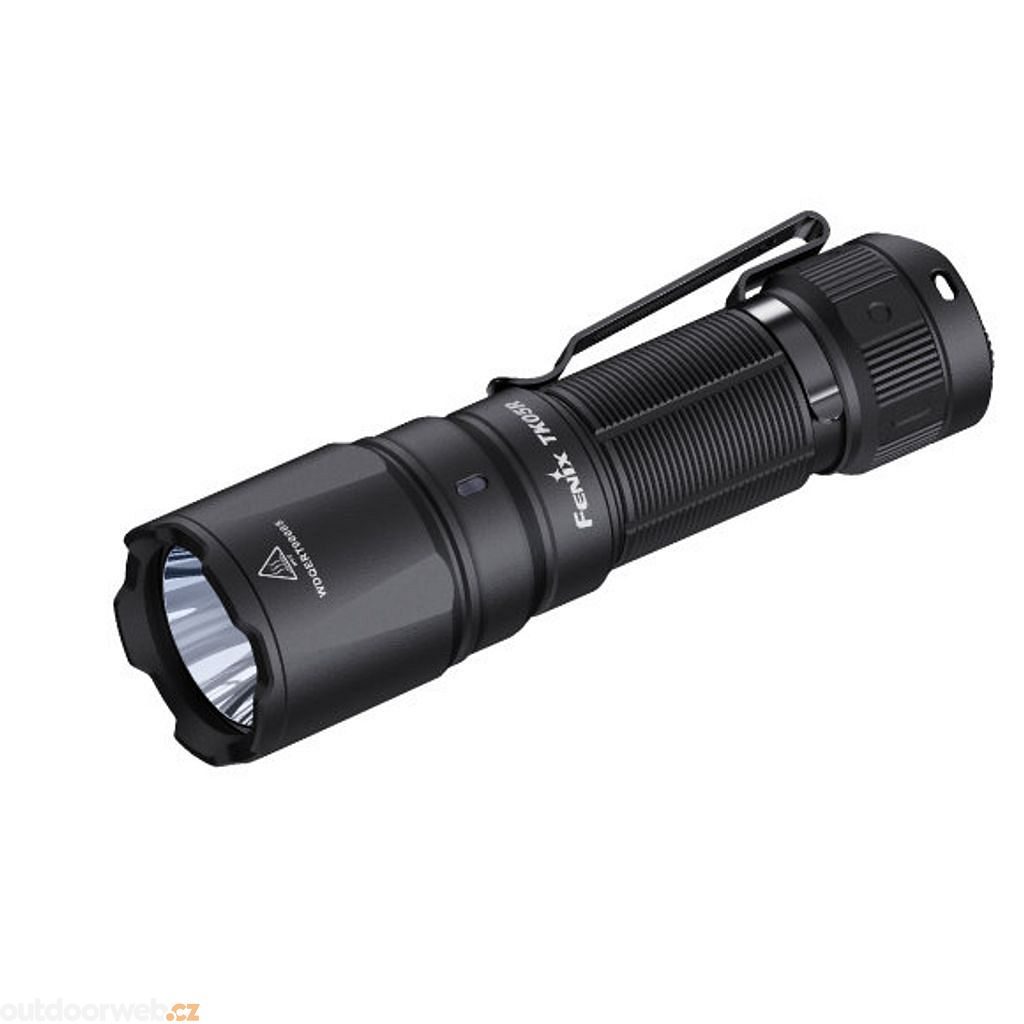

The Fenix TK05R is a compact rechargeable tactical flashlight with intuitive controls, allowing quick strobe activation and a maximum output of up to 1000 lumens. Equipped with Osram's cutting-edge CSLPM1.TG LED, it provides a precisely focused light cone with a range of up to 450 metres. The dual tactical switch ensures fast and reliable control even in critical situations.

The flashlight has a rugged head with a striking rim, making it ideal for glass breaking or self-defense. Its durable construction makes it suitable for mounting on long guns, making it the ideal choice for professionals, armed forces or hunters.

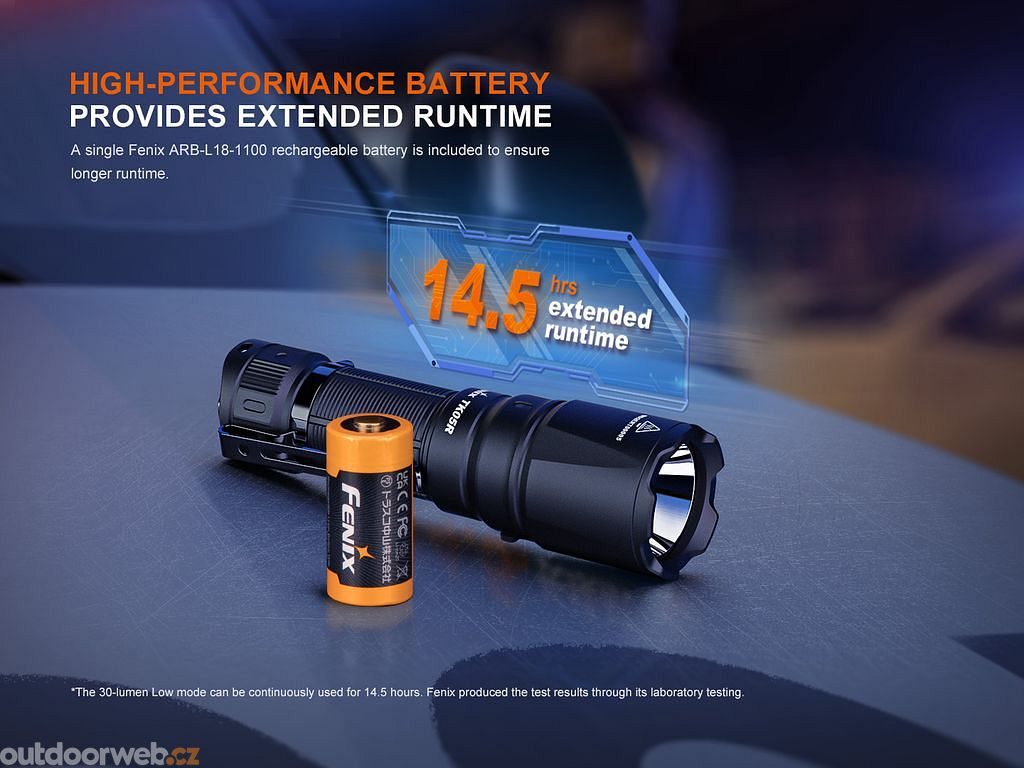

It is powered by a compact 18350 Li-ion battery with a capacity of 1100 mAh (included), which charges via a modern USB-C connector and provides up to 14.5 hours of operation. Water and impact resistant, this flashlight is designed for harsh outdoor conditions, and is ideal for security forces, search and rescue operations and hunting.

All specifications, including lumen output, battery life, water resistance, range and shock resistance, have been tested to ANSI/NEMA FL 1-2009.

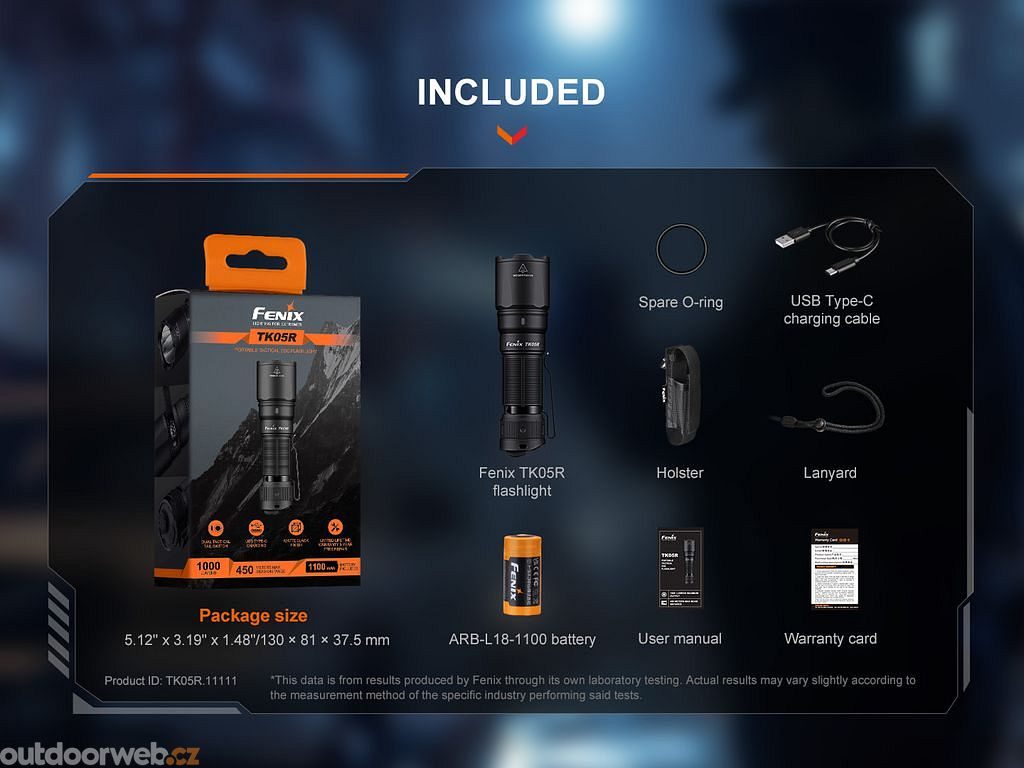

Included in the package: flashlight, ARB-L18-1100 battery, wrist strap, USB-C charging cable, replacement o-ring and belt pouch.

Warranty: five years on the flashlight and two years on the battery.

1. Four power modes: 1000 lumens (0.8 hours) -> 350 lumens (1.75 hours) -> 30 lumens(14.5 hours) -> 1000 lm strobe with variable frequency.
2. Endurance times are measured with a rechargeable Li-ion battery type 18350 with 1100 mAh capacity (included).
3. Dual tactical switch at the end of the flashlight (instant on/off function by pressing, instant strobe).
4. Waterproof and dustproof to IP68 standard (tested underwater at 2 meters depth for 30 minutes).

• The powerful Osram CSLPM1.TG LED with a lifetime of 50000 hours is used.
• The USB-C charging port is hidden under a rubber cover on the body of the flashlight.
• Battery charge indication.
• Highly efficient smooth reflector for a light cone with a range of up to 450 meters (50600 cd).
• Intelligent overheat protection, low battery warning.

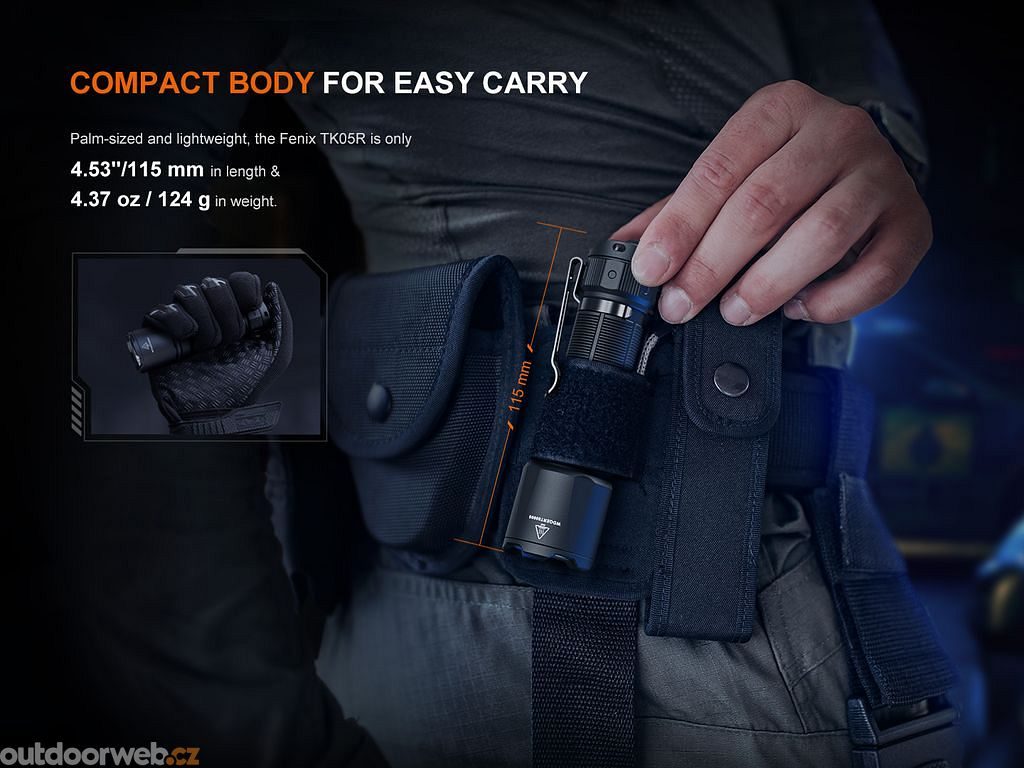

• Dimensions 11.5 cm (length) x 3.2 cm (head diameter) x 2.35 cm (body diameter).
• Weight 124 grams (including battery).
• Durable body construction made of aerospace hardened aluminium.
• Durable hard scratch resistant surface - Type III hard anodized.
• Shock resistant to drops from a height of 1 metre.
• Tempered ultra clear glass lens with anti-reflective coating.
• Highly wear-resistant flat-bevel threads.

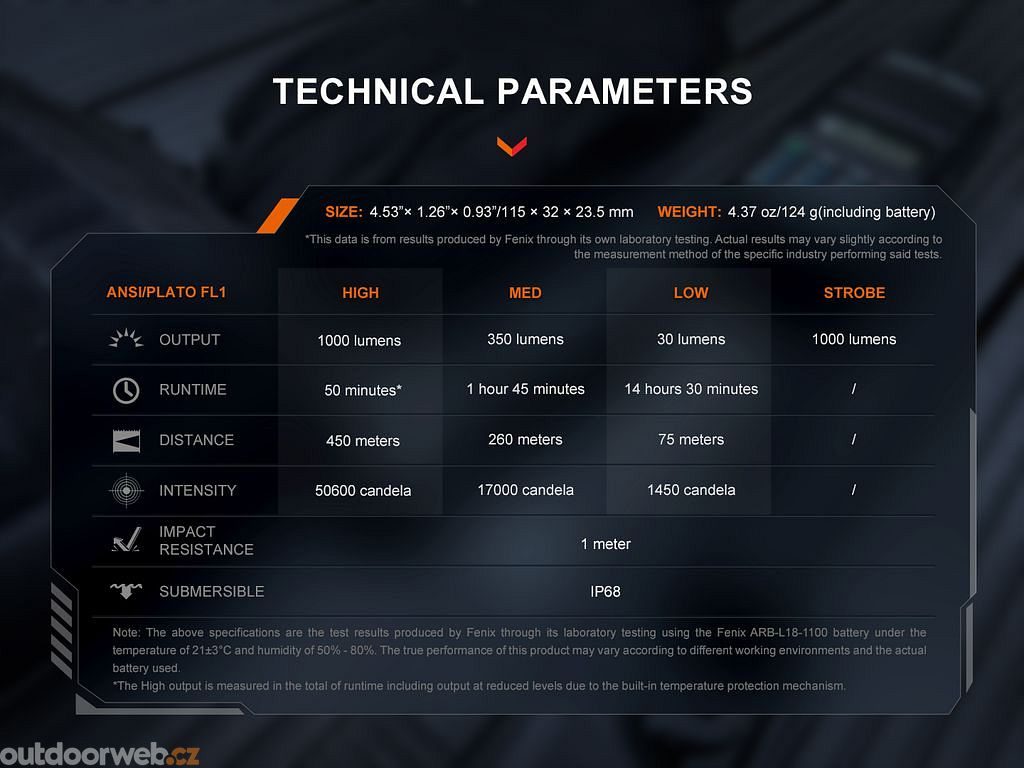

Specifications:

Power: 1000 lm
Range: 450 m
Max life: 14.5 hrs
Power: 1x 18350
Number of modes: 4
Waterproof: IP68 (2 m immersion)
Light color: Daylight white (5500-6500 K)
Light source: OSRAM KW CSLPM1.TG
Weight: 124 g

Using the TK05R
There may be an insulating cap inside the flashlight on the battery pack from the factory. Remove it from the battery pack before first use.

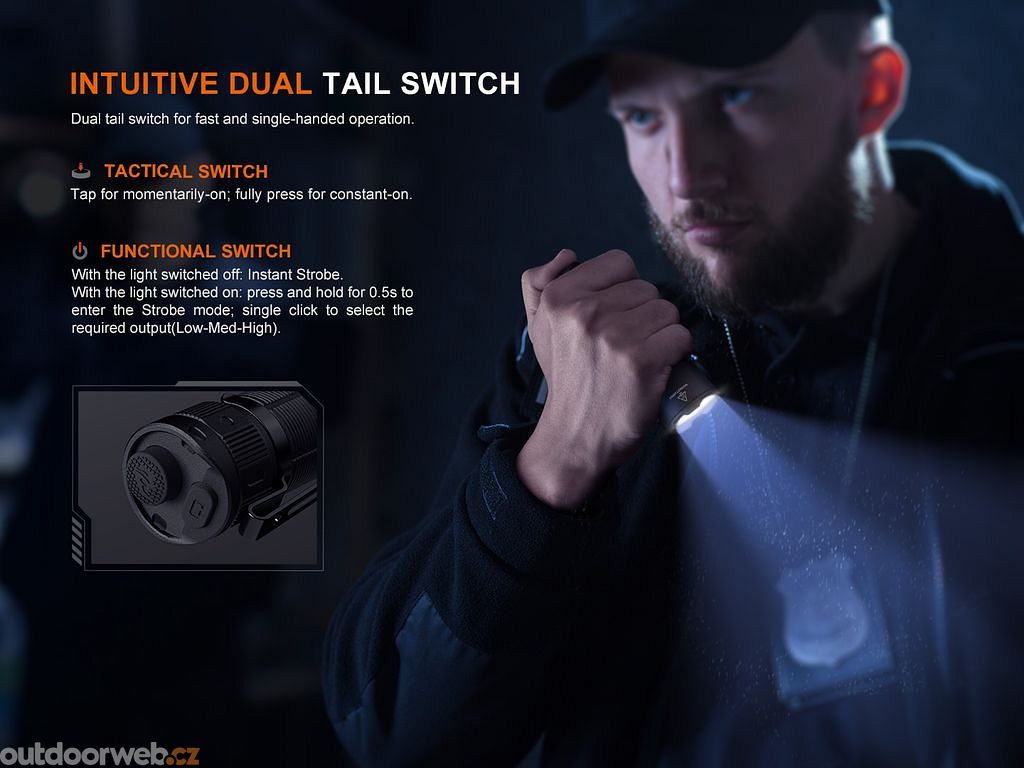

To switch on/off , press the larger tactical button located at the end of the flashlight, to activate immediately press the button. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to flash mode with the flashlight on, hold the toggle button for approximately 0.5 seconds. To switch the flashlight directly to strobe mode, press and hold the toggle button.
Intelligent overheat protection - as the flashlight reaches high power, it experiences a temperature rise. If the temperature exceeds 55°C, the power is automatically reduced. Once the temperature drops below 55°C, the highest power output can be used again.
Battery charge indication - the flashlight always indicates the battery charge level three seconds after switching on. Green indicates sufficient state of charge (100% - 85%), flashing green (85% - 50%), steady red (50% - 25%) and flashing red critically discharged battery (25% - 1%). If the battery is discharged, the flashlight will automatically switch to lower power modes gradually.

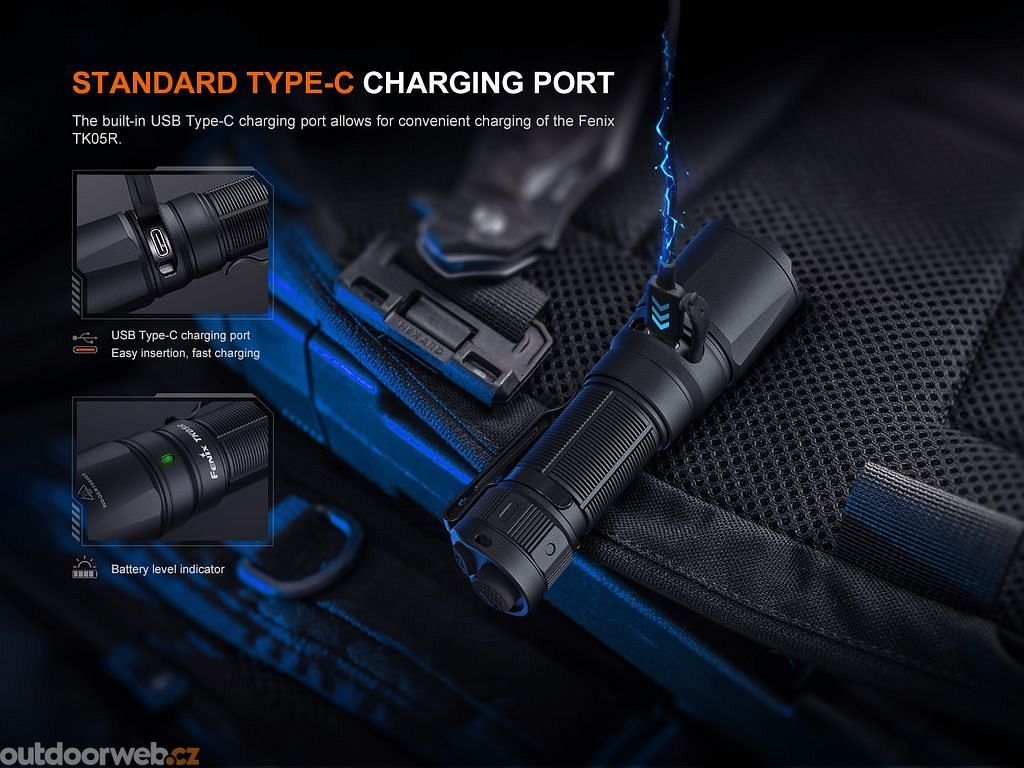

Charging - Unsnap the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer, or a USB adapter to the mains or car. The side indicator lights red during charging. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 1.5 hours. The flashlight cannot be used while charging.

Caution
Use only high quality rechargeable batteries type 18350 with protective electronics.
Insert the batteries with the positive terminal towards the head of the flashlight.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
- The battery is dead - charge it or replace it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The head, body, or back of the flashlight is loose, tighten them.
