TREK Procaliber 9.6 Gen 3, Dark Web
47224 Dark Webcarbon hardtail
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
Procaliber 9.5 Gen 3 is a fast carbon MTB hardtail. Designed for XC racing, it features IsoBow vibration-dampening technology that springs with the trail to minimize bumps and aggressive XC geometry for a confident, powerful and agile ride. It's ready to rock with a 12-speed Shimano XT/SLX drivetrain and RockShox Reba RL fork.
You're only thinking about racing. And only another hardtail can help you do that. You want a bike that makes trail riding easy thanks to vibration damping technology, and a reliable drivetrain for smooth shifting even under load.
- With IsoBow vibration damping technology, you get the hardtail efficiency you crave.
- The OCLV carbon mountain bike construction is lightweight, durable, stiff and supple enough to keep you comfortable in tough conditions.
- It has a 120mm suspension fork that handles the rough obstacles of modern XC racing trails with aplomb.
- It's a race-ready bike that's affordable thanks to high-performance Shimano and RockShox groupsets.
- You'll get room for up to 2.4-inch tires that provide plenty of grip on unpaved and technical trails.
Smooth means fast |  |

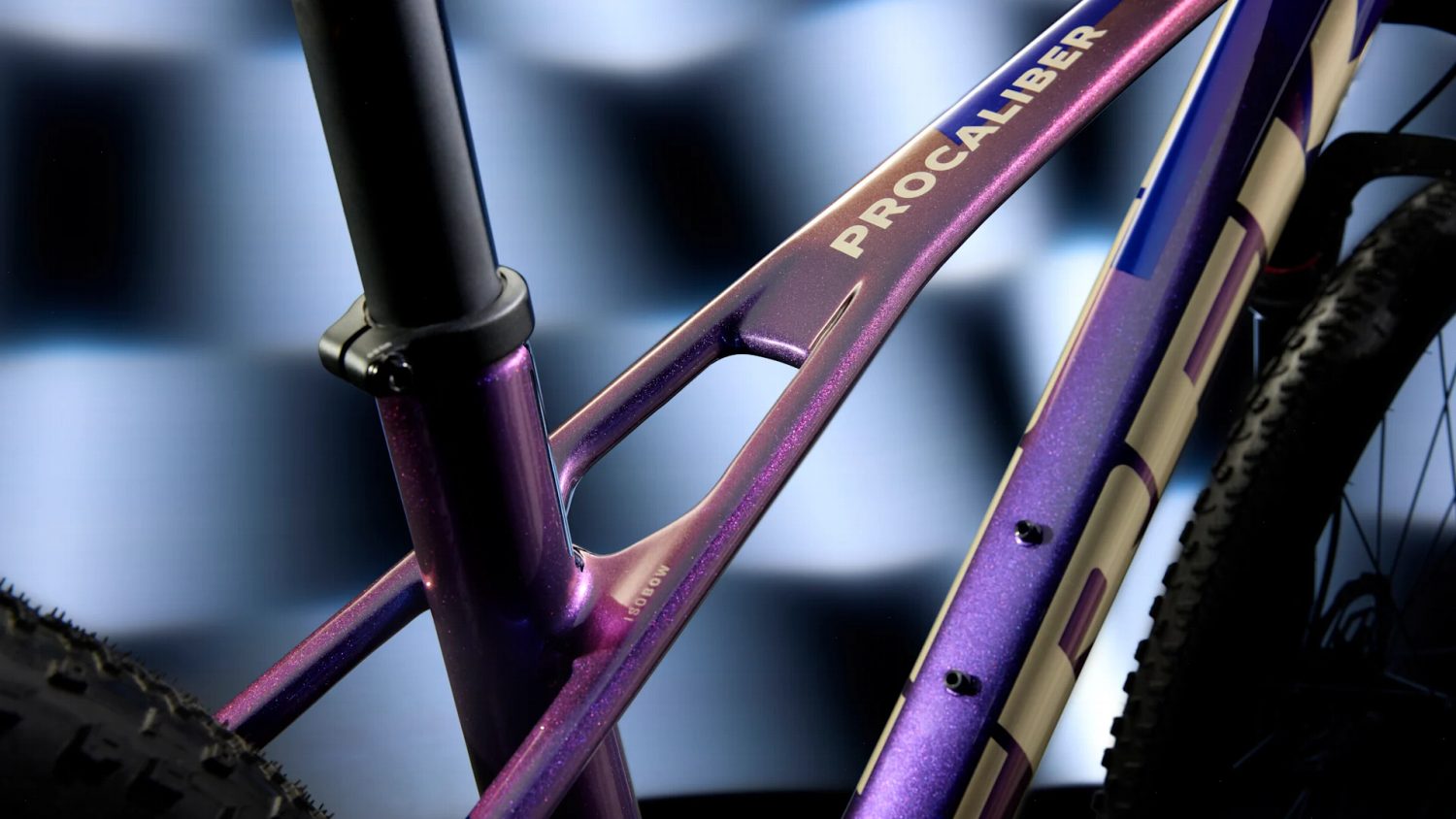

 | OCLV Mountain Carbon |
Floating Fit and Flexibility |  |
 | Shimano XT |

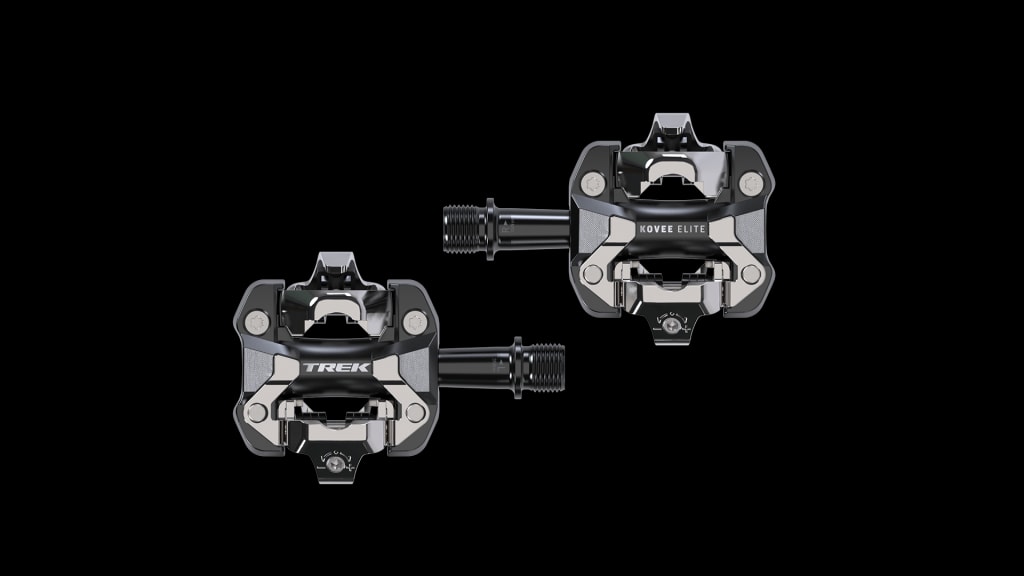

You almost forgot the pedals |  |
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
Frame | |
|---|---|
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal cable routing, balanced Post Mount brake mounts, Boost148 |
| Fork | RockShox Reba RL, Solo Air spring, Motion Control damping, remote lockout, tapered steerer, 51 mm offset, Boost110, Maxle Stealth 15 mm, 120 mm travel. |
| Maximum compatible fork travel | 120 mm |
Wheels-rims | |
| Front wheel | Bontrager Kovee Comp 25, tubeless ready, 6-hole, Boost110, 15mm thru axle, 29 inches |
| Rear wheel | Bontrager Kovee Comp 25, tubeless ready, Rapid Drive 108, Boost148, 12mm thru axle, 29 inches |
| Tire | Bontrager Sainte-Anne Pro XR, tubeless ready, dual compound, aramid bead, 60 tpi, 29 x 2.40 inches |
| Maximum tire size | Frame: 29 x 2.4 inches, fork: see manufacturer. |
Drivetrain | |
| Shifters | Shimano SLX M7100, 12 speeds |
| Rear derailleur | Shimano XT M8100, long cage. |
| *Crankset | Size: S, M, ML E*thirteen Helix core, alloy chainring 32 teeth, chainline 55 mm, length 170 mm |
| Size: L, XL E*thirteen Helix core, 32-tooth alloy chainring, 55 mm chainline, length 175 mm | |
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano SLX M7100, 10-51T, 12 speeds |
| Chain | Shimano Deore M6100, 12 speeds. |
| Maximum chainring size | 1x: 38T |
Components | |
| Saddle | Verse Short Comp, steel rails, 145 mm width. |
| *Seatpost | Size: S Bontrager Line dropper seatpost, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length. |
| Size: M, ML, L Bontrager Line dropper seatpost, 150 mm travel, MaxFlow, internal routing, 31.6 mm, length 410 mm. | |
| Size: XL Bontrager Line dropper seatpost, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length. | |
| *Handlebars | Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm bend, width 720 mm. |
| Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width. | |
| Grips | ESI Chunky. |
| *Stem | Size: S Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7 degrees, 50 mm length |
| Size: M , ML Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length. | |
| Size: XL Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length. | |
| Headset | FSA IS-2, 1-1/8 inch top, 1.5 inch bottom. |

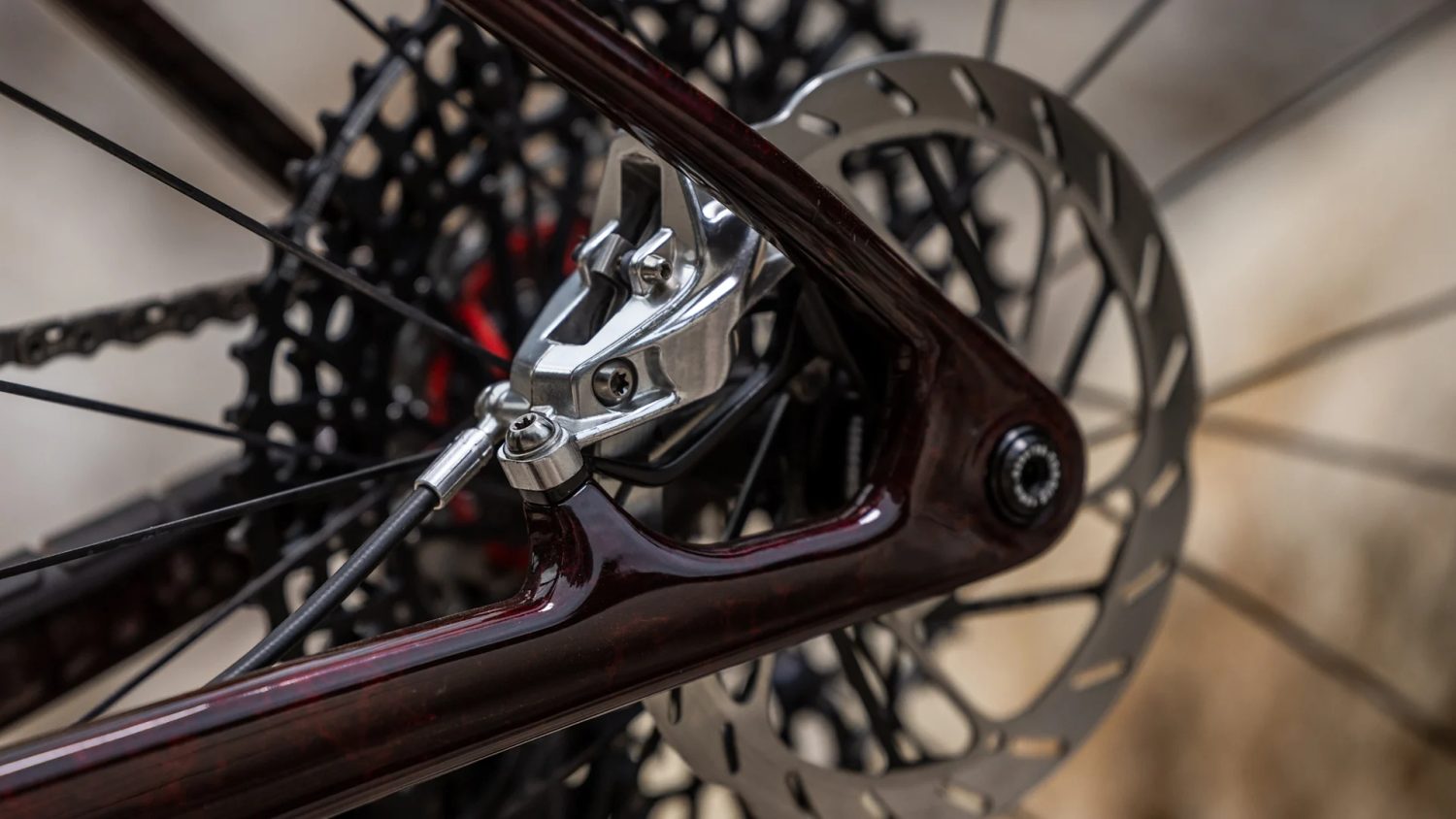

| Brake | Shimano hydraulic disc brake, MT501 lever, MT500 caliper. |
| *Brake rotor | Size: S, M, ML, L, XL 160 mm |
| Size: S, M, ML, L, XL Shimano RT56, 6 holes, 180 mm. | |
| Size: S, M, ML, L, XL Shimano RT56, 6 holes, 160 mm. | |
| Disc dimensions | Maximum brake disc sizes – frame: 180 mm, fork: see manufacturer. |
Weight | |
| Weight | M - 11.08 kg / 24.43 lbs (with TLR sealant, without tubes) |
| Weight limit | The bike has a maximum total weight limit of 136 kg (combined weight of bike, rider, and cargo). |
