FENIX PD36R PRO + E03R V2.0 - Rechargeable LED flashlight

Discounted set of Fenix PD36R PRO tactical flashlight and Fenix E03R V2.0 mini flashlight in grey.

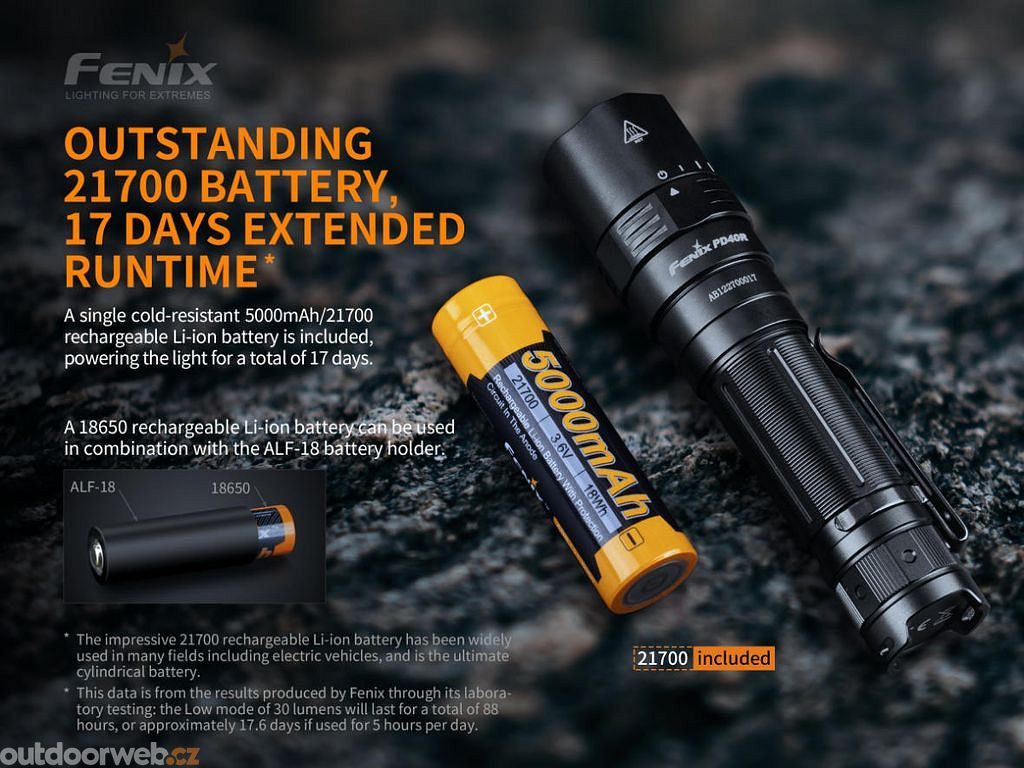

The Fenix PD40R V2.0 rechargeable flashlight offers a great light output of up to 3000 lumens (ANSI) and a range of 405 meters in a pocket size of less than 14 centimeters. Also included is a rechargeable 21700 Li-ion battery with a 5000 mAh capacity that charges directly in the flashlight via a modern USB-C connector.

The Fenix PD40R V2.0 flashlight features five different light modes that are easily switched via a rotary ring on the head of the flashlight. On the lowest mode , it can shine for up to 88 hours, which is almost 4 days of continuous light. There are also strobe flashes for emergency situations.

The flashlight is powered by a digitally regulated constant current to guarantee a constant light output even when the battery voltage is reduced (when the batteries are slowly discharging). In addition, the flashlight is equipped with a battery charge indication next to the charging connector. The Fenix PD40R V2.0 flashlight impresses not only with its compact dimensions, but also with its truly extreme light output. The flashlight is especially suitable for moving in rough terrain, search operations, tracking, daily carry and normal home use.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

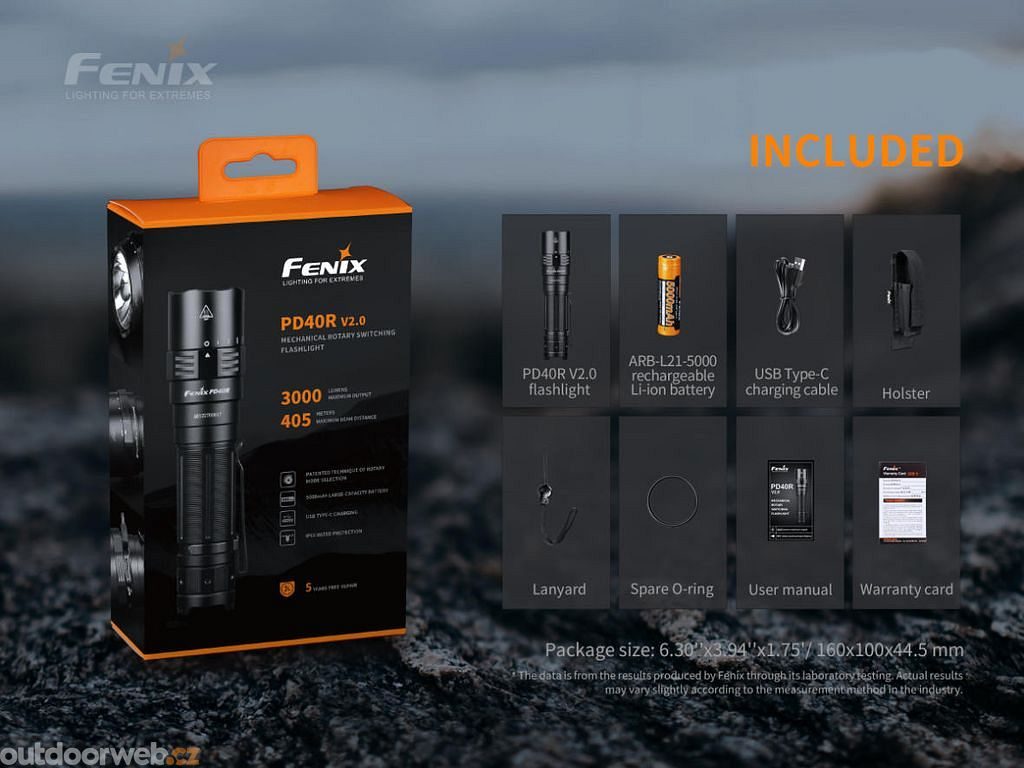

Package contents: wrist lanyard, belt pouch, Fenix 21700 5000 mAh battery, USB-C cable and replacement o-ring.

Warranty: five years on the flashlight, two years on the battery

• The high-performance LED LUMINUS SST-70 with a lifetime of 50000 hours is used.
• Five lighting modes
• Luminous flux and run times are measured with the included 5000 mAh Li-ion 21700 battery.
• The flashlight is equipped with intelligent overheat protection.
• Digitally regulated for constant brightness, low battery warning.
• Protection against accidental reverse battery insertion (reverse polarity).
• Smooth parabolic reflector for a light cone with a range of 405 metres (40567 cd).

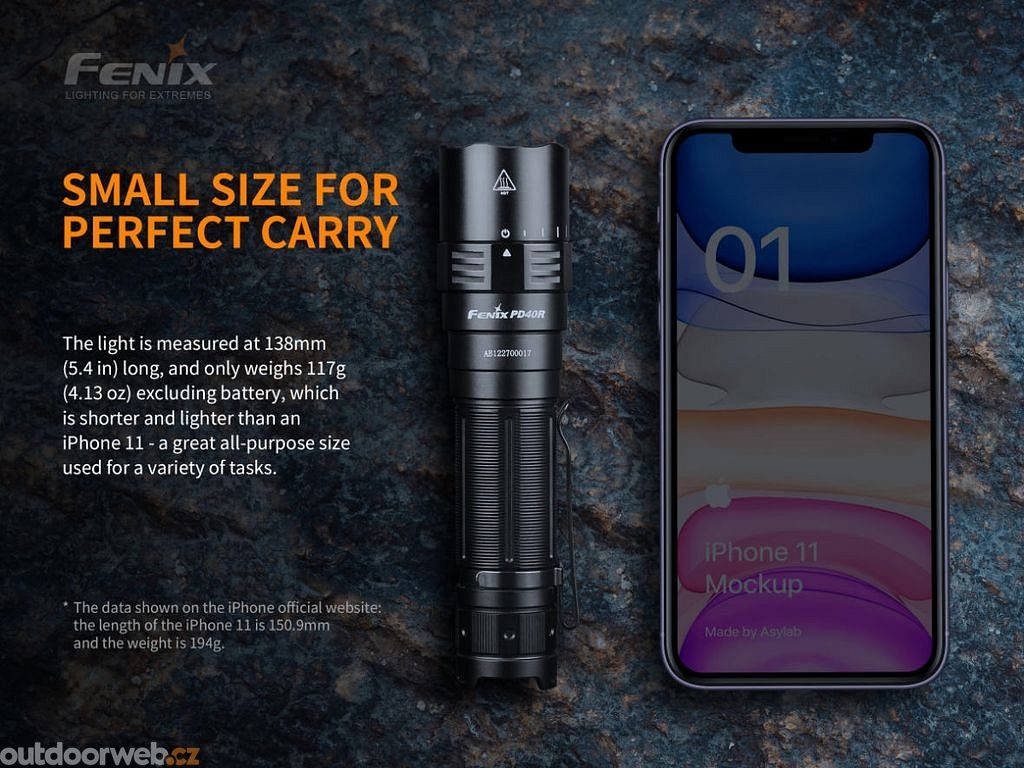

• Dimensions 13.8 cm (length) x 3.3 cm (reflector diameter) x 2.6 cm (body diameter).
• Weight 117 grams (without battery), 189 grams including battery.

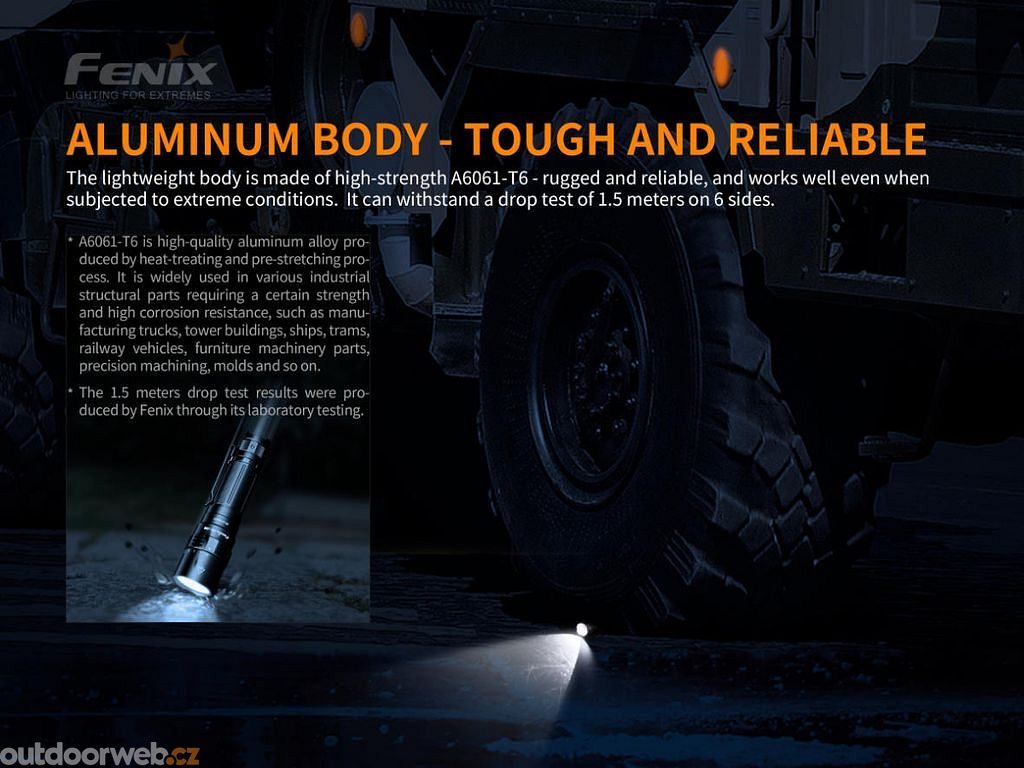

• Made of aerospace hardened aluminum, durable surface - Type III hard anodized.
• Shock resistant to falls from a height of 1 meter.
• Switching and light mode selection by rotary ring on the head of the flashlight.
• Able to stand independently on a flat place and serve as a candle.
• Odd-numbered threads with increased wear resistance.
• Distinctive surface grooves for better grip, design prevents the flashlight from rotating on uneven surfaces.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 metres for 30 minutes).
• Removable steel clasp with titanium finish.
• Tempered ultra clear glass lens with anti-reflective coating.

Lighting modes:

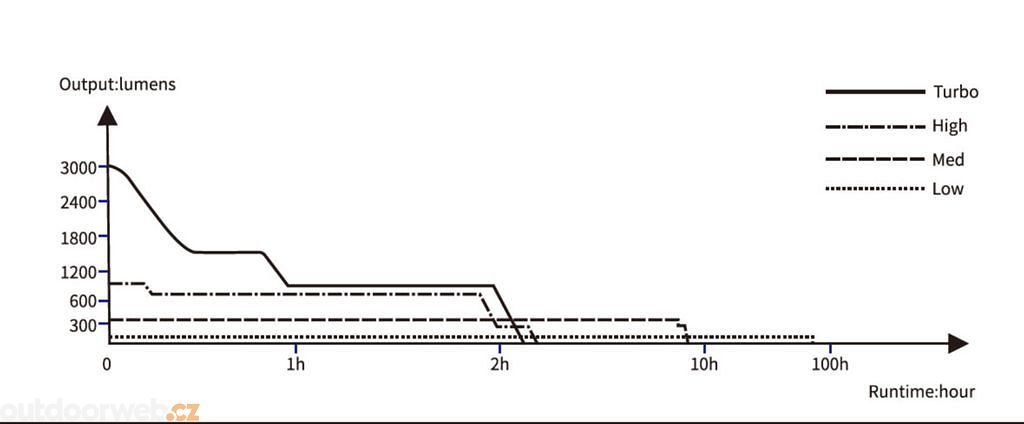

5 modes: Turbo 3000 lumens (2.7 hours) -> 1000 lumens (3.1 hours) -> 350 lumens (8.5 hours) -> 30 lumens (88 hours) - Strobe 2500 lumens (variable frequency strobe).

3000 lm
Range: 405 m
Weight: 117 g without battery
Dimensions: 13.8 x 3.3 x 2.6 cm

Usage
There may be a black insulating cap inside the flashlight on the battery pack from the factory. To switch on, turn the control ring to the right. Change modes by turning the control ring (to increase power to the right, to decrease power to the left). The stroboscope is located in the far right position. To turn the flashlight off, turn the ring to the leftmost position.
Intelligent overheat protection - if the flashlight temperature rises above 65°C, it will automatically start to reduce power in gradual steps, as soon as the flashlight temperature drops below 65°C, the power will gradually increase again.
Battery charge indication - each time the flashlight is switched on, the indication LED next to the charging connector is activated for three seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing indicates 50-85% capacity. If it is red, it is 25-50% charged. Red flashing indicates less than 25% of battery capacity remaining.
Charging - Unsnap the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer, or a USB adapter to the mains or car. During charging, the indicator next to the charging connector lights up red. When fully charged, it will light up green. Charging a fully discharged battery takes about 3 hours (with a 2A power supply).
Low battery warning - the flashlight will gradually switch automatically to the lowest mode and the indicator LED in the side button will start flashing red.

Warning
Do not disassemble the sealed parts in the flashlight head yourself, this will violate the warranty.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
- The battery is dead, charge it.
- The contacts inside the flashlight are clogged - clean them with a cotton swab dipped in alcohol.
- The back of the flashlight is loose, tighten it.
