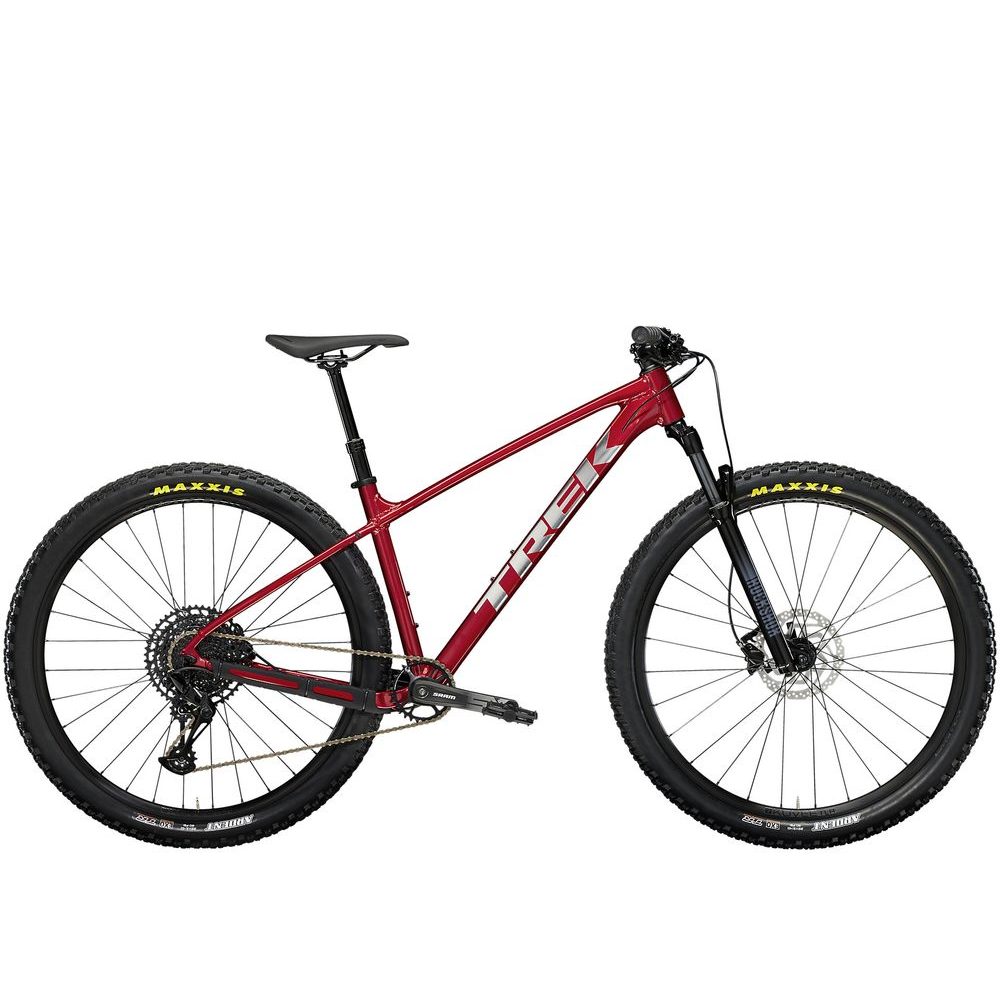

TREK Marlin 8 Gen 3 Crimson 2023
36969 Crimsonmountain bike
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
The Marlin 8 trail bike for confident riding has updated geometry for better handling on singletrack, while also featuring features for everyday use, such as rack mounts or a kickstand. With 12-speed SRAM shifting and an upgraded RockShox air-sprung suspension fork, it'll serve you for years to come.
- You'll get a true mountain bike with modern, versatile geometry that gives you confidence on any singletrack and won't get lost on the roads and trails.
- You get a top-of-the-line RockShox air-spring fork that's lighter and more adjustable compared to a coil spring.

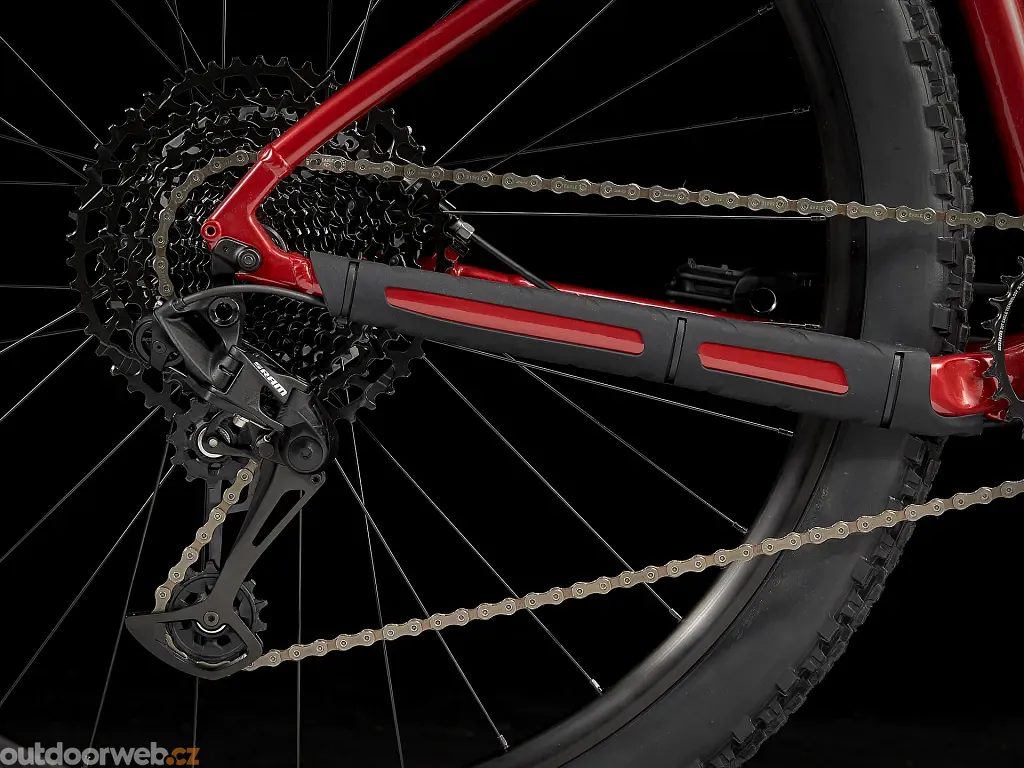

- You get the simplicity and range of 1x12 shifting for exceptional trail performance.
- With a telescopic seatpost, you can lower the saddle so it doesn't get in the way on technical sections and steep descents.

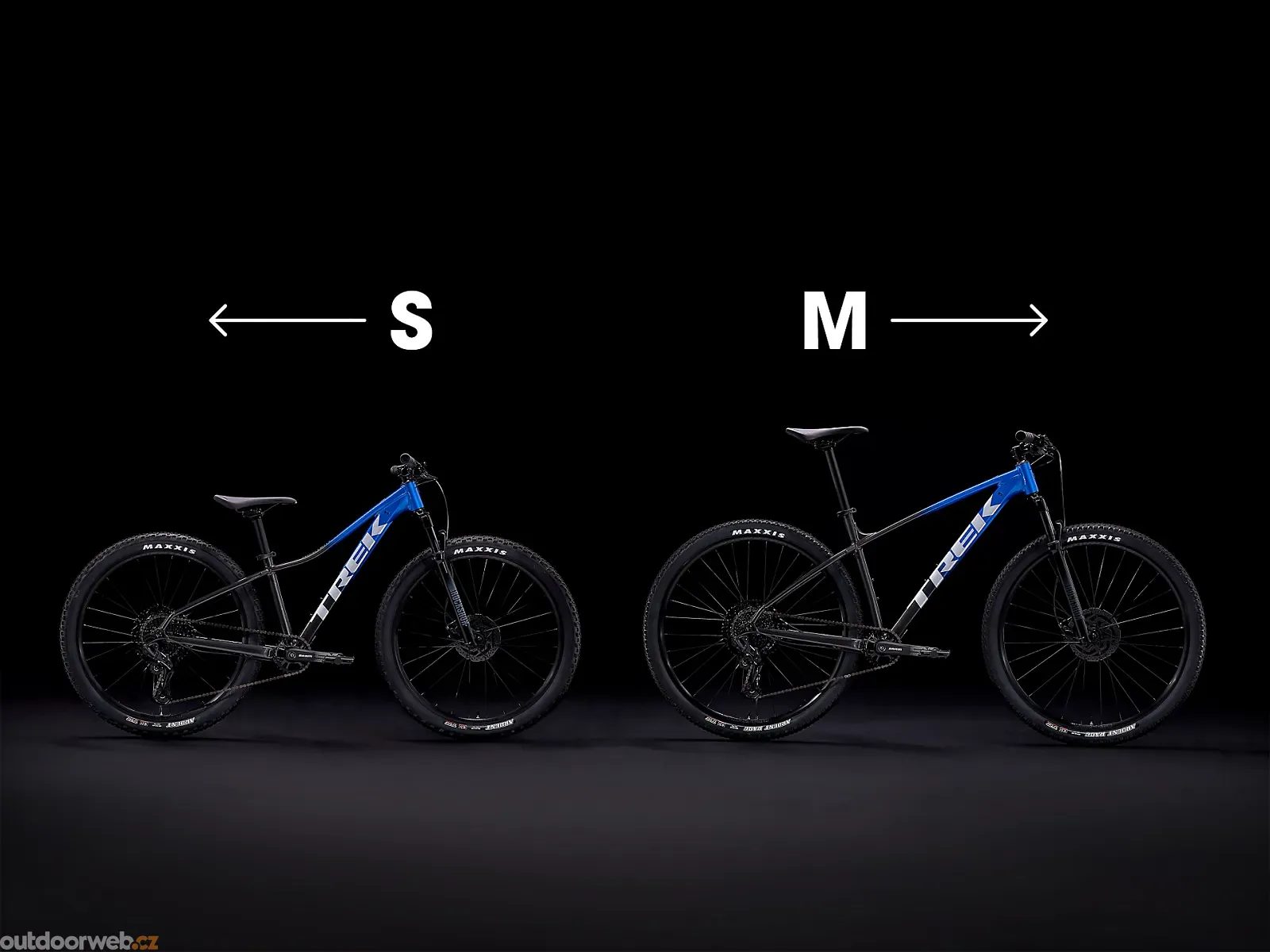

- Marlin models in sizes XXS and XS have a curved top frame tube that is also at a lower height off the ground. This makes it easier for smaller riders to mount and dismount.
You want a bike that will grow with you while still being versatile enough for your daily commute to school, work or shopping.
Lightweight aluminum frame with modern trail geometry and internal cable routing for protection and a sleek look. RockShox air-spring fork that's lighter and more adjustable compared to a coil, SRAM shifting with a wide gear range and impressive stopping power from hydraulic disc brakes.
The Marlin 8 progressive trail bike will make it easy to gain skills on singletrack and everyday commuting. It offers cutting-edge features that will make it grow with your skills.
*Note - Specifications apply to all sizes unless listed separately
| *Frame | Size: XXS , XS Aluminum Alpha Silver, curved top tube, internal cable routing for derailleur and telescopic seatpost, rack and seatpost mount, ThruSkew 135 x 5mm. |
|---|---|
| Size: XXS , XS , S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew | |
| Size: S , M , ML , L , XL , XXL Aluminum Alpha Silver, internal derailleur & telescopic seatpost cable routing, rack & stand mount, 135 x 5mm ThruSkew. | |
| *Fork | Size: XXS RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic lockout, 42 mm offset on 27.5-inch wheels, 100 mm quick release, 80 mm travel. |
| Size: XS , S RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic locking, 42 mm offset on 27.5-inch wheels, 100 mm quick release, 100 mm travel. | |
| Sizes: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic locking, 46 mm offset on 29-inch wheels, 100 mm quick release, 100 mm travel. | |
| Front hub | Formula DC-20 LW, alloy, 6 bolts, 5 x 100 mm quick release. |
| Back hub | Formula DC-22LW, 6 hole, Shimano 8/9/10 Freehub nut, 135 x 5 mm quick release. |
| Rear quick release | Bontrager Switch fixed axle. |
| Rifle | Bontrager Kovee, double wall, tubeless tire option, 28 holes, 23 mm wide, Presta valve. |
| Drill | 14 g stainless steel. |
| *Tire | Size: XXS Maxxis Ardent, tubeless, EXO protection, folding foot, 60 tpi, 26 x 2.40 in. |
| Size: XS , S Maxxis Ardent, tubeless, EXO protection, folding foot, 60 tpi, 27.5 x 2.40 in. | |
| Size: M , ML , L , XL , XXL Maxxis Ardent, tubeless, EXO protection, folding foot, 60 tpi, 29 x 2.40 in. | |
| Shift | SRAM SX Eagle, 12 speeds |
| Shift | SRAM SX Eagle. |
| *Kleka | Size: XXS SRAM SX Eagle, 30 tooth steel chainring, 49 mm chainline, 155 mm length. |
| Size: XS , S , M SRAM SX Eagle, 30 tooth steel derailleur, 49 mm chainline, 170 mm length. | |
| Size: ML , L , XL , XXL SRAM SX Eagle, 30 tooth steel chainring, 49 mm chainline, 175 mm length. | |
| Central Compound | Powerspline, 73 mm, threaded encapsulated bearing, 118 mm axle. |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speeds |
| Chain | SRAM SX Eagle, 12 speeds |
| Saddle | Bontrager Arvada, steel rails, 138 mm wide. |
| *Saddle | Size: XXS , XS , S TranzX JD-YSP18, 100 mm stroke, internal cable routing, 31.6 mm, 361 mm length. |
| Size: M TranzX JD-YSP18, 130 mm stroke, internal cable routing, 31.6 mm, 425 mm length. | |
| Size: ML , L , XL , XXL TranzX JD-YSP18, 150 mm stroke, 31.6 mm internal cable routing, 470 mm length. | |
| * Handlebars | Size: XXS , XS Alloy, Bontrager, 31.8 mm, 5mm offset, 690 mm wide |
| Size: S Alloy, Bontrager, 31.8 mm, 15 mm sag, 720 mm wide | |
| Size: M , ML , L , XL , XXL Alloy, Bontrager, 31.8 mm, 15 mm deflection, 750 mm width | |
| Grips | Bontrager XR Trail Comp, Nylon Lock-On |
| *Strap | Size: XXS , XS , S Bontrager Comp, 31.8 mm socket, Blendr compatible, 7 degrees, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm sleeve, Blendr compatible, 7 stages, 50 mm length | |
| Size: XL Bontrager Comp, 31.8 mm socket, Blendr compatible, 7 stages, length 60 mm | |
| Size: XXL Bontrager Comp, 31.8 mm socket, Blendr compatible, 7 stages, 70 mm length | |
| Head Compound | Partially integrated, 1-1/8 inch |
| Brake | Hydraulic disc version of Shimano MT200 |
| *Brake Rotor | Size: XXS , XS , S , M , ML , L , XL , XXL Shimano RT26, 6 holes, 160 mm. |
| Size: M , ML , L , XL , XXL Shimano RT26, 6 holes, 180 mm. | |
| Brake set | Hydraulic disc version of Shimano MT200 |
| Weight | |
| Weight limit | The bike has a maximum total weight limit of 136 kg (combined weight of bike, rider and cargo). |
Sizes
| Size | Rider height | Inseam | |
|---|---|---|---|
| 2XS | 135 - 145 cm | 64 - 68 cm | |
| XS | 145 - 155 cm | ||
| S | 155 - 165 cm | 74 - 78 cm | |
| M 165 - 173 cm | 79 - 81 cm | ||
| M/L | 173 - 180 cm | ||
81 - 86 cm | |||
| L | 180 - 188 cm | ||
| XL | 188 - 195 cm | ||
| 2XL | 195 - 203 cm | 91 - 97 cm |
