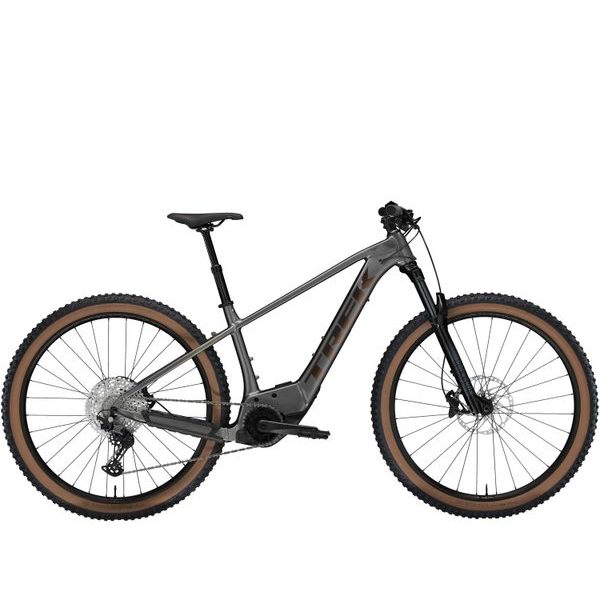

TREK Marlin+ 8 EU L 29 Mercury
41707, Mercurymountain electric bike
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
Frame | |
|---|---|
| *Frame | Size: XS Alpha Gold aluminum, curved top tube, tapered head tube, internal cable routing, mounts for rack, fender and kickstand, UDH, Boost148, 12mm thru axle. |
| Size: S, M, L, XL Alpha Gold aluminum, tapered head tube, internal cable routing, rack, fender, and kickstand mounts, UDH, Boost148, 12mm thru axle. | |
| *Fork | Size: XS RockShox Recon Silver RL, Solo Air, Motion Control damping, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth 15 mm, 100 mm travel. |
| Size: S RockShox Recon Silver RL, Solo Air, Motion Control damping, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth 15 mm, 120 mm travel. | |
| Size: M, L, XL RockShox Recon Silver RL, Solo Air, Motion Control damping, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth 15 mm, 120 mm travel. | |
| Maximum compatible fork travel | See service manual |
Wheels-rims | |
| Front hub | Alloy, Bontrager, sealed bearing, alloy axle, Center Lock mount, Boost110, 15mm thru axle. |
| Rear hub | Formula CL-3348M, alloy, CenterLock, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
| Rear quick release | Bontrager Switch thru axle, removable lever. |
| *Rim | Size: XS, S, M, L, XL Bontrager Line TLR 30, tubeless ready, 28 holes, Presta valve. |
| Size: XS, S, M, L, XL Bontrager Line TLR 30, tubeless ready, 32 holes, Presta valve. | |
| *Tire | Size: XS, S Bontrager Gunnison Pro XR, tubeless ready, dual compound, aramid bead, 60 tpi, 27.5 x 2.60 inches. |
| Size: M, L, XL Bontrager Gunnison Pro XR, tubeless ready, dual compound, aramid bead, 60 tpi, 29 x 2.60 inches. | |
| Rim tape | Bontrager TLR |
| Maximum tire size | Frame: 29 x 2.60" inches (XS: 27.5 x 2.60" inches), Fork: See manufacturer |
E-system | |
| Battery | Bosch CompactTube 400 Wh. |
| Charger | Bosch standard 2A, 230 V, smart system. |
| Cycle computer | Bosch Purion 200. |
| Motor | Bosch Active Line Plus, 50 Nm |
Drive | |
| Gears | Shimano Deore M6100, 12 speeds. |
| Rear derailleur | Shimano Deore M6100, long cage. |
| Crankset | FSA CK-220, length 165 mm. |
| Chainring | FSA, 32T, steel |
| Cassette | Shimano Deore M6100, 10-51, 12 speeds. |
| Chain | Shimano Deore M6100, 12 speeds. |
| Pedal | VP-536, nylon platform |
| Maximum chainring dimensions | 1x: 36 teeth, min 32 teeth |
Components | |
| Saddle | Bontrager Arvada, steel rails, width 138 mm. |
| *Seatpost | Size: XS, S TranzX JD-YSP18, 100 mm travel, internal cable routing, 31.6 mm, length 361 mm. |
| Size: M, L, XL TranzX JD-YSP18, 150 mm travel, internal cable routing, 31.6 mm, length 470 mm. | |
| *Handlebars | Size: XS, S Alloy, Bontrager, 31.8 mm, 15 mm rise, 720 mm width. |
| Size: M, L, XL Alloy, Bontrager, 31.8 mm, 15 mm rise, width 750 mm. | |
| Grips | Bontrager XR Trail Comp, nylon Lock-On |
| *Stem | Size: XS, S Bontrager Comp, 31.8 mm clamp, 7 degrees, 35 mm length |
| Size: M, L Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7 degrees, 50 mm length | |
| Size: XL Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7 degrees, 60mm length | |
| Headset | Semi-integrated, sealed bearing, alloy cups, 1-1/8" top, 1.5" bottom. |
| Brake | Shimano hydraulic 4-piston disc version, MT4100 lever, MT420 caliper. |
| *Brake rotor | Size: XS, S, M, L, XL. Shimano RT64, centerlock, 203 mm. |
| Size: XS, S, M, L, XL Shimano RT64, Centerlock, 203 mm. | |
| Disc dimensions | Maximum disc sizes - Frame: 203 mm, min 180 mm, Fork: see manufacturer |
Weight | |
| Weight | M - 21.49 kg / 47.38 lbs (with TLR sealant, without inner tubes) |
| Weight limit | The bike has a maximum total weight limit of 136 kg (combined weight of bike, rider, and cargo). |
