TREK Marlin 7, Keswick

41217 Keswick

xc mountain bike

In stock Doprava at the latest. 12. 2. at your place
1 012,77 € 1 191,50 €
You have to choose the color You have to choose the size

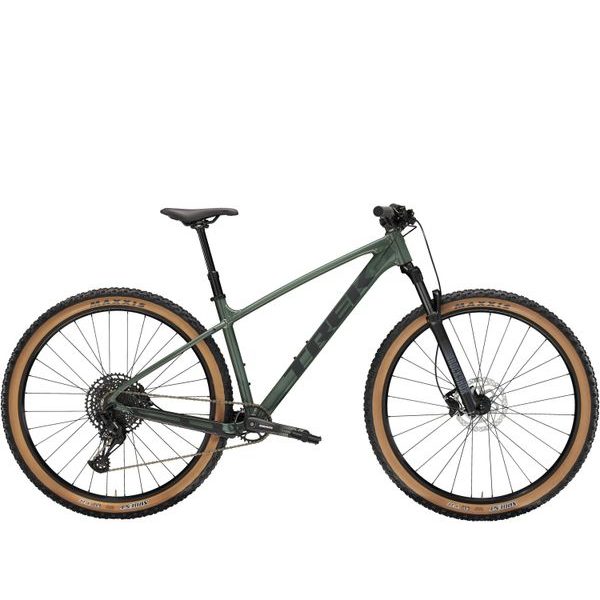

Marlin 7, Keswick

Marlin 7, Keswick

1 012,77 € 1 191,50 €

Ready to ride

The bike is always professionally tuned and ready to go.

We will be happy to advise you

We provide expert advice on selection and configuration.

Free warranty inspection

Free warranty inspection after driving 200–500 km

Official TREK Store

Lifetime warranty on the frame, Crash Replacement, Carbon Care.

Detailed description
Components
Specifications
Brand

Thanks to its reliable trail geometry, the Marlin 7 is a favourite not only on the trails. It has an upgraded RockShox suspension fork that handles rocks and bumps in the trail, and a huge gear range of 12-speed SRAM SX Eagle drivetrain. So it offers the perfect price/performance ratio.

You want a versatile bike that has higher quality components where it really matters, but which at the same time isn't too expensive. You want to hone your trail skills on a bike with geometry that guarantees a safe ride and upgraded components that will keep up with you.

  1. With room for larger tires, internal telescopic seatpost routing, a ThruSkew rear axle, and longer and laid-back geometry for better stability on steeper trails and at higher speeds, the Marlin Gen 3 is a great trail bike.
  2. Its upgraded RockShox fork with 100mm of suspension dampens bumps like rocks and roots and makes for a smooth ride.
  3. Fender mounts make it easy to mount accessories that will turn your mountain bike into a commuting machine.
  4. Internal cable routing makes it easy to mount a telescopic seatpost, which allows you to lower the saddle while riding for more confident descents.
  5. Marlin models in sizes XXS and XS have a curved top frame tube that is also at a lower height off the ground. This makes it easier for smaller riders to mount and dismount.

Lightweight aluminium frame with modern trail geometry and internal cable routing for protection and a sleek look. Improved RockShox suspension fork dampens bumps, 12-speed SRAM SX Eagle shifting and impressive stopping power from hydraulic disc brakes.

The popular Marlin 7 trail bike is designed for those who want to master singletrack riding and get better suspension and geometry for a safe ride at an affordable price.

Will my bike have a curved top tube?
On smaller frames, the top frame tube slopes at the seat tube. This design makes the frame lower, which suits riders of smaller stature who can straddle the bike more comfortably. On larger frames, the top tube is straight because taller people have longer legs and have no problem straddling.


The right size for every rider
Marlin is available in seven frame sizes for riders of all heights. The Smart Wheel size ensures you'll be riding the fastest wheels possible. The smallest sizes are fitted with short reach brake levers and narrower handlebars to give shorter riders more comfort and control.

High tech, high value
The Marlin bike looks good and rides well. It's packed with features you'll usually only find on more expensive bikes. These include a sleek frame with internal shift and brake cable routing for longer life and protection against the elements.

Get better pedals and fall in love with your bike even more
Pedals are two of the five touch points that connect you to your bike, and although this bike comes with pedals installed, you'll improve your ride quality significantly if you get pedals that improve handling and grip. Take a look at our pedal guide to find one that suits your riding style. We recommend flat pedals for their versatility.

Frame

*FrameSize: XXS , XS
Alpha Silver aluminum, curved top tube, internal cable routing for derailleur and telescopic seatpost, rack and seatpost mount, ThruSkew 135 x 5mm.Size: S , M , ML , L , XL , XXL
Alpha Silver aluminium, internal cable routing for derailleur and telescopic seat tube, rack and seatpost mount, ThruSkew 135 x 5 mm.*ForkSize: XXS
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic locking, 42 mm offset on 27.5-inch wheels, 100 mm quick release, 80 mm travel.Size: XS , S
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic locking, 42 mm offset on 27.5-inch wheels, 100 mm quick release, 100 mm travel.Size: M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic locking, 46 mm offset on 29-inch wheels, 100 mm quick release, 100 mm travel.Maximum compatible fork travel120 mm, XXS: 80 mm

Braided wheel-spokes

Front hubFormula DC-20 LW, alloy, 6 bolts, 5 x 100 mm quick release.Rear hubFormula DC-22LW, 6 holes, Shimano 8/9/10 Freehub nut, 135 x 5 mm quick release.Rear quick release173 x 5 mm quick releaseRimBontrager Kovee, double wall, tubeless option, 28 holes, 23 mm wide, Presta valve.*TireSize: XXS
Maxxis Ardent, tubeless option, EXO protection, folding bead, 60 tpi, 26 x 2.40 in.Size: XS , S
Maxxis Ardent, tubeless option, EXO protection, folding footbed, 60 tpi, 27.5 x 2.40 in.Size: M , ML , L , XL , XXL
Maxxis Ardent, tubeless option, EXO protection, folding heel, 60 tpi, 29 x 2.40 in.Maximum tire sizeFrame: 29 x 2.40 inches (XXS: 26 x 2.40 inches, XS and S: 27.5 x 2.40 inches), Fork: See manufacturer

Drive

ShiftingSRAM SX Eagle, 12 speedsDerailleurSRAM SX Eagle.*KlikaSize: XXS
SRAM SX Eagle, 30 tooth steel derailleur, 49 mm chainline, 155 mm length.Size: XS , S , M
SRAM SX Eagle, 30 tooth steel derailleur, 49 mm chainline, 170 mm length.Size: ML , L , XL , XXL
SRAM SX Eagle, 30 tooth steel chainring, 49 mm chainline, 175 mm length.Center compoundTruvativ Powerspline, 73 mm, threaded encapsulated bearing, 118 mm axle.CassetteSRAM PG-1210 Eagle, 11-50, 12 speedsChainSRAM SX Eagle, 12 speedsPedalVP-536, nylon platformMaximum derailleur dimensions1x: 34 teeth, 2x: 36/22

Components

SaddleBontrager Verse Short, stainless steel rails.*SaddlebagSize: XXS , XS , S
TranzX JD-YSP18, 100 mm stroke, internal guide, 31.6 mm, 361 mm length.Size: M
TranzX JD-YSP18, 130 mm stroke, inner cable routing, 31.6 mm, length 425 mm.Sizes: ML , L , XL , XXL
TranzX JD-YSP18, 150 mm stroke, internal cable routing, 31.6 mm, length 470 mm.* HandlebarsSize: XXS , XS
Alloy, Bontrager, 31.8 mm, 5mm deflection, 690 mm widthSize: S
Alloy, Bontrager, 31.8 mm, 15 mm deflection, 720 mm width.Size: M , ML , L , XL , XXL
Alloy, Bontrager, 31.8 mm, 15 mm deflection, 750 mm width.GripsBontrager XR Trail Comp, nylon Lock-On.*Front barSize: XXS , XS , S
Bontrager Comp, 31.8 mm socket, 7 degrees, 35 mm lengthSize: M , ML , L
Bontrager Comp, 31.8 mm socket, Blendr compatible, 7 degrees, 50 mm lengthSize: XL
Bontrager Comp, 31.8 mm sleeve, Blendr compatible, 7 stages, length 60 mmSize: XXL
Bontrager Comp, 31.8 mm sleeve, Blendr compatible, 7 stages, length 70 mmHeadsetPartially integrated, 1-1/8 in.BrakeHydraulic disc version of Shimano MT200*Brake rotorSize: XXS , XS , S , M , ML , L , XL , XXL
Shimano RT26, 6 holes, 160 mm.Size: M , ML , L , XL , XXL
Shimano RT26, 6 holes, 180 mm.Brake setHydraulic disc version Shimano MT200Disc dimensionsMaximum disc sizes - Frame: 180 mm (XXS: 160 mm), Fork: see manufacturer

Weight

WeightM - 15.03 kg / 33.14 lbs (with TLR sealant, without tubes)Weight limitThe bike has a maximum total weight limit of 136 kg (combined weight of bike, rider and cargo).

The goods are in the following categories:

MARLIN XC kola mountain bikes TREK all

In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.

TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone.  Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.



colour: Blue
Gender: male, female
Suspension: Front suspension
Material: Aluminium
Travel: 100-120 mm
Model year: 2025
Code:41217 Keswick
Brand: TREK

Frame

*FrameSize: XXS , XS
Alpha Silver aluminum, curved top tube, internal derailleur cable routing and telescopic seat post, rack and kickstand mount, ThruSkew 135 x 5 mm.
Size: S, M, ML, L, XL, XXL
Alpha Silver aluminum, internal derailleur and dropper seatpost cable routing, rack and kickstand mount, ThruSkew 135 x 5 mm.
*ForkSize: XXS
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheels, 100 mm quick release, 80 mm travel.
Size: XS, S
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheels, 100 mm quick release, 100 mm travel.
Size: M, ML, L, XL, XXL
RockShox Judy Silver, Solo Air spring, adjustable rebound, TurnKey hydraulic lockout, 46 mm offset for 29-inch wheels, 100 mm quick release, 100 mm travel.
Maximum compatible fork travel120 mm, XXS: 80 mm

Wheels-rims

Front hubFormula DC-20 LW, alloy, 6 bolts, 5 x 100 mm quick release.
Rear hubFormula DC-22LW, 6 holes, Shimano 8/9/10 Freehub, quick release 135 x 5 mm.
Rear quick release173 x 5 mm quick release
RimBontrager Kovee, double wall, tubeless ready, 28 holes, width 23 mm, Presta valve.
*TireSize: XXS
Maxxis Ardent, tubeless ready, EXO protection, folding bead, 60 tpi, 26 x 2.40 inches.
Size: XS, S
Maxxis Ardent, tubeless ready, EXO protection, folding bead, 60 tpi, 27.5 x 2.40 inches.
Size: M, ML, L, XL, XXL
Maxxis Ardent, tubeless ready, EXO protection, folding bead, 60 tpi, 29 x 2.40 inches.
Maximum tire sizeFrame: 29 x 2.40 inches (XXS: 26 x 2.40 inches, XS and S: 27.5 x 2.40 inches), Fork: See manufacturer

Drivetrain

ShiftersSRAM SX Eagle, 12 speeds
Rear derailleurSRAM SX Eagle, 12 speeds
*CranksetSize: XXS
SRAM SX Eagle, 30-tooth steel chainring, 49 mm chainline, 155 mm length.
Size: XS, S, M
SRAM SX Eagle, 30-tooth steel chainring, 49 mm chainline, 170 mm length.
Size: ML, L, XL, XXL
SRAM SX Eagle, 30-tooth steel chainring, 49 mm chainline, 175 mm length.
Bottom bracketTruvativ Powerspline, 73 mm, threaded sealed bearing, 118 mm axle.
CassetteSRAM PG-1210 Eagle, 11-50, 12 speeds
ChainSRAM SX Eagle, 12 speeds
PedalVP-536, nylon platform
Maximum chainring dimensions1x: See frequently asked questions, 2x: 36T, 3x: 42 teeth

Components

SaddleBontrager Verse Short, stainless steel rails.
*SeatpostSize: XXS, XS, S
TranzX JD-YSP18, 100 mm travel, internal cable routing, 31.6 mm, length 361 mm.
Size: M
TranzX JD-YSP18, 130 mm travel, internal cable routing, 31.6 mm, length 425 mm.
Size: ML, L, XL, XXL
TranzX JD-YSP18, 150 mm travel, internal cable routing, 31.6 mm, length 470 mm.
*HandlebarsSize: XXS, XS
Alloy, Bontrager, 31.8 mm, 5 mm bend, width 690 mm.
Size: S
Alloy, Bontrager, 31.8 mm, 15 mm rise, width 720 mm.Size: M, ML, L, XL, XXL Alloy, Bontrager, 31.8 mm, 15 mm rise, 750 mm width.
GripsBontrager XR Trail Comp, nylon Lock-On
*StemSize: XXS , XS , S
Bontrager Comp, 31.8 mm clamp, 7 degrees, 35 mm length
Size: M , ML , L
Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7 degrees, 50mm length
Size: XL, Bontrager Comp, 31.8mm clamp, Blendr compatible, 7 degrees, 60mm length
Size: XXL
Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7 degrees, 70 mm length
HeadsetSemi-integrated, 1-1/8 inch.
BrakeShimano MT200 hydraulic disc version
*Brake rotorSize: XXS , XS , S , M , ML , L , XL , XXL
Shimano RT26, 6 holes, 160 mm.
Size: M, ML, L, XL, XXL
Shimano RT26, 6 holes, 180 mm.
Brake setShimano MT200 hydraulic disc version
Disc dimensionsMaximum disc sizes - Frame: 180 mm (XXS: 160 mm), Fork: see manufacturer

Weight

WeightM - 15.03 kg / 33.14 lbs (with TLR sealant, without tubes)
Weight limitThe bike has a maximum total weight limit of 136 kg (combined weight of bike, rider, and cargo).
