TREK Madone SLR 9 M Carbon Red Smoke

46707, Carbon Red Smoke

Road bike 2025

Ship in a week Doprava First 13. 4. at your place
10 673,06 € 11 858,96 €
You have to choose the color Select an option

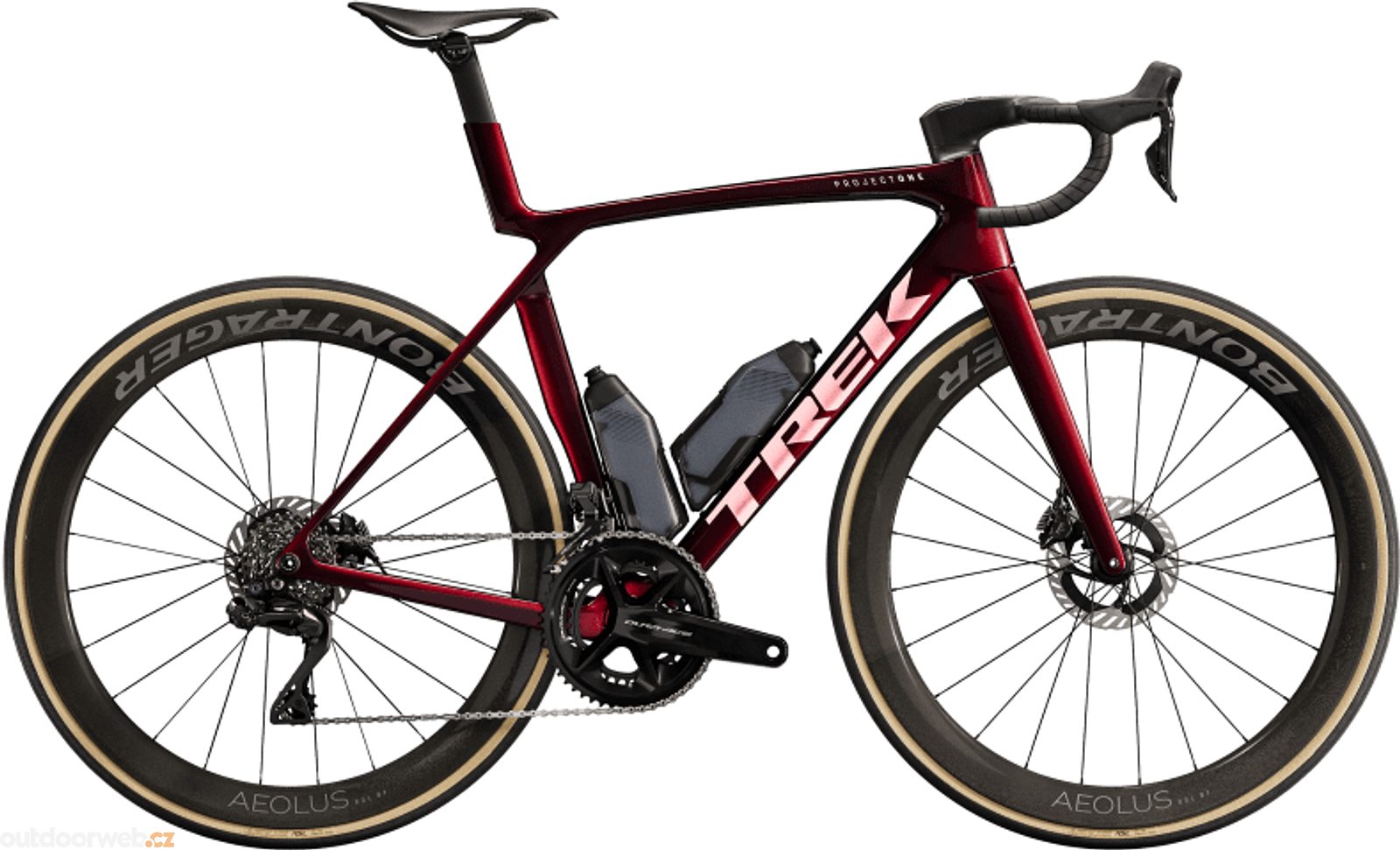

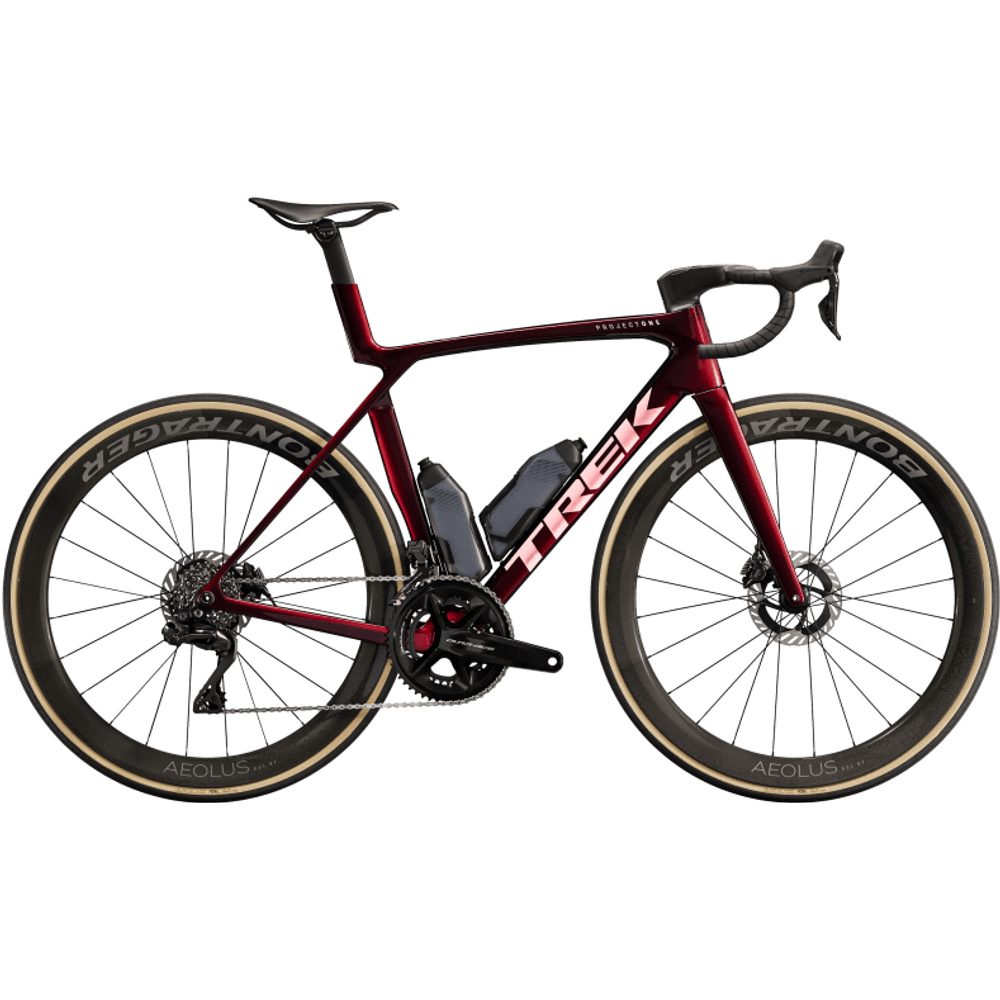

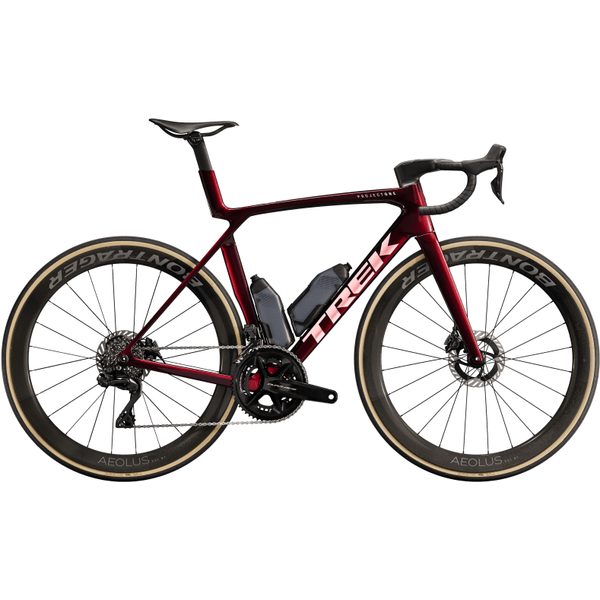

Madone SLR 9 M Carbon Red Smoke

Madone SLR 9 M Carbon Red Smoke

10 673,06 € 11 858,96 €

Ready to ride

The bike is always professionally tuned and ready to go.

We will be happy to advise you

We provide expert advice on selection and configuration.

Free warranty inspection

Free warranty inspection after driving 200–500 km

Official TREK Store

Lifetime warranty on the frame, Crash Replacement, Carbon Care.

Detailed description
Components
Specifications
Brand

Thanks to its light weight and aerodynamic speed, the Madone SLR 9 Gen 8 dominates all roads. It's made from our top-of-the-line 900 series OCLV carbon, which is not only incredibly lightweight, but also allows for aerodynamic tube shaping for lightning fast downhill and straight-line riding. IsoFlow frame technology is lightweight, so the Madone's comfort doesn't take a toll on speed. This bike will take you to the podium thanks to its top-of-the-line Shimano Dura-Ace Di2 drivetrain, carbon wheels, one-piece Trek Aero RSL carbon handlebar and stem combo, and aerodynamic RSL tubes and baskets that minimize drag.

Racing is everything to you, which is why you want our best road race bike. You choose one single bike that combines aerodynamics, comfort and lightness. You're willing to pay extra for the elements that matter to you, like our top-of-the-line carbon, the best components, and any parts that will give you an edge in racing.

  1. The revolutionary Full System Foil aero tube shapes redefine what speed looks like and help optimize the aerodynamics of the entire bike.
  2. The frame is made from our top-of-the-line 900 Series OCLV carbon, which is incredibly lightweight, but also stiff where you need to guarantee performance and compliant where you want comfort.
  3. Carbon wheels reduce weight and improve performance, so you'll tackle climbs and whizz through descents with ease.

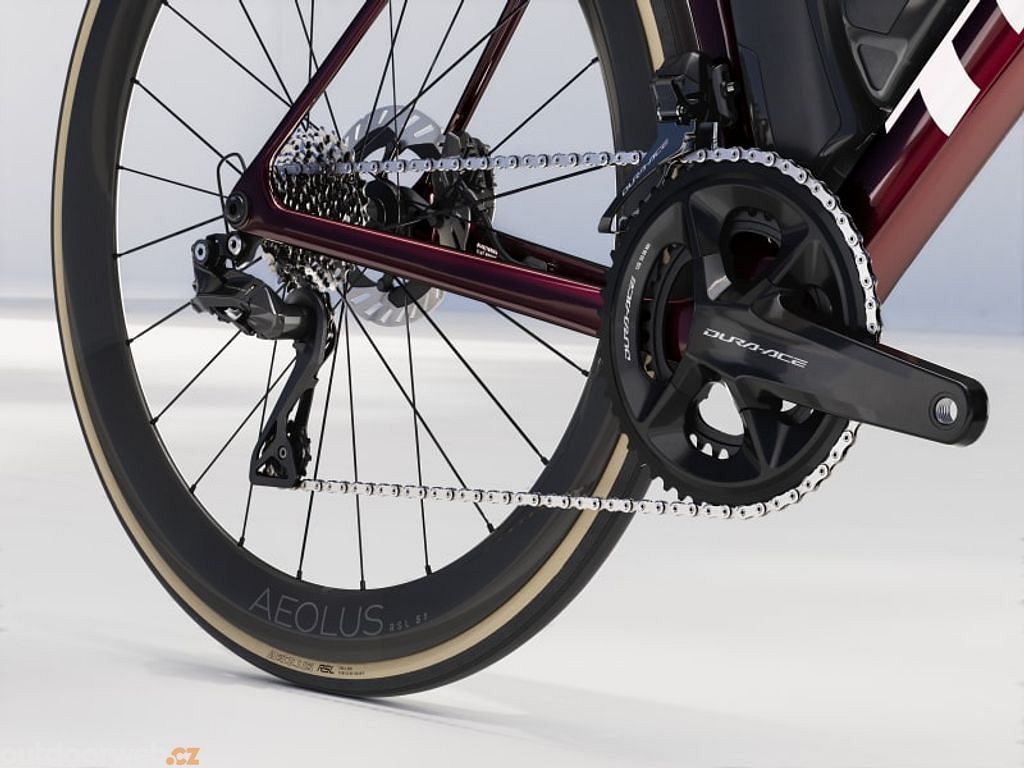

  4. The lightest Shimano Dura-Ace Di2 derailleur ensures lightning-fast shifting.
  5. The aerodynamic cylinders and baskets make the system lighter and give riders even better aerodynamics.
  6. The new Blendr system on the handlebar and stem combination allows the daytime running light to be mounted and unmounted.

Madone SLR 9 Gen 8 is our lightest, most aerodynamic and powerful Madone ready to deliver superbike-level performance everywhere. It has an incredibly lightweight 900 series OCLV carbon frame, so it handles climbs in a flash. With aerodynamically shaped tubes, it whips through windy descents like lightning, and IsoFlow technology ensures a good ride feel every time. It's packed with top-notch components and makes no compromises.

Our lightest Madone Disc yet
With new lightweight, fast and aerodynamically shaped tubes and the best 900 series OCLV carbon, the Gen 8 is our lightest Madone Disc frameset yet and as light as the Émonda.

Redefines what speed looks like
The revolutionary new aerodynamic shape of the Full System Foil tubes improves airflow along the entire bike while maintaining the lightness that riders crave. Plus, the entire rider system has been carefully designed and thoroughly tested to be faster everywhere.

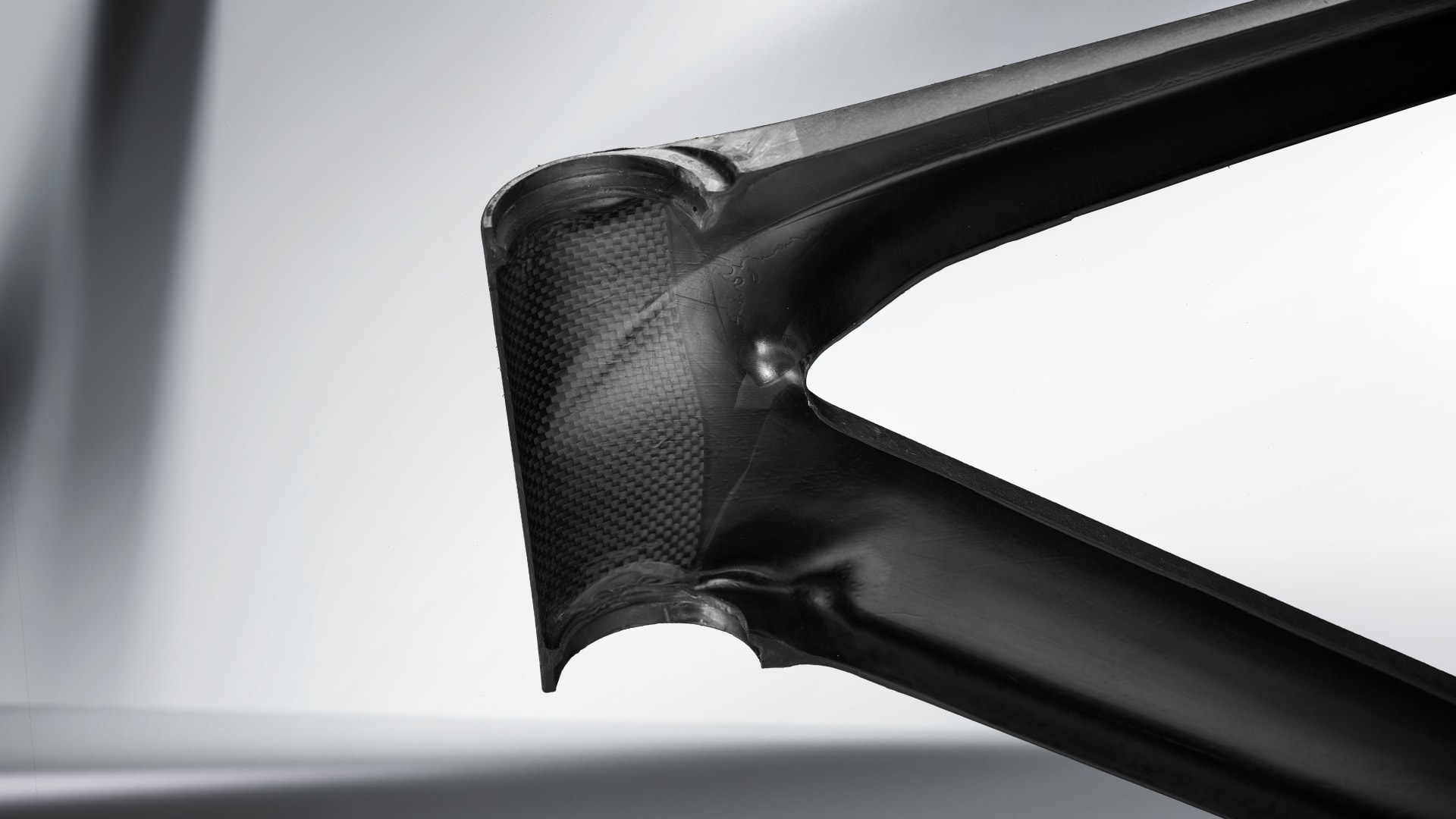

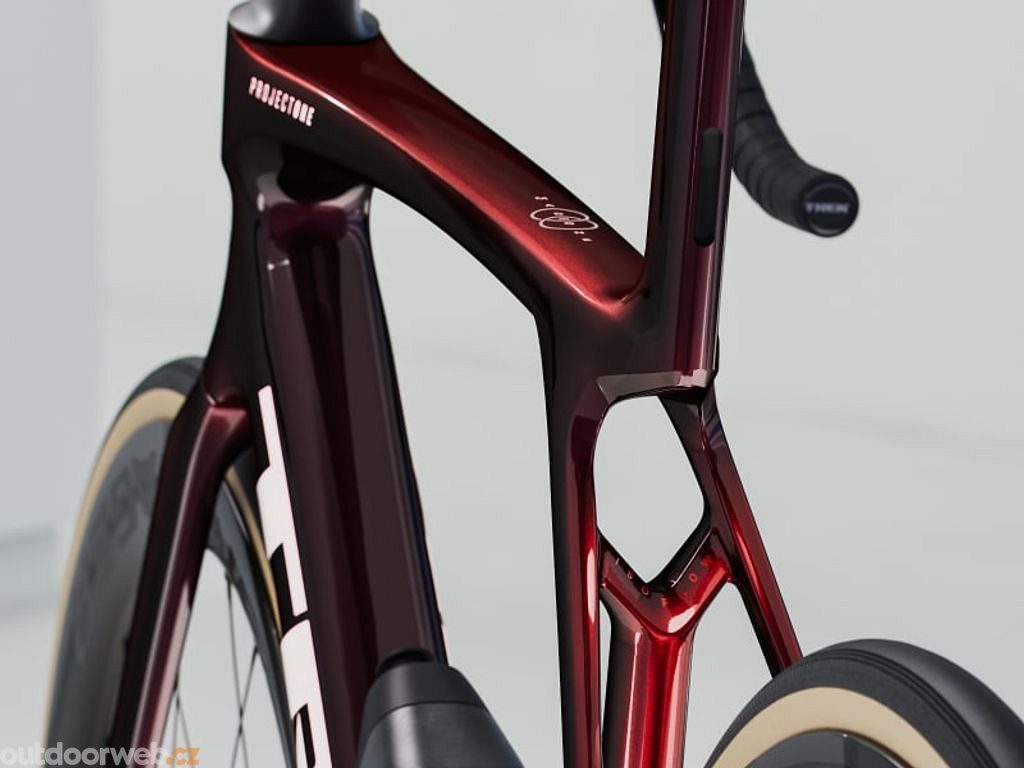

The IsoFlow element is now 80 % more flexible in the vertical direction
We've further refined our comfort-focused racing technology and nearly doubled the flexibility in the vertical direction, so you can deliver more power for longer.

Designed for the best of the best
The popular Madone SLR Gen 8 bike is raced by the fastest sprinters and climbers on the Lidl-Trek team. They simply don't need any other bike for racing.

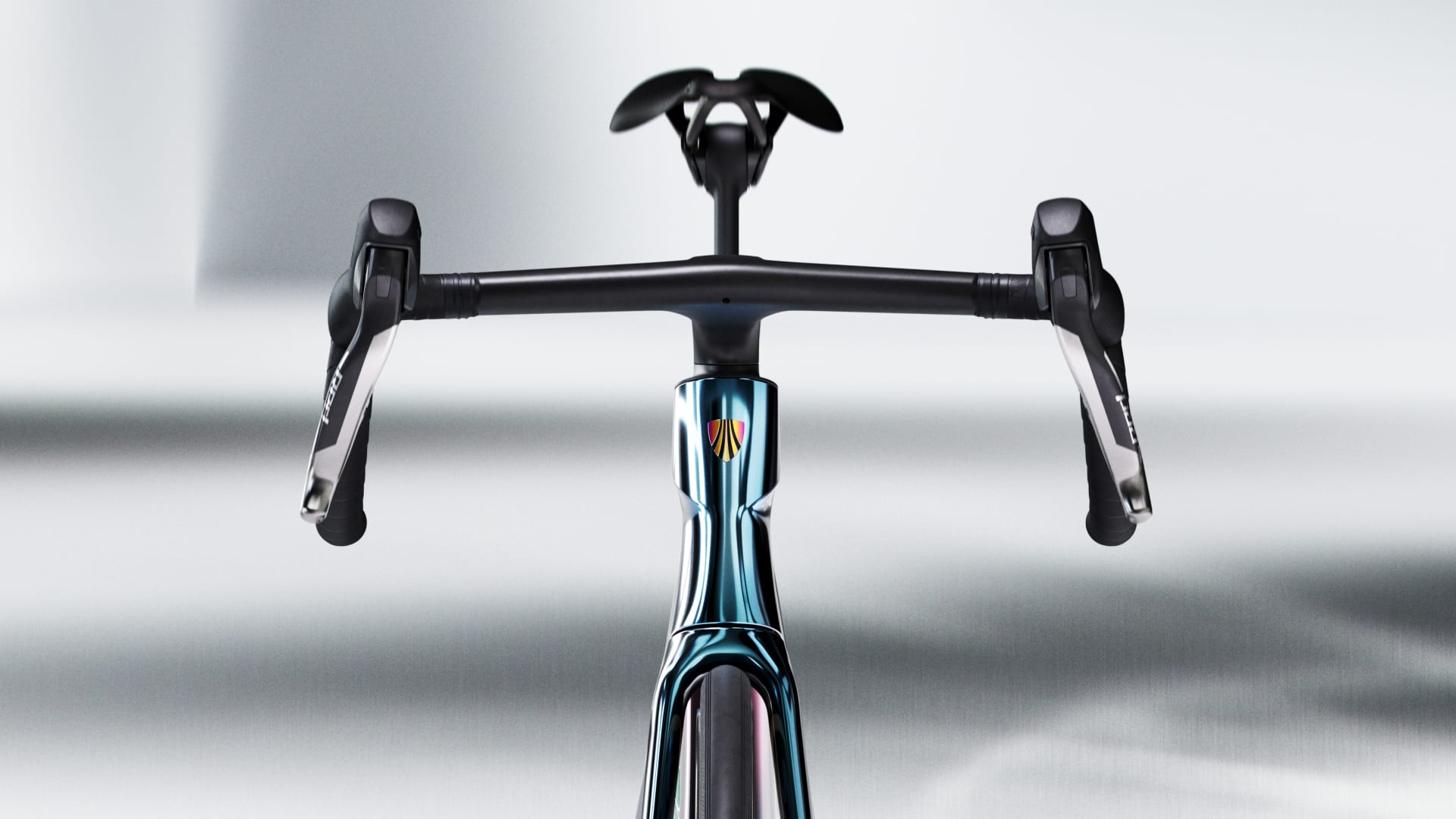

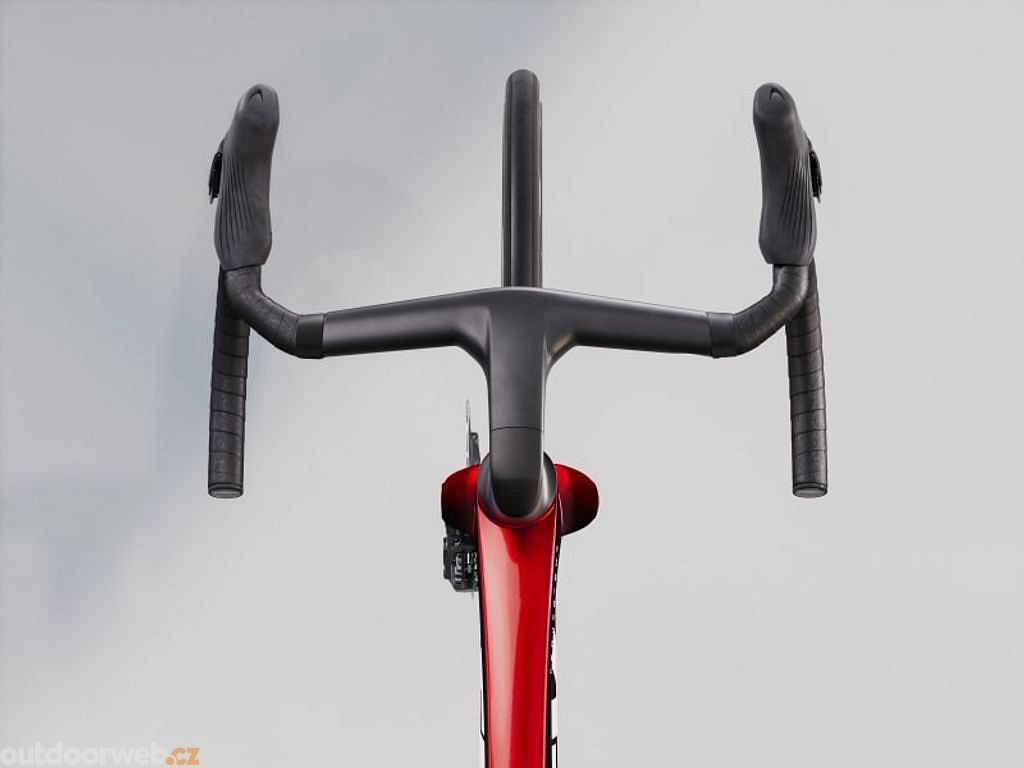

Aero RSL one-piece handlebar and stem combination
The new one-piece handlebar and stem combination is lighter, more aerodynamic and more ergonomic than the previous model. The handlebars are 3 cm narrower at the top (hoods) than at the bottom (drops), so you can adjust your position and focus on aerodynamics (on the bars) or power (in the corners).

The RSL aerodynamic bottles and baskets
The RSL aerodynamic bottles and baskets that come with the bike have been specially designed along with the entire system around the rider, making the Madone even faster.

Road Bike Size Update
We've updated and unified the sizes and reduced overlap to accommodate an even wider range of riders, while making it easier for you to choose.

Shimano Dura-Ace Di2.
Exemplifying Shimano's cutting-edge road technology and unique innovations, the new 12-speed Dura-Ace Di2 R9200 is Shimano's fastest drivetrain to date. Speed has been the driving force behind this next-generation road set-up. Every component has been refined, designed and tuned to make you faster - whether you're sprinting to the finish line on the Champs-Elysées or tackling the climbs on the local trail.

In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.

TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone.  Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.



colour: Red
Gender: male, female
Suspension: Front suspension
Material: Carbon
Travel: 100-120 mm
Model year: 2025
Code:46707, Carbon Red Smoke
Brand: TREK

Rám

Rám s vidlicí Karbon OCLV řady 900, tvarování trubek Full System Foil, sedlovka IsoFlow, systém hlavového složení RCS, pouze elektronické řazení, odnímatelný aerodynamický držák řetězu, středové složení T47 BB, kotouč s úchytem Flat Mount, UDH, pevná osa 142 x 12 mm.
Vidlice Madone Gen 8, karbonová konstrukce z jednoho kusu, karbonový kónický sloupek, vnitřní vedení brzd, kotoučové brzdy s úchytem Flat Mount, zkosená pevná osa 12 × 100 mm.

Hmotnost

Hmotnost ML - 7.05 kg / 15.55 lbs (s těsnicím tmelem TLR, bez duší, bez lahví/košíků na lahve)
Hmotnostní limit Kolo má maximální celkový hmotnostní limit 125 kg (kombinovaná hmotnost kola, jezdce a nákladu).

E-systém

Baterie Shimano BT-DN300
Nabíječka Součástí výbavy nabíjecí kabel.

Pohon

Řazení Shimano Dura-Ace R9270 Di2, 12 rychlostí.
Přesmykač Shimano Dura-Ace R92500 Di2, navářka, down swing.
Přehazovačka Shimano Dura-Ace R9250 Di2, převodník max. 34 zubů.
*Klika Velikost: XS, S
Shimano Dura-Ace R9200, 52/36, délka 165 mm
Velikost: M
Shimano Dura-Ace R9200, 52/36, délka 170 mm
Velikost: ML, L
Shimano Dura-Ace R9200, 52/36, délka 172,5 mm
Velikost: XL
Shimano Dura-Ace R9200, 52/36, délka 175 mm
Středové složení Praxis, T47 závitované, vnitřní ložisko.
Kazeta Shimano Dura-Ace R9200, 11-30, 12 rychlostí
Řetěz Shimano Dura-Ace/XTR M9100, 12 rychlostí.
Maximální rozměry převodníku 1x: 54 zubů, 2x: 56/43

Zapletená kola-výplety

Přední kolo Bontrager Aeolus RSL 51, karbon OCLV, možnost použití bezdušových plášťů, výška ráfku 51 mm, pevná osa 100 x 12 mm
Zadní kolo Bontrager Aeolus RSL 51, karbon OCLV, možnost použití bezdušových plášťů, výška ráfku 51 mm, ořech Freehub Shimano 11/12 rychlostí, pevná osa 142 x 12 mm
Přední rychloupínák Zkosená pevná osa Bontrager Switch, odstranitelná páčka
Zadní rychloupínák Zkosená pevná osa Bontrager Switch, odstranitelná páčka
*Plášť Velikost: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, možnost použití bezdušových plášťů, bavlněná konstrukce, aramidová patka, 170 tpi, 700 x 28 mm.
Velikost: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, kompatibilní s bezdušovými plášti, 700 x 28 mm
Díl pláště Těsnicí tmel Bontrager TLR, 6 oz.
Maximální velikost pláště 32 mm (naměřená hodnota, viz příručka pro podrobné údaje)

Komponenty

*Sedlo Velikost: XS, S
Aeolus RSL, karbonové ližiny, šířka 155 mm.
Velikost: M, ML, L, XL
Aeolus RSL, karbonové ližiny, šířka 145 mm.
*Sedlovka Velikost: XS, S, M, XL
Aerodynamická karbonová sedlovka Madone, offset 0 mm, krátká délka.
Velikost: ML, L
Aerodynamická karbonová sedlovka Madone, offset 0 mm, dlouhá délka.
*Integrovaná řídítka/představec Velikost: XS
Silniční řídítka s integrovaným představcem Trek Aero RSL, karbon OCLV, Race Fit, dosah 80 mm, oblouk 124 mm, šířka mezi pákami 35 cm, šířka mezi oblouky 38 cm, délka představce 80 mm.
Velikost: S
Silniční řídítka s integrovaným představcem Trek Aero RSL, karbon OCLV, Race Fit, dosah 80 mm, oblouk 124 mm, šířka mezi pákami 37 cm, šířka mezi oblouky 40 cm, délka představce 90 mm.
Velikost: M
Silniční řídítka s integrovaným představcem Trek Aero RSL, karbon OCLV, Race Fit, dosah 80 mm, oblouk 124 mm, šířka mezi pákami 39 cm, šířka mezi oblouky 42 cm, délka představce 90 mm.
Velikost: ML, L
Silniční řídítka s integrovaným představcem Trek Aero RSL, karbon OCLV, Race Fit, dosah 80 mm, oblouk 124 mm, šířka mezi pákami 39 cm, šířka mezi oblouky 42 cm, délka představce 100 mm.
Velikost: XL
Silniční řídítka s integrovaným představcem Trek Aero RSL, karbon OCLV, Race Fit, dosah 80 mm, oblouk 124 mm, šířka mezi pákami 41 cm, šířka mezi oblouky 44 cm, délka představce 110 mm.
Omotávka na řídítka Trek EcoTack
Rozměry kotouče Maximální velikost kotouče: 180 mm přední a 160 mm zadní.
