5D EVO pushes the boundaries of what a cockpit can do. Lighter, stiffer and more aerodynamic – designed for those who don’t want any compromises.

1. Record-low weight with maximum stiffness
   Just 320 g, yet a stiffer construction than ever before – every watt of power goes straight into the tarmac.
2. Aerodynamics on a new level

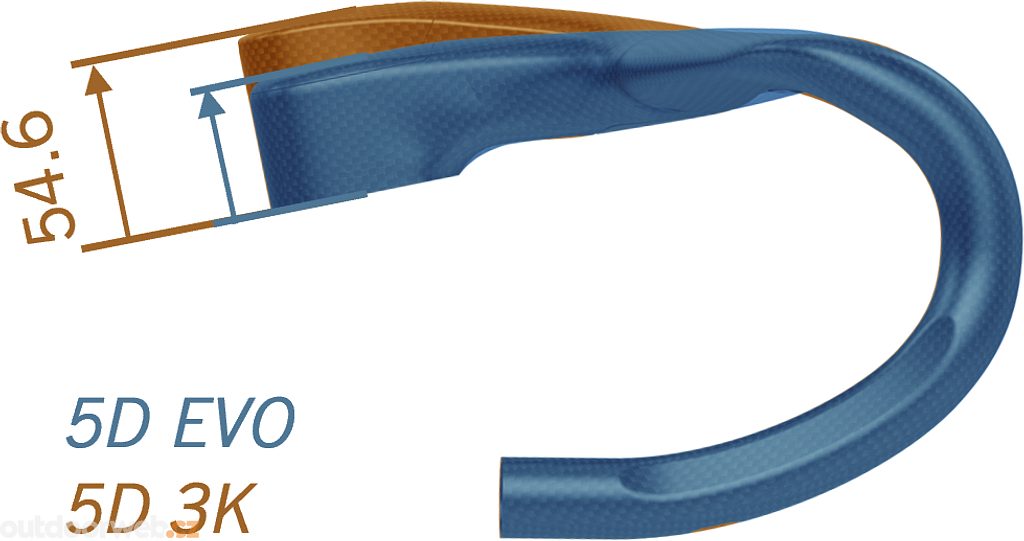

   Stack reduced by 15 mm thanks to CFD analysis and wind tunnel testing – air flows around the cockpit more smoothly and faster.

• 10° flare for comfortable breathing
• Full ACR cable integration
• Compatible with Di2 systems
• 5 mm offset for stable sprints
• Ergonomics for every rider

Specifications:

Material: Full carbon construction (3K Carbon finish)
Cable routing: ACR (Aerodynamic integrated Cable Routing)
Stem angle: -6°
Drop: 125 mm (Compact)
Reach: 80 mm
Flare: 10°
Weight: 320 g (110 × 420 mm)
