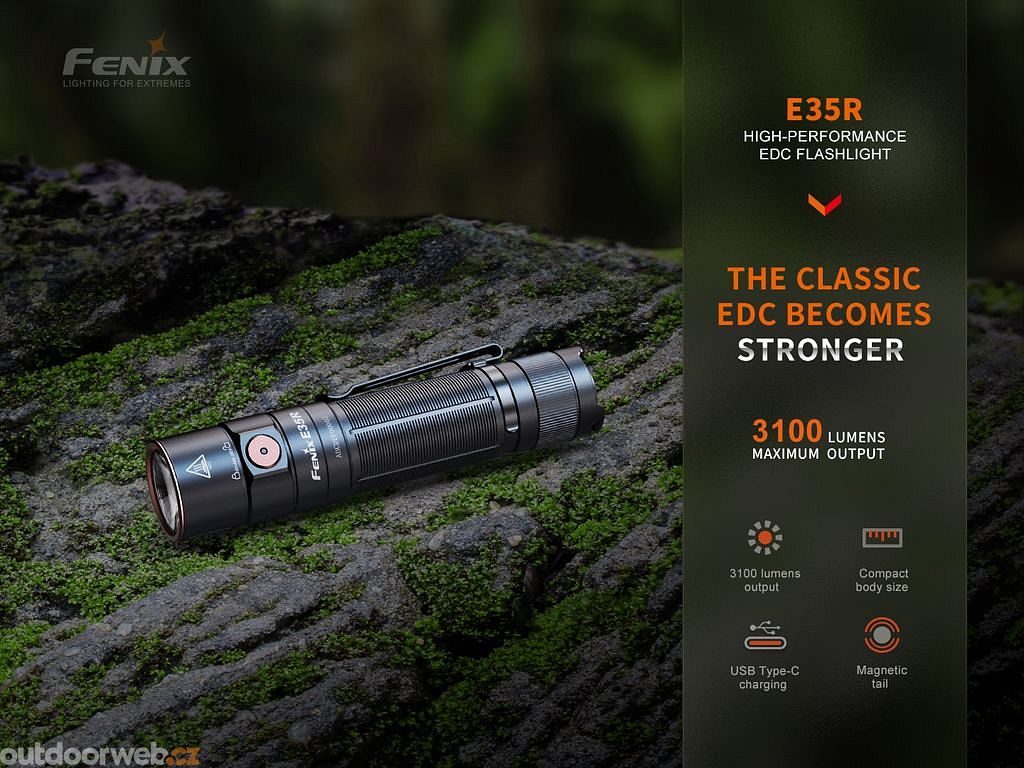

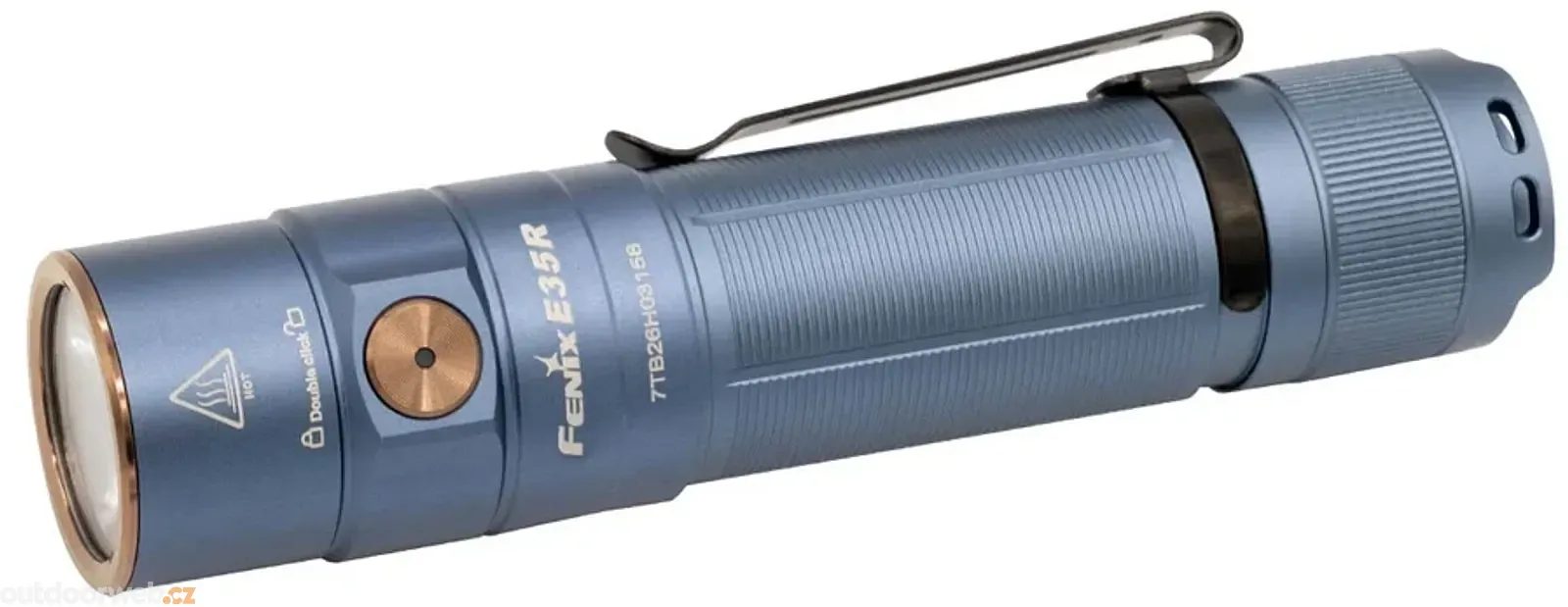

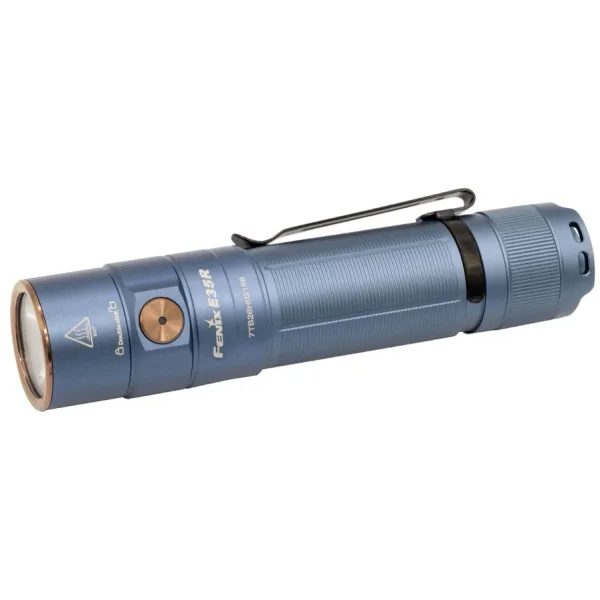

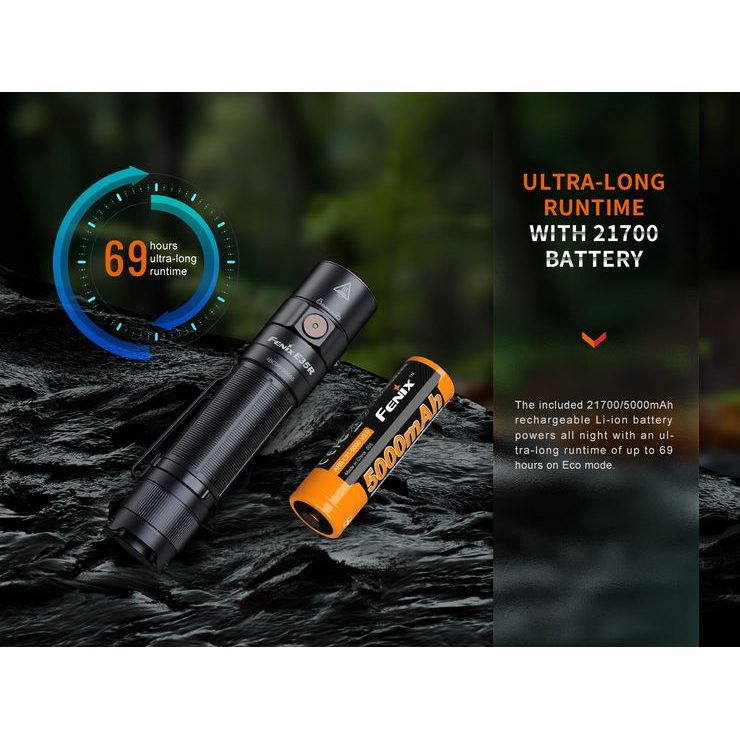

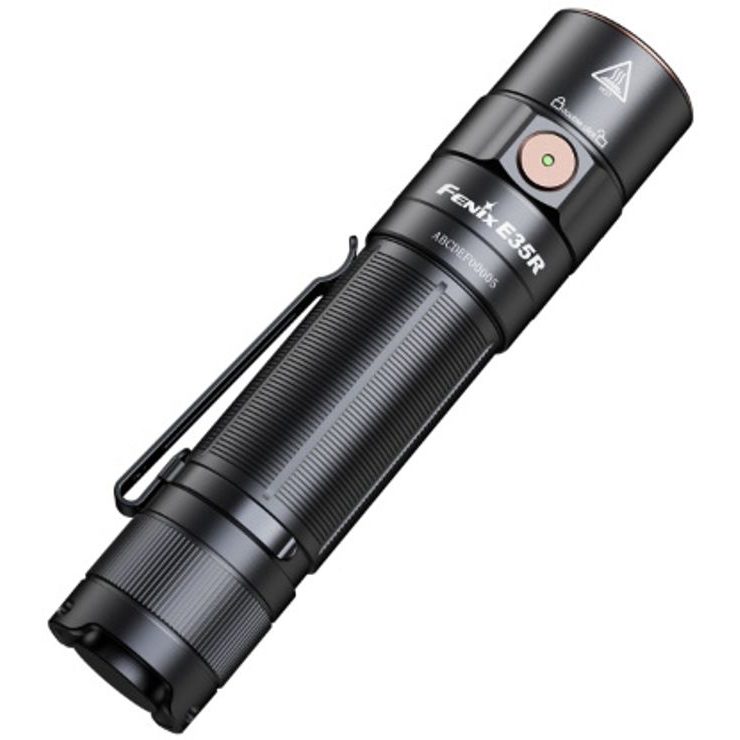

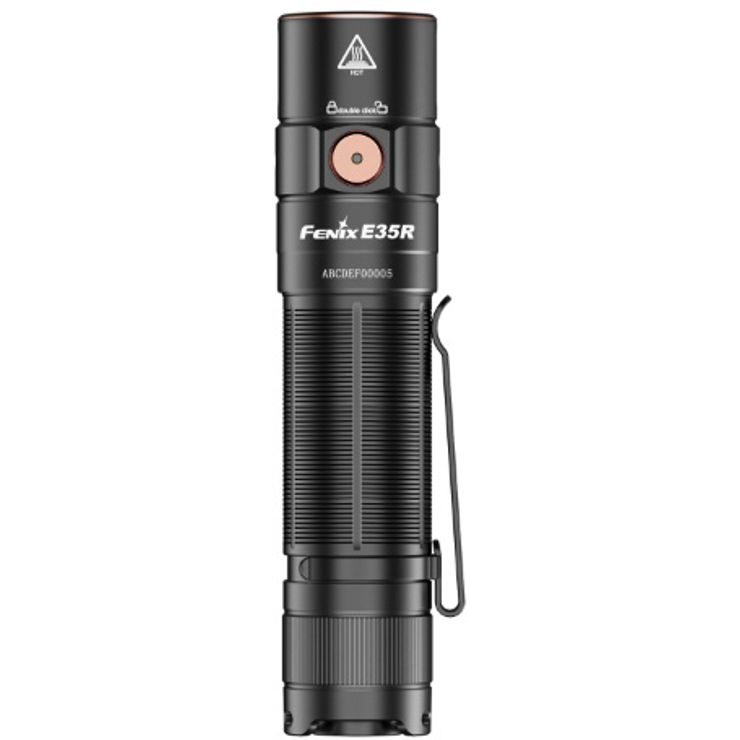

The Fenix E35R rechargeable pocket torch offers a light output of up to 3100 lumens (ANSI) and a beam distance of up to 260 metres. Excellent performance is achieved thanks to the modern Luminus SST-70 LED. Power is supplied by a high-capacity 21700 Li-ion battery with 5000 mAh.

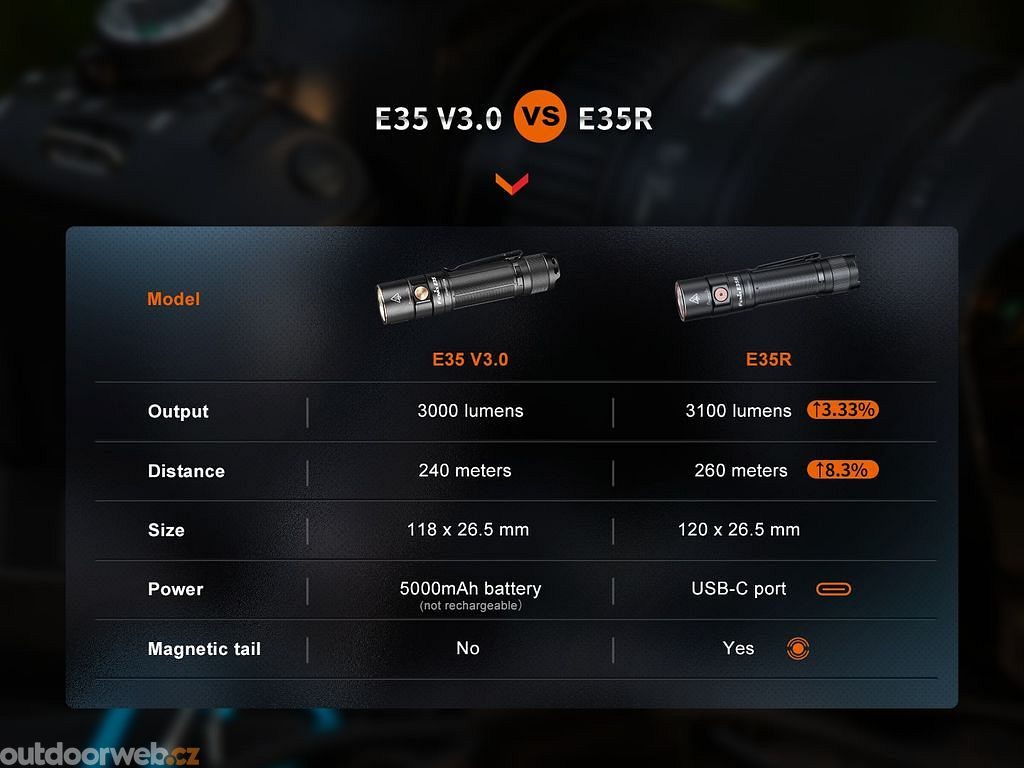

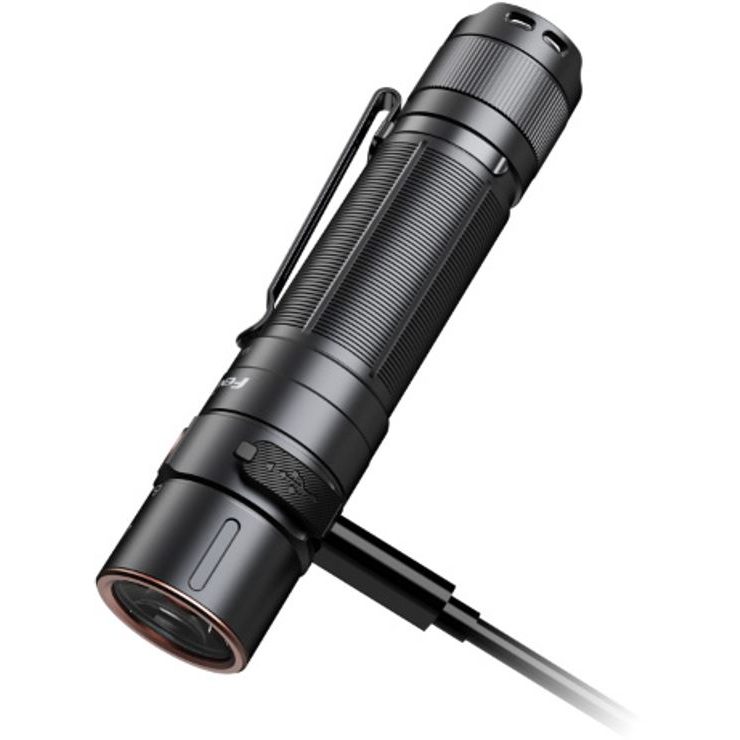

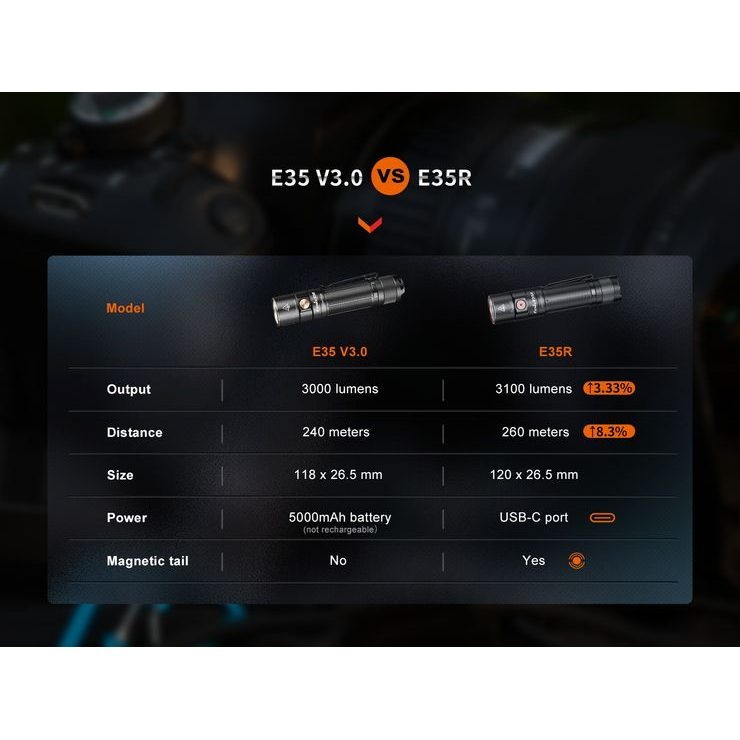

It is recharged via a USB-C connector on the side of the torch. The E35R replaces the successful E35 V3.0 and adds a built-in charging port and a magnetic tailcap. The torch is designed for simple operation and wide usability.

Six lighting functions let you choose between high output and a runtime of more than two and a half days. There is also a dazzling strobe for emergency situations. The Fenix E35R uses digitally controlled constant-current regulation to ensure steady light output even as the battery voltage drops (during gradual discharge).

The torch is equipped with an ultra-thin collimator manufactured using automotive-industry technologies. Switching on and changing modes is done with an ergonomically positioned side button. The magnet in the tailcap is practical, allowing the torch to be attached to iron objects.

This torch is an ideal lighting tool with an excellent balance of high performance, quality and price. It is recommended for a wide range of outdoor, sports, work and professional activities.

All torch parameters (light output, battery runtime, waterproofing, beam distance and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

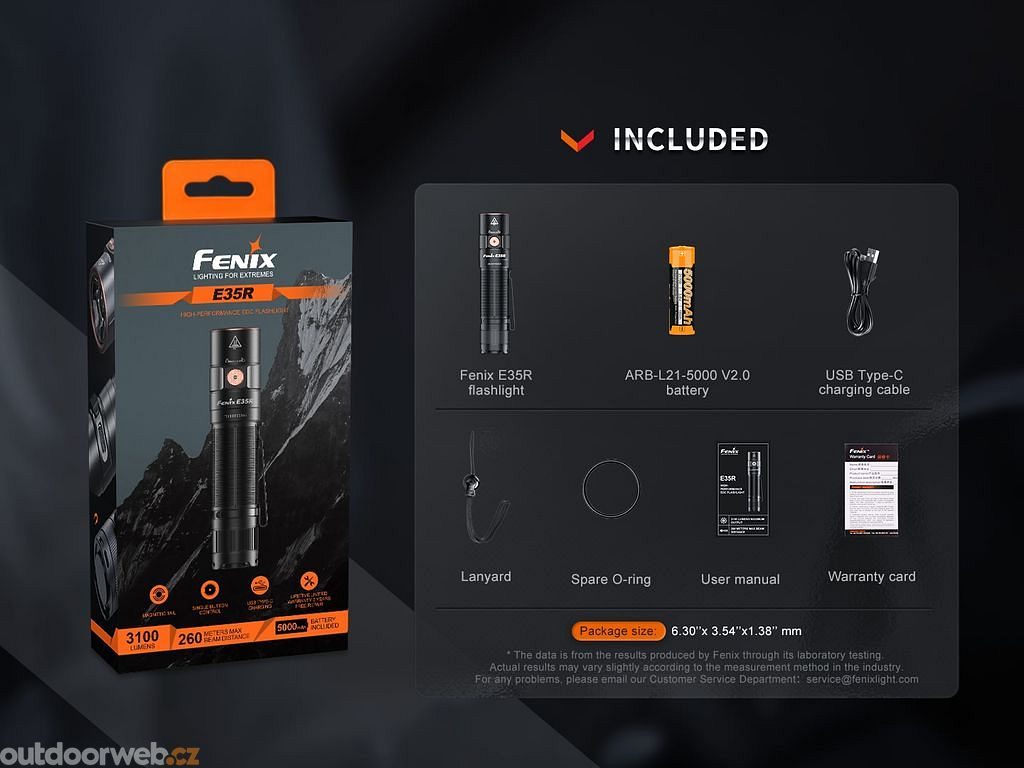

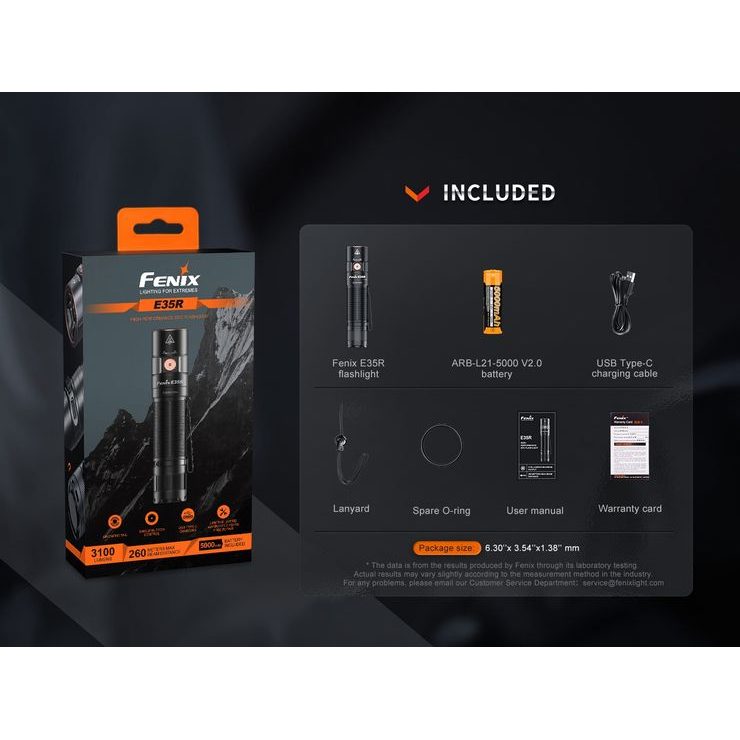

Package contents: torch, Fenix ARB-L21-5000 V2.0 battery, USB-C charging cable, wrist lanyard and spare O-ring.

Warranty: Five-year warranty on the torch and two years on the battery.

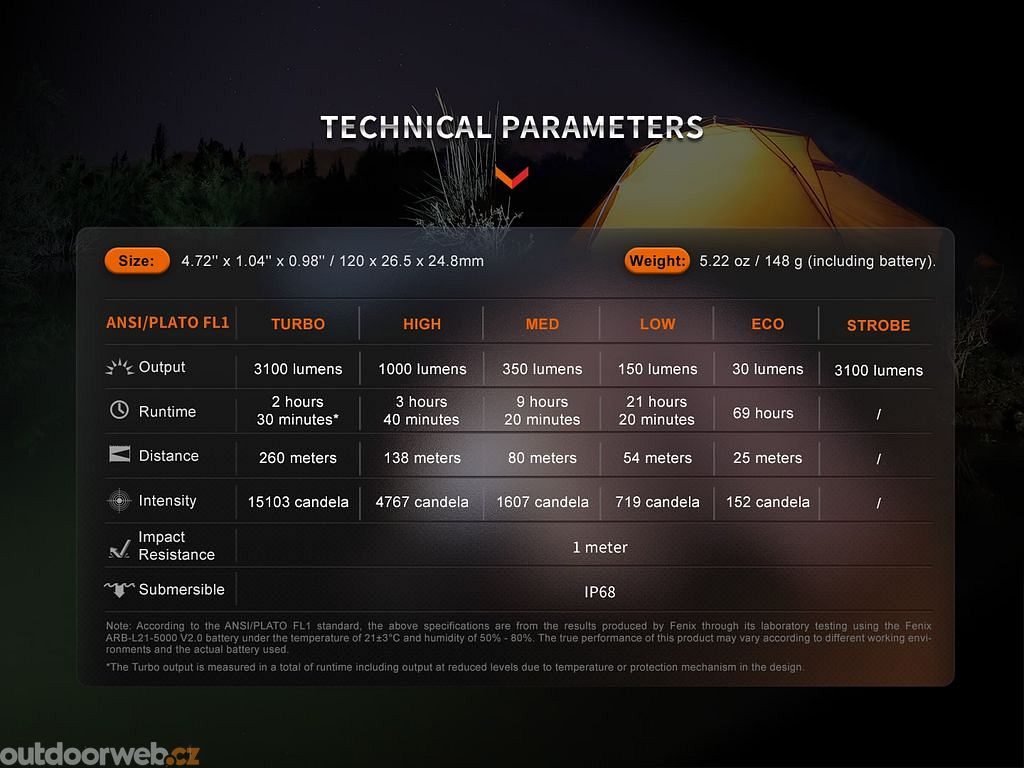

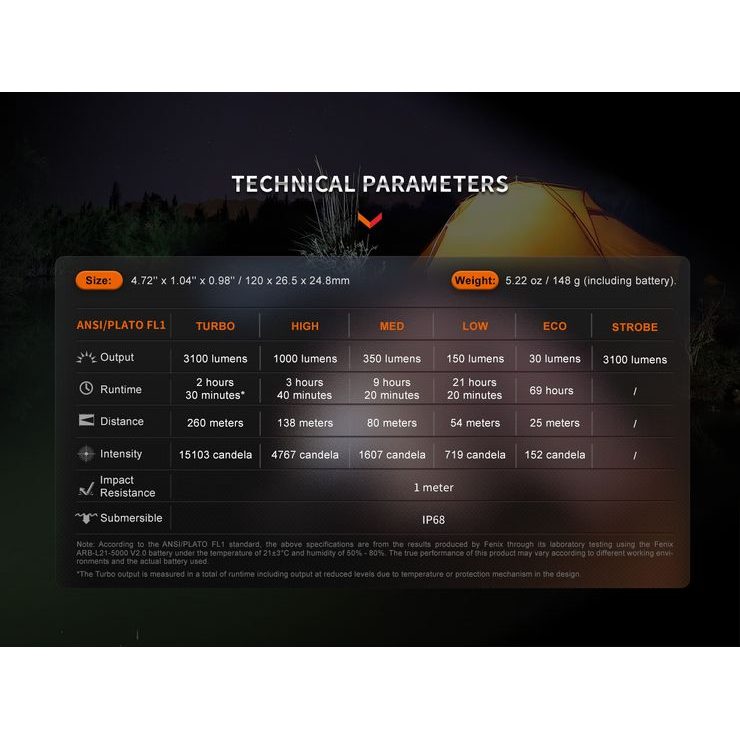

1. Six output modes: 3100 lumens (2.5 hours) -> 1000 lumens (3.67 hours) -> 350 lumens (9.3 hours) -> 150 lumens (21.3 hours) -> 30 lumens (69 hours) - Variable-frequency strobe (3100 lumens).
2. The torch has mode memory and turns on in the last selected mode (applies only to 30, 150 and 350 lumen modes).

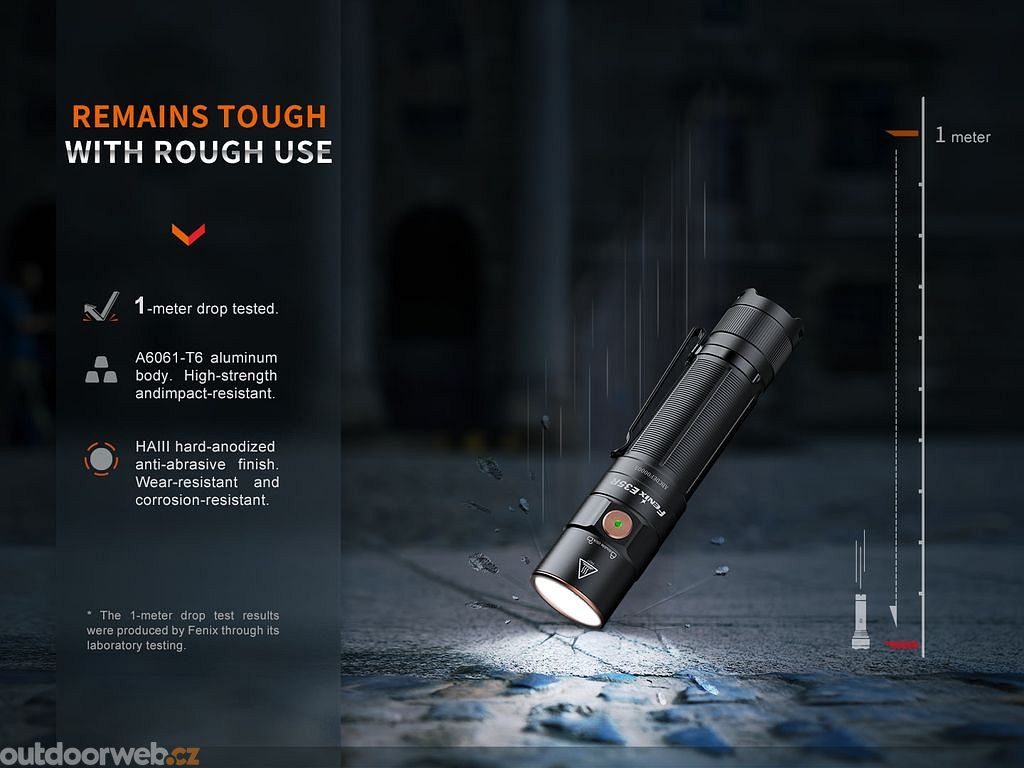

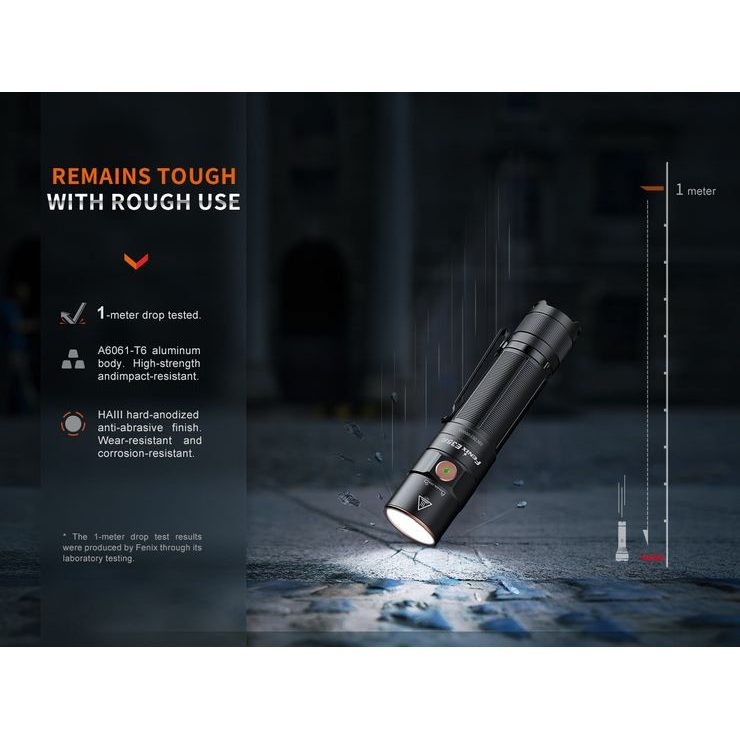

3. Made from aerospace-grade hardened T6 aluminium; the torch is impact resistant to drops from 1 metre.
4. Unique ultra-thin collimator for a perfect beam with a range of 260 metres (15103 cd).

• Premium Luminus SST-70 LED with a lifespan of 50,000 hours.

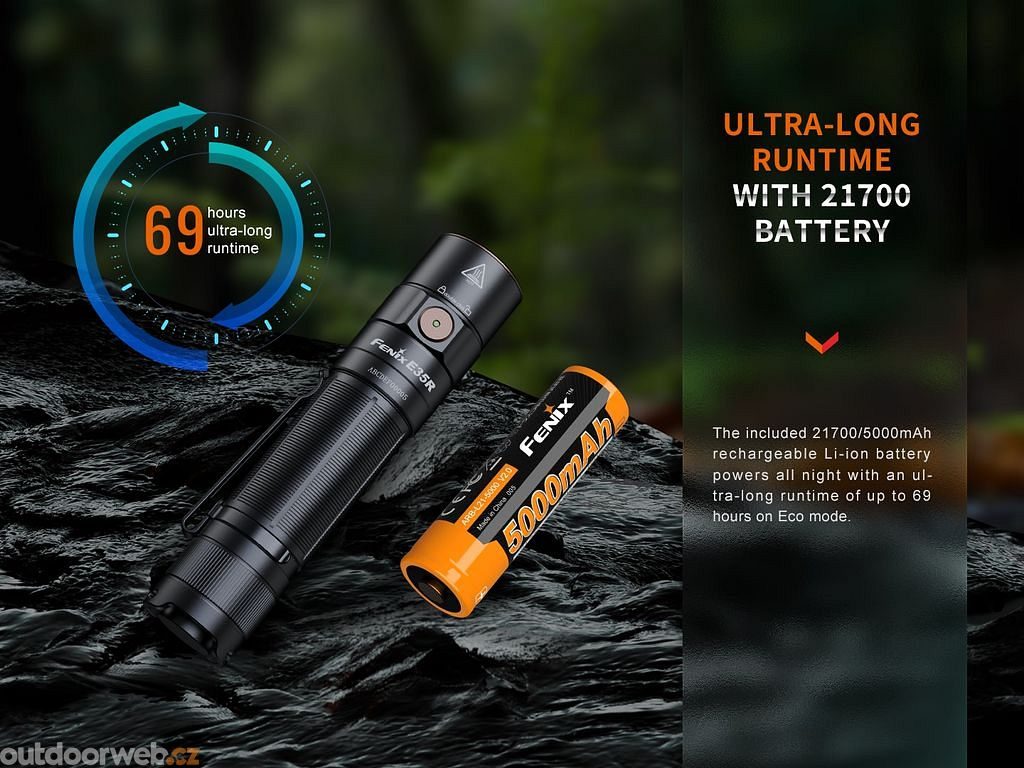

• Light output and runtimes are measured with the included 21700 5000 mAh Li-ion battery.
• Electronics with digital constant regulation and intelligent overheat protection.
• Protection against inserting the battery the wrong way round (reverse polarity).
• Durable finish - Type III hard anodised.
• Battery charge status indication built into the button.
• Waterproof to IP68 (tested underwater at a depth of 2 metres).
• E-series models are supplied without a holster. This basic holster can be purchased separately.
• The LockBlocks bike mount and BikeBlock cycling helmet mount are also compatible with the torch.

Specifications:

Beam distance: 260 m
Light output: 3100 lm
Weight: 148 g
Number of modes: 6
Max runtime: 69 h

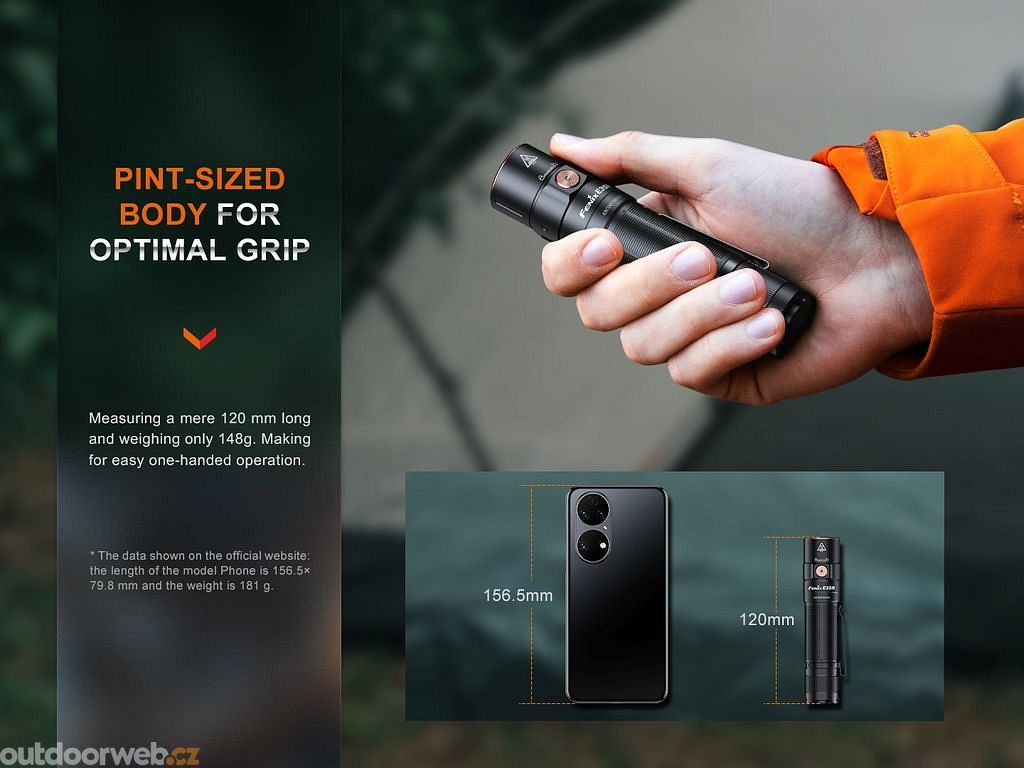

Dimensions: 12 x 2.65 cm

Using the Fenix E35R work torch
From the factory, there may be an insulating cover inside the torch on the battery. Remove it from the battery before first use. To switch on or off, press and hold the side button for about 0.5 seconds; the torch always turns on in the last selected mode, except for the two highest (turbo and high). You can switch output modes at any time during operation by pressing the side button. The strobe can be activated by holding the button for 1.2 seconds. When the button is released, the strobe turns off.

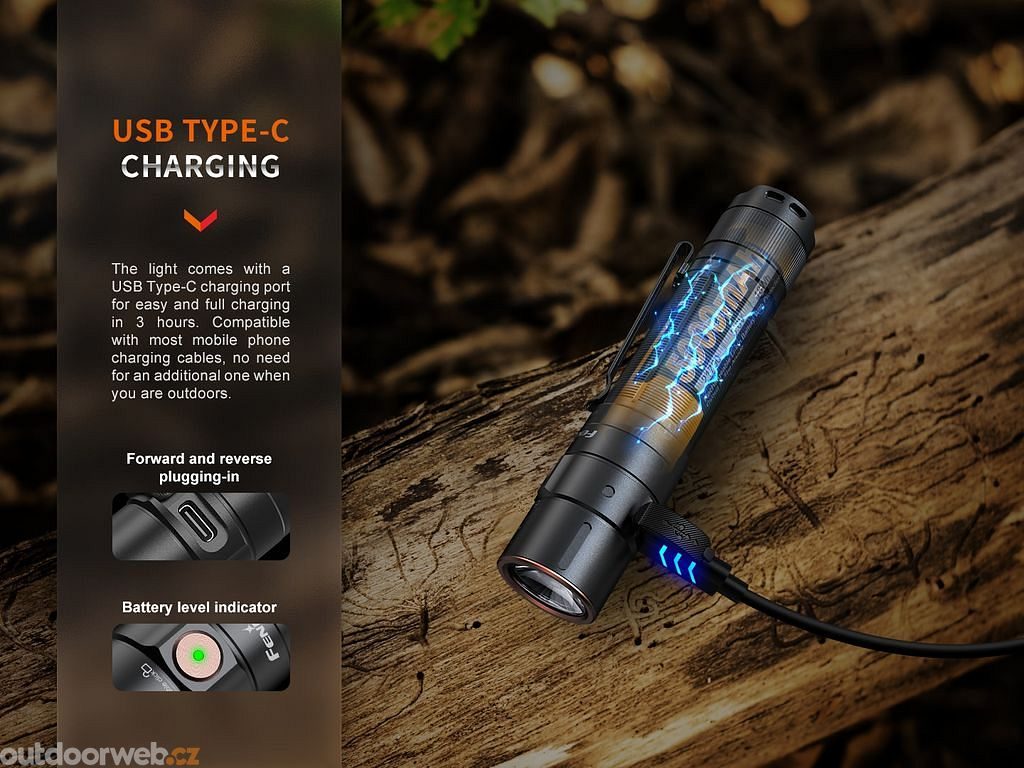

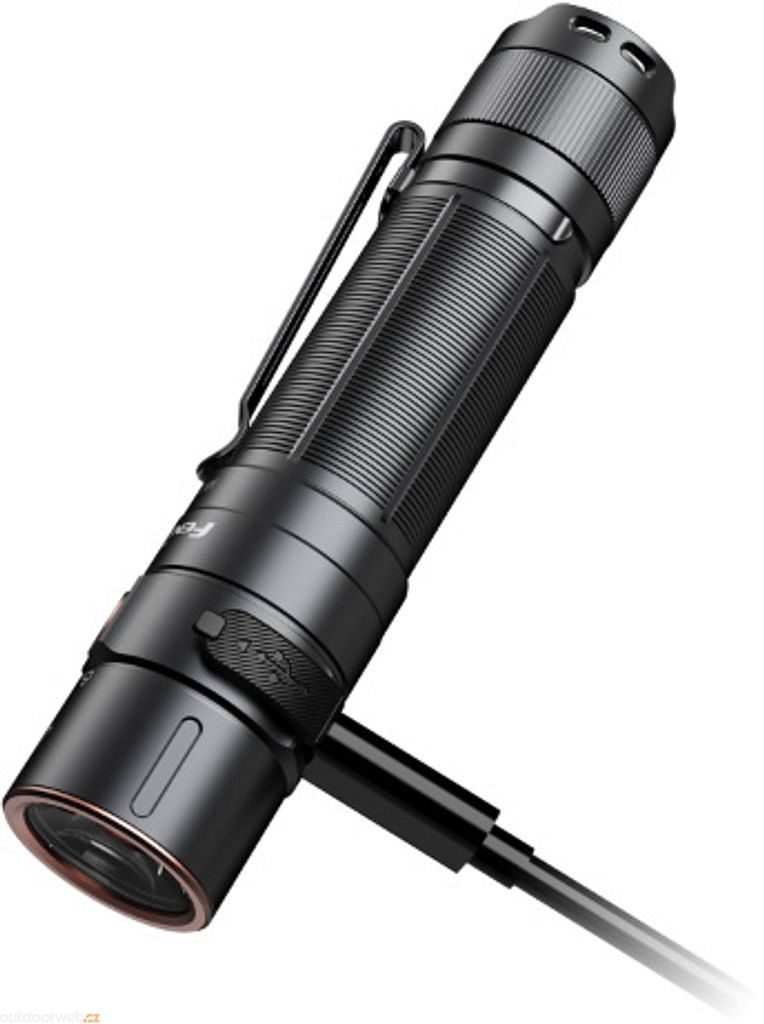

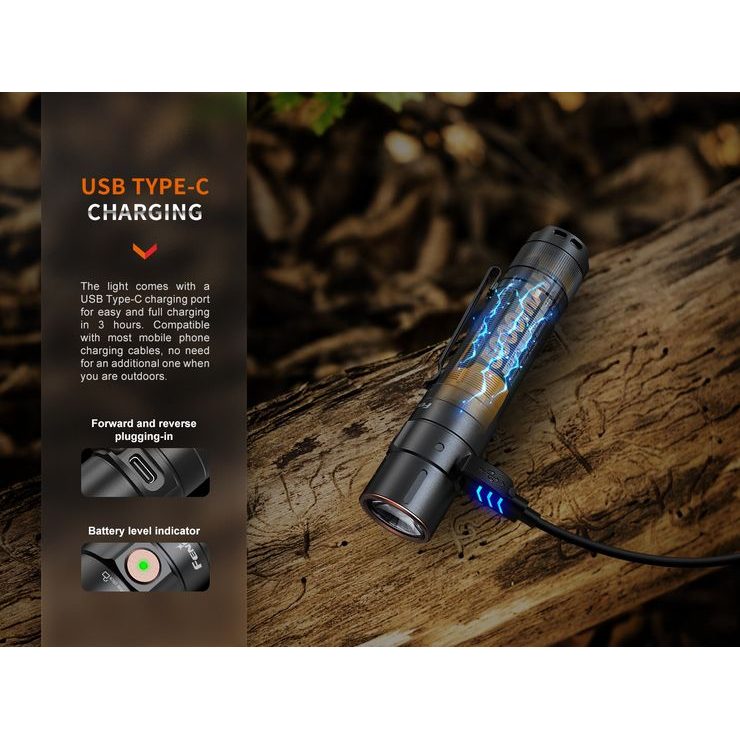

Charging - lift the rubber cover of the charging port on the side of the torch and connect the included cable (USB-C connector). Plug the other end of the cable into a computer, or a USB mains/car adapter. During charging, the indicator LED lights red. When fully charged, it lights green. Charging a fully discharged battery takes approx. 3 hours (with a 2A power source). During charging, the 30, 150 and 350 lumen modes can be used.

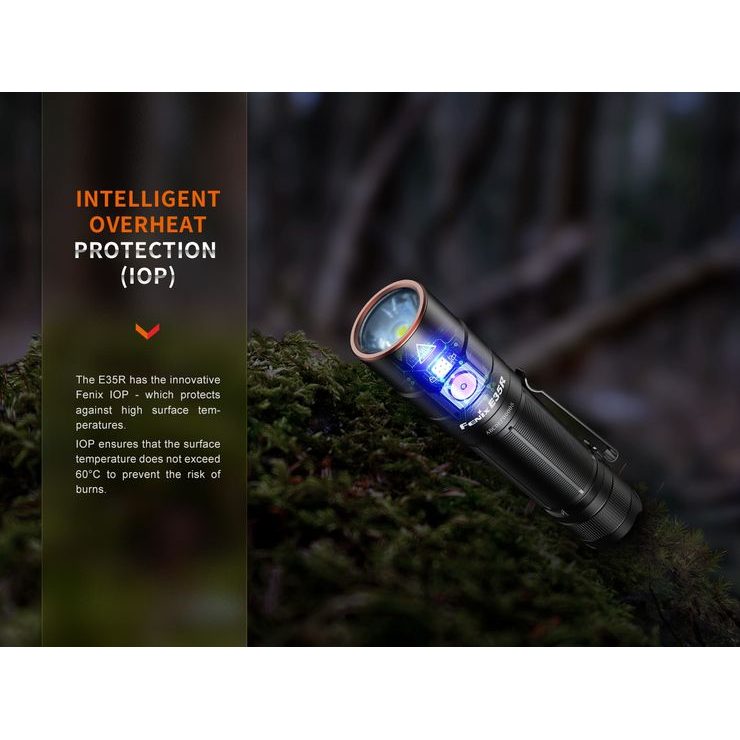

Intelligent overheat protection - If the temperature exceeds 60°C, the output is automatically reduced. Once the temperature drops below 60°C, the highest output can be used again.
Battery charge status indication - after a short press of the button (torch must be off), the LED indicator in the button is activated. If the indicator LED lights green, the battery is charged to more than 85%. Flashing green means 50-85% capacity. If it lights red, it is charged to 25-50%. Flashing red indicates less than 25% battery capacity remaining.

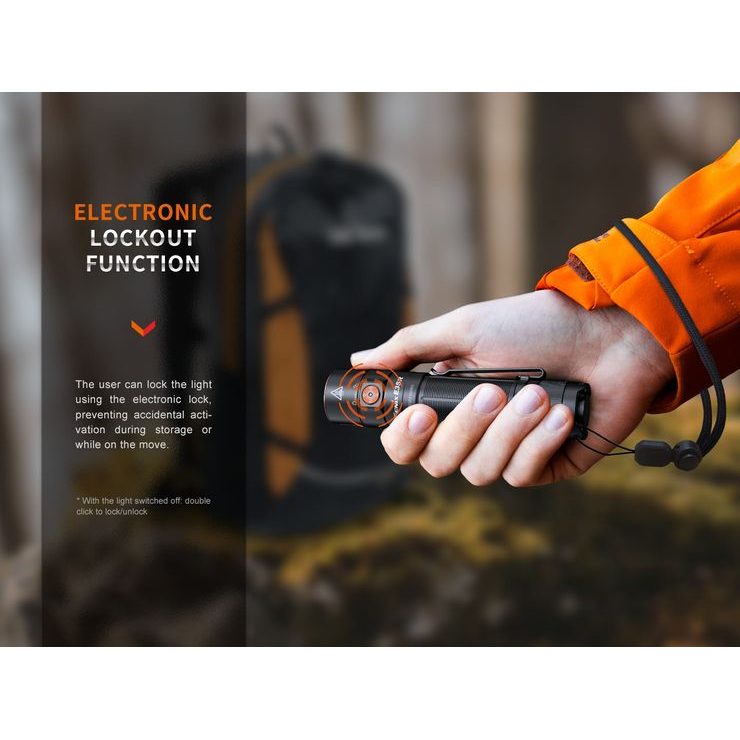

Button lock - if you want to prevent the torch from being switched on accidentally in luggage, quickly press the button twice within 0.5 seconds (torch must be off). The torch will then flash twice in low mode and cannot be switched on. Unlock by quickly double-pressing the button again. Accidental activation can also be prevented by loosening the torch body.
Low battery warning - the side button starts flashing red and the torch gradually switches automatically to the lowest mode.

Warning
Do not disassemble the sealed part in the torch head yourself; this will void the warranty.
Use only high-quality 21700 Li-ion batteries to avoid damaging the torch, for example due to battery leakage.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings also need to be lubricated to prevent rubber erosion. By following these rules, the torch will be properly protected against water.
If the torch flashes, does not switch to higher output, or does not turn on, it may be due to one of the following reasons:
- The battery is discharged; recharge it.
- The contacts inside the torch are dirty - clean them with a cotton swab soaked in alcohol.
- The torch body is loose; tighten it.
