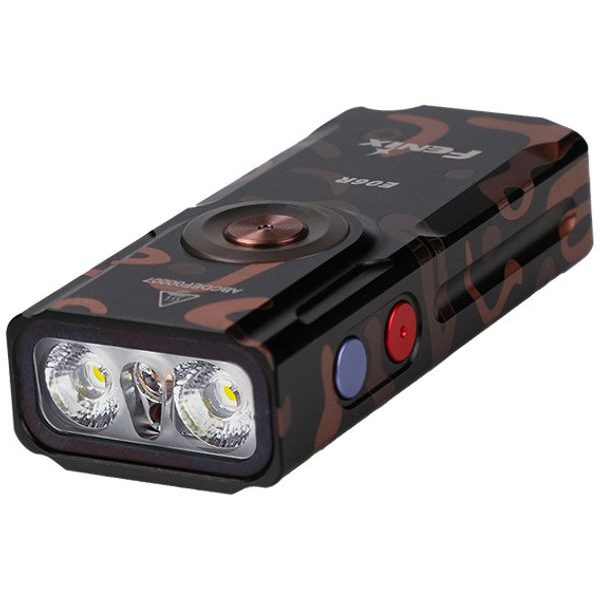

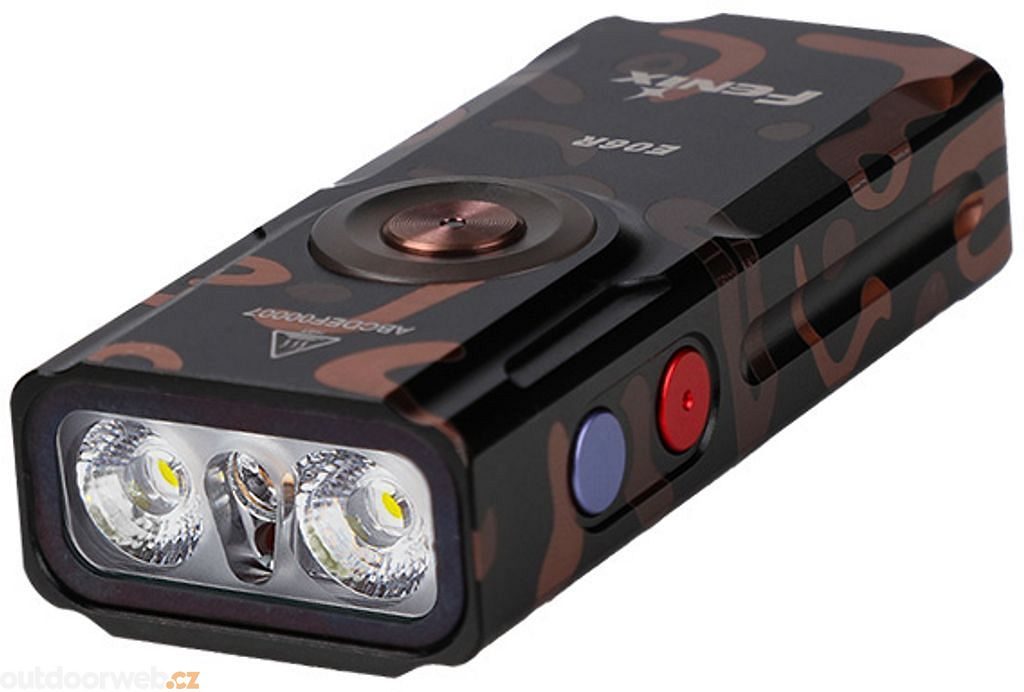

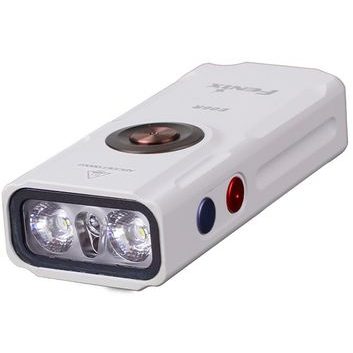

The Fenix E06R is a compact rechargeable torch that packs surprisingly high output of up to 700 lumens and a wide range of everyday-carry features into a small body. Thanks to its flat shape, weight of just 54 grams and sturdy clip, you’ll always have it to hand – whether for outdoor activities, on duty or in day-to-day life.

It offers not only four white-light modes with a beam distance of up to 110 metres, but also UV light with a wavelength of 365 nm, a red laser and a practical pulsing light around the button for discreet signalling. Power comes from an integrated 750 mAh battery and a modern USB-C connector, so you are not tied to special batteries or chargers.

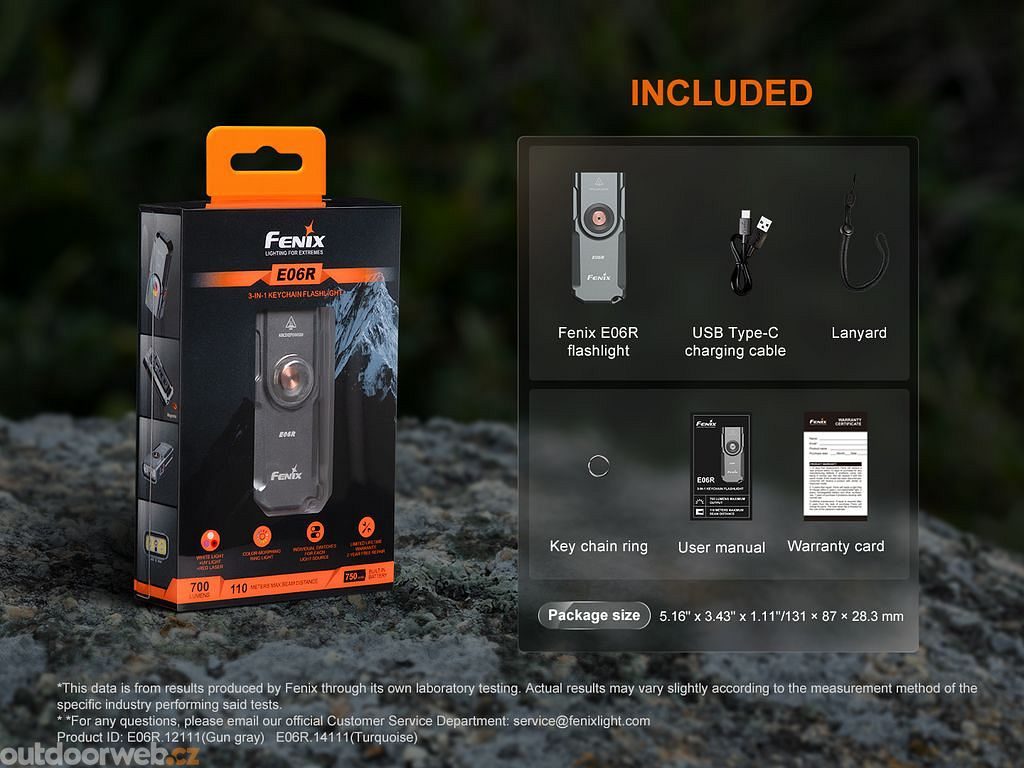

Package contents: torch, clip, key ring, wrist lanyard, USB-C cable

1. Versatility in one device
   The Fenix E06R combines four white-light modes, a UV LED for revealing fluorescent traces, a red laser for pointing, and a pulsing signalling light, so one torch covers situations that would otherwise require several different tools.
2. Practical design for everyday carry

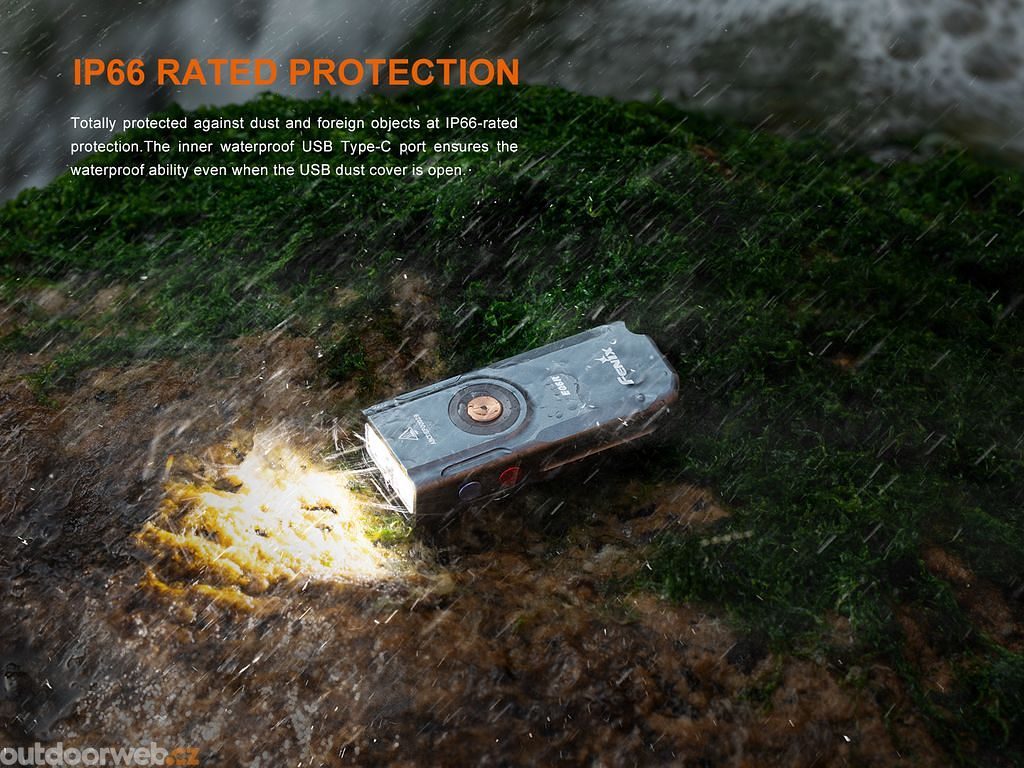

   The CNC-machined aluminium body with Type III hard-anodised finish resists scratches and drops from a height of one metre, the magnet in the tail allows attachment to iron surfaces, the sturdy clip enables fastening to a pocket or cap brim, and IP66 water resistance protects the torch from strong water jets from all directions.

• Light output up to 700 lumens (ANSI)
• Beam distance 110 metres (3,100 cd)
• UV light 365 nm / 580 mW
• Class 1 red laser (≤ 0.39 mW)

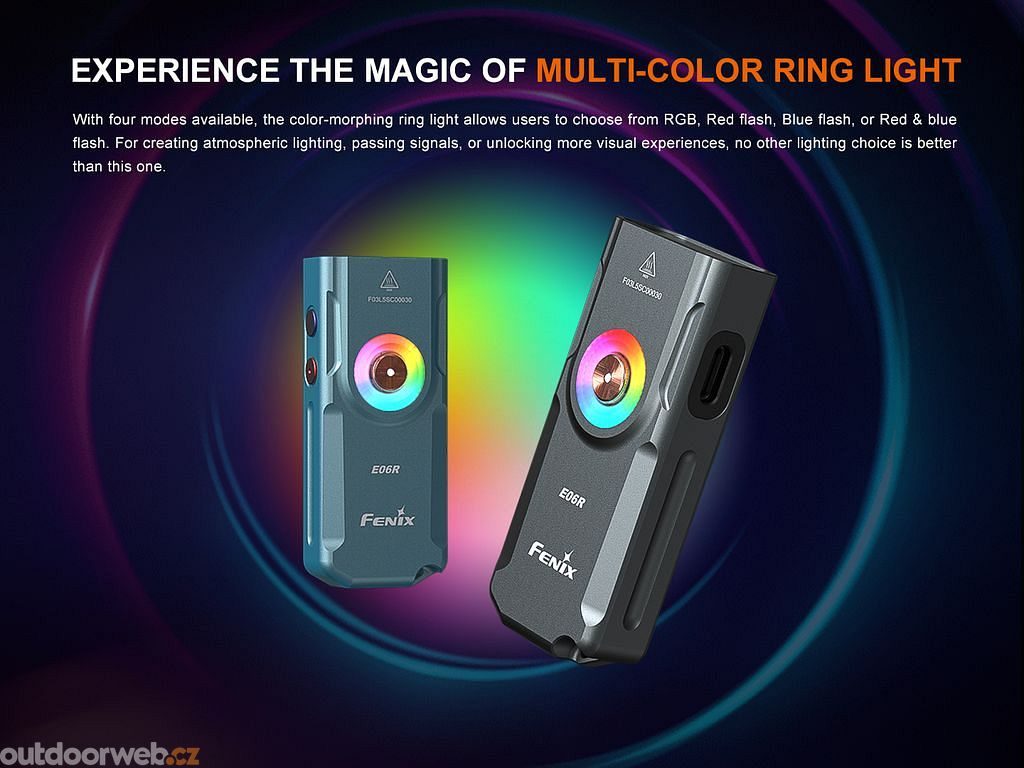

• Pulsing signalling light around the button
• Integrated 750 mAh battery, USB-C charging
• Charge status indicator in the button
• Last-mode memory
• Magnet in the tail for attachment
• Sturdy clip for attaching to clothing or a backpack
• IP66 water resistance, 1-metre impact resistance
• Weight 54 grams including battery
• Dimensions 6.9 × 2.9 × 1.6 cm
• Overheat protection above 65 °C

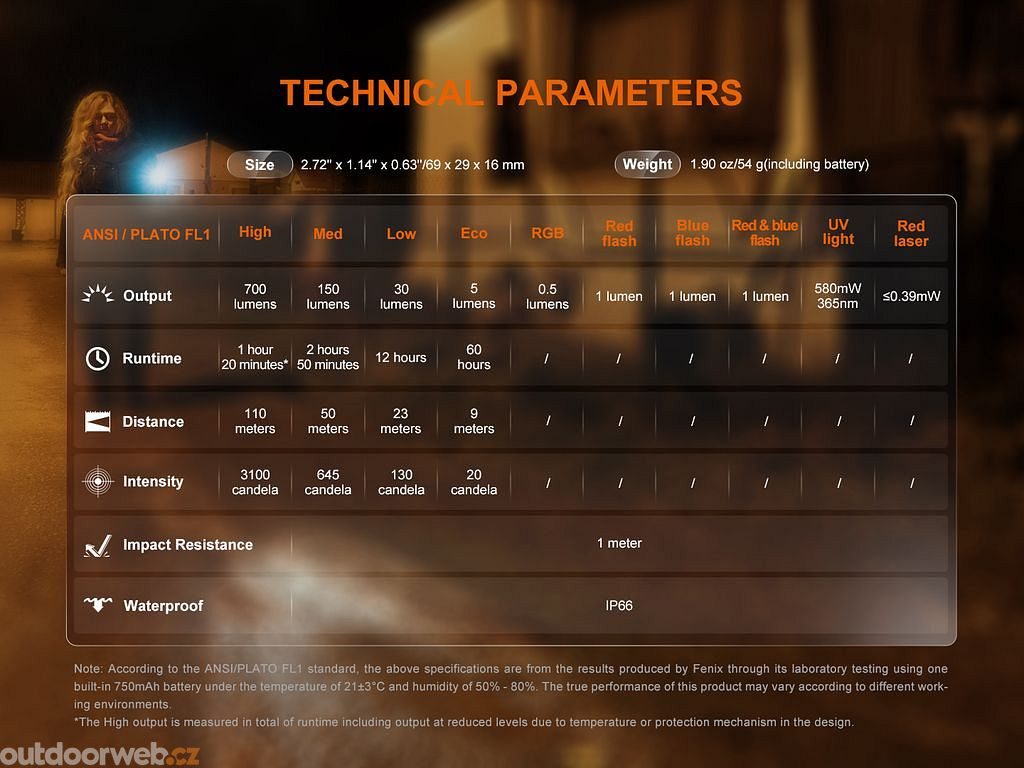

Specifications:

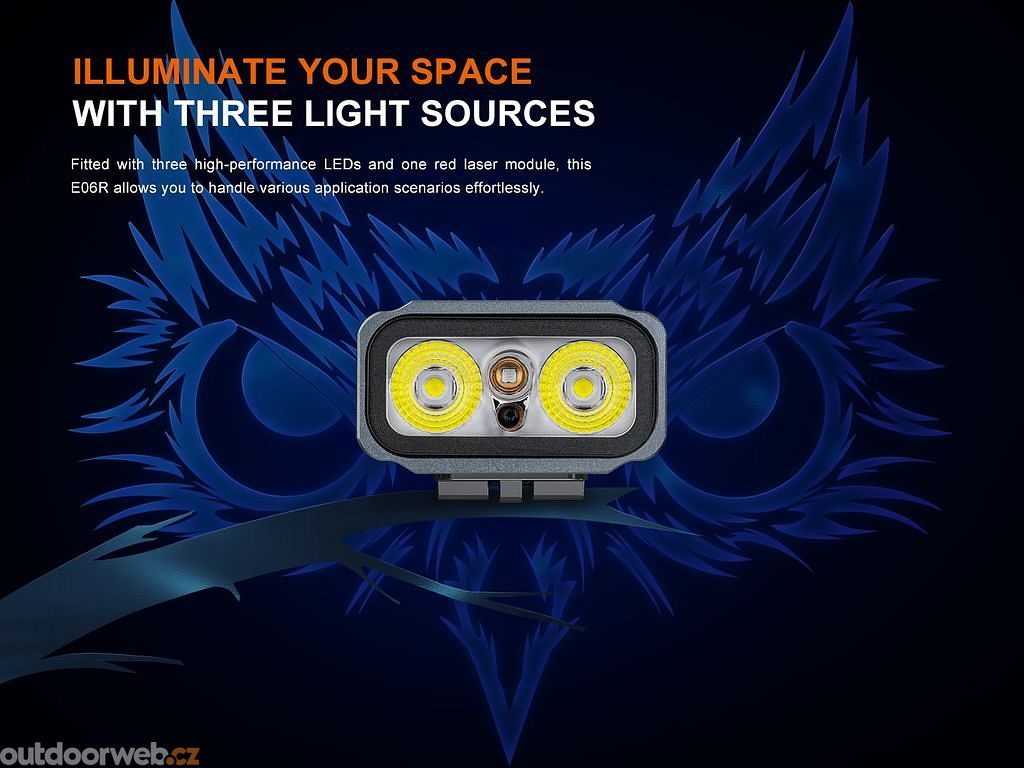

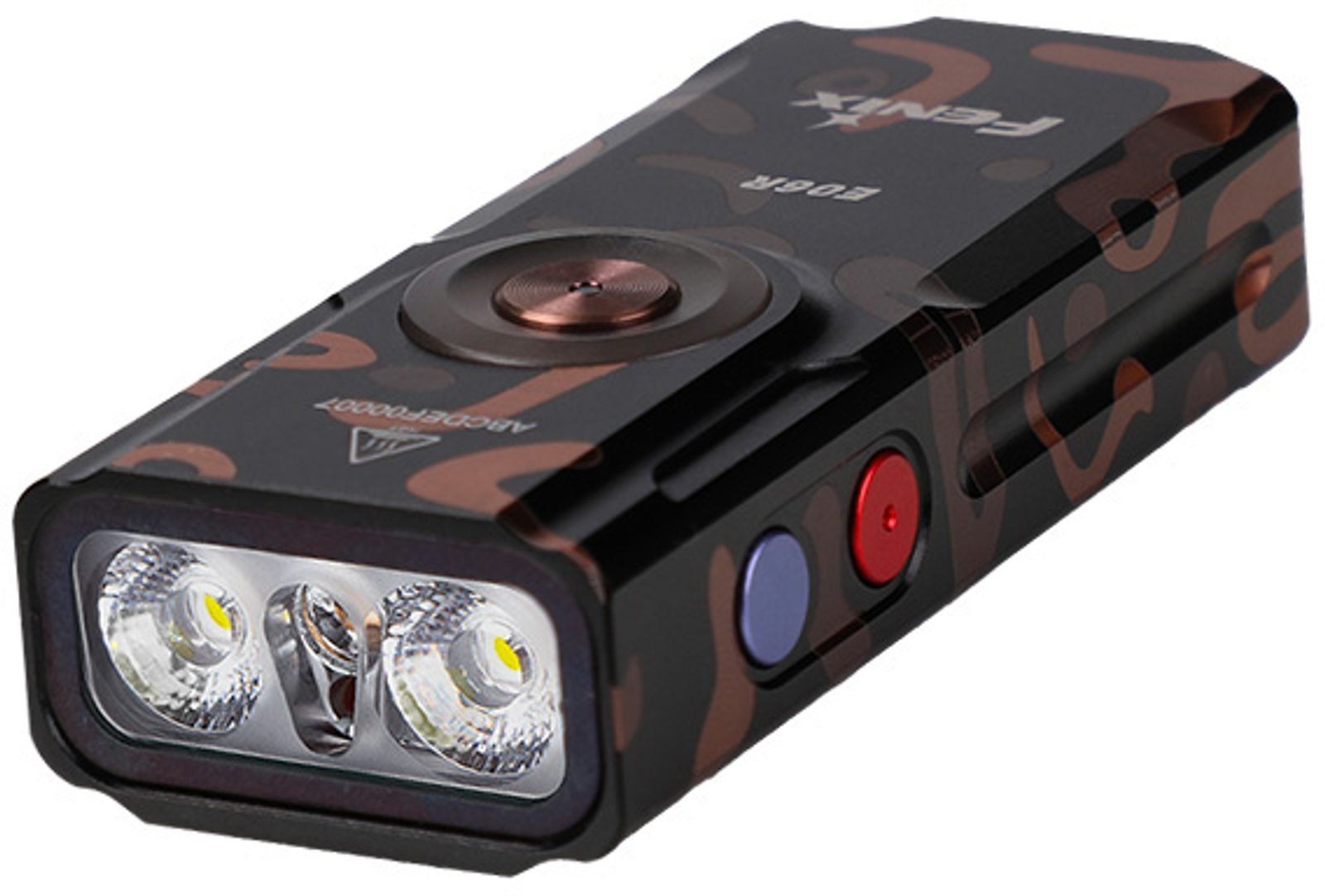

LED: 2× Luminus SST-12 (white), 1× Luminus SST-08 (UV, 365 nm), Class 1 red laser
LED lifespan: 50,000 hours

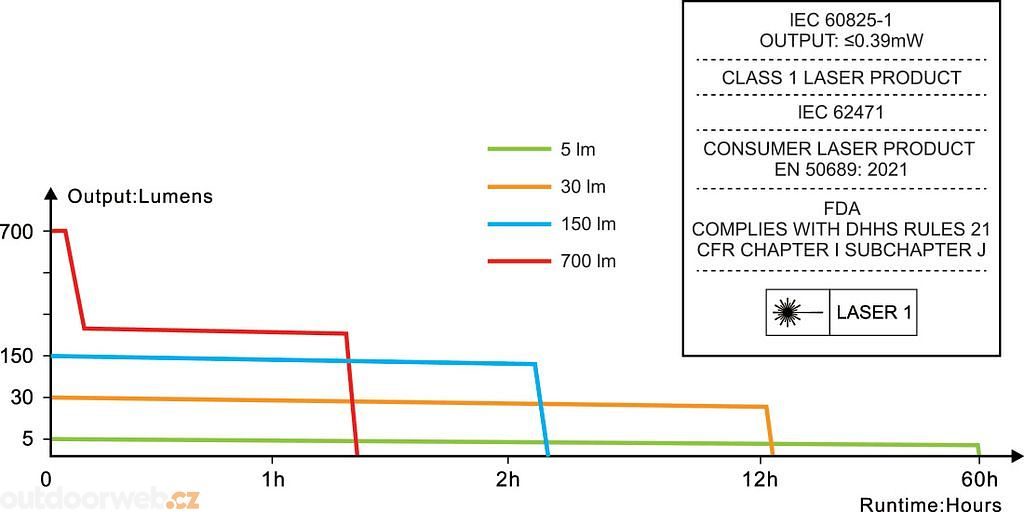

White-light modes: 700 lm / 1.3 h – 150 lm / 2.8 h – 30 lm / 12 h – 5 lm / 60 h
UV light: 580 mW / 365 nm
Red laser: ≤ 0.39 mW
Breathing light: 0.5–1 lumen
Battery: integrated, 750 mAh
Charging: USB-C
Beam distance: 110 metres (3,100 cd)
Water resistance: IP66
Impact resistance: drop from 1 m
Dimensions: 6.9 × 2.9 × 1.6 cm
Weight: 54 g (including battery)
Measurement standard: ANSI/NEMA FL 1-2009

Operation

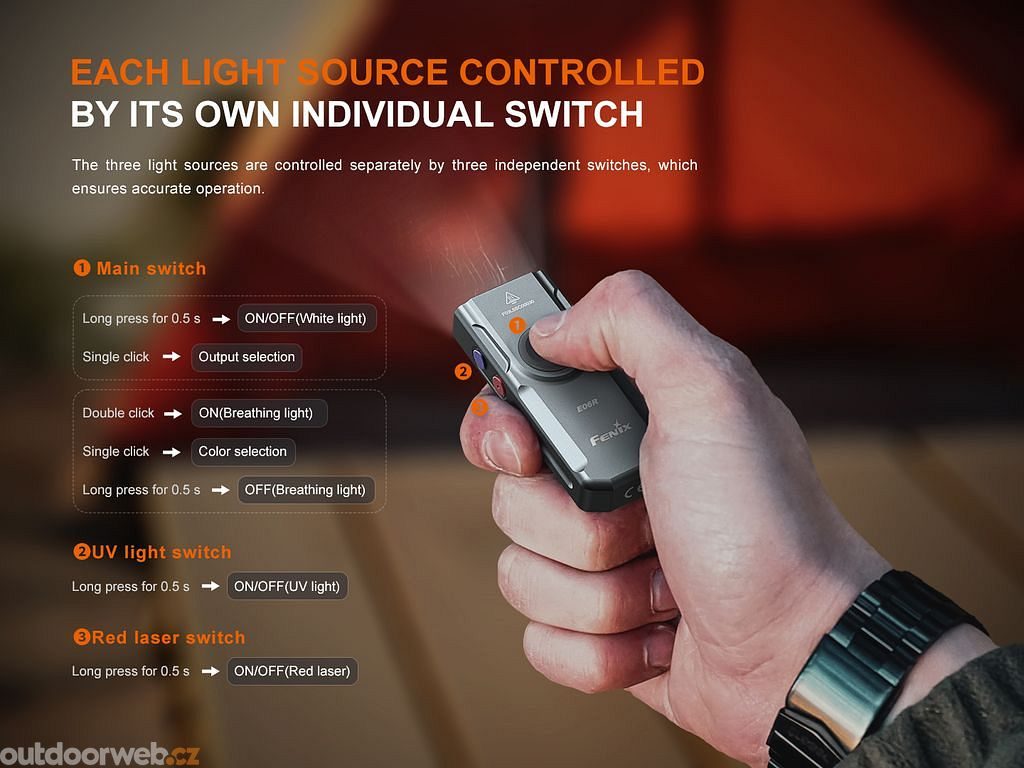

To switch the white light on/off, press and hold the main button for about 0.5 seconds. You can switch output modes at any time during operation by pressing the button. To turn on the Breathing light, switch the torch off and quickly press the button twice. To switch it off, press and hold for 0.5 seconds.
UV light is switched on and off by pressing and holding the purple side button for about 0.5 seconds.
Red laser is switched on and off by pressing and holding the red side button for about 0.5 seconds.
The control buttons can be locked to prevent accidental activation, e.g. during transport in luggage – to lock, switch the torch off and press and hold the red and purple side buttons simultaneously for 2 seconds. The torch will then flash twice to indicate it is locked. To unlock, press and hold again for 2 seconds.
Battery charge indication – with the torch switched off, briefly press the main button once; a small LED in the button will then light up for three seconds. Green indicates 100–85% charge, flashing green 85–50%, red indicates 50–25%, and flashing red indicates less than 25%.
Overheat protection – if the torch temperature exceeds 65°C, output is automatically reduced. Once the temperature drops below 65°C, output will increase again.
Low battery warning – the torch will gradually and automatically switch to the lowest output mode and the indicator LED in the switch button will start flashing red.

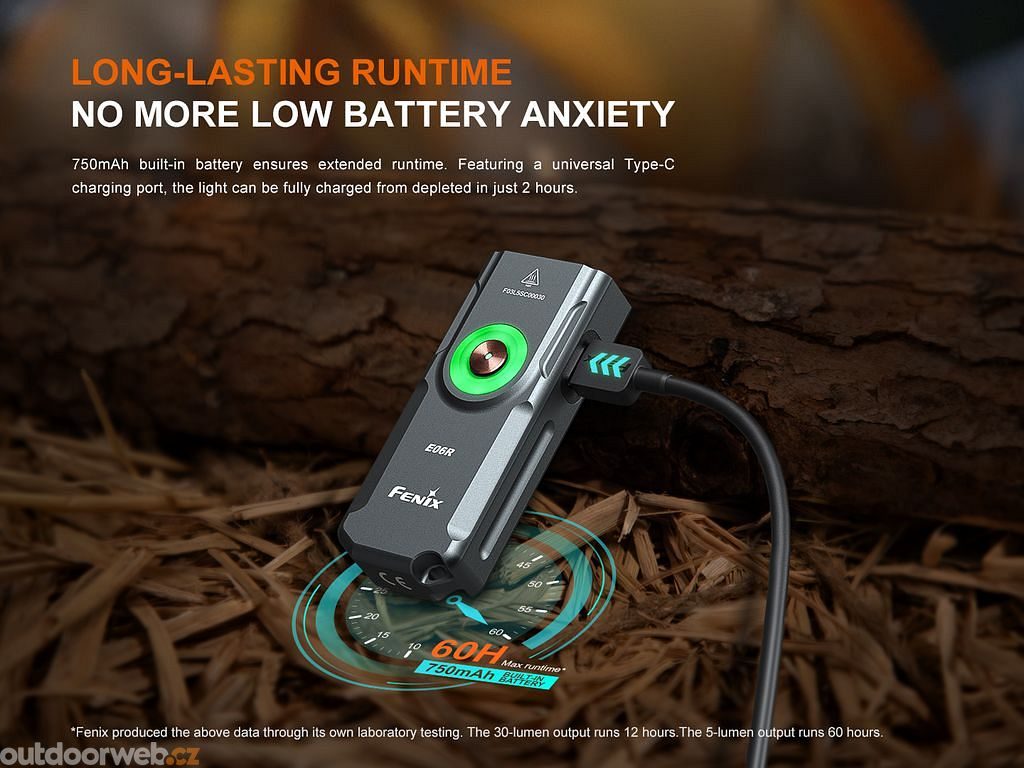

Charging
Connect the torch using the USB-C cable to a computer, a mains USB adaptor or a car USB adaptor. Any mobile phone charger with a USB-C connector can also be used for charging.
During charging, the indicator LED in the button lights red; once fully charged, it lights green.
The battery used does not suffer from memory effect, so the torch can be recharged at any time.

Warning
Do not disassemble sealed parts yourself, as this will void the warranty.
If the torch does not switch to higher output modes or does not turn on, the battery is discharged – charge the torch.
