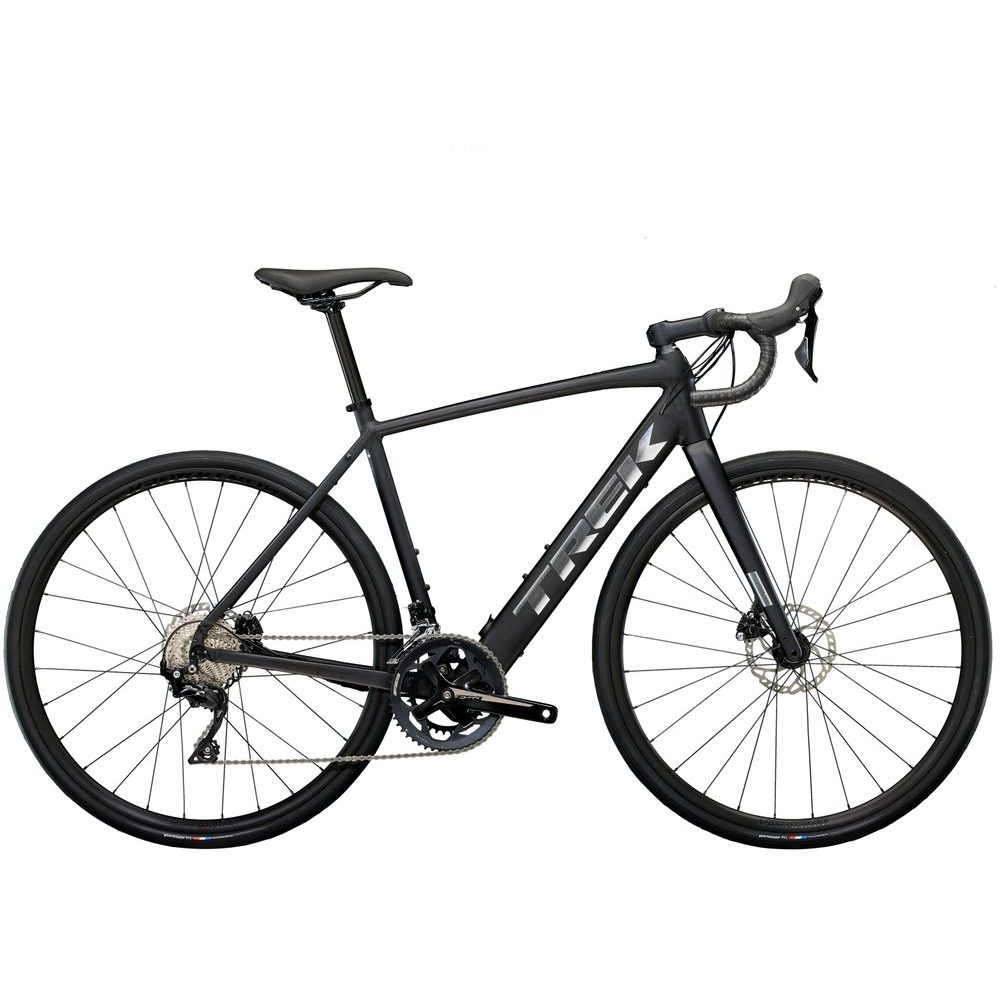

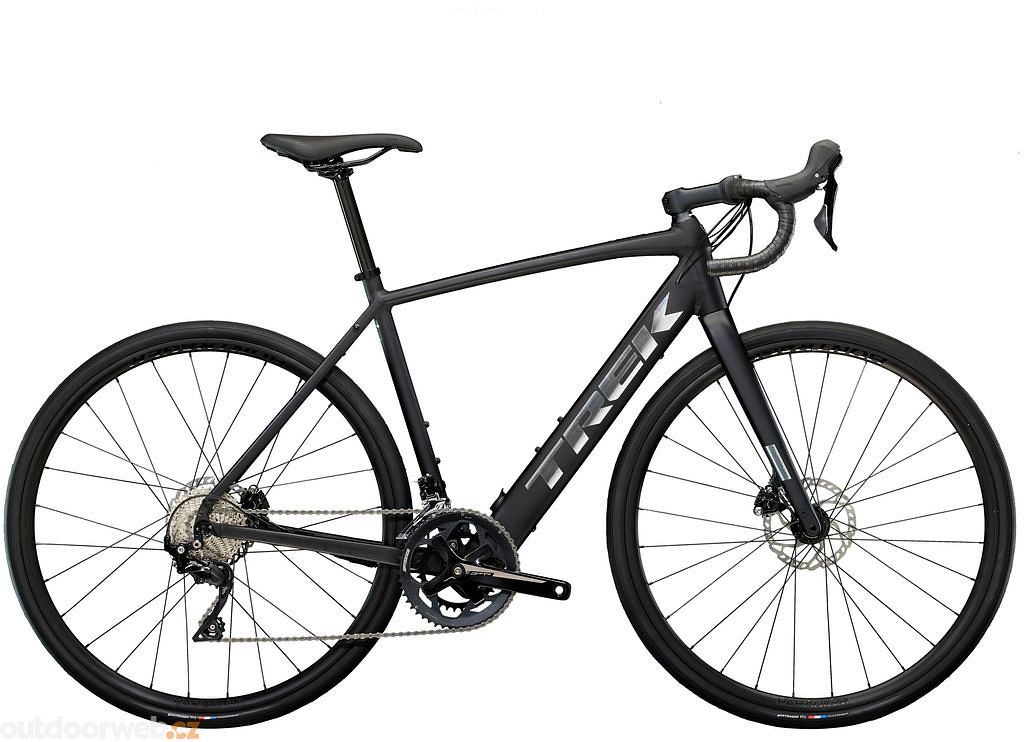

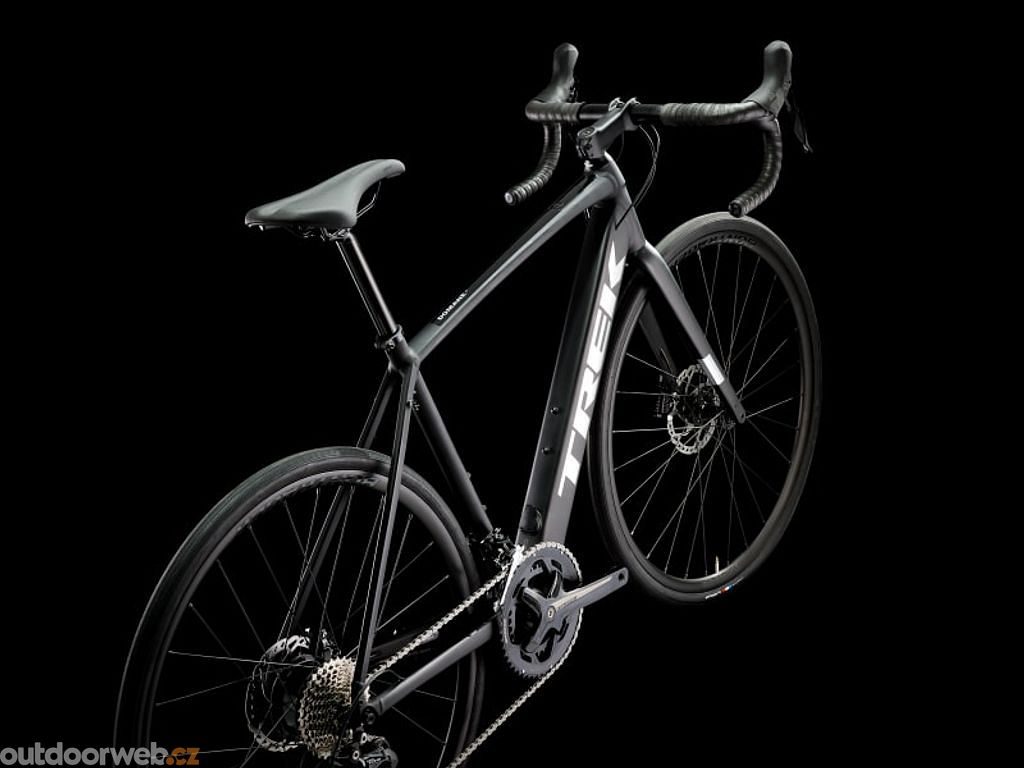

TREK Domane+ AL 5 EU 58 Black
36141, Trek Blackelectric road bike
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
Frame | |
|---|---|

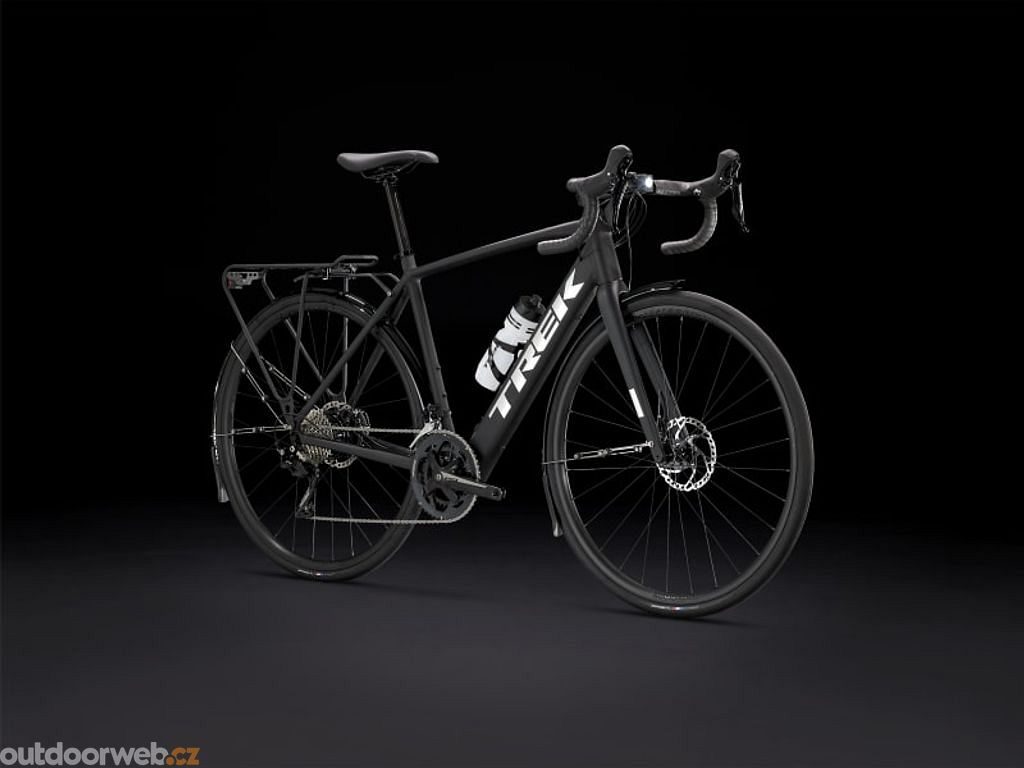

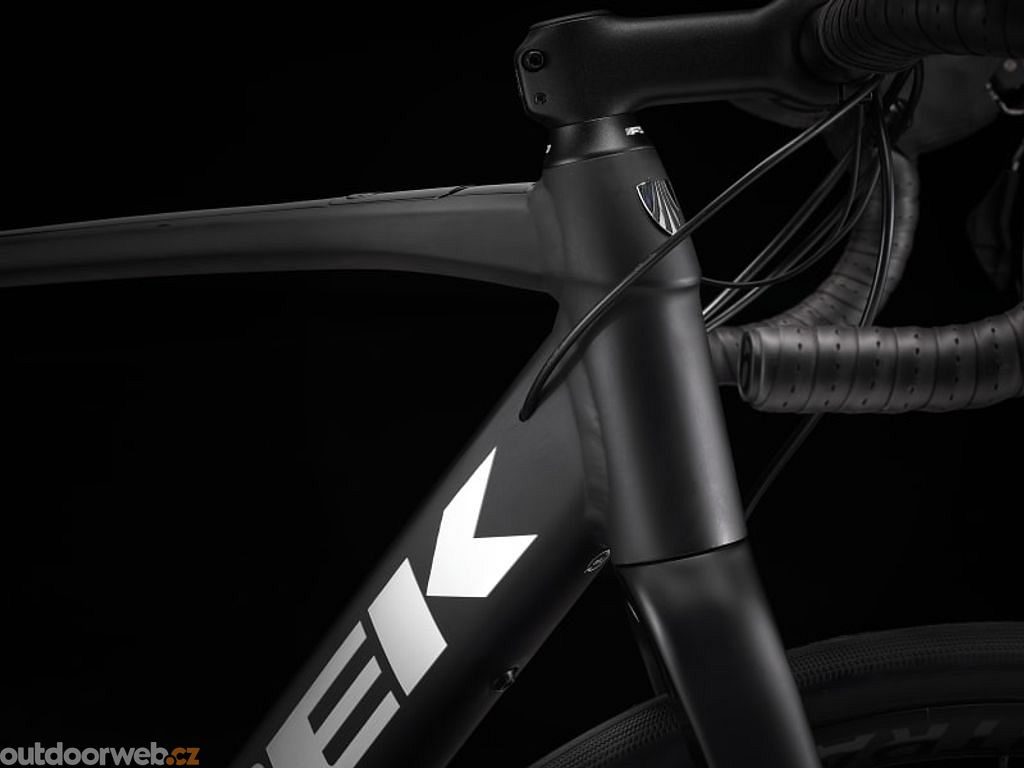

| Frame | Alpha 100 Series aluminum, hub drive system, tapered head tube, internal cable routing, Flat Mount disc brake mount, rack and fender mounts |
| Fork | Domane+ carbon, tapered alloy steerer, internal brake cable routing, fender mounts, flat mount disc, 12 x 100 mm thru axle. |
| Frame size | Endurance |
Weight | |
| Weight | 56 – 14.06 kg |
| Weight limit | The bike has a maximum total weight limit of 125 kg (combined weight of bike, rider, and cargo). |
E-system | |

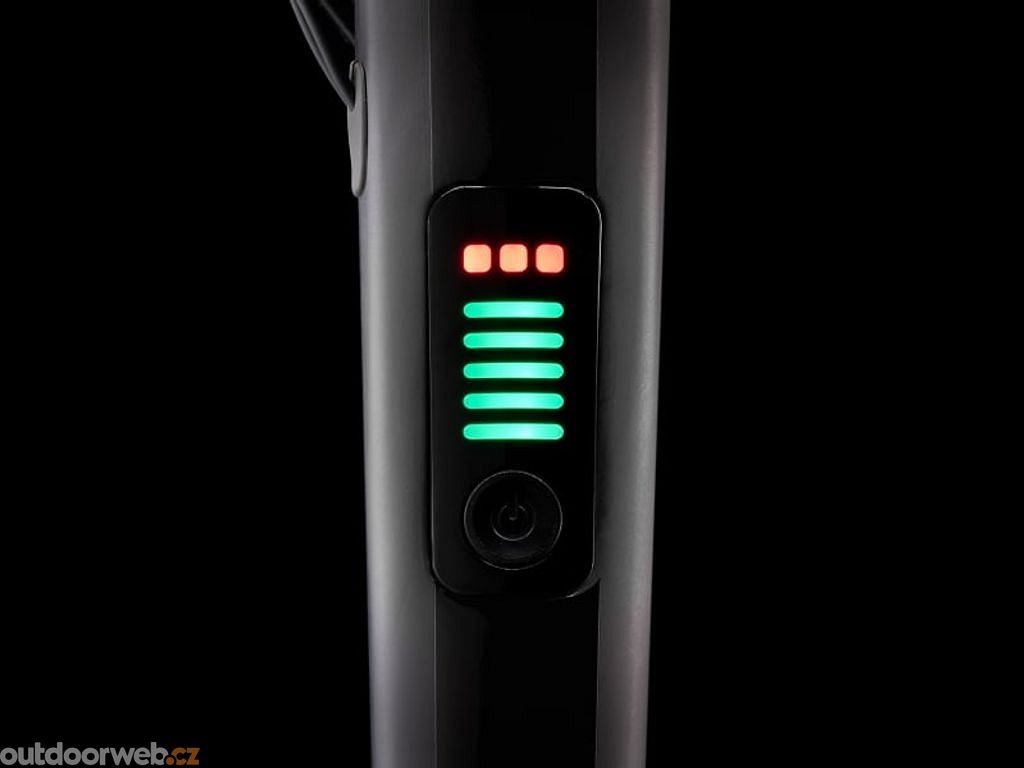

| Battery | 250Wh, integrated into the down tube |

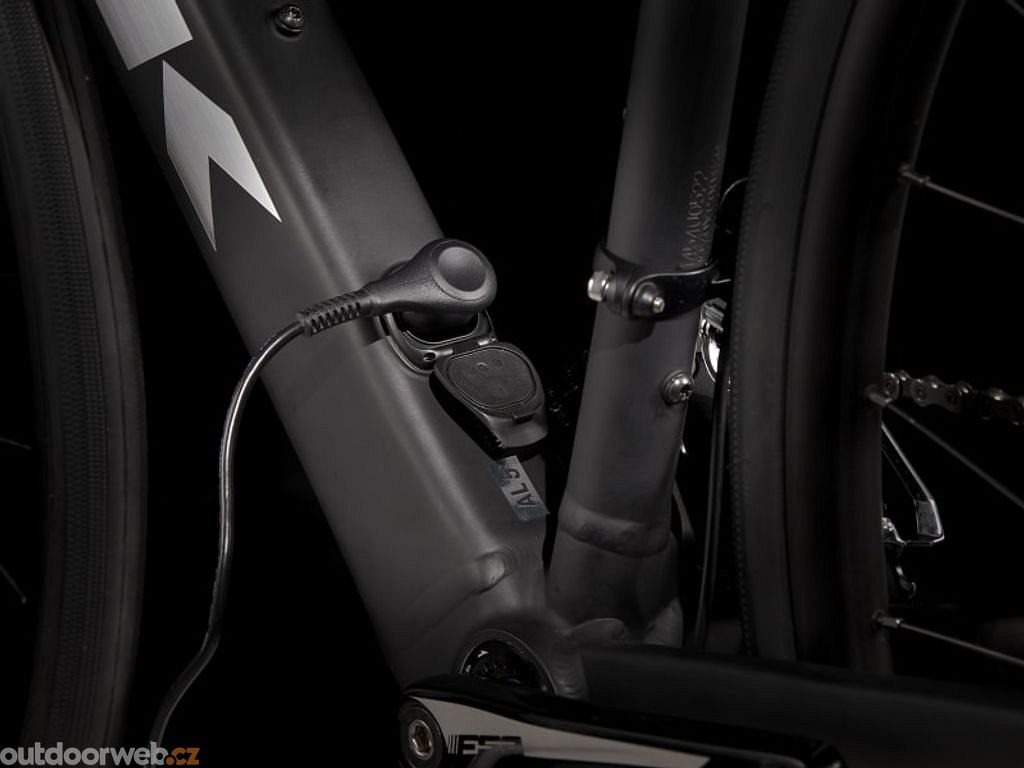

| Charger | 2A, 42 V output, 100 V–240 V input voltage. |

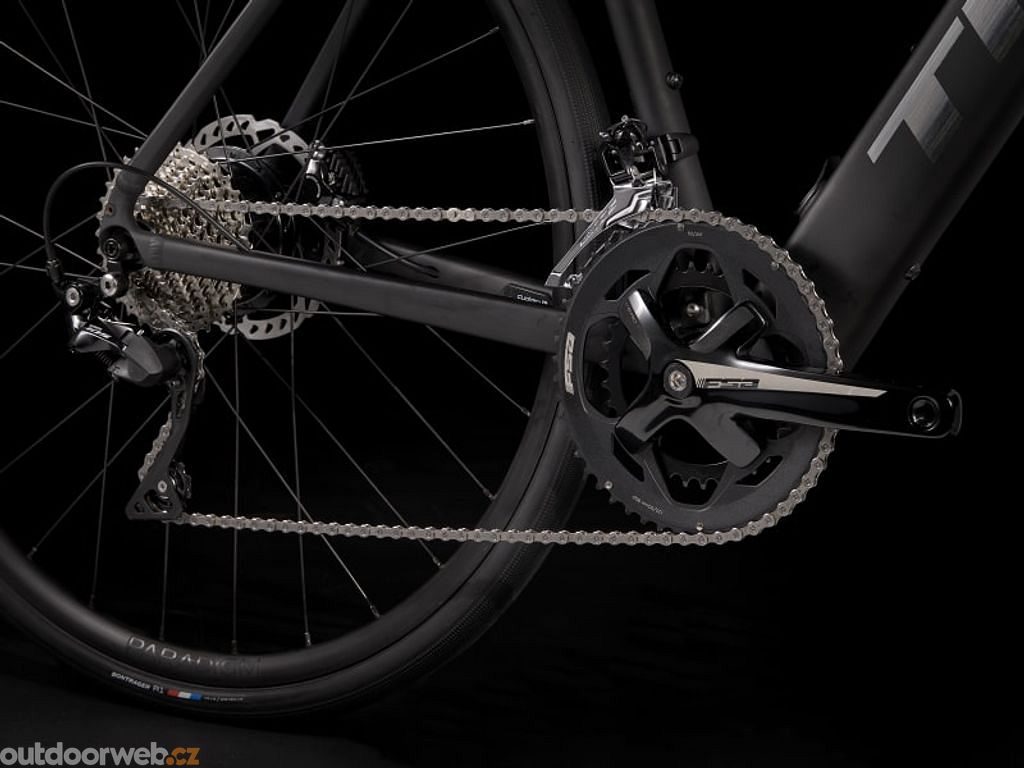

Drive system | |
| *Gears | Size: 49, 52 Shimano 105 R7025, short reach lever, 11 speeds |
| Size: 54, 56, 58, 61 Shimano 105 R7020, 11 speeds | |
| Front derailleur | Shimano 105 R7000, 31.8 mm clamp |
| Rear derailleur | Shimano 105 R7000, long cage, max. 34 teeth chainring. |
| *Crankset | Size: 49 FSA Vero Pro, 50/34, 165 mm |
| Size: 52 FSA Vero Pro, 50/34, 170 mm | |
| Size: 54, 56 FSA Vero Pro, 50/34, 172.5 mm | |
| Size: 58, 61 FSA Vero Pro, 50/34, 175 mm | |
| Bottom bracket | Threaded torque sensor, 110 mm spindle |
| Cassette | Shimano 105 HG700-11, 11-34, 11 speeds |
| Chain | Shimano 105 HG601, 11 speeds |
| Maximum chainring dimensions | 2x: 50/34 |
Wheels-rims | |
| Front hub | Formula RX-812 alloy, sealed bearing, 6 bolts, 100 x 12 mm thru axle. |
| Front quick release | Bontrager Switch thru axle, removable lever |

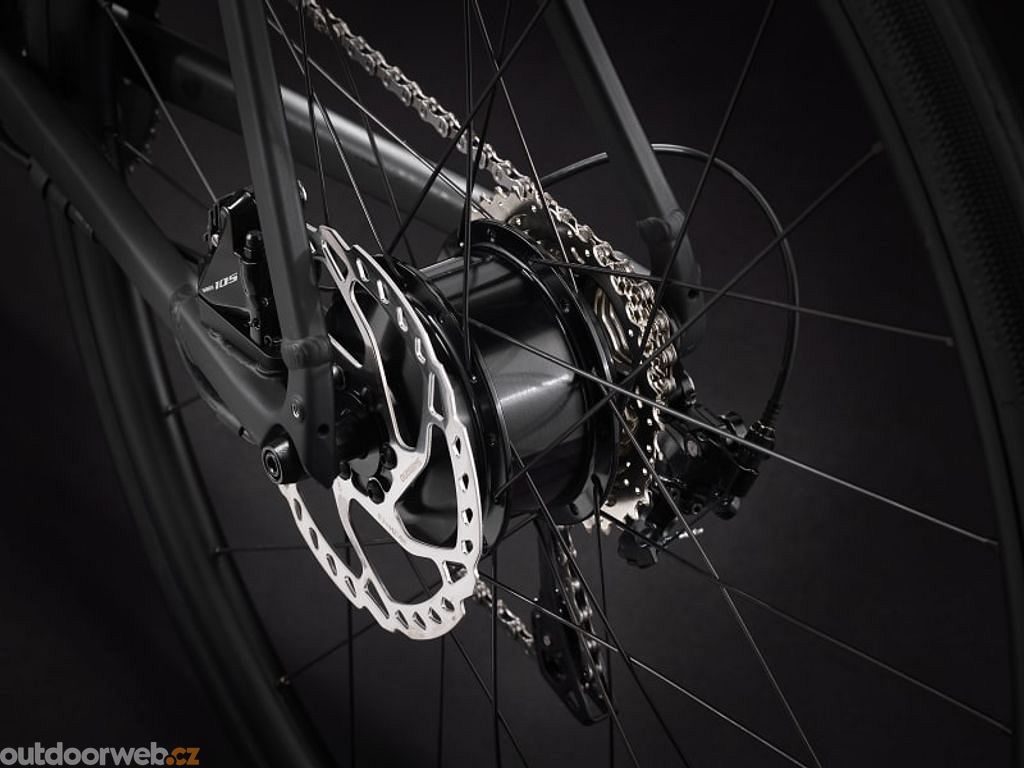

| Rear hub | Hyena hub motor, 40 Nm, 250 W |
| Rim | Bontrager Paradigm, tubeless ready, 28 holes, 21 mm width, Presta valve. |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32 mm. |
| Maximum tire size | 38 mm without fenders, 32 mm with fenders |
Components | |
| *Saddle | Size: 49, 52 Bontrager Verse Comp, steel rails, width 155 mm |
| Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, width 145 mm | |
| Seatpost | Bontrager, carbon, 27.2 mm, offset 8 mm, length 330 mm. |
| *Handlebars | Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, Di2 internal routing, 75 mm reach, 128 mm bend, 38 cm width. |
| Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, Di2 internal routing, 75 mm reach, 128 mm rise, 40 cm width. | |
| Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, Di2 internal routing, 75 mm reach, 128 mm rise, 42 cm width. | |
| Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, Di2 internal routing, reach 75 mm, rise 128 mm, width 44 cm. | |
| Handlebar tape | Bontrager Supertack Perf. handlebar tape. |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length. |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length. | |
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 100 mm length. | |
| Size: 61 Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 110 mm length. | |

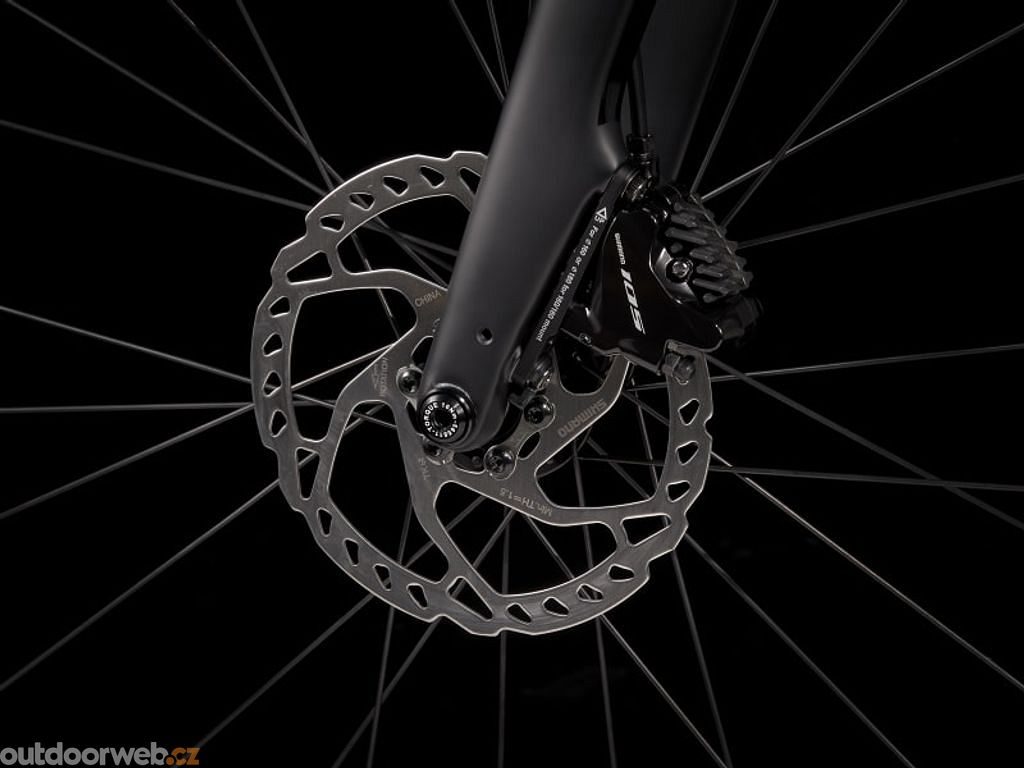

| Brake | Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin |
| Brake rotor | Shimano RT66, 6 holes, 160 mm. |
| Disc dimensions | Maximum disc size: 160 mm front & rear |
