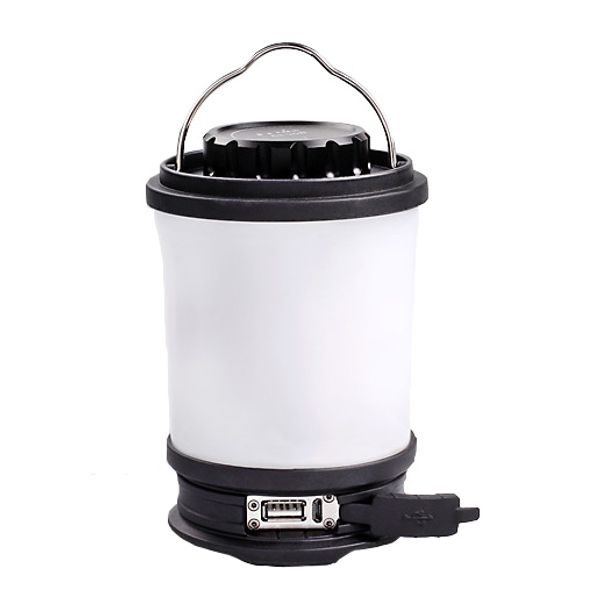

FENIX CL30R - Nabíjecí lucerna

The Fenix CL30R is an extremely powerful rechargeable lantern that can be used to illuminate a room, campsite, tent or workbench. The high-brightness LEDs hidden under the cylindrical diffuser provide up to 650 lumens (ANSI) of light with a neutral shade of white light and last up to 300 hours.

The CL30R is powered by three 18650 li-ion batteries with a 2600 mAh capacity (included) that charge directly in the lantern via a micro-USB connector. In case of emergency, the lantern can be powered by only one or two batteries (light time is reduced proportionally) or six disposable CR123A batteries.

The lantern offers a total of six lighting modes and is equipped with a charge status indication. The lantern is also equipped with a USB output so it can be used as a power bank to charge mobile phones and other USB devices. The lantern is waterproof to a depth of 1 meter thanks to its durable and shockproof construction with IPX-7 protection.

The top of the lantern is equipped with a hanging eye for hanging. The fixing options are further extended by a tripod thread on the underside of the lantern. All lantern parameters (luminous flux, battery life, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

• High brightness SMD diodes with neutral light tint
• Six power modes
• Digitally controlled for constant brightness
• Freezeproof design
• Includes three 18650 batteries with 2600 mAh capacity
• Can be powered by only one or two batteries
• Can use six disposable CR123A batteries
• Charger via micro-USB connector
• Water float capability
• 5V USB output for charging cell phones, GPS navigation and other portable electronics
• Protection against accidental insertion of batteries in reverse (reverse polarity)
• Memory to turn on in last set mode (not valid for blinking)
• Insensitive to falls from a height of 1 meter
• Waterproof according to IPX-7 standard
An omnidirectional diffuser for a wide uniform light cone with a range of up to 35 metres
• Top side with hanging eye
• Bottom side threaded for tripod mounting

Measured with included 18650 Li-ion battery with 2600 mAh capacity: 650 lumens: (4.5 hours) -> 350 lumens (9 hours) -> 100 lumens (38 hours) -> 50 lumens (70 hours) -> 10 lumens (300 hours)-> 100 lumens (70 hours) flash.
Measured with a 3500 mAh 18650 Li-ion battery: 650 lumens: (6 hours) -> 350 lumens (12 hours) -> 100 lumens (51 hours) -> 50 lumens (93 hours) -> 10 lumens (400 hours)-> 100 lumens blinking (93 hours).

Use
There may be a black insulating cap inside the lantern on the batteries from the factory, remove it before first use. To turn on or off, hold the side button down for approximately 1 second. The five power levels are switched by pressing it, the flashing is activated by pressing the button twice quickly. Battery capacity indication - when the lantern is switched off, a short press of the button activates the four status LEDs on the top. The number of lit LEDs indicates the approximate level of charge of the batteries (less than 35%, 36-60%, 61-85%, more than 85%). When the batteries are almost depleted, the lantern automatically switches to lower power modes and the status LED starts flashing.

Charging the lantern
To charge the lantern, flip off the rubber cap of the micro-USB connector. Connect it using the included USB cable to your computer, USB AC adapter or USB car adapter. A standard mobile phone charger with a micro-USB connector can also be used for charging. The four status LEDs on the top flash during charging, and all are permanently lit when fully charged. The batteries do not suffer from a memory effect, so they can be recharged at any time and there is no need to wait until they are depleted. Charging fully discharged batteries takes about 8.5 hours (depending on the strength of the charging source used). During charging, the lantern can only be lit in 100 lumen mode. To power external USB devices (power bank function), connect the cable to the USB connector of the lantern.

Caution
Do not disassemble the sealed parts yourself, this will breach the warranty. If using disposable CR123A batteries, do not attempt to charge them in the lantern. Never mix different types and capacities of batteries in the lantern. If the lantern flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons: The batteries are almost dead - charge them. The electrical contacts are dirty - clean them with a cotton ball dipped in alcohol.

Material: aluminum alloy and durable plastic
Dimensions: 9.3 cm (diameter) x 13.6 cm (height)
Weight: 556 grams including batteries, 412 grams without batteries
Lumen output: up to 650 lumens
Range: 35 m
