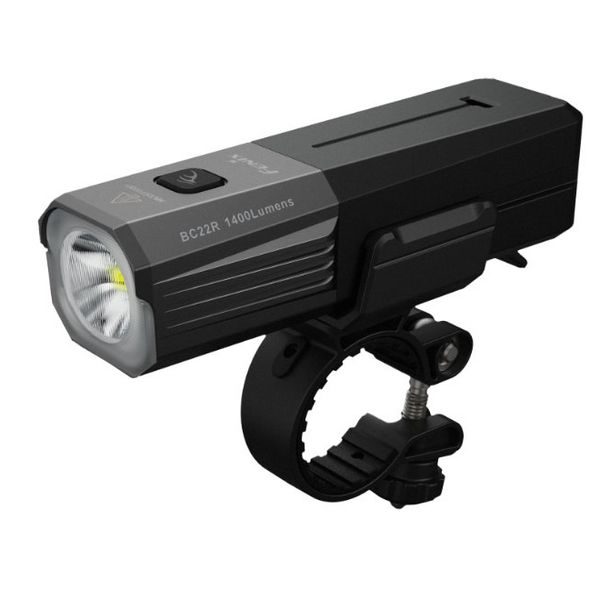

The powerful Fenix BC22R rechargeable bike light delivers up to 1400 lumens (ANSI) with a range of up to 156 meters. It is powered by a replaceable 18650 Li-ion battery with a 3400 mAh capacity, which is included and charges via the USB-C connector directly in the flashlight.

The light source is a modern Luminus SST-40 diode. The flashlight uses specially shaped optics that direct light only forward and to the sides, not upwards. The light cone is therefore partially cut off from above and does not dazzle other drivers and pedestrians. At the same time, the optics used create a very wide light cone that continuously illuminates the entire area in front of the bicycle, so that it also shines in places that conventional bicycle lights do not cover.

The Fenix BC22R bicycle light is therefore not only suitable for use on roads and cycle paths, but also perfectly handles lighting on trails. The design of the holder allows quick mounting and dismounting of the light on the handlebars without tools, and the light can be quickly removed from the holder and used as a high-performance handheld light. The holder is compatible with handlebars with diameters from 22 to 32 millimeters.

The unique design allows the flashlight to be hung inverted (above and below the handlebars), where the light cone remains cut from above and you can still see the controls and indications on the flashlight. A GoPro mount reducer is included. The Fenix BC22R offers a total of five digitally controlled power modes with up to 41 hours of runtime, including blink mode. Fenix cycling flashlights will provide you with quality lighting for night training, regular commuting and endurance racing.

All flashlight parameters (lumen output, battery life, waterproofing and range) are measured in accordance with ANSI/NEMA FL 1-2009.

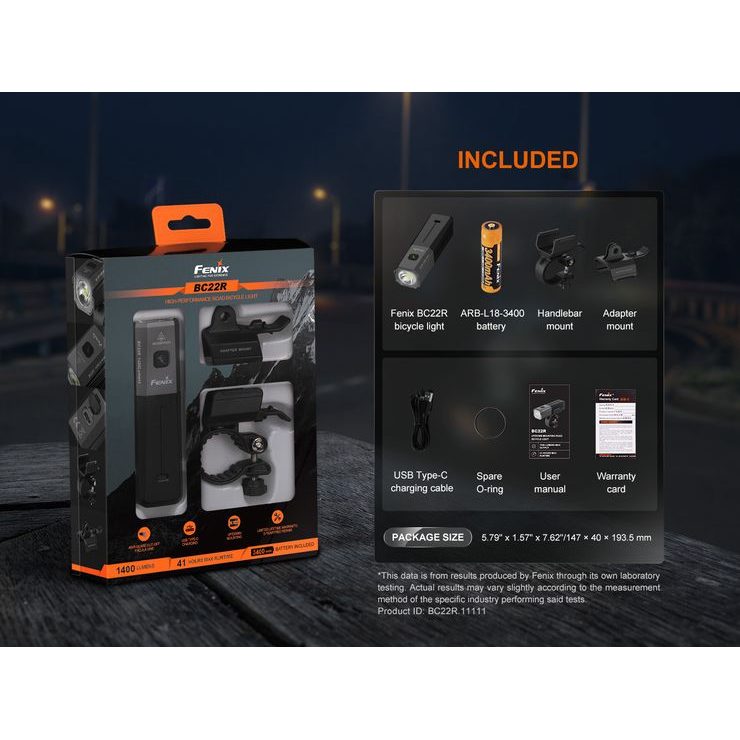

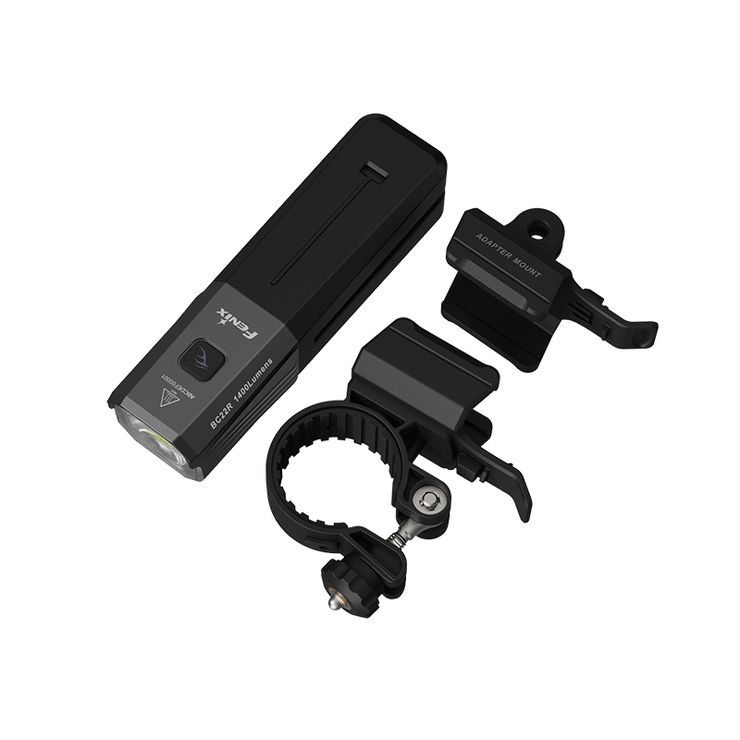

Package contents: flashlight, universal handlebar mount, GoPro mount reducer, Fenix 18650 3400 mAh battery, USB-C cable, replacement sealing ring.

Warranty: five years on the flashlight, two years on the battery.

1. Prolonged use of the highest wattages may cause the flashlight to heat up and activate the Intelligent Overheat Protection feature, which automatically reduces power.
2. Specially shaped optics create a top-cut light cone combining broad peripheral illumination and a range of up to 156 metres (6100 cd).
3. The flashlight attaches to the mount with a quick-release mechanism that allows it to be removed in an instant and reattached securely just as quickly.

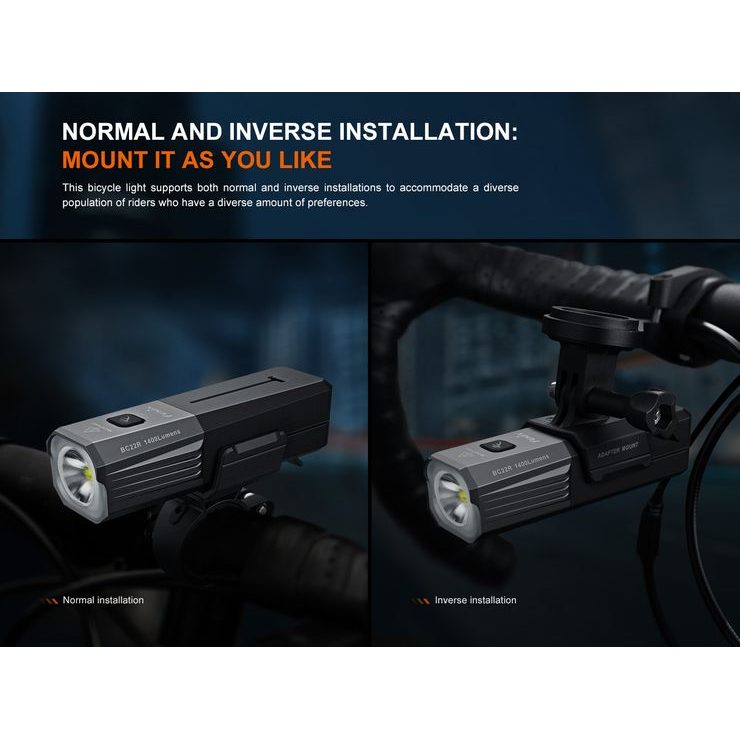

4. The flashlight can be hung inverted under the handlebars, e.g. on a GoPro mount, without having to turn it upside down.
5. The rubberized construction of the holder sleeve ensures a firm and secure attachment of the flashlight to the bike.

• A powerful Luminus SST-40 LED with a lifetime of 50000 hours is used.

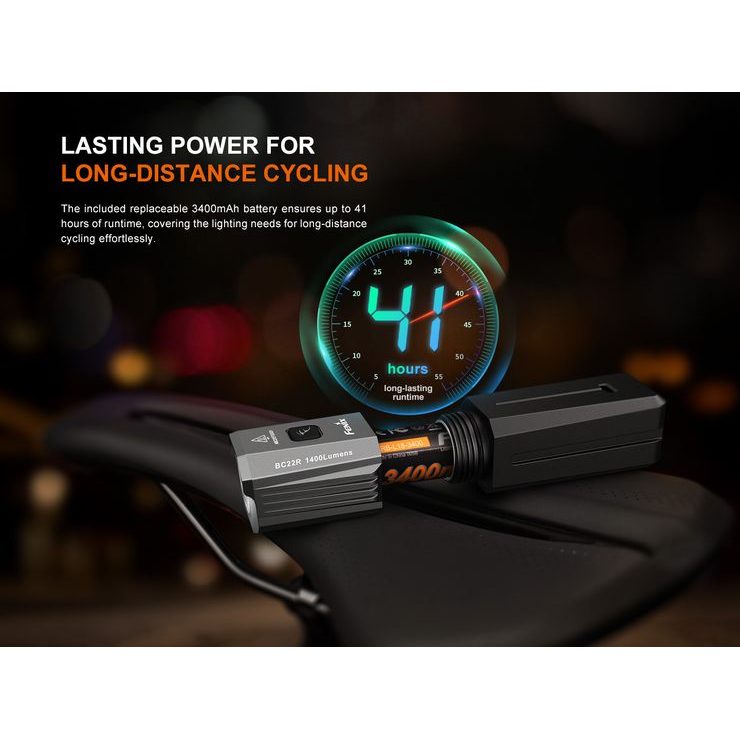

• One 18650 Li-ion battery with 3400 mAh capacity (included) is used for power supply.
• Digital power control.
• Low battery warning, overcharge and full battery protection.
• Compatible with handlebars with a diameter of 22 to 32 millimetres.
• Memory for last power mode set (except flashing mode).
• Made of A6061-T6 aircraft grade hardened aluminium.

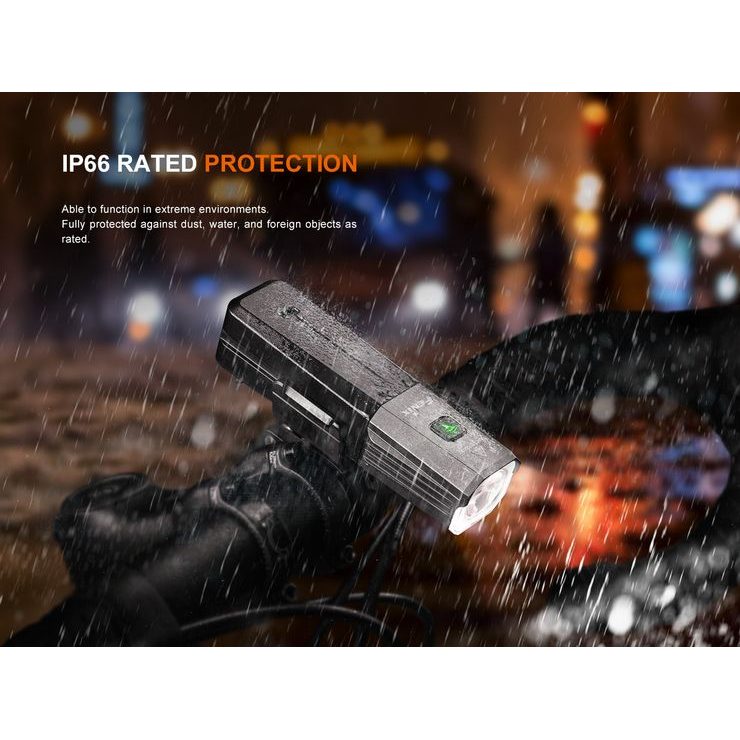

• Waterproof and dustproof to IP66 standard.

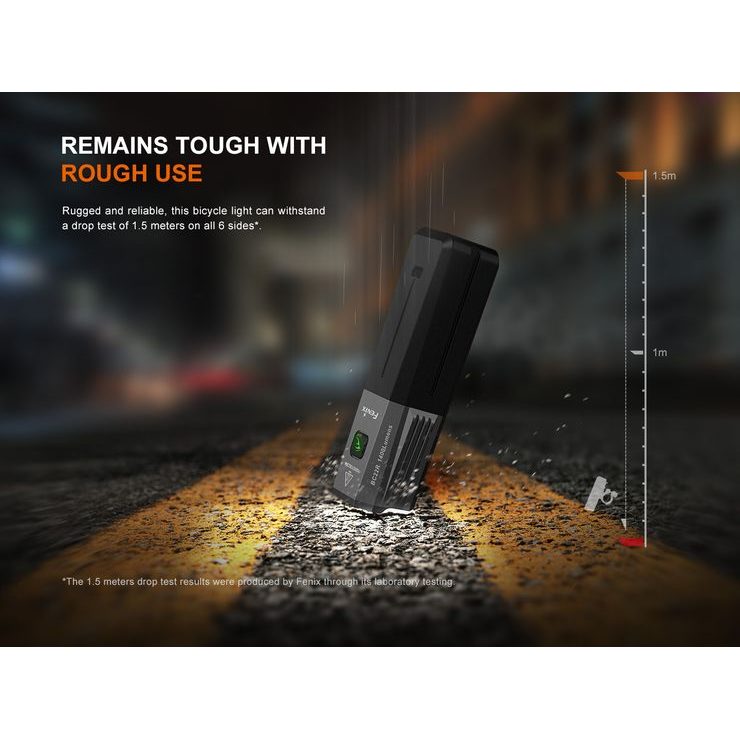

• Shockproof against falls from a height of 1.5 metres.
• Dimensions of the light 11,5 cm x 2,9 cm x 3,4 cm.
• Light weight 157 g (including battery).

Total of five power modes: 1400 lumens (2.3 hours*) -> 600 lumens (5.5 hours) -> 200 lumens (11 hours) -> 50 lumens (41 hours) -> flashing (pulsing between 50 and 200 lumens).

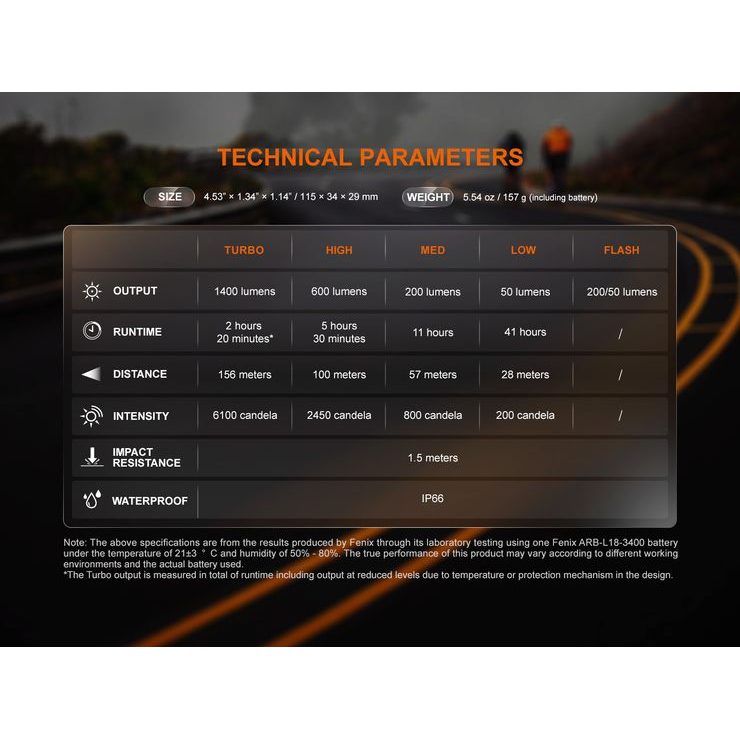

Specifications:

Power: 1400 lm
Range: 156 m
Max life: 41 hrs
Power: 1x 18650
Number of modes: 5
Waterproof: IP68 (2 m immersion)
Light color: Daylight White (5500-6500 K)
Light Source: Luminus SST-40
Weight: 157 g

Using the bike light
There may be an insulating cap inside the battery pack at the factory. Remove it from the battery pack before first use.

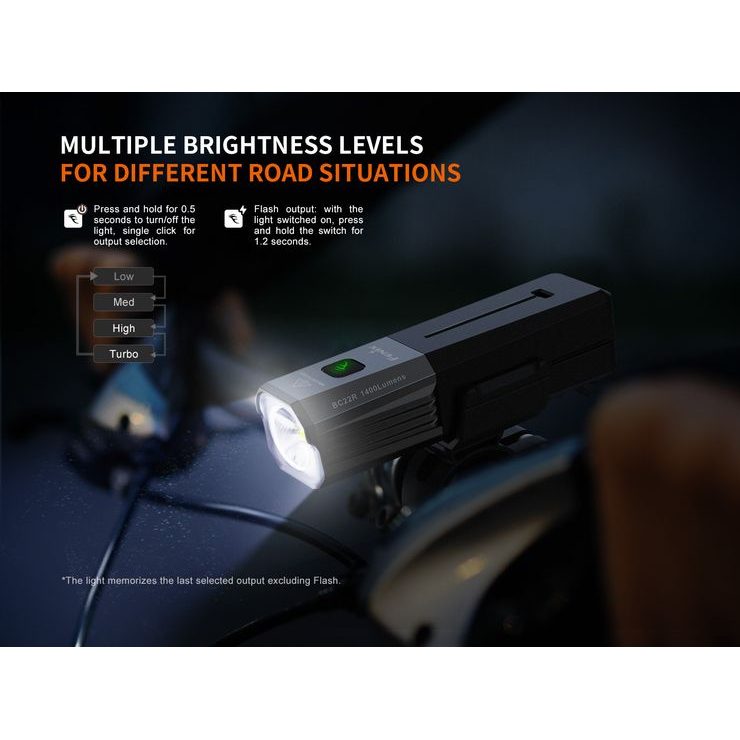

To switch on or off, hold the side button for approximately 0.5 seconds. The flashlight will always turn on in the last set mode (except for flashing), you can switch other power levels at any time during operation by pressing the button. To switch to flashing mode, hold the button for 1.2 seconds with the flashlight on.
Battery capacity indication - With the flashlight off, press the button once briefly, then the indicator LED in the button will light for three seconds. A green light or blink indicates a battery charge of more than 50%, a red light or blink indicates 50% or less. The indicator LED also illuminates when the flashlight is on, so the user is kept informed of the battery status while driving.
Low Battery Warning - If the battery capacity drops below a safe level, the flashlight will automatically switch to lower power modes to ensure the longest possible battery life (the flashlight cannot then be switched to higher modes). If the battery is critically low, the button will flash red. In this case, we recommend charging the flashlight as soon as possible to prevent the protective electronics built into the battery from shutting off the light.
Intelligent overheat protection - When using the flashlight on high power modes for long periods of time, a large amount of heat can accumulate. When the flashlight reaches a temperature of 60°C or higher, it will automatically reduce power by a few lumens to lower the temperature. When the temperature drops below 60 °C, the wattage will gradually increase again.

Charging

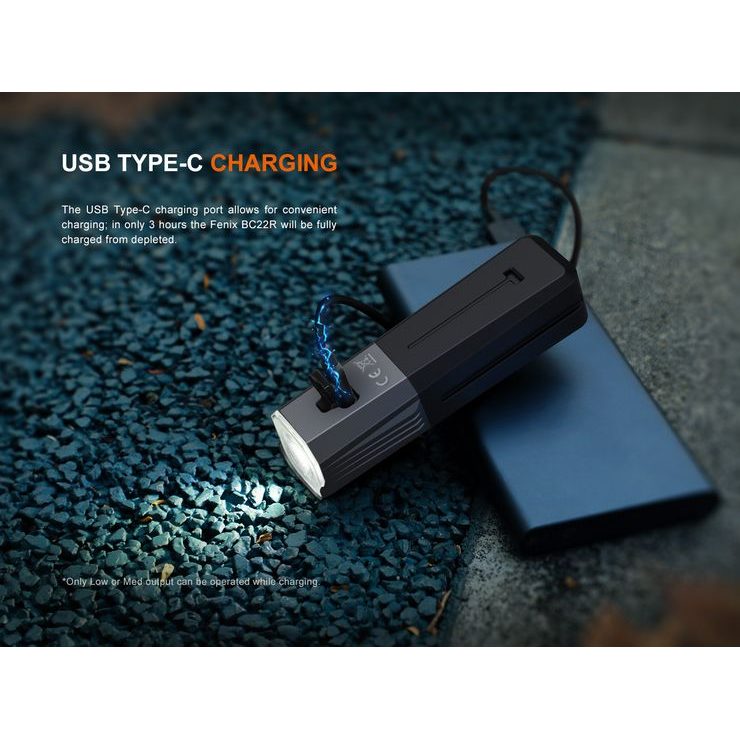

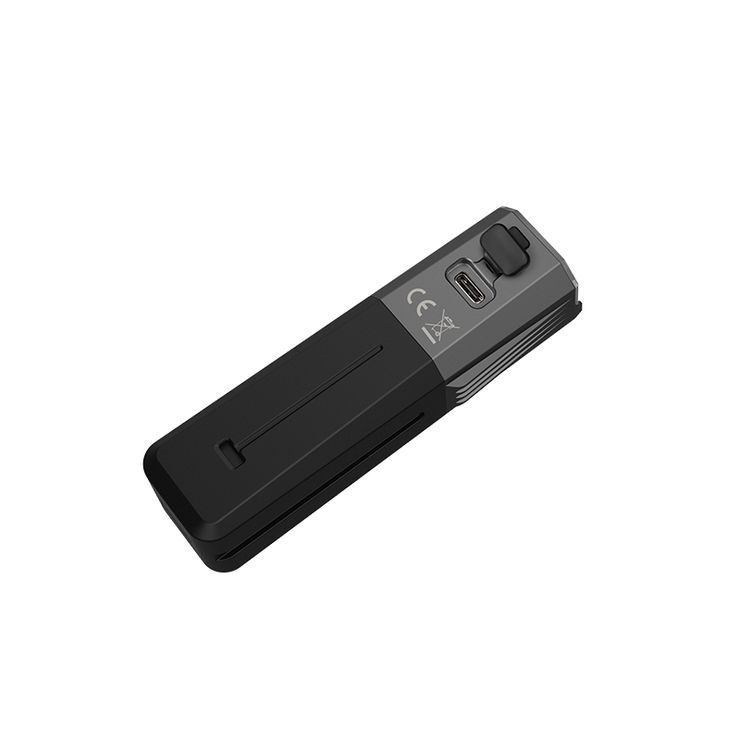

Unsnap the rubber cap of the USB-C connector on the bottom of the flashlight and use the included USB cable to plug it into a computer, power bank, USB AC adapter or USB car adapter.
The button glows red during charging and glows green when fully charged.
Charging time is approximately 3 hours depending on the power of the adapter used. The Li-ion battery does not suffer from a memory effect, so the flashlight can be recharged at any time.
During charging, the flashlight can be used in an emergency, but only in two modes of 50 and 200 lumens. This will increase the charging time.
After charging and removing the power cable, be sure to seal the USB-C connector cap.

Warning
Do not disassemble the sealed parts in the flashlight head yourself, it will violate the warranty.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight blinks, does not switch to higher modes, or does not light up, it may be due to one of the following reasons:
- The battery is almost dead, charge it or replace it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The battery cap is loose, tighten it.
