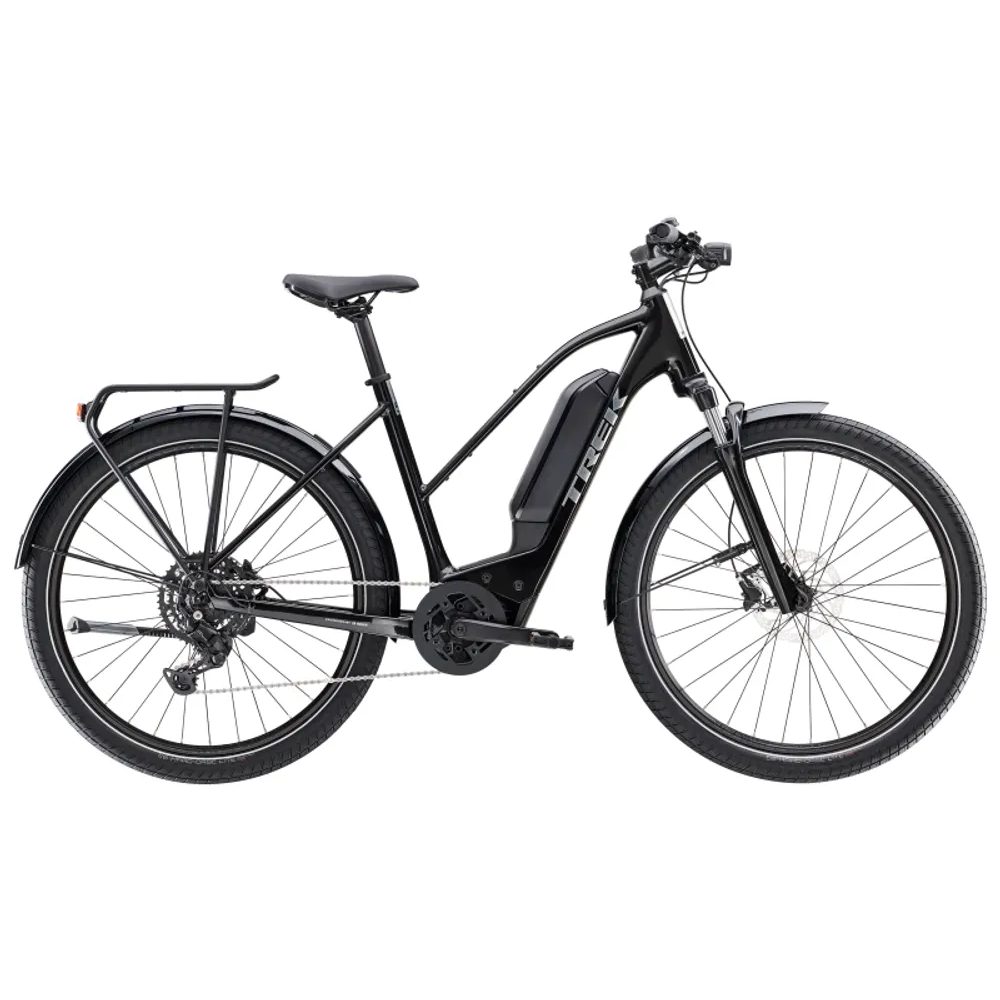

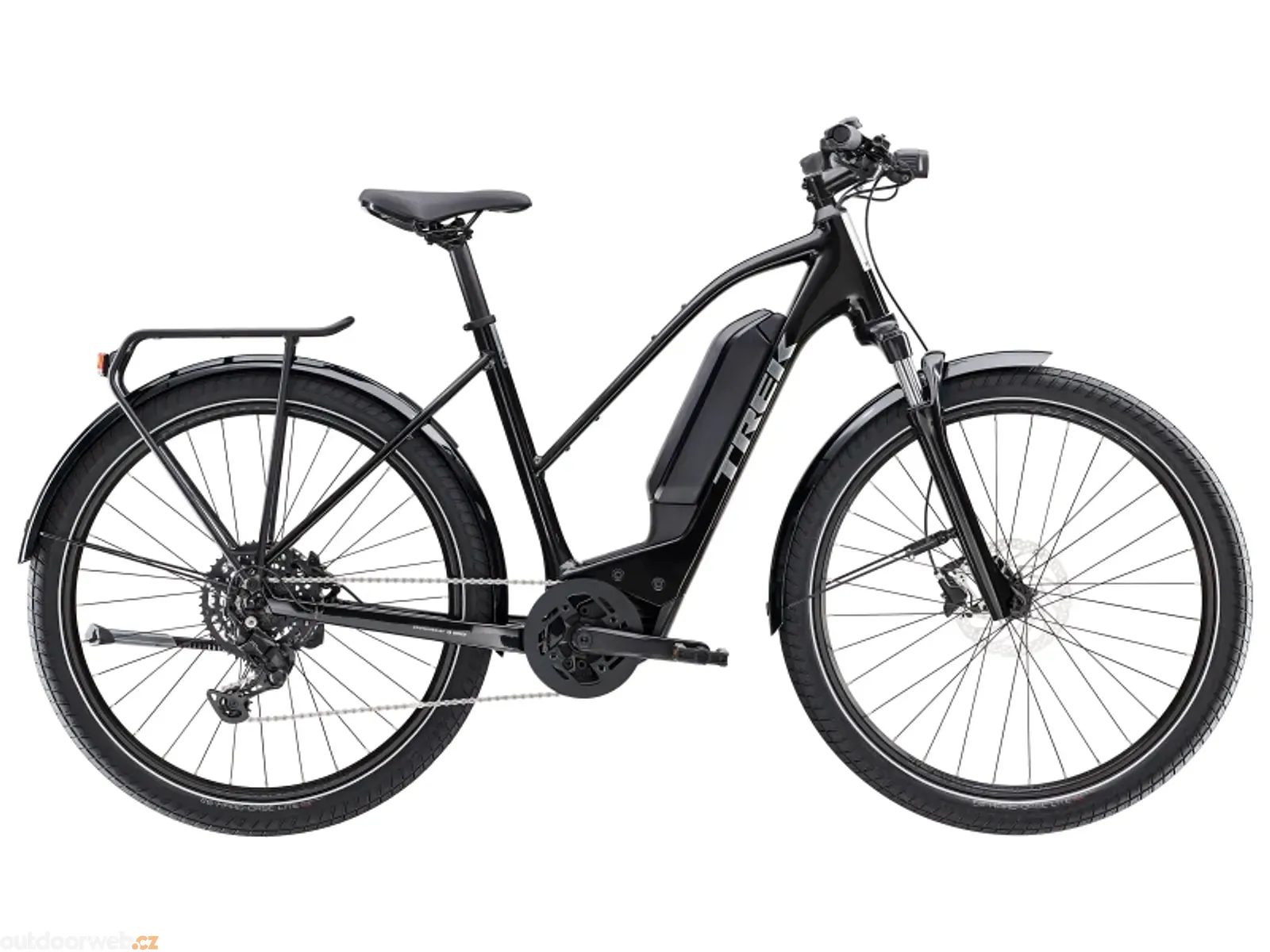

The Allant+ 5 Stagger city e-bike is designed especially for riders who want to commute faster. The frame with a lowered top tube makes it easier to get on and off the bike. The Bosch smart system offers enhanced connectivity so your smartphone can communicate with the bike, record distance travelled and plan routes. There are several options available with capacities ranging from 400 to 800 Wh, so you can choose the one that suits your needs and ride home worry-free and comfortably.
Looking for an electric bike with the perfect balance of rugged performance and comfort. You care about looks and want a sleek bike for city riding that's also durable enough for off-road riding. You want the connectivity and customizability of a Bosch smart system, including performance tracking, navigation and Bluetooth connectivity. Ease of operation is important to you and you want to get on and off the bike quickly and easily.
- The Bosch smart system with the Purion 200 compact controller has proven performance and responsiveness. Thanks to the eBike Flow app, you'll be more in control of your settings.
- Four different battery capacities let you choose the support you need for daily riding, weekend adventures and budgets.
- Stiff 27.5-inch wheels with fixed axles allow for reliable and stable handling, and rugged tires make for a more comfortable ride.
- The spring fork smooths out bumps, curbs and potholes for a comfortable ride.
- Everything is ready. All you have to do is get going. The MIK carrier and mudguards are in place and the lights are battery powered.
Hydroformed aluminium frame with lowered top tube and a choice of 400 Wh, 545 Wh, 725 Wh and 800 Wh battery capacities. The powerful Bosch Performance Line CX smart motor system (250 Wh, 85 Nm) provides support up to 25 km/h. The manageable system can be controlled from a smartphone or with the Bosch Smart System Purion 200 controller. Shimano CUES shifting is precise and internally routed cables keep the bike sleek and require minimal maintenance. Integrated lights make it easy to be visible and enjoy a good view while riding.
The Allant+ 5 Stagger with its lowered top tube frame is the ideal choice for those who want to further enhance their daily ride. The powerful Bosch system and a range of different battery capacities allow you to be in complete control of your ride. The smart system communicates flawlessly with the bike and your smartphone for activity tracking and navigation, for example. The Purion 200 controller makes it easy to control while riding.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
Rám |
|
|---|---|
| Rám | Vysoce výkonná hydroformovaná slitina, vnitřní vedení lanek, úchyt na externí baterii, úchyt na kotoučové brzdy Post Mount, rychloupínák 135 x 5 mm |
| Vidlice | SR Suntour NVX30, spirálová pružina, nastavení tuhosti, rycahloupínák 100 mm, 60mm zdvih |
Zapletená kola-výplety |
|
| Přední náboj | Shimano Tourney HB-QC300, centerlock |
| Zadní náboj | Shimano FH-QC300-HM, 32 děr, Centerlock, 8/9/10/11 rychlostí, rychloupínák 135 x 5 mm. |
| Ráfek | Bontrager Connection, dvoustěnné, 32 děr, šířka 20 mm, ventilek Presta. |
| Plášť | Bontrager E6 Hard-Case Lite, reflexní páska, 27,5 x 2,40 palce. |
E-systém |
|
| Nabíječka | Bosch standard 2A, 230 V, chytrý systém. |
| Cyklopočítač | Bosch Purion 200. |
| Motor | Bosch Performance Line CX, 25 km/h |
Pohon |
|
| Řazení | Shimano U4000, 9 rychlostí. |
| Přehazovačka | Shimano CUES U4000. |
| *Klika | Velikost: S, M ProWheel, slitina, délka 170 mm. |
| Velikost: L ProWheel, slitina, délka 175 mm. |
|
| Převodník | ProWheel, 40 zubů, typ Narrow Wide, ocel, se slitinovým krytem. |
| Kazeta | Shimano LINKGLIDE LG300, 11-46, 9 rychlostí. |
| Řetěz | Shimano LG500, 9/10/11 rychlostí. |
| Pedál | protiskluzové pedály s odrazkami |
Komponenty |
|
| Sedlo | Selle Royal Vivo Moderate Ergo |
| *Sedlovka | Velikost: S, M Slitina, Bontrager, 31,6 mm, offset 12 mm, délka 330 mm. |
| Velikost: L Slitina, Bontrager, 31,6 mm, offset 12 mm, délka 400 mm. |
|
| Řídítka | Lowriser, slitina, 31,8 mm, prohnutí 25 mm, 11stupňové zahnutí k sobě, šířka 690 mm |
| Gripy | Herrmans Clik, ergonomický, uzamykatelný |
| *Představec | Velikost: S Bontrager Comp, objímka 31,8 mm, kompatibilní s Blendr, 7 stupňů, délka 70 mm |
| Velikost: M Bontrager Comp, objímka 31,8 mm, kompatibilní s Blendr, 7 stupňů, délka 80 mm |
|
| Velikost: L Bontrager Comp, objímka 31,8 mm, kompatibilní s Blendr, 7 stupňů, délka 90 mm |
|
| Brzda | Hydraulická kotoučová verze Shimano MT200 |
| *Brzdový rotor | Velikost: S, M, L Shimano RT30, centerlock, 180 mm. |
| Velikost: S, M, L Shimano EM300, centerlock, 180 mm. |
|
Příslušenství |
|
| *Světlo | Velikost: S, M, L Zadní světlo Spanninga SOLO pro elektrokolo |
| Velikost: S, M, L Herrmans H-Black MR5-E, 140 Lumenů, 40 Luxů, LED, přední světlo. |
|
| Stojánek | Pletscher Comp Flex 18 |
| Nákladní nosič | Zadní nosič ze slitiny kompatibilní s MIK, maximální zatížení 25 kg. |
| *Blatník | Velikost: S, M, L SKS, plast, zadní |
| Velikost: S, M, L SKS, plast, přední |
|
Hmotnost |
|
| Hmotnost | M - 24.50 kg / 54.02 lbs (s 545Wh baterií) |
| Hmotnostní limit | Kolo má maximální celkový hmotnostní limit 136 kg (kombinovaná hmotnost kola, jezdce a nákladu). |
