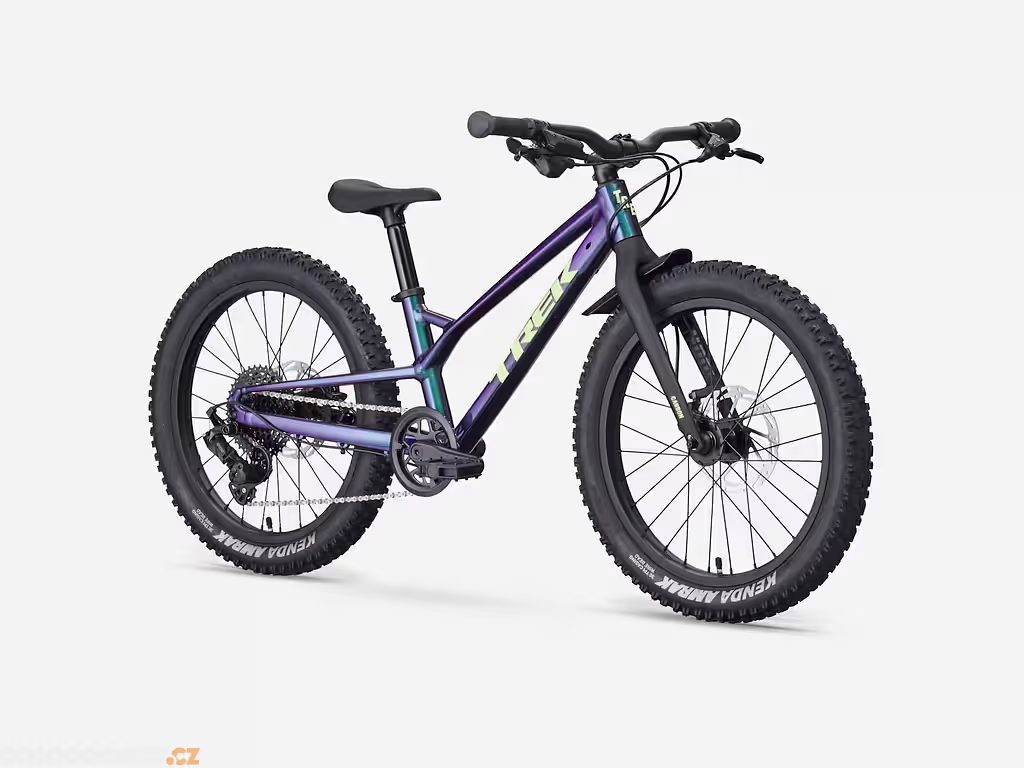

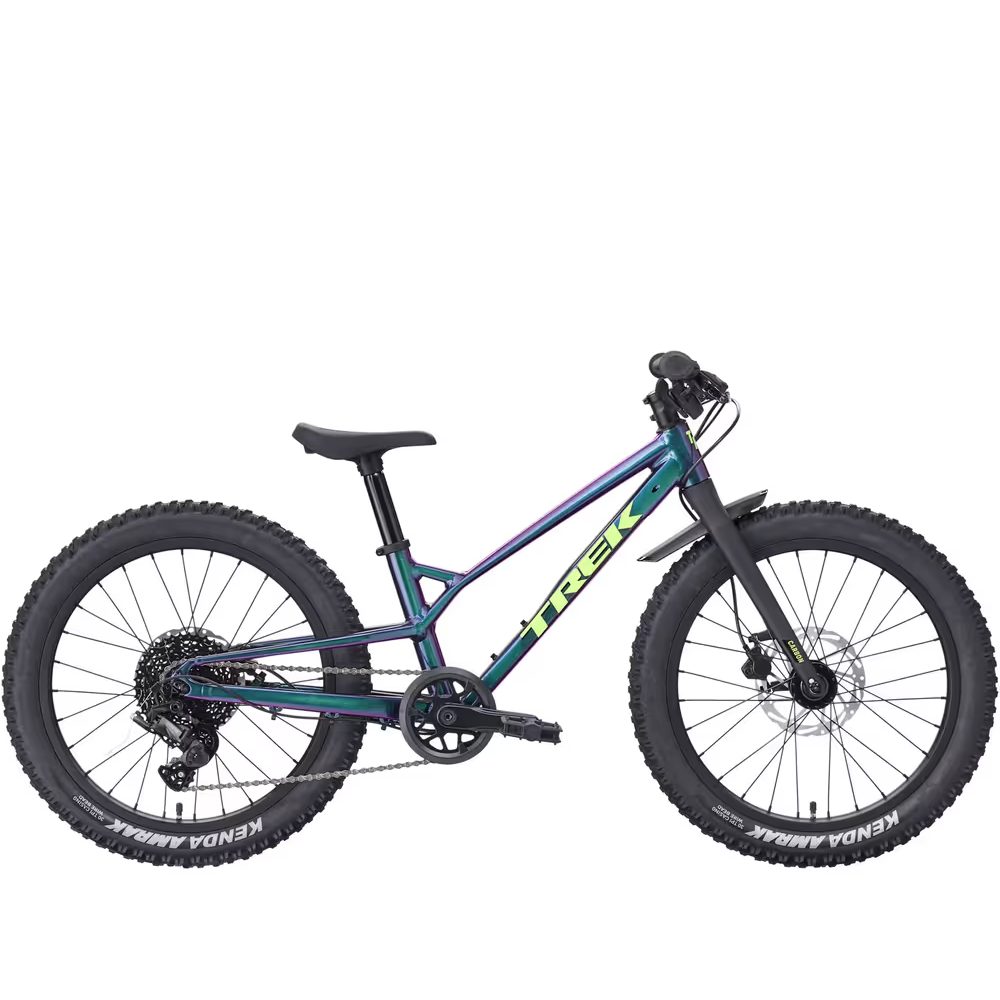

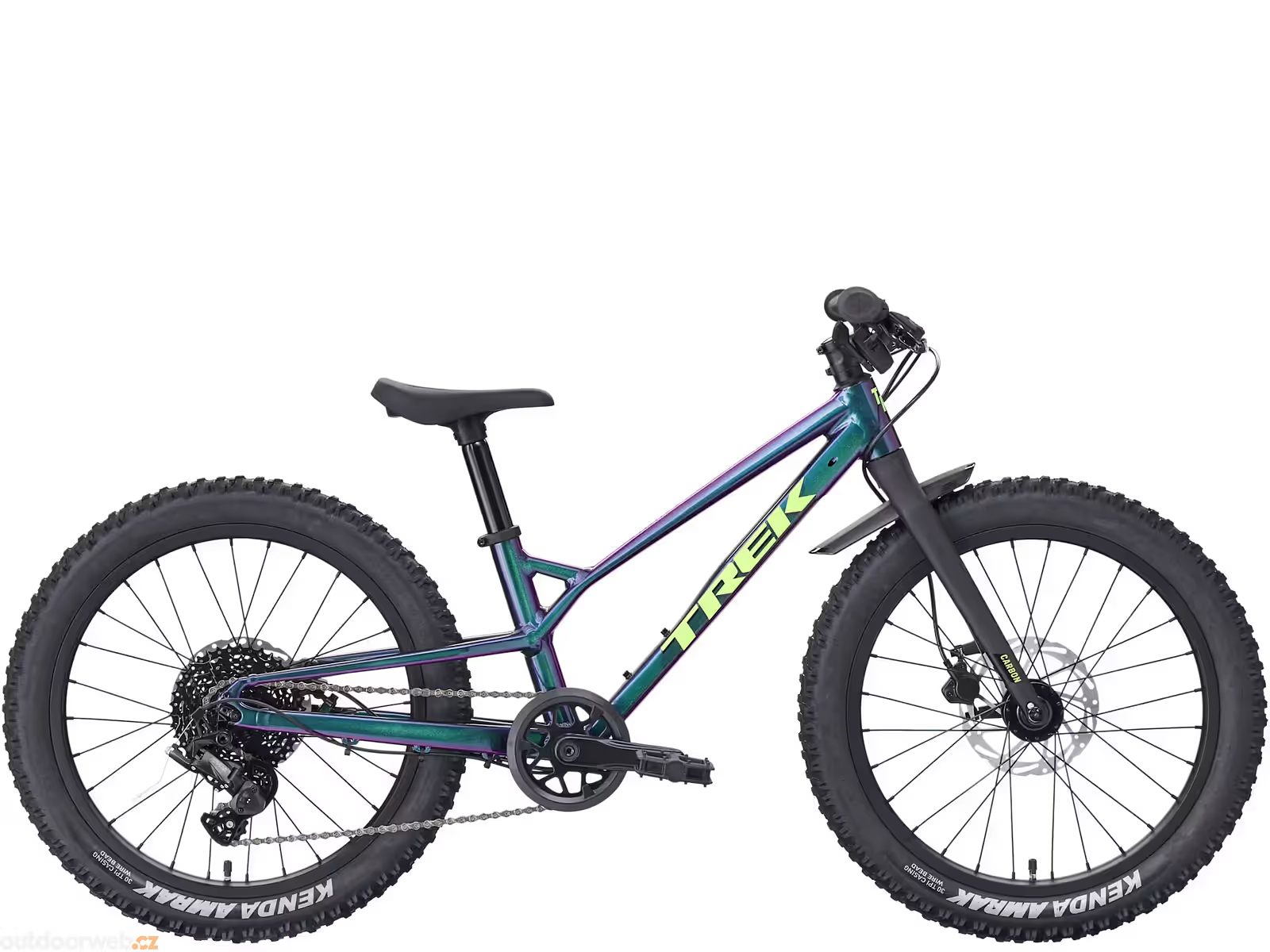

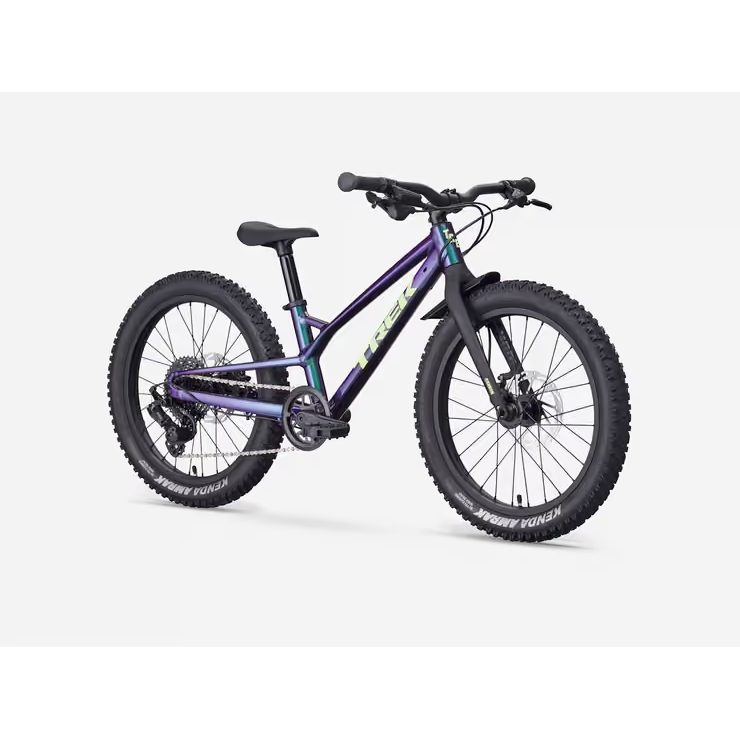

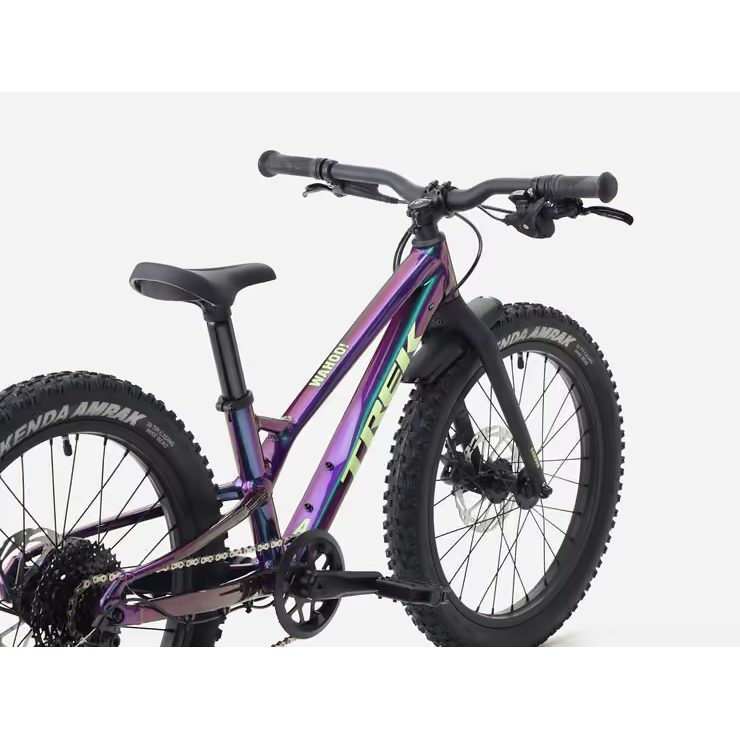

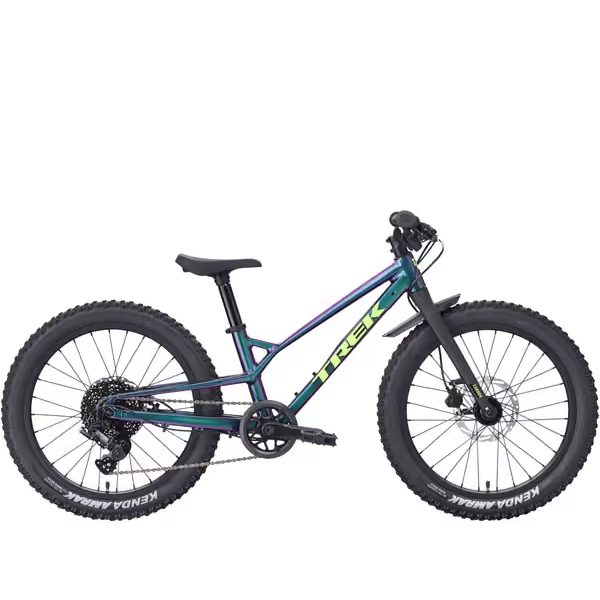

TREK Wahoo 24 Trail 24 Emerald Iris
5336004Children's bike 2026
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
| Frame | Alpha Silver aluminum, 24 inches. |
|---|---|
| Fork | Wahoo, 24 inches, carbon, Post Mount disc, ThruSkew 5 mm quick release. |
| Front hub | Formula DC-20, alloy, 6 bolts, 100 mm. |
| Front quick release | 135 x 5 mm, bolt-on type. |
| Rear hub | Formula DC-22, alloy, 6 bolts, Shimano 8/9/10 Freehub, 135 x 5 mm quick release. |
| Rear quick release | 169 x 5 mm, bolt-on type. |
| Tire | Kenda Amrak, 30 tpi, 24 x 2.20 inches. |
| Maximum tire size | 24 x 2.40 inches with or without fenders |
| Shifters | microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speeds. |
| Rear derailleur | microSHIFT Advent RD-M6195M, max. chainring 40-46 teeth. |
| Crankset | Alloy, 30 teeth, steel chainring with cover. Length 127 mm. |
| Bottom bracket | Sealed bearing, 68 mm. |

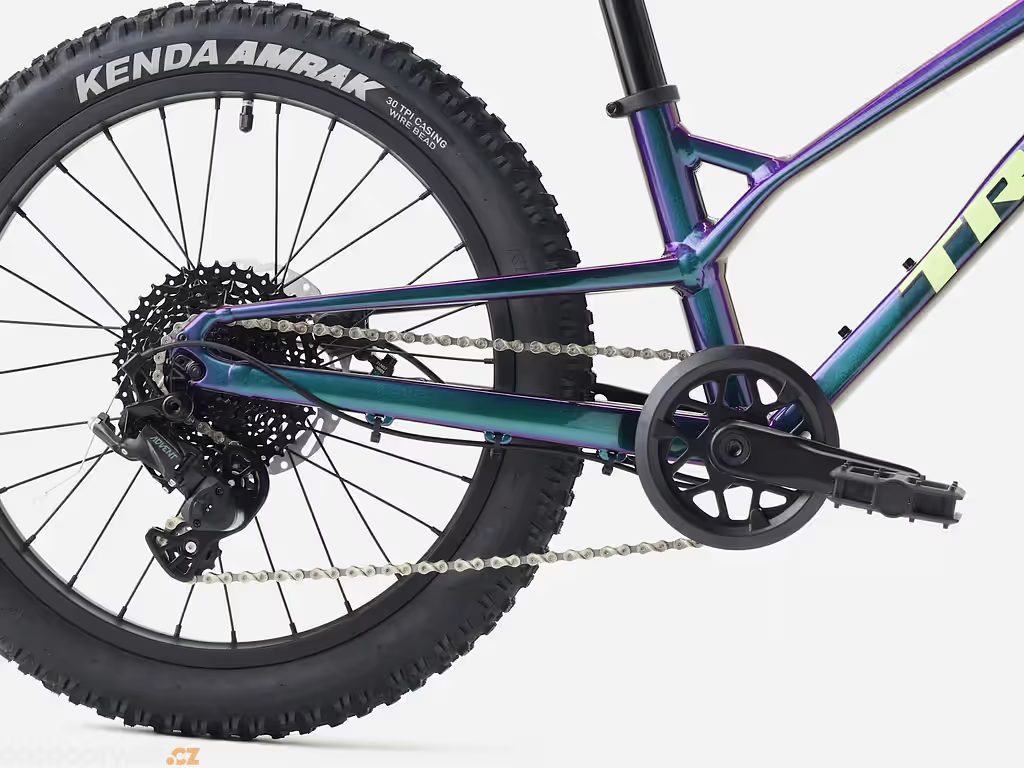

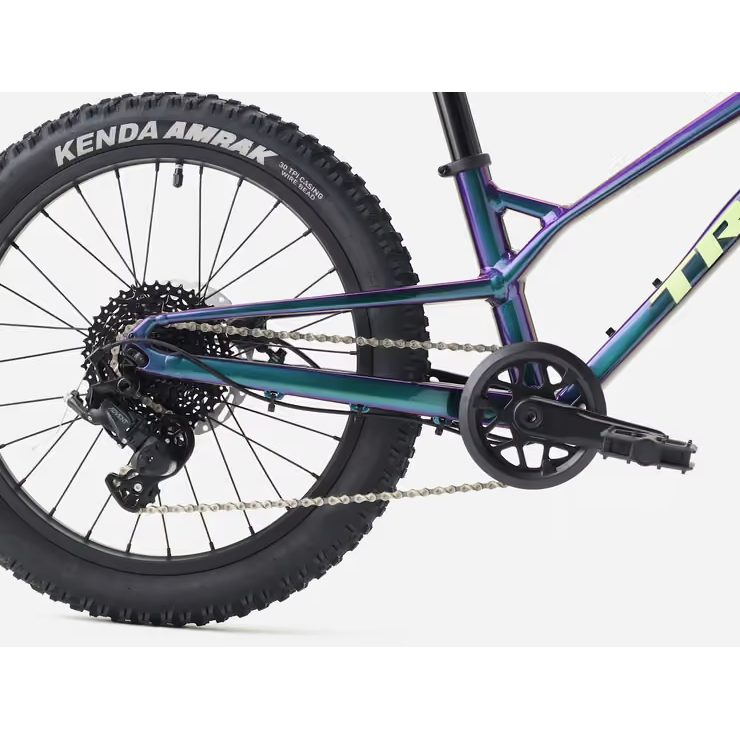

| Cassette | microSHIFT Advent H039, 11-42, 9 speeds. |
| Chain | KMC X9 |
| Pedal | VP-225, nylon platform |
| Maximum chainring dimensions | 1x: 30 teeth |
| Saddle | Children's, padded, integrated seat post, Blendr light mount, 31.6 x 270 mm. |

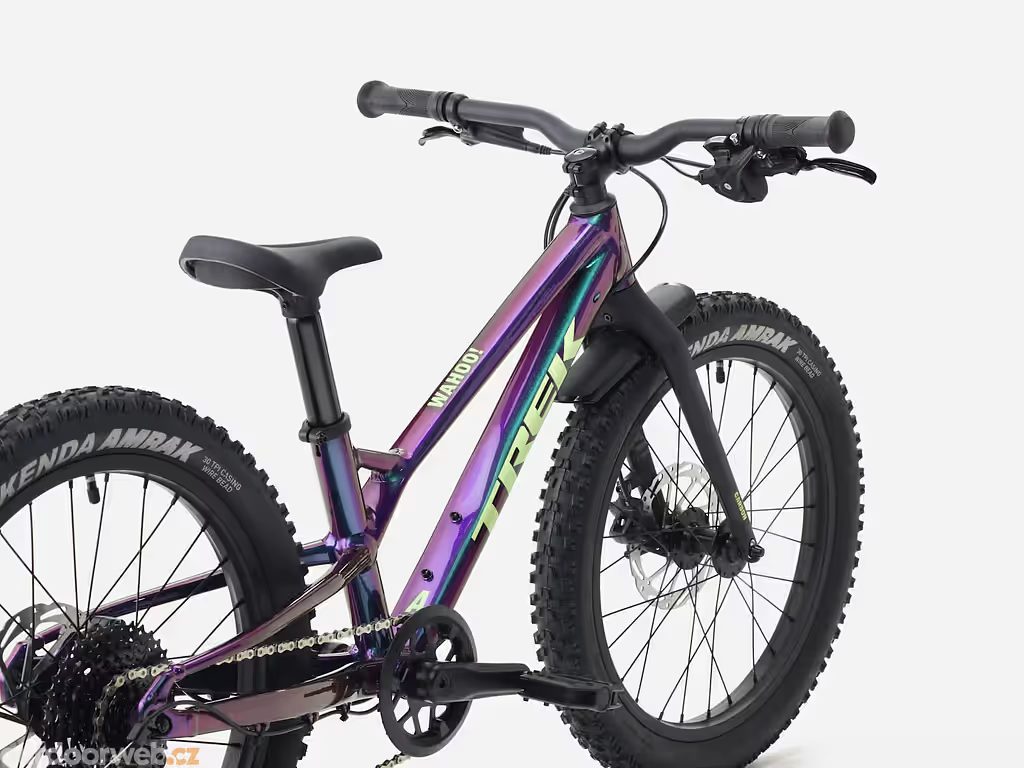

| Handlebars | Alloy, Bontrager, 31.8 mm, 20 mm rise, 600 mm width. |
| *Grips | Size: 24" bike
Kids' grip, width 110 mm. |
| Size: 24" bike
Kids' grip, length 108 mm. | |
| Stem | Bontrager, alloy, 31.8 mm clamp, 6 degrees, length 45 mm. |
| Headset | Integrated, sealed bottom bracket bearings. |
| Brake | Tektro HD-J285, hydraulic, disc. |
| Brake rotor | Tektro, 6 holes, 160 mm. |
| Disc dimensions | Maximum disc size: 160 mm front and rear |

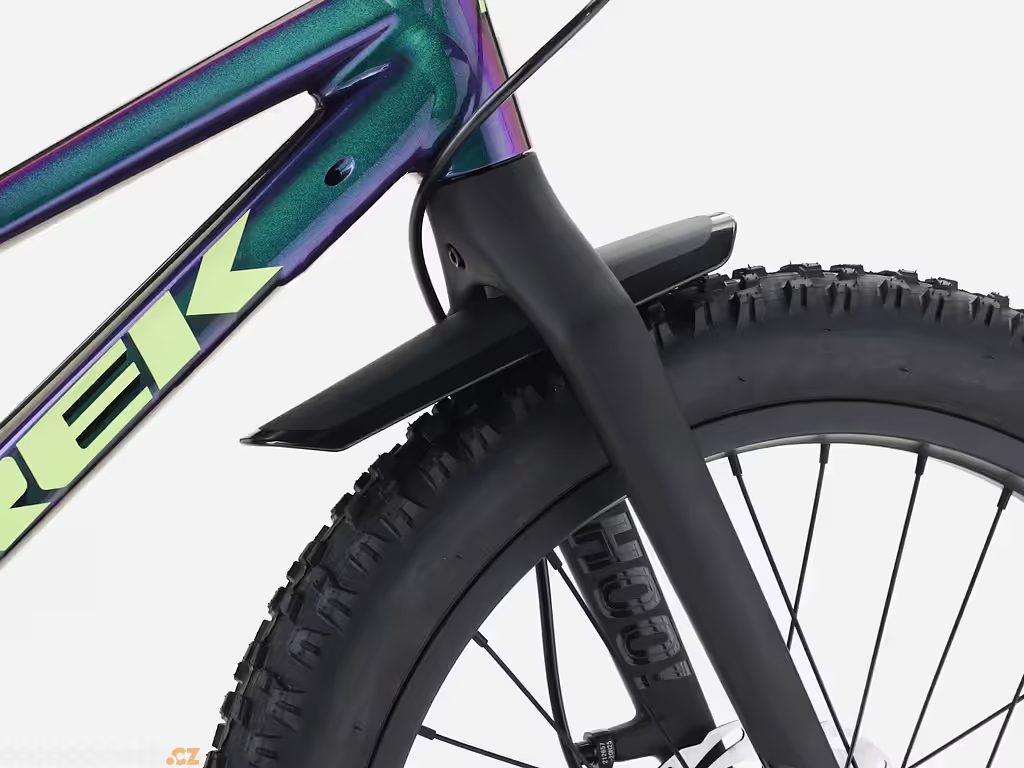

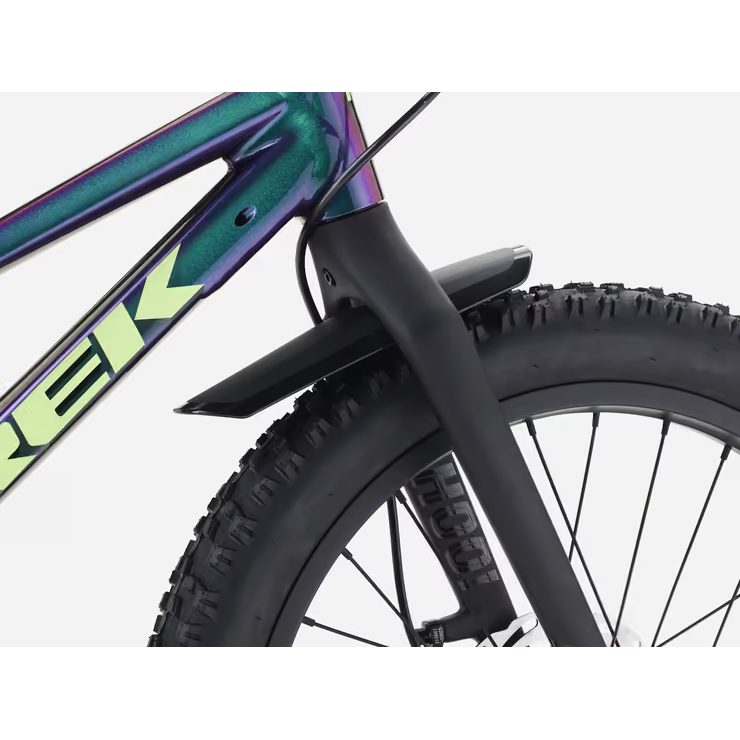

| Fender | Custom Trek |
| Weight limit | The bike has a maximum total weight limit (combined weight of bike, rider, and cargo) of 80 kg (175 lbs). |
