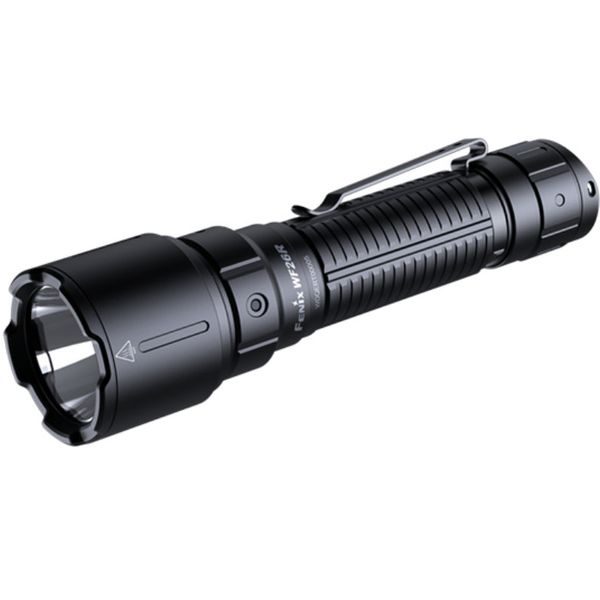

FENIX WF26R - Rechargeable flashlight

The reliable Fenix WF26R service flashlight offers a light output of up to 3000 lumens and a range of up to 450 meters. Power is provided by a Li-ion battery type 21700 with a capacity of 5000 mAh, which is charged directly in the flashlight using the included cradle with USB cable. The flashlight simply clicks into the cradle when charging. The cradle is equipped with mounting holes so that it can be screwed onto a wall, for example. The charging cable can be removed from the cradle and the flashlight can be charged outside the cradle.

Fenix WF26R has a total of six lighting modes (including strobe and SOS) with a battery life of up to 44 hours. It uses a dual tactical switch for control, which allows faster and more reliable control in crisis situations. For example, it can be easily switched directly into strobe mode.

The excellent technical specifications, waterproof and shockproof design predestine this flashlight for use in harsh outdoor conditions. It will be especially appreciated by members of the armed forces, firefighters, rescuers and mountain guards when on duty. It is also sure to find popularity with security agencies and facility guards.

Light output and run times are measured with the included Li-ion 21700 battery with a 5000 mAh capacity. Magnetic charging cradle, the cradle is powered by a standard USB cable (USB power supply not included).

All flashlight parameters (lumen output, battery life, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

Package contents: flashlight, Fenix ARB-L21-5000 V2 battery.0, charging cradle with USB charging cable, wrist lanyard and replacement o-ring.

Warranty: 5 years on flashlight, 2 years on battery

1. The flashlight has memory and will always turn on in the last mode set (not valid for flash modes).
2. Waterproof and dustproof to IP68 standard (tested underwater at 2 meters depth for 4 hours)
3. Made of aerospace hardened 6061-T6 aluminum, the flashlight is shockproof to drops from 1.5 meters.
4. Reflector produces a well-focused light cone with a range of 450 meters (52,888 cd).
5. Electronics with digital constant control and intelligent overheat protection.

• Premium Luminus SFT-70 LED is used with a lifetime of 50,000 hours.
• Six power modes
• Anti-accidental reverse battery insertion (reverse polarity) protection.
• Bottom surface - Type III hard anodized.
• Battery charge indication at the head of the flashlight.
• Removable steel clip for attachment to pocket or belt.
• Cable can be removed and flashlight can be charged outside the cradle.

Lighting Modes:
Six power modes: 3000 lumens (2.7 hours total, reducing to 1000 lm after 1 minute) -> 1000 lumens (2.8 hours) -> 350 lumens (8.9 hours) -> 30 lumens (44 hours) - Strobe (3000 lumens) - SOS (100 lumens).

Specifications:

Lumen output: 3000 lm
Range: 450 m
Dimensions: 15.6 cm (length) x 4.04 cm (reflector diameter) x 2.66 cm (body diameter)
Cradle dimensions: 7.67 x 4.37 x 4.7 cm.
Weight: 222 g including battery
Material: aerospace hardened 6061-T6 aluminum

Using the Fenix WF26R
From the factory, there may be an insulation cap inside the flashlight on the battery. Remove it from the battery pack before first use.
To turn on/off press the larger tactical button located on the end of the flashlight, press the button for immediate activation. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to strobe mode with the flashlight on, hold the toggle button for approximately 0.5 seconds, then further presses of the button can switch between and SOS modes. To switch the flashlight from off to stroboscopic mode directly, press and hold the switch button.
Charge - plug the flashlight with the charging connector towards the inside of the cradle. Alternatively, if you have removed the charging cable from the cradle, attach the magnetic connector of the charging cable to the connector on the flashlight. Plug the other end of the cable into a computer or a USB adapter for the mains or car. The side indicator lights red while charging. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 3 hours using a 3A power supply. The flashlight cannot be used while charging.
Intelligent overheat protection- Since the flashlight reaches a huge 3000 lumens, it experiences a temperature rise. If the temperature exceeds 60°C, the power will be automatically reduced. Once the temperature drops below 60°C, the highest power can be used again.
Battery charge indication- The flashlight always indicates the battery charge level three seconds after switching on. Green indicates sufficient state of charge (100% - 85%), flashing green (85% - 50%), steady red (50% - 25%) and flashing red indicates critically low battery (25% - 1%). If the battery is low, the flashlight will automatically switch to lower power modes gradually.
Discharged Battery Warning - the flashlight will gradually automatically switch to the lowest power mode and then the indicator will keep flashing red.

Warning
Do not disassemble the sealed part in the flashlight head yourself, it will violate the warranty.
Use only high quality 21700 Li-ion batteries to avoid damaging the flashlight, for example due to battery leakage.
If the protective rubber rings appear damaged after extended use, replace them.
If the flashlight flashes, does not switch to higher power or does not light up, it may be due to one of the following reasons:
- The battery is dead, charge it.
- The contacts inside the flashlight are dirty - clean them with a cotton ball dipped in alcohol.
- The flashlight end cap is loose, tighten it.
