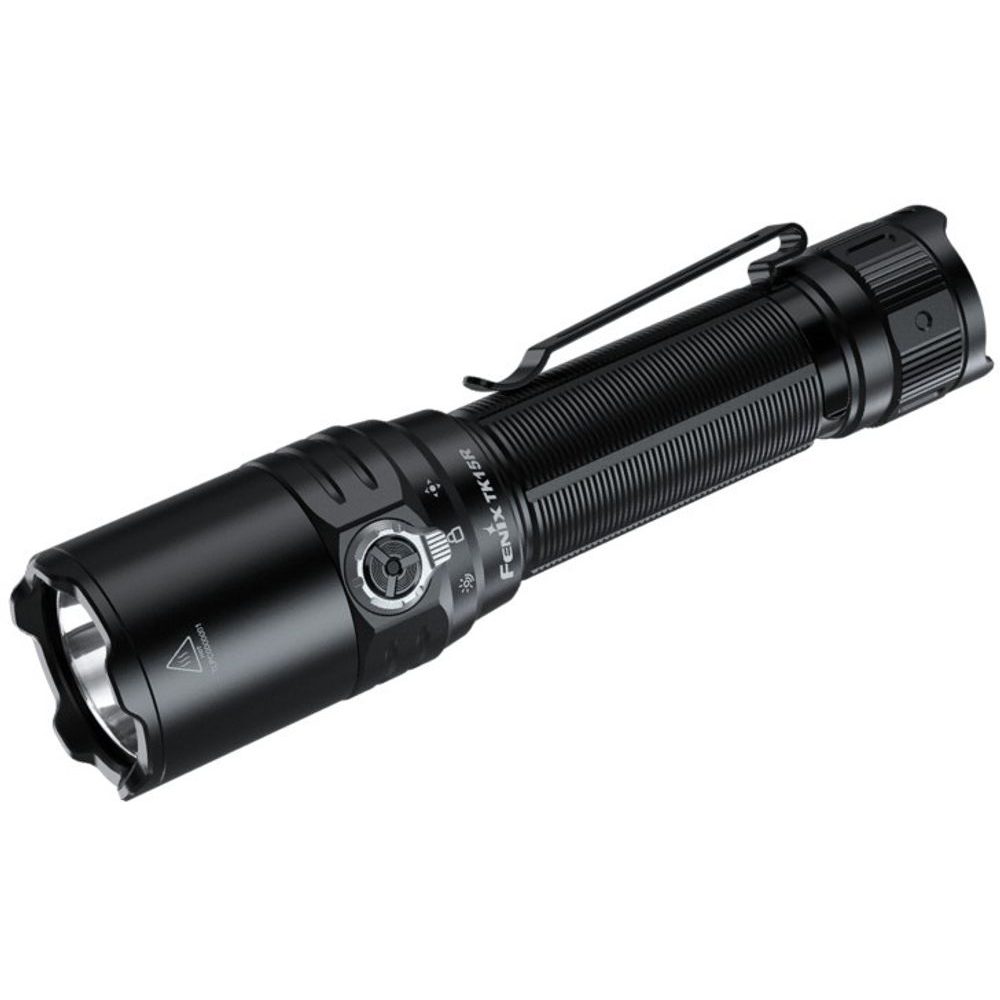

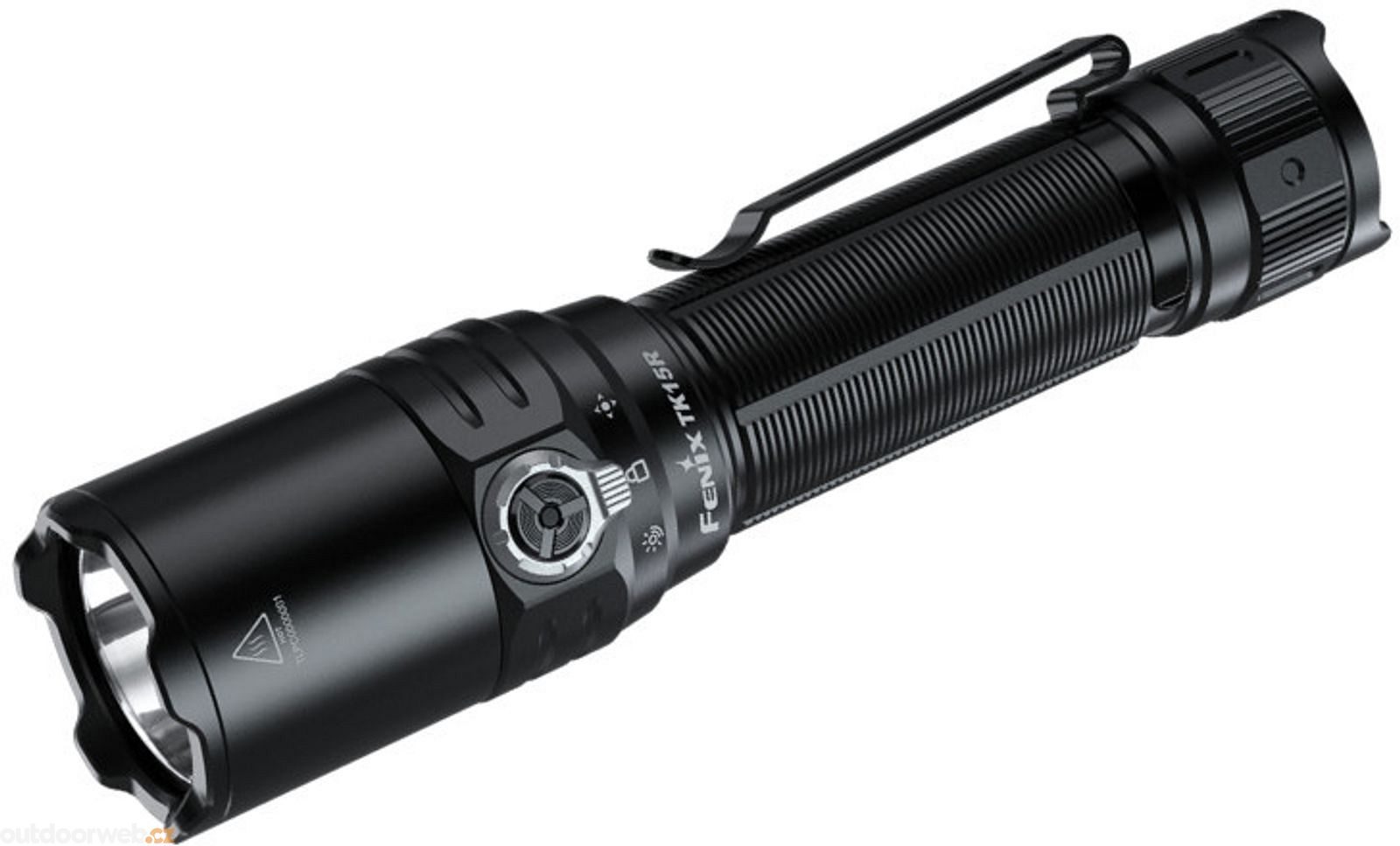

The Fenix TK15R is a revolutionary torch for demanding users. With the intelligent IRIS X sensor, it automatically adapts its output to the surrounding light, helping prevent dazzling while still delivering extreme brightness in the dark. Rugged construction and tactical controls make it an ideal choice for professionals, rescue services and outdoor enthusiasts.

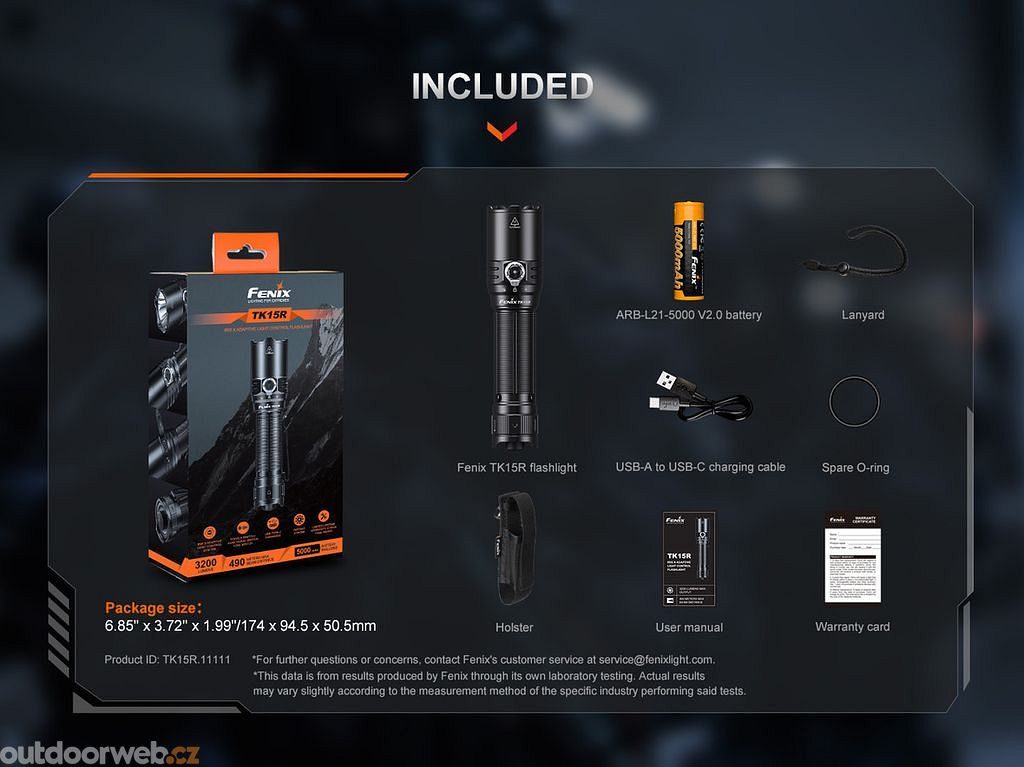

Package contents: torch, rechargeable battery, wrist lanyard, USB-C charging cable, spare O-ring and belt holster

Warranty: five years for the torch and two years for the battery

1. Smart IRIS X sensor
   Automatically regulates brightness according to lighting conditions. When you aim close to a wall, the output is reduced to prevent glare from reflections. In darkness it instantly releases the full 2000 lumens and reaches up to 490 metres.
2. Extreme runtime and fast charging
   A single battery lasts up to 68 hours of continuous use. The modern USB-C connector with fast-charging support (up to 21 W) charges a depleted battery in just 1.5 hours.

• Maximum output 3200 lumens
• Strike bezel for breaking glass

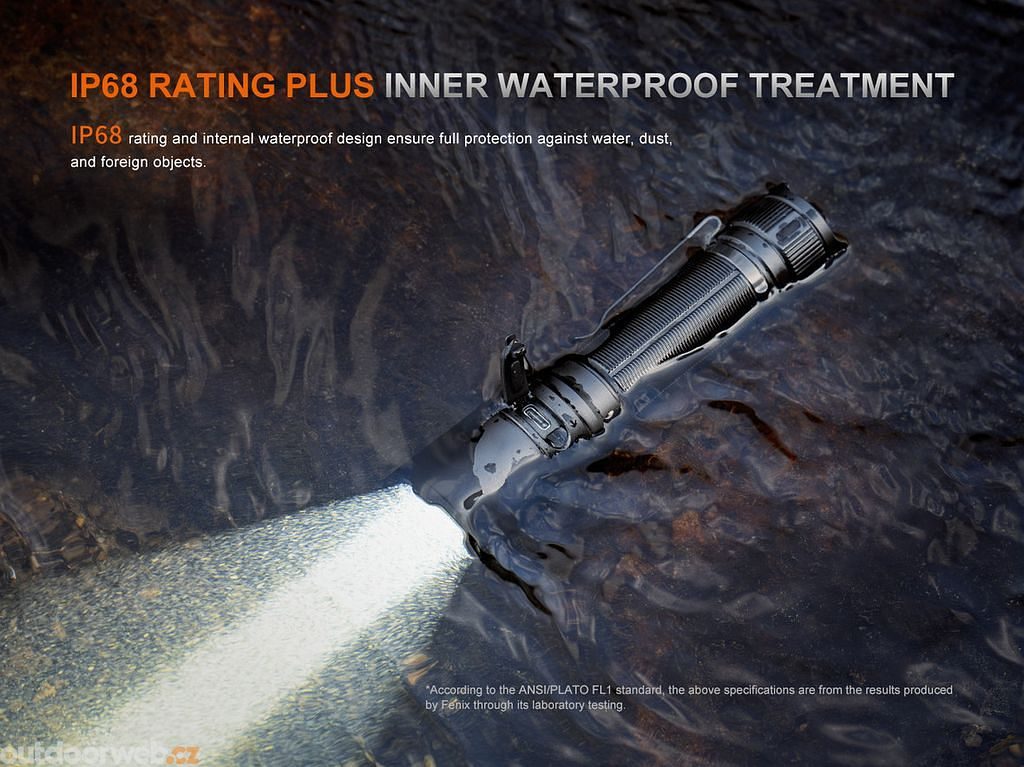

• Waterproof and dustproof to IP68
• Impact resistant to 1 metre
• Tactical control with side switch

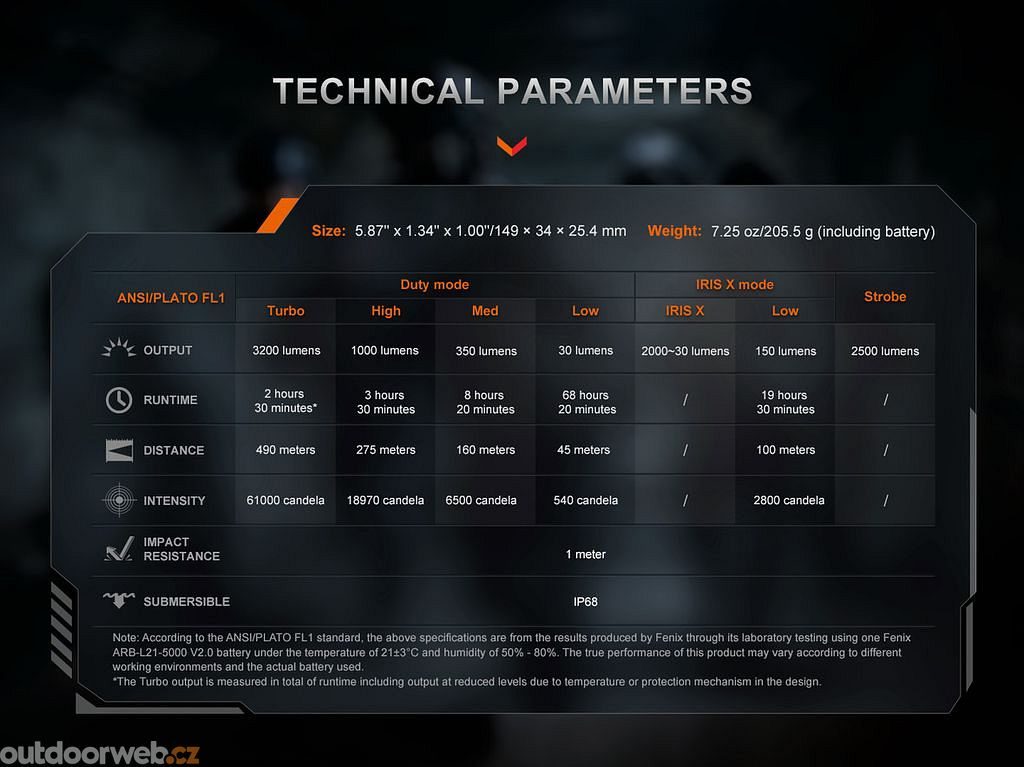

Specifications:
Light source: Luminus SFT-70
Maximum output: 3200 lumens
Beam distance: 490 metres
Modes: 7 (Duty, IRIS X, Strobe)
Battery: 1x Li-ion 21700 5000 mAh
Runtime: 68 hours (minimum)
Charging: USB-C, up to 1.5 hours
Waterproof rating: IP68 (2 metres submersion)
Weight: 205.5 g
Length: 14.9 cm
Light colour: daylight white 5500-6500 K

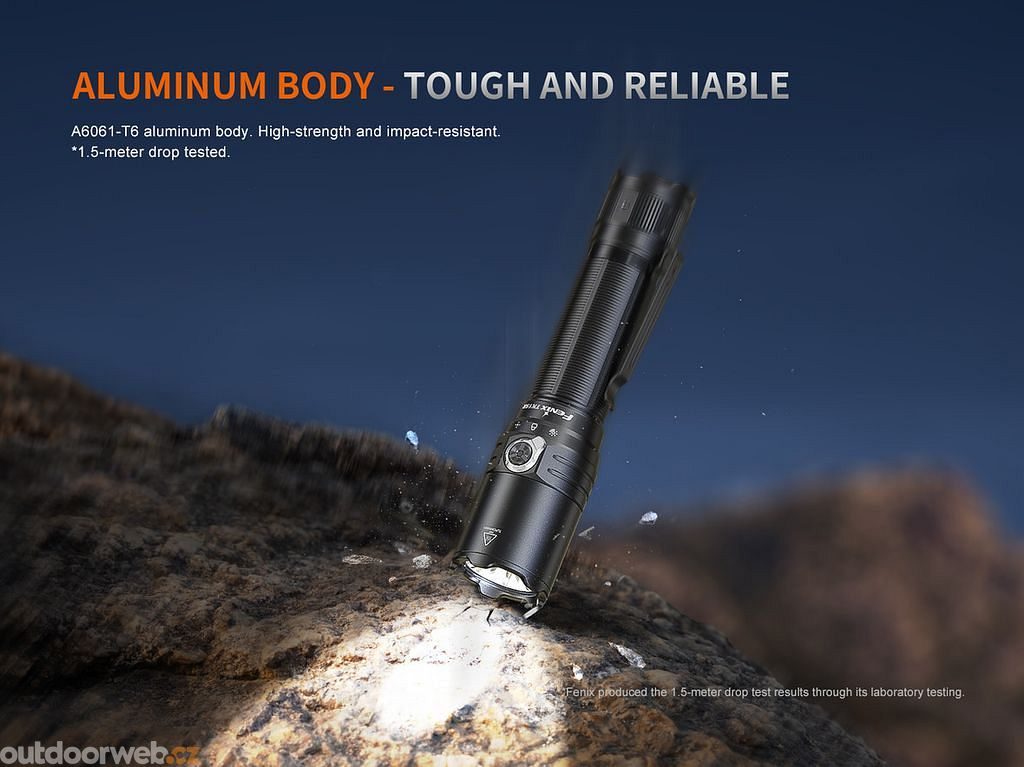

Durability: 1 metre impact, hard-anodised aluminium

Use
From the factory, there may be an insulating cap on the battery inside the torch. Remove it from the battery before first use.

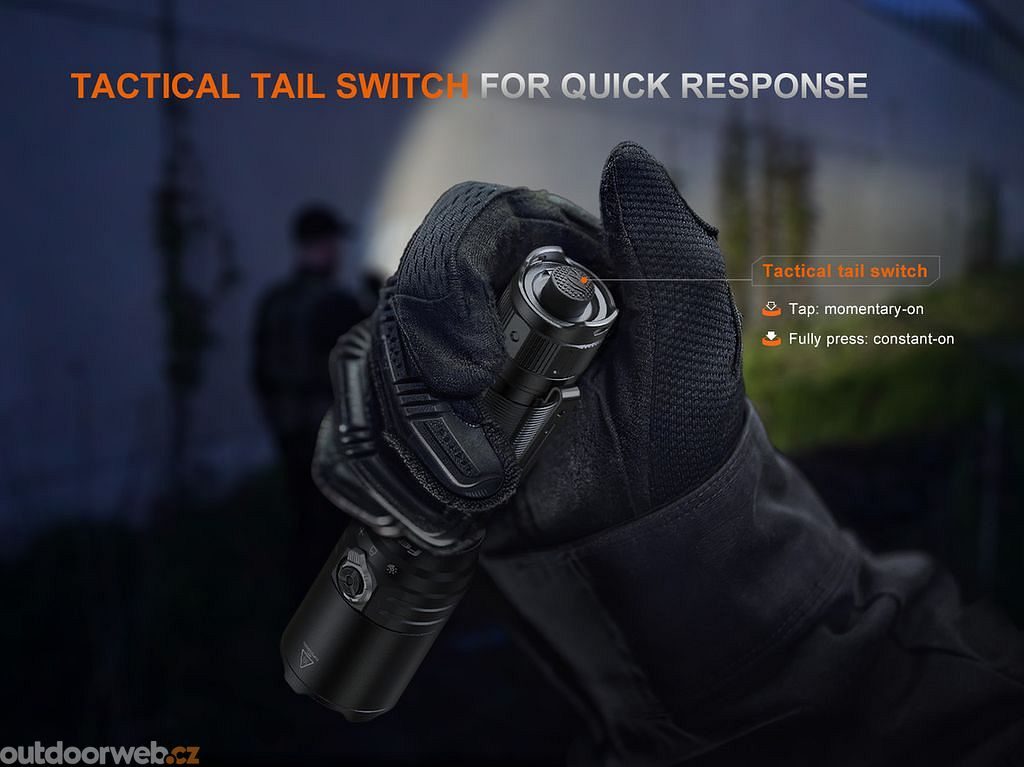

On/off: When the torch is unlocked, to switch on/off fully press the tactical rear switch at the end of the torch. For momentary activation, half-press the button. Turn the side rotary switch to the middle position to enter Lockout mode and the torch will switch off.

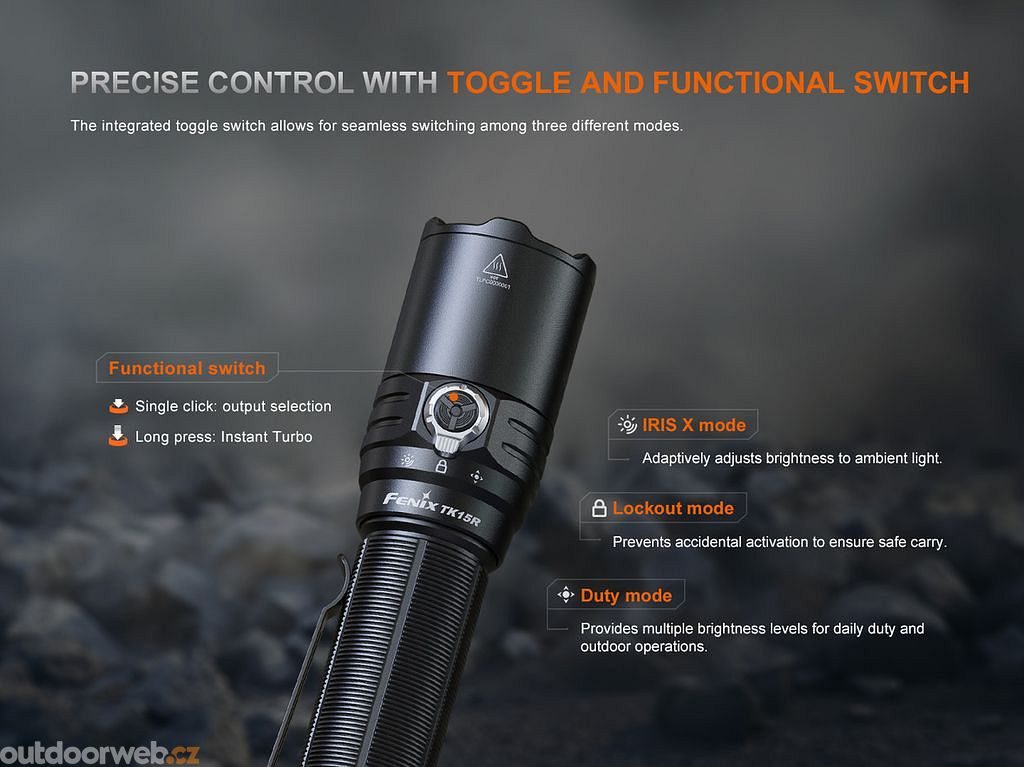

Changing modes: Use the side rotary switch to cycle through modes: IRIS X mode <-> Lockout <-> Duty. In Duty mode, press the side function button to cycle output (30 - 350 - 1000 - 3200 lumens). In IRIS X mode, the function button switches between automatic IRIS X and 150 lumens. To activate Strobe, press and hold the side function button for 0.5 seconds (the torch must be on and unlocked).
IRIS X mode logic: The sensor module in the reflector automatically adjusts brightness based on ambient light. Below 5 lux (complete darkness) it runs at maximum. At approx. 70 lux (dim basement) it outputs 1500 lumens. At 100 lux (office) it outputs around 800 lumens. If an obstacle is close (approx. 10 cm), output automatically drops to 30 lumens to prevent glare from reflections.
Intelligent overheat protection - since the torch reaches extreme output, its temperature increases. If the temperature exceeds 55°C, output is automatically reduced. Once the temperature drops below 55°C, full output can be used again.

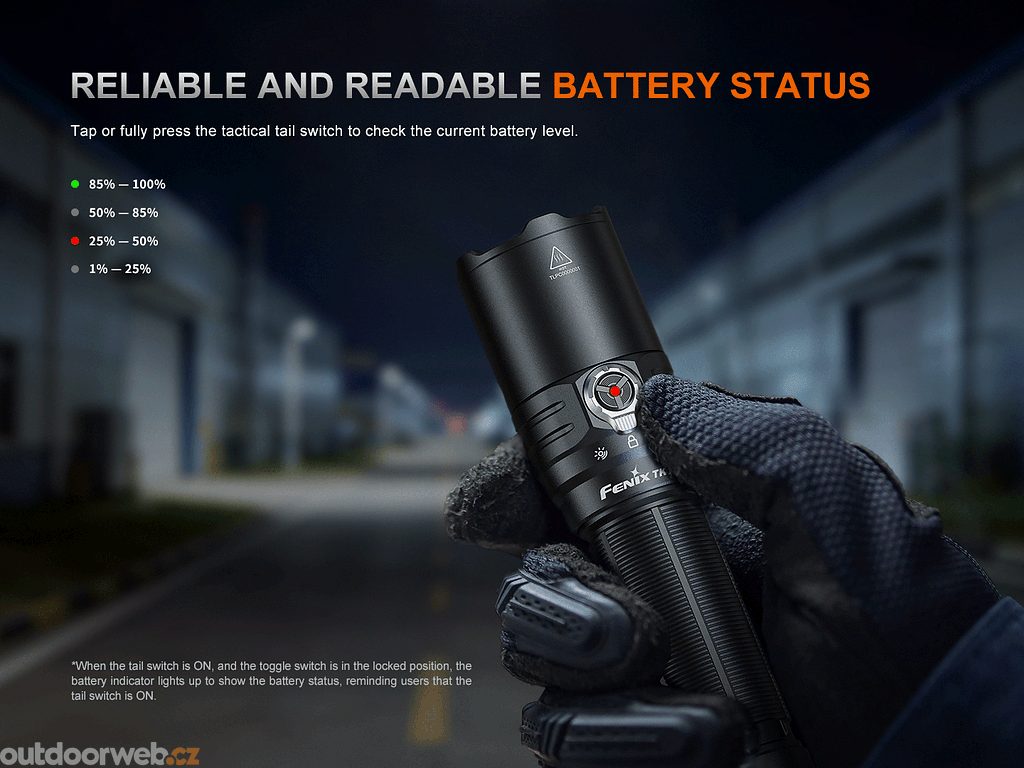

Battery charge status indication - the torch always indicates battery status three seconds after switching on. Green indicates 100% - 85%, flashing green (85% - 50%), steady red (50% - 25%) and flashing red indicates a critically low battery (below 25%). If voltage drops below the set level, the torch will reduce brightness to a lower level.
Charging - lift the rubber dust cover of the charging port on the side of the torch and connect the included cable (USB-C connector). Plug the other end into a computer, or a USB mains/car adaptor (supporting up to 21 W). During charging, the side indicator lights red. When fully charged, it lights green. Charging a fully depleted battery takes approx. 1.5 hours (when using a 9 V / 3 A power source). After charging, carefully reseal the cover.

Warning
Use only high-quality rechargeable 21700 batteries with protection electronics.
Remove the battery or lock the torch to prevent accidental activation during storage or transport.
When replacing the battery, unscrew the torch head and insert the battery with the positive pole towards the head. Then fully tighten the head again.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings also need to be lubricated to prevent rubber erosion. By following these rules, the torch will be properly protected against water.
If the torch flashes, will not switch to higher output modes, or does not turn on, it may be due to one of the following reasons:
- The battery is depleted - charge or replace it.
- The contacts inside the torch are dirty - clean them with a cotton swab soaked in alcohol.
- The torch head is loose - tighten it.
