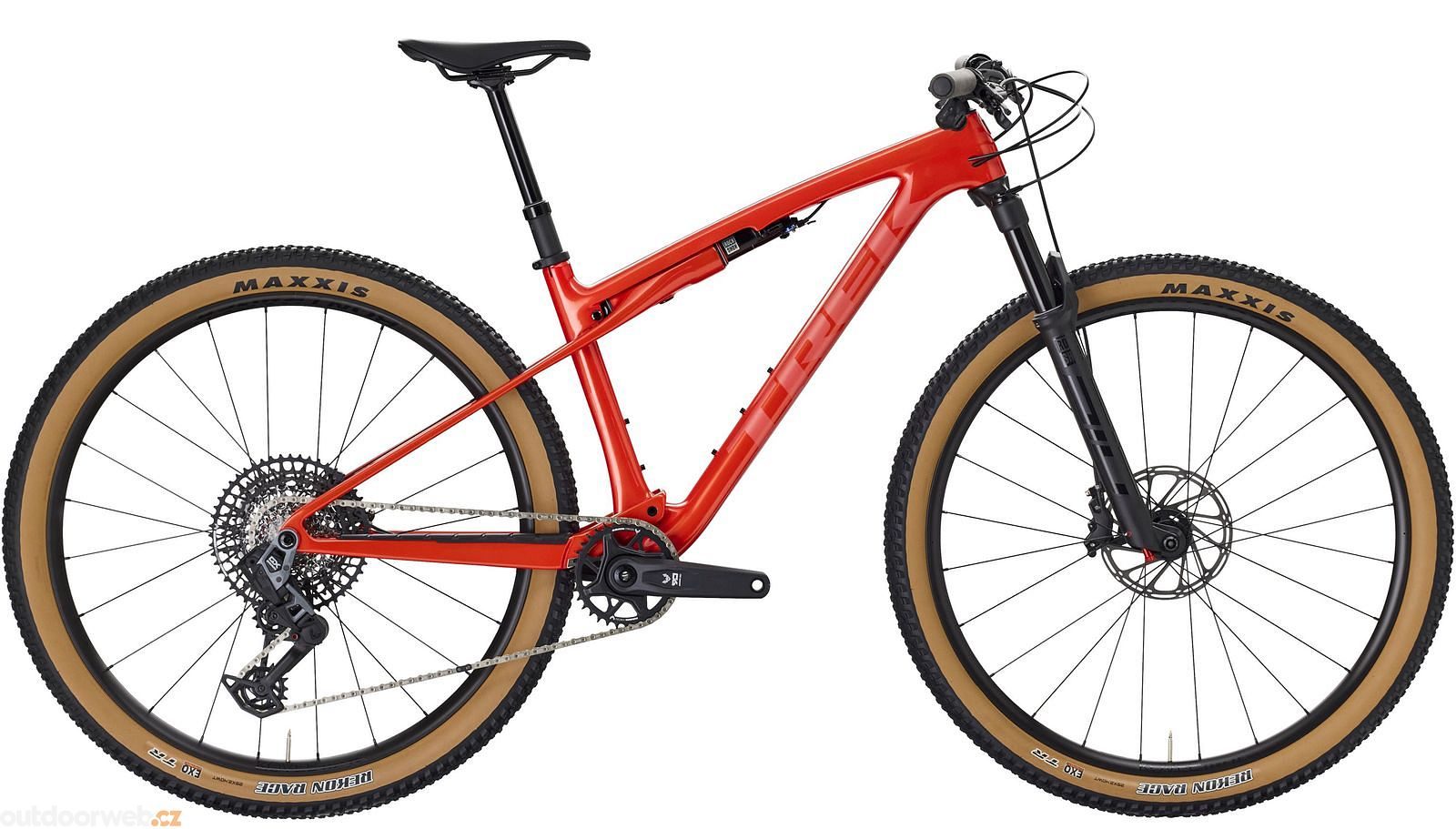

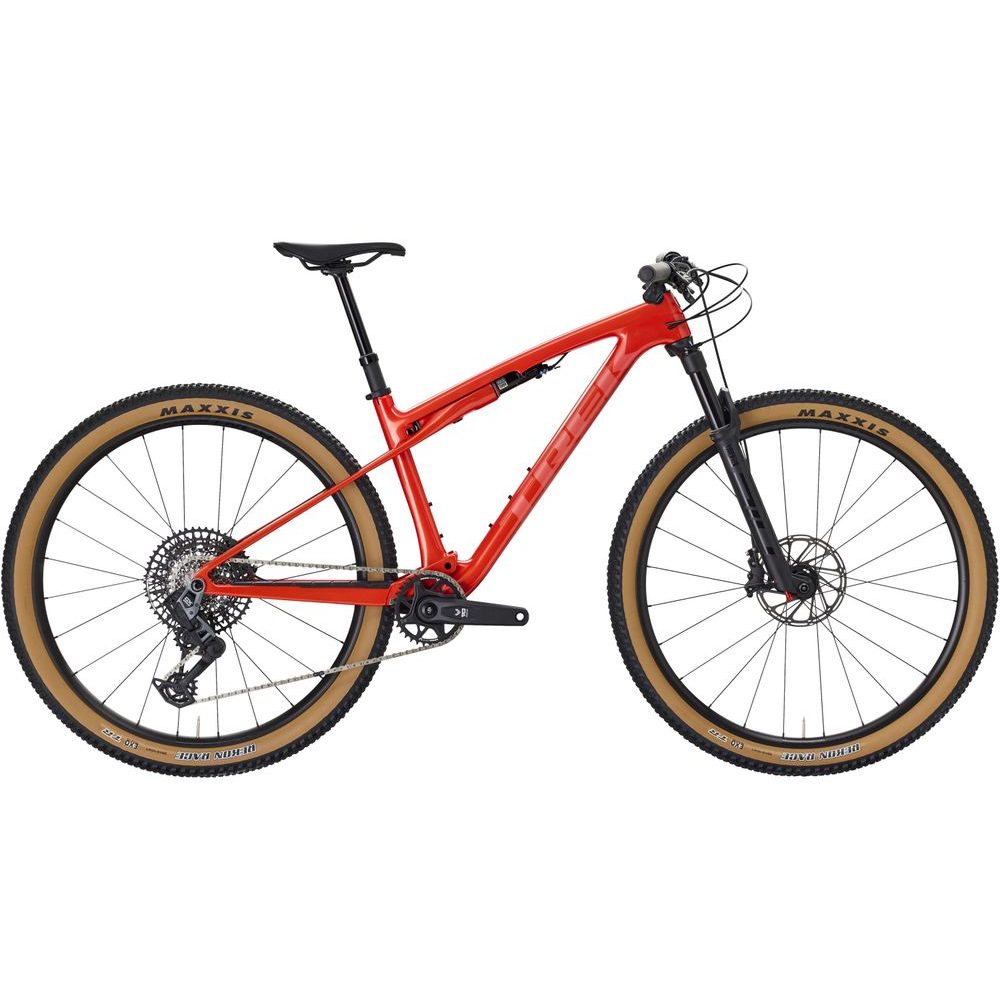

TREK Supercaliber SL 9.7 GX AXS Gen 2 Lava
56629, LavaMountain Bike 2026
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
The Supercaliber SL 9.7 GX AXS is a lightweight carbon XC mountain bike ready to push hard in races. Its OCLV Mountain Carbon SL frame is not only lightweight, but also meticulously crafted. The fiber layup is high modulus, so it offers the necessary stiffness while maintaining low weight. XC trails are getting more demanding every year. That's why the bike is equipped with a 110mm fork and 80mm IsoStrut rear suspension, which smooths out the ride without affecting pedaling efficiency. The whole thing is complemented by a carbon cockpit and wireless SRAM GX AXS shifting.Uniqueness in uniqueness
In the unique design of the Supercaliber frame, we have abandoned traditional suspension. This has reduced weight, maintenance requirements, and lateral flex. IsoStrut connects the frame to the seat stays without pivots, which means approximately 80 mm of rear travel. It's a perfectly balanced mix of efficiency, traction, and fatigue reduction to keep riders comfortable and in control for as long as possible.

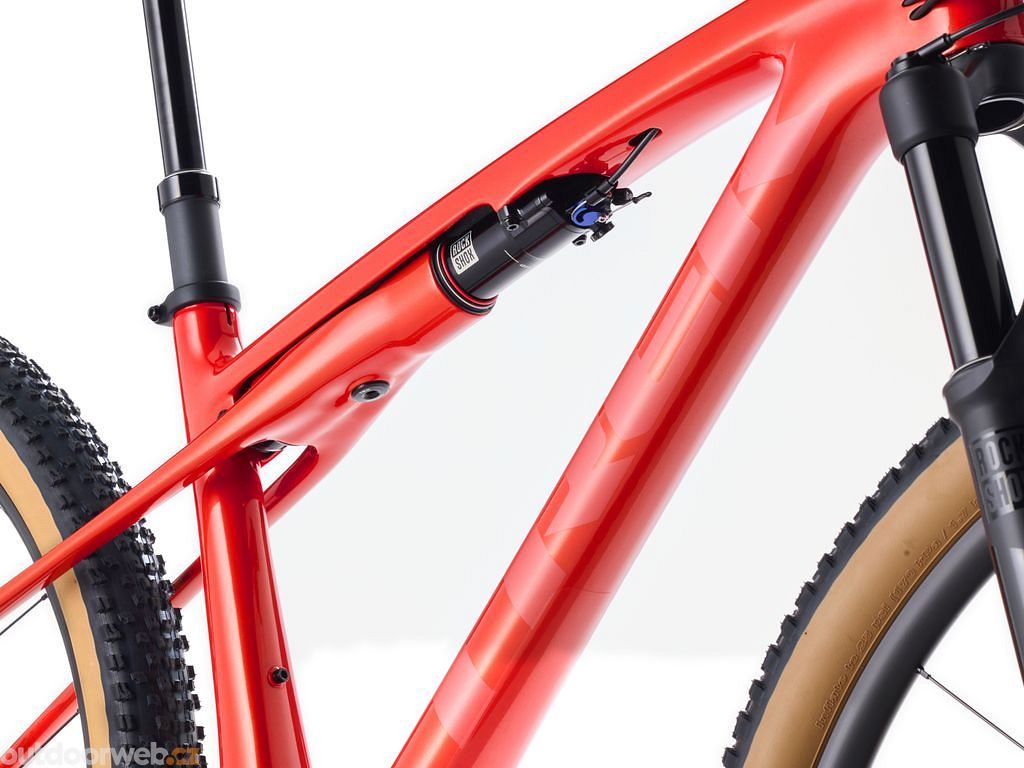

IsoStrut
The integrated IsoStrut suspension provides sufficient travel and ensures maneuverability. It is fully adjustable like a standard rear shock, but does not add weight as in the case of a full-suspension bike.
SL, OCLV Carbon for Mountain Bikes
The Supercaliber SL has a lightweight OCLV Carbon frame. The carbon layup is light, yet still stiff for its weight. It also provides internal cable routing for easy cable management.
You almost forgot the pedals
This bike does not come with pedals because choosing your own pedals will give you a better ride. Check out our pedal guide and choose the ones that suit your riding style. Want pedals designed for racing? We recommend MTB clipless pedals for better control and performance.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
| Rám | SL, karbon OCLV pro horská kola, IsoStrut, UDH, zdvih 80 mm |
|---|---|
| Vidlice | RockShox SID, pružina DebonAir, tlumení Rush RL, vzdálené zamykání, kónický sloupek, offset 44 mm, Boost110, Maxle Stealth 15 mm, zdvih 110 mm. |
| Tlumič | Trek IsoStrut, RockShox SIDLuxe, vzdálené tlumení s 2 polohami. |
| Přední kolo | Bontrager Kovee Comp 25, možnost použití bezdušových plášťů, 6 děr, Boost110, 15mm pevná osa, 29 palců |
| Zadní kolo | Bontrager Kovee Comp 25, možnost použití bezdušových plášťů, Rapid Drive 108, Boost148, 12mm pevná , 29 palců |
| Plášť | Maxxis Rekon Race, možnost použití bezdušových plášťů, ochrana EXO, skládací patka, 60 tpi, 29 x 2,4 palce. |
| Díl pláště | Těsnicí tmel Bontrager TLR, 6 oz. |
| Maximální velikost pláště | Rám: 29 x 2,4 palce, vidlice: viz výrobce |
| Řazení | SRAM AXS Pod |
| Přehazovačka | SRAM GX Eagle AXS, T-Type |
| *Klika | Velikost: S, M, ML SRAM Eagle 90, T-Type, DUB, 34 zubů, řetězová linka 55 mm, délka 170 mm. |
| Velikost: XL, L SRAM Eagle 90, T-Type, DUB, 34 zubů, řetězová linka 55 mm, délka 175 mm. | |
| Středové složení | SRAM DUB, 92 mm, PressFit |
| Kazeta | SRAM Eagle XS-1275, T-Type, 10-52, 12 rychlostí |
| Řetěz | SRAM GX Eagle, T-Type, 12 rychlostí. |
| Maximální rozměry převodníku | 1x: 38 zubů, min 30 zubů |
| Sedlo | Verse Short Elite, duté magnéziové ližiny, šířka 145 mm. |
| *Sedlovka | Velikost: S Teleskopická sedlovka Bontrager Line, zdvih 100 mm, MaxFlow, vnitřní vedení, 31,6 mm, délka 310 mm. |
| Velikost: L, M, ML Teleskopická sedlovka Bontrager Line, zdvih 150 mm, MaxFlow, vnitřní vedení, 31,6 mm, délka 410 mm. | |
| Velikost: XL Teleskopická sedlovka Bontrager Line, zdvih 170 mm, MaxFlow, vnitřní vedení, 31,6 mm, délka 450 mm. | |
| *Řídítka | Velikost: S Bontrager Kovee Pro, karbon OCLV, 35 mm, prohnutí 5 mm, šířka 720 mm. |
| Velikost: XL, L, M, ML Bontrager Line Pro, karbon OCLV, 35 mm, prohnutí 15 mm, šířka 750 mm. | |
| *Představec | Velikost: S, M Bontrager Elite, 35 mm, 13 stupňů, délka 60 mm. |
| Velikost: ML Bontrager Elite, 35 mm, 13 stupňů, délka 70 mm. | |
| Velikost: L Bontrager Elite, 35 mm, 13 stupňů, délka 80 mm. | |
| Velikost: XL Bontrager Elite, 35 mm, 13 stupňů, délka 90 mm. | |
| Hlavové složení | FSA IS-2, 1-1/8 palce nahoře, 1,5 palce dole. |
| Brzda | SRAM Motive Bronze Strealth, 4pístkové hydraulické kotoučové. |
| *Brzdový rotor | Velikost: S, XL, L, M, ML SRAM CenterLine, 6 děr, zaoblené hrany, 160 mm. |
| Velikost: S, XL, L, M, ML SRAM CenterLine, 6 děr, zaoblené hrany, 180 mm. | |
| Rozměry kotouče | Maximální velikosti kotoučů - Rám: 160 mm |
| Hmotnost | M - 12.18 kg / 26.86 lbs (s těsnicím tmelem TLR, bez duší) |
| Hmotnostní limit | Kolo má maximální celkový hmotnostní limit (kombinovaná hmotnost kola, jezdce a nákladu) 136 kg (300 liber). |
