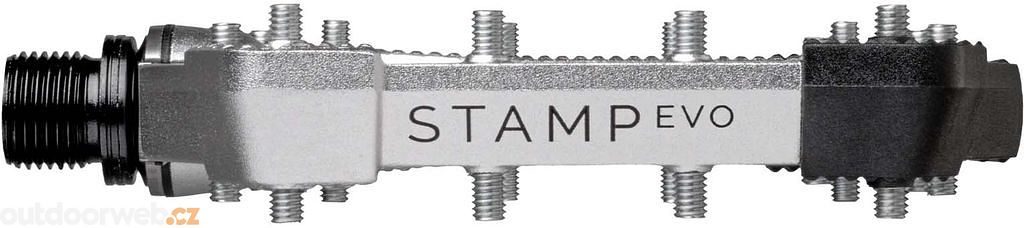

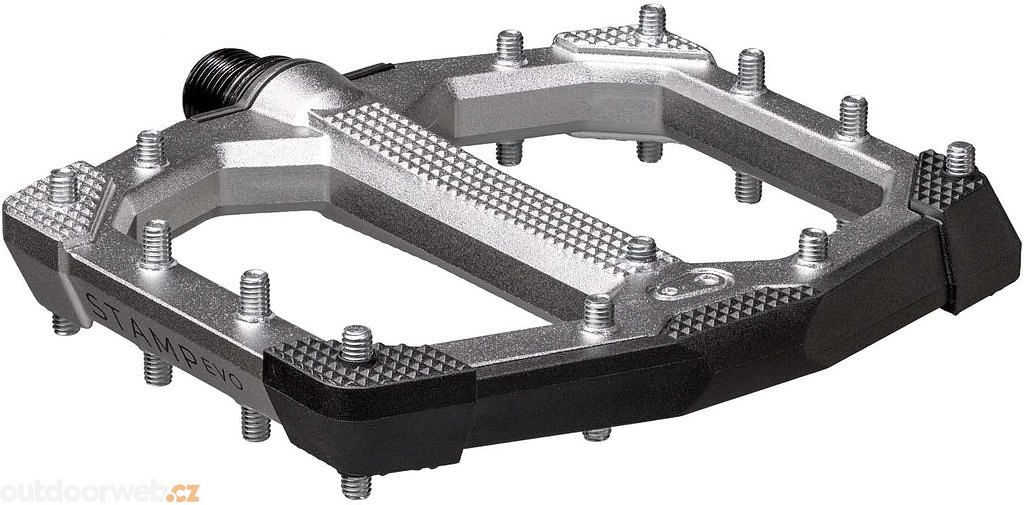

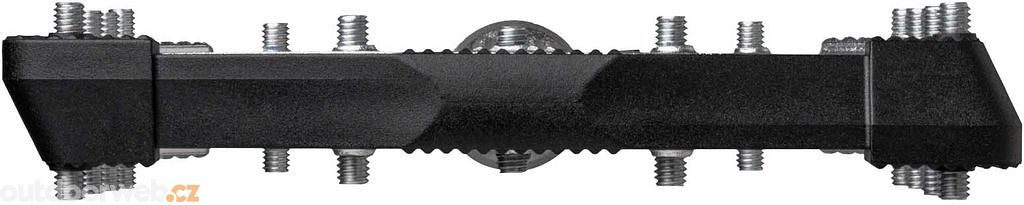

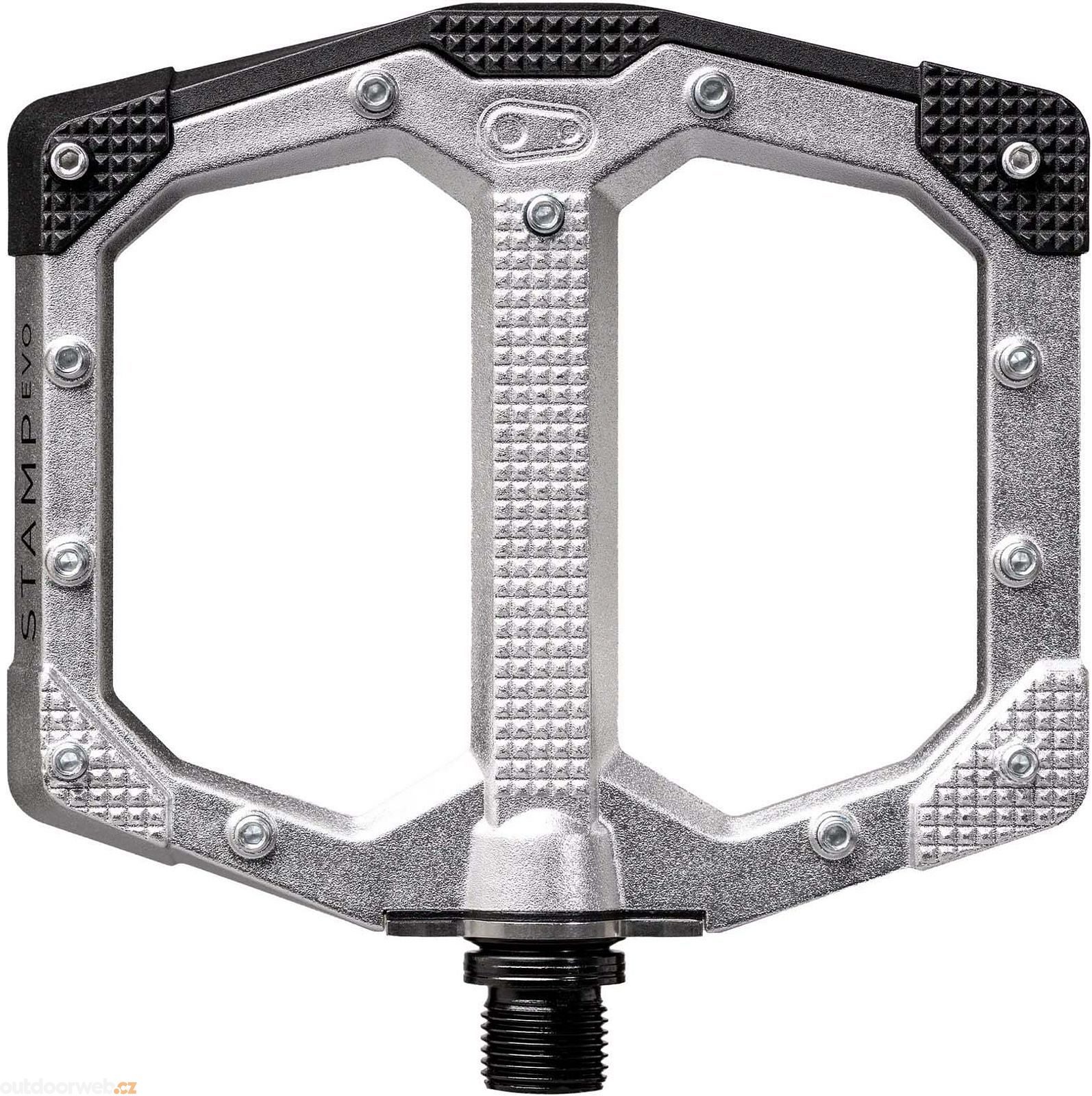

Stamp EVO pedals take trail and freeride performance to a new level – a longer platform and two-piece construction ensure a solid stance and reliable riding even in the roughest terrain.
- 20% longer platform
A larger contact area means a more stable stance, less fatigue and more efficient power transfer to the pedals. - Two-piece aluminium + composite construction
A forged aluminium body complemented by a replaceable composite side guard reduces snagging when striking rocks and extends pedal lifespan.
- Concave platform, minimal profile
- 13 adjustable pins (each side)
- Igus LL Glide bushings
- Replaceable side guard (spare included)
- Sizes Small and Large
Specifications:
Use: trail / freeride / downhill / DJ / e-bikes / sport
Platform (Small): 103 mm × 117 mm (shoes EU 37–43.5)
Pedal body height: 11–15.5 mm
Weight: Small 418 g / Large 464 g
Platform material: forged 6061-T6 aluminium
Axle: forged Cr-Mo steel
Bearings: Igus LL bushings (inner and outer)
Pins: 13 adjustable on each side
Recommended shoe size – Small: EU 37–43.5 / US M 3–10
Recommended shoe size – Large: EU 43.5–49 / US M 10–15
We create things that help you rediscover biking.
We design mountain bike components that combine superior functionality with distinctive design.
Tested and recommended by world bikers:
Fabio Wibmer, Greg Minnaar, Danny Hart, Dany MacAskill, Loic Bruni, Hans Rey, Jeremy Powers, Curtis Keene, Filip Polc, Milan Myšík and Přemek Tejchman
Shoe size
| EUR | 36 | 37 | 37,5 | 38 | 39 | 39,5 | 40 | 41 | 41,5 | 42 | 43 | 43,5 | 44 | 44,5 | 45 | 46 | 46,5 | 47 | 48 |
| UK | 3 | 4 | 4,5 | 5 | 5,5 | 6 | 6,5 | 7 | 7,5 | 8 | 8,5 | 9 | 9,5 | 10 | 10,5 | 11 | 11,5 | 12 | 13 |
| size in cm | 22,8 | 23,5 | 23,8 | 24,2 | 24,9 | 25,2 | 25,6 | 26,2 | 26,5 | 27 | 27,5 | 28 | 28,3 | 28,6 | 29 | 29,5 | 30 | 30,5 | 31 |
