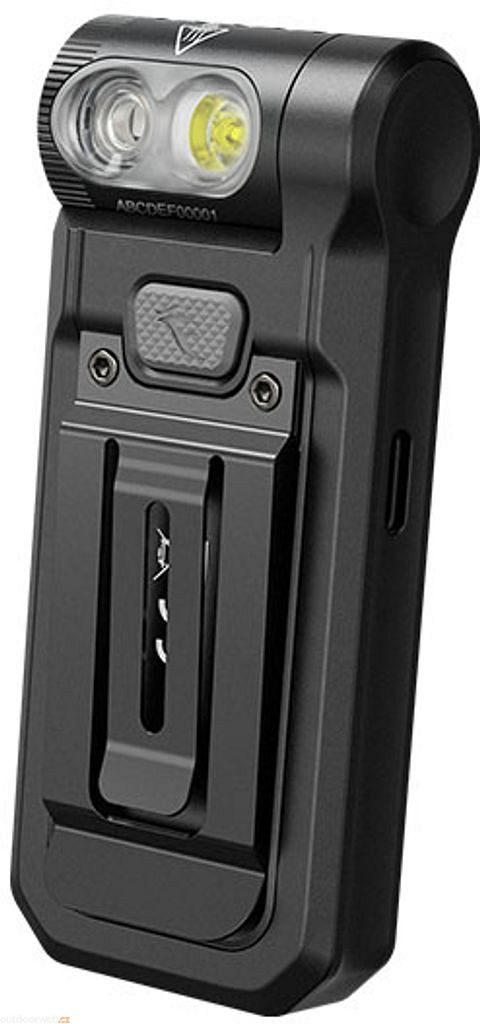

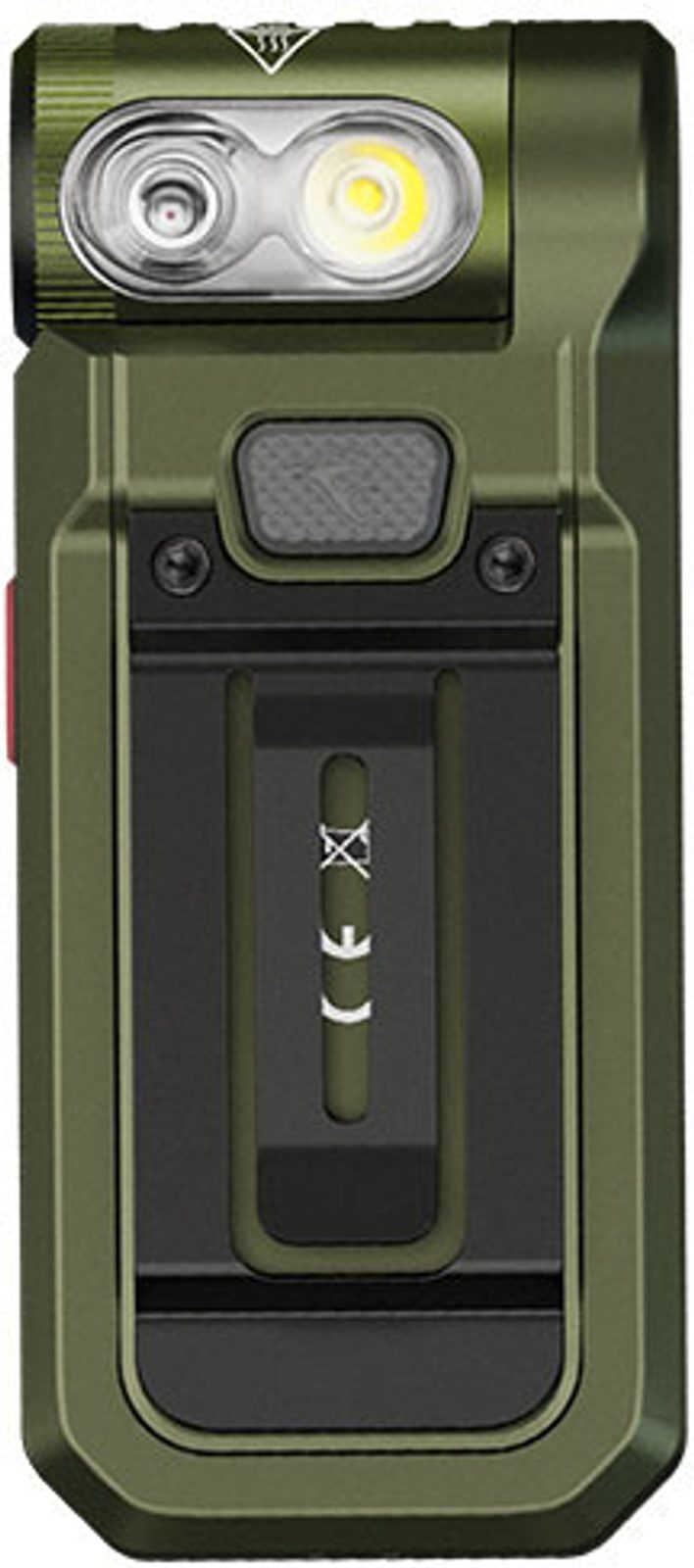

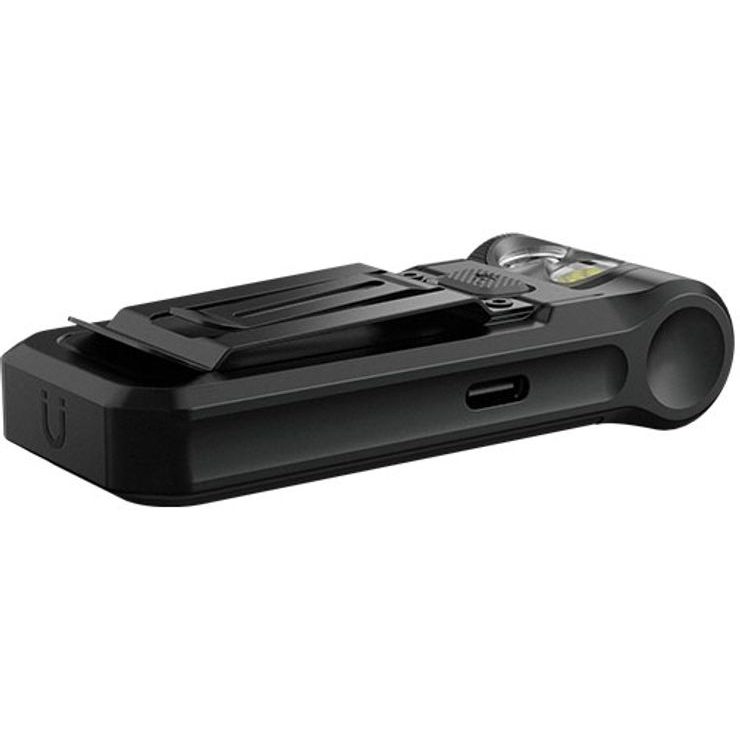

Discover the perfect companion for everyday use and professional deployment! The Fenix SW05R-RED is a revolutionary compact multifunction torch that surprises with an output of 150 lumens at a weight of just 55 grams.

Thanks to a 200-degree rotating head, magnetic base and practical clip, it becomes an indispensable helper for police officers, rescue workers and everyday users alike. The integrated 700 mAh rechargeable battery with USB-C charging and last-mode memory ensures reliability and convenience with every use.

1. Maximum flexibility for mounting and directing the light

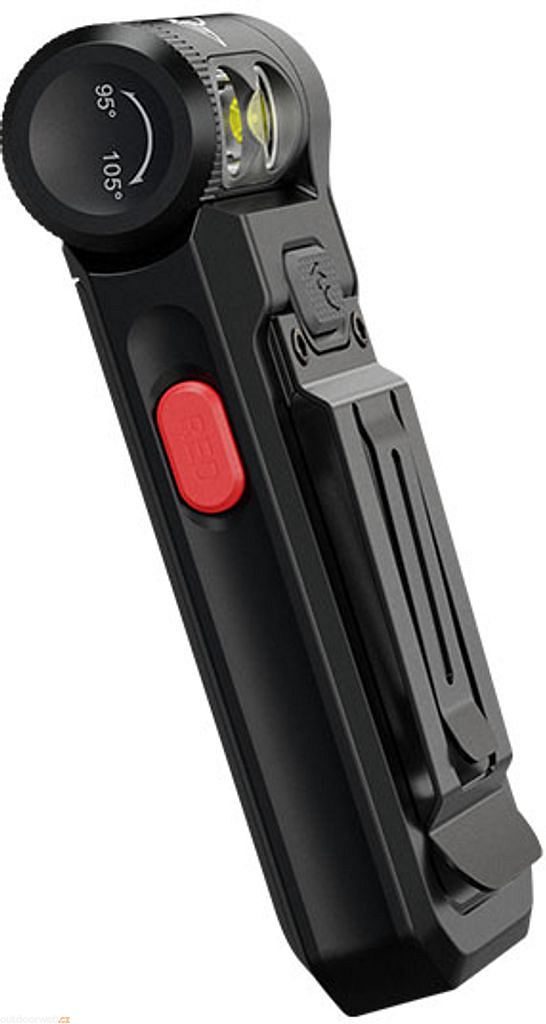

   The combination of a 200-degree rotating head, magnetic base and sturdy clip allows perfect positioning and directing of the light to suit current needs.
2. Professional performance in a compact package
   A luminous flux of 150 lumens with a range of 39 metres in a body measuring only 8.1 x 3.5 x 1.8 cm makes the torch an ideal EDC tool for everyday carry.

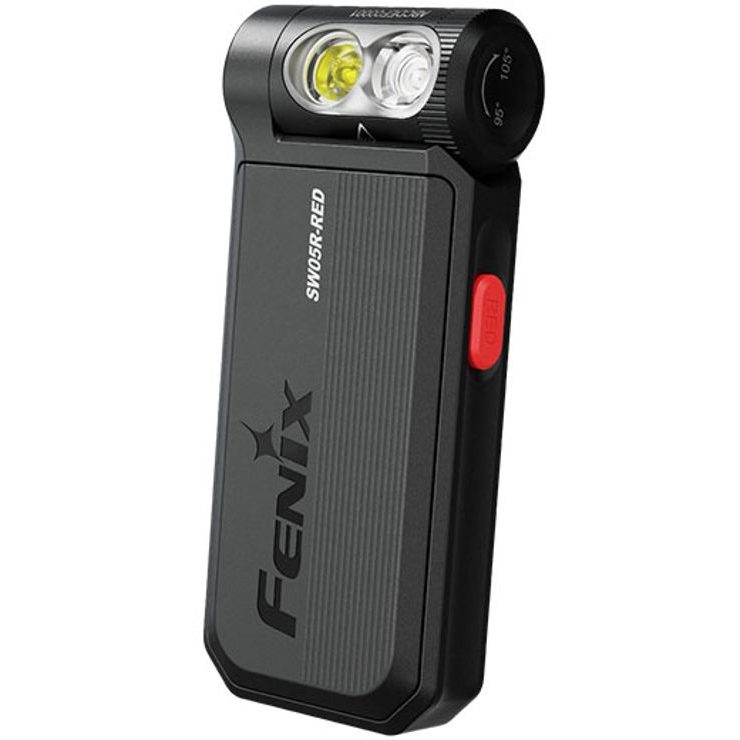

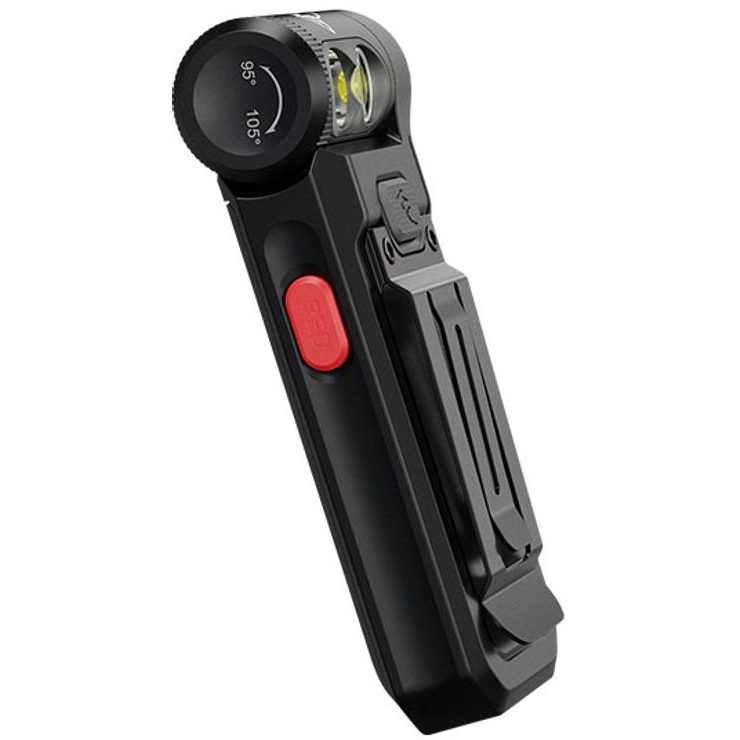

• 200-degree rotating head

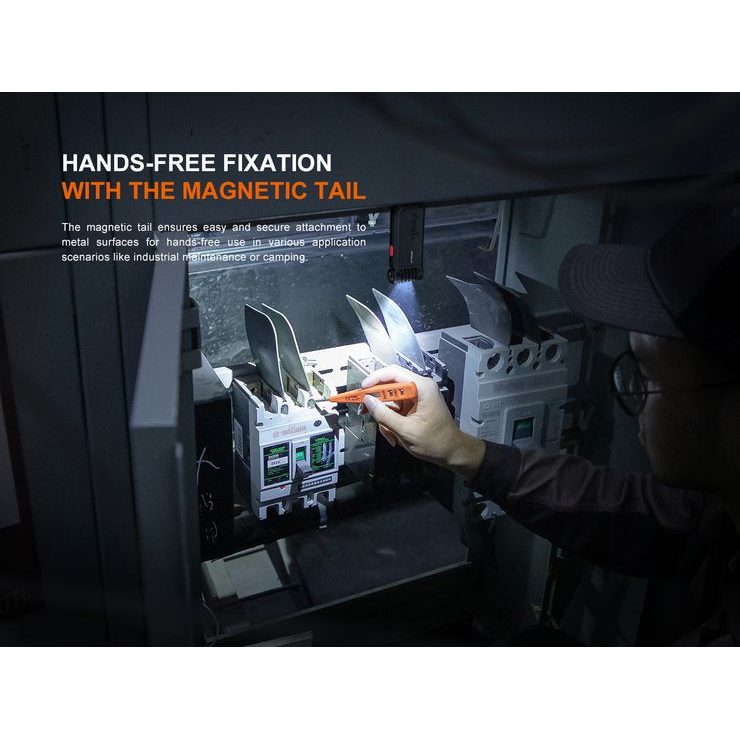

• Magnetic base for attachment

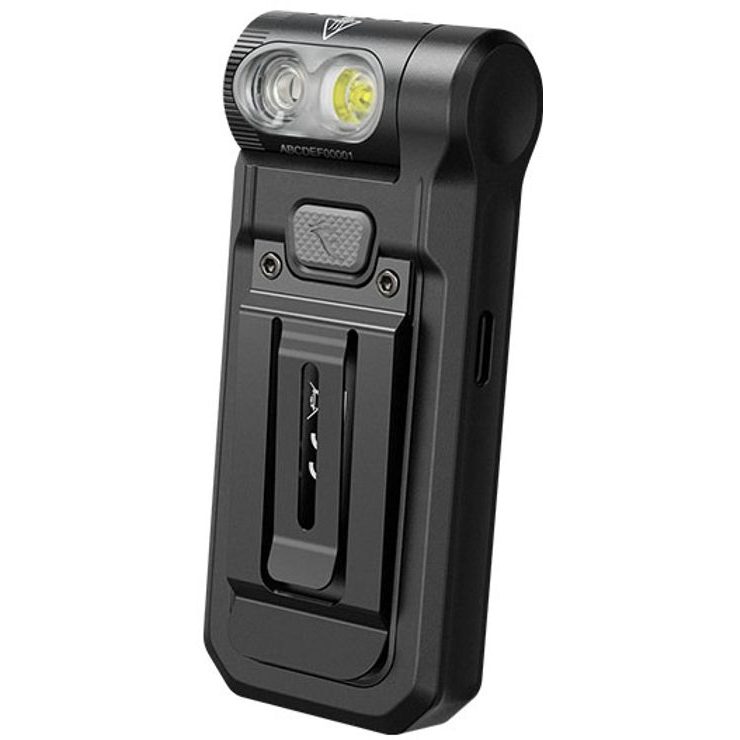

• Sturdy clothing clip

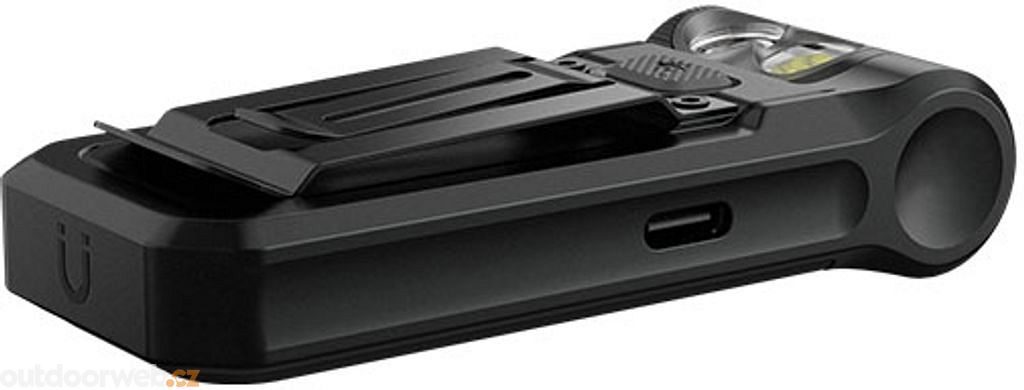

• USB-C charging with indication
• Last-mode memory
• White and red light

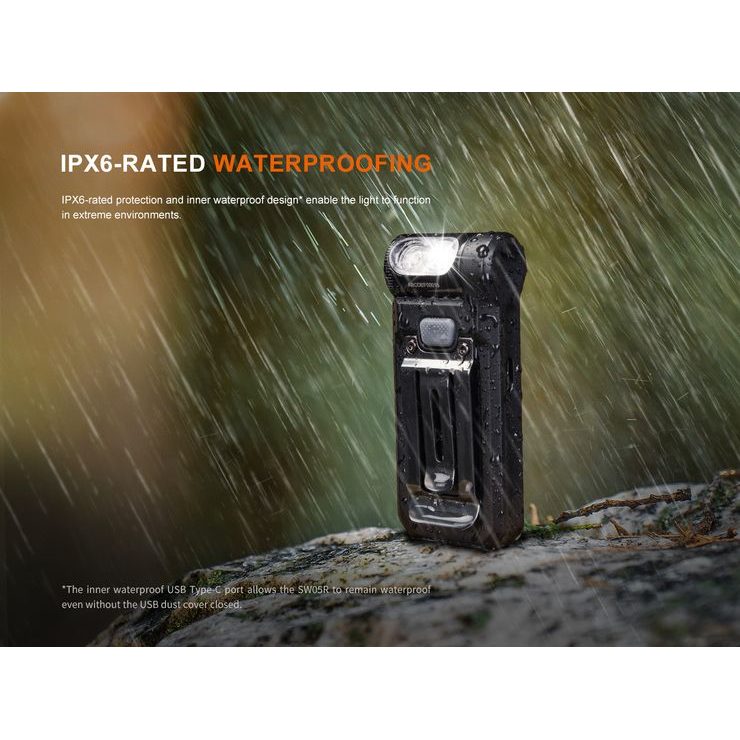

• Water resistance to IPX6 standard

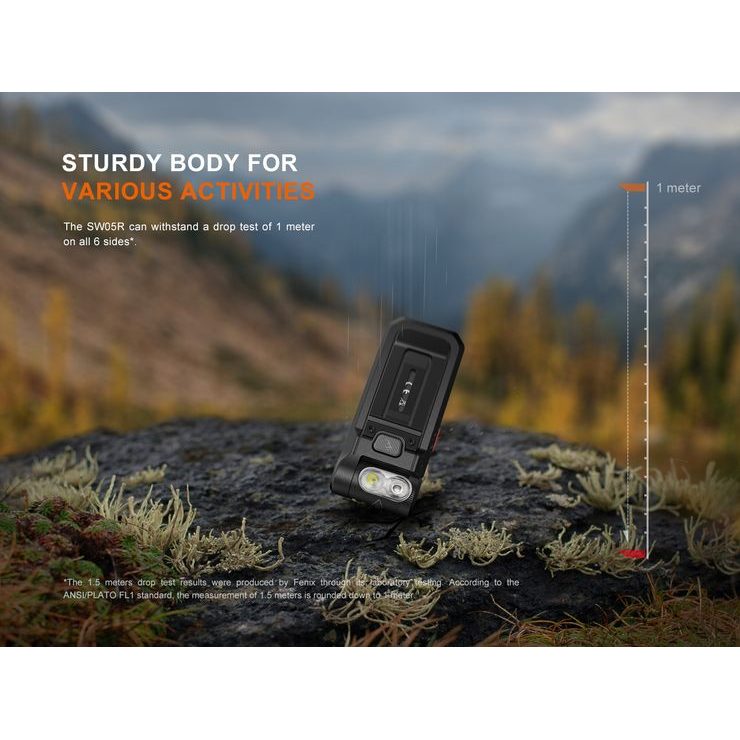

• Impact resistance 1 metre
• CNC-machined aluminium body
• ANSI-certified parameters

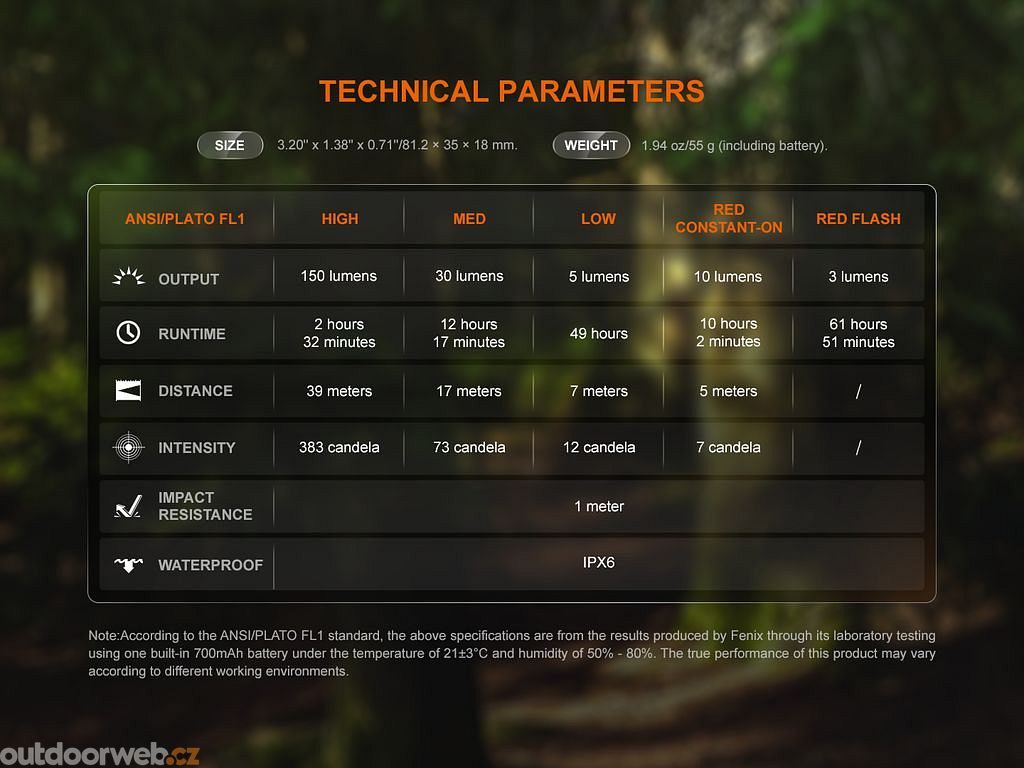

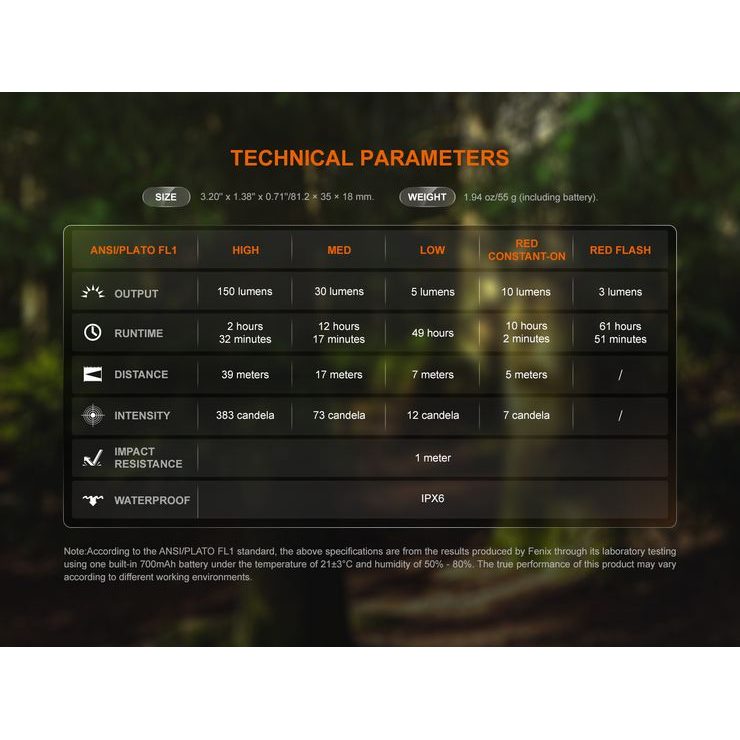

Specifications:

Output: 150 lm
Beam distance: 39 m

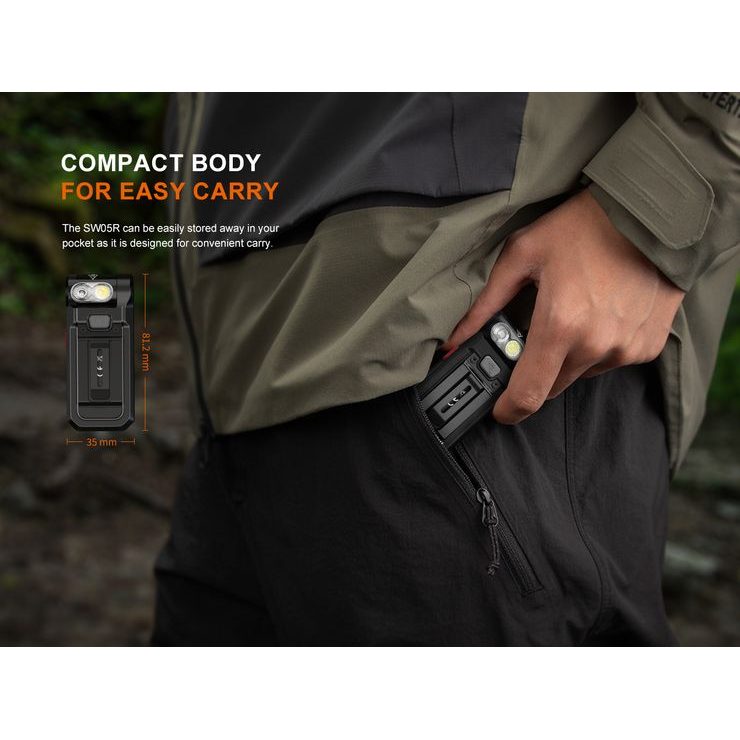

Dimensions: 8.1 x 3.5 x 1.8 cm
Weight: 55 g (including battery)
Battery capacity: 700 mAh
Material: CNC-machined aluminium alloy
Finish: Type III hard anodised
LED lifespan: 50,000 hours

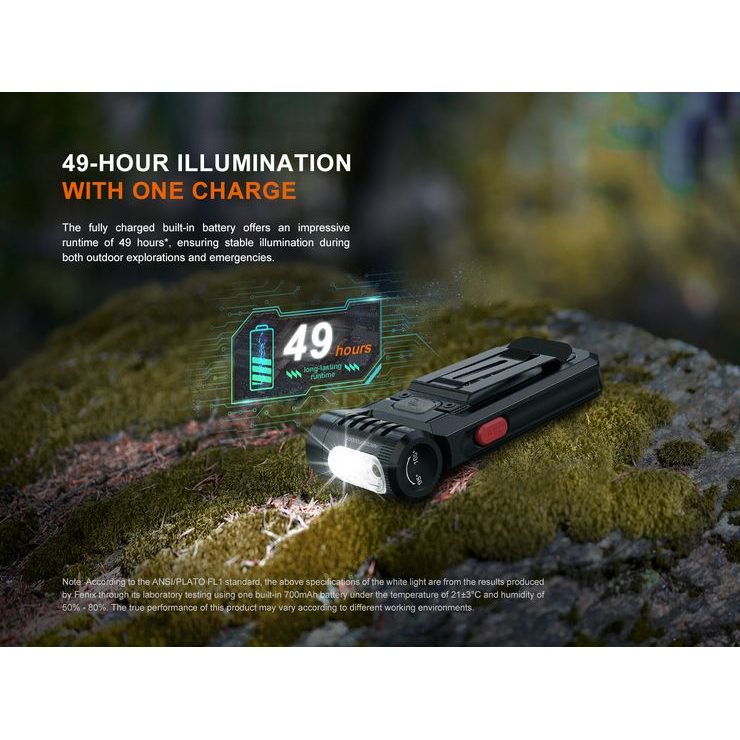

Runtime: 2.5-61.85 hours (depending on mode)
Package contents: torch + USB-C cable

Use

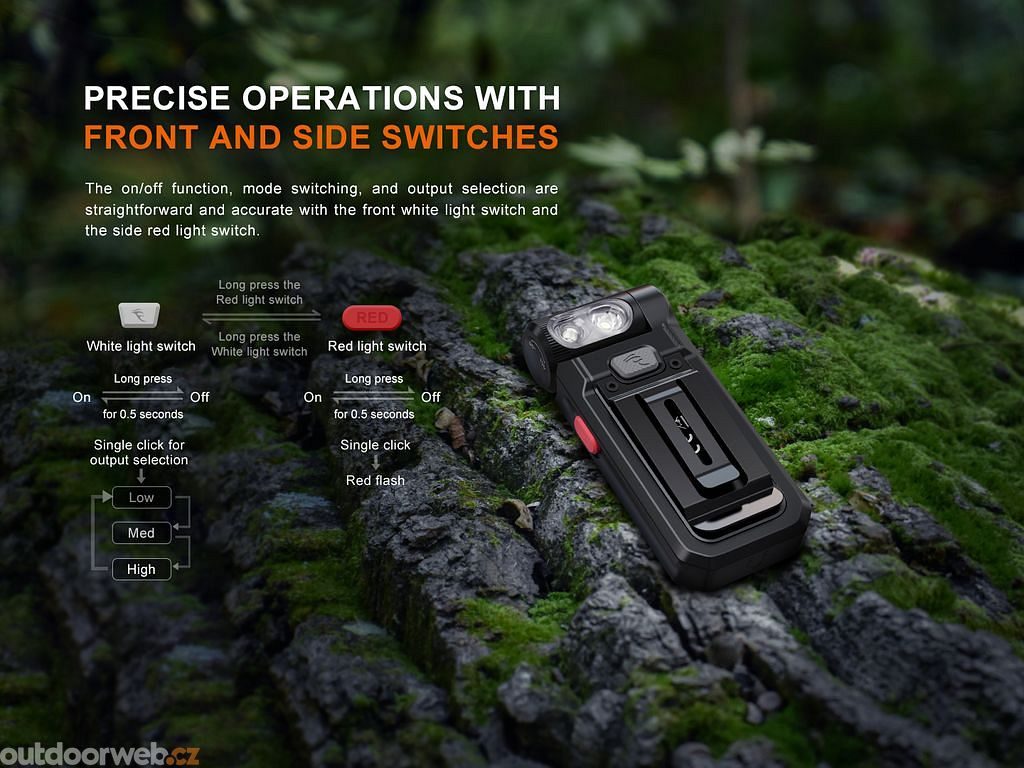

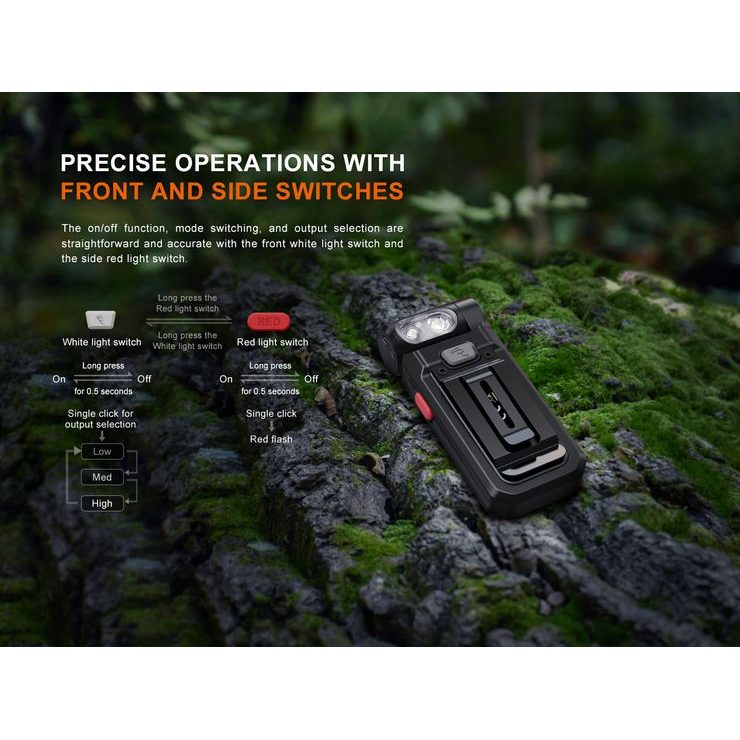

White light turns on by holding the grey button (approx. 0.5 s); red light turns on by holding the red button on the side (0.5 s). Red and white light cannot be turned on at the same time, but you can easily switch between them by holding the button of the opposite colour. Lighting functions are switched with a short press of the button of the lit reflector. The light is switched off again by holding the corresponding button for 0.5 s.
Last selected mode memory - when switching on the white light, the torch always turns on in the last selected output mode.
Battery charge indication - with the torch switched off, briefly press the main button once; a small LED in the button will then light up for three seconds. Green light indicates the battery is charged to 100-85%, flashing green 85-50%, red light indicates 50-25% and flashing red indicates less than 25%.
Low battery warning - the torch will gradually switch automatically to the lowest output mode and the indicator LED in the switching button will start flashing red.

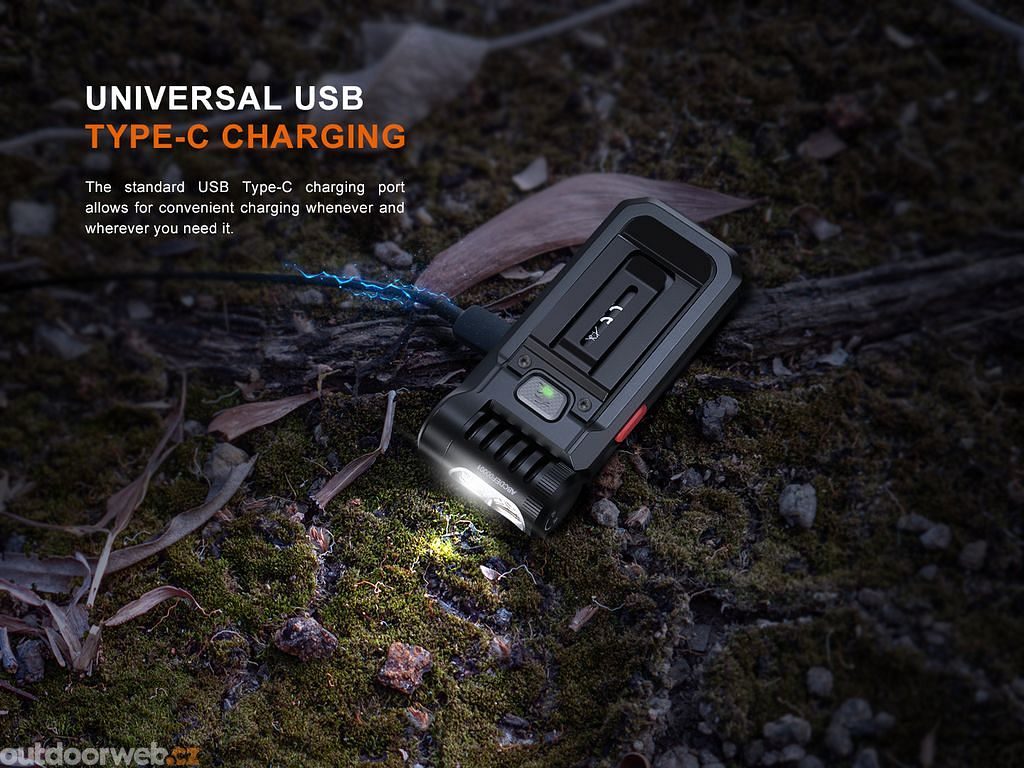

Charging

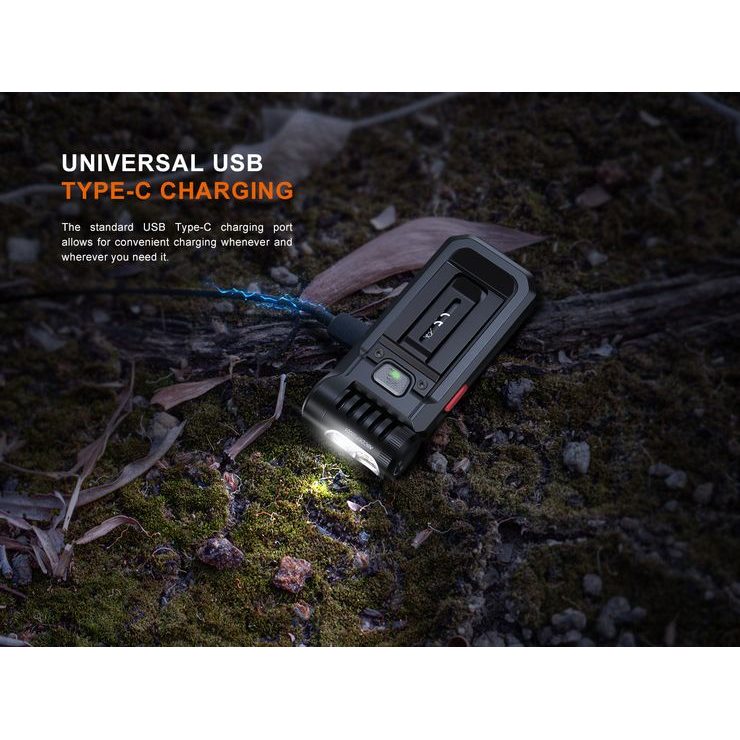

Connect the torch using the USB-C cable to a computer, mains USB adapter or in-car USB adapter. Any mobile phone charger with a USB-C connector can also be used for charging.
During charging, the indicator LED in the button lights red; once fully charged it lights green.
Charging time is approx. 2 hours; during charging the torch can be used in all modes.
The battery used does not suffer from memory effect, so the torch can be recharged at any time.

Warning
Do not disassemble sealed parts yourself, as this will void the warranty.
If the torch does not switch to higher output modes, or does not turn on, the battery is discharged - put the torch on charge.
