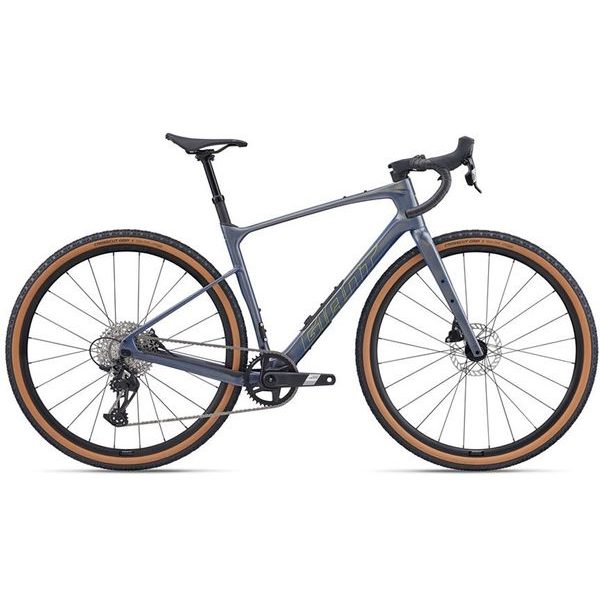

This lightweight carbon gravel bike is designed for those who enjoy fast and unrestricted riding on gravel. The new Revolt Advanced lets you choose your goal – clip on your race number and go for victory, or plan a weekend adventure and see how far you can go. With a top-of-the-line carbon frame, adjustable wheelbase, and internal storage space for transporting essentials, the Revolt Advanced is ready for anything.

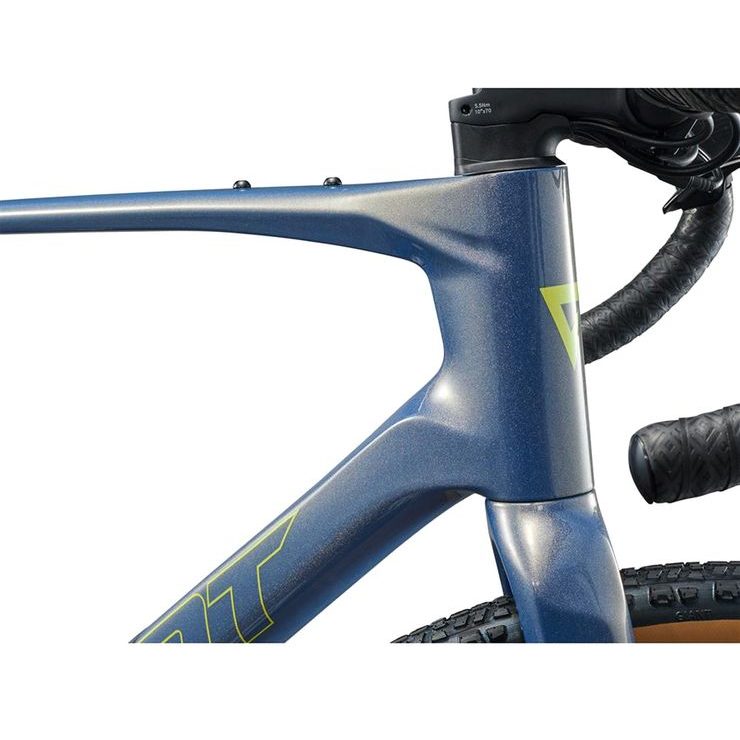

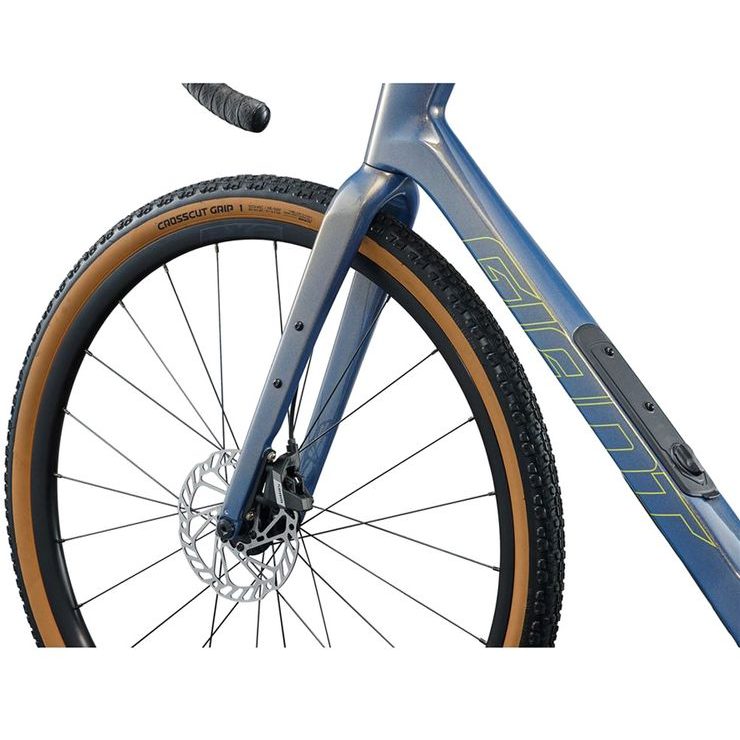

The carbon frame and Advanced Composite fork combine to deliver low weight, high efficiency, and perfect handling. A two-position flip chip system located in the rear dropouts allows you to adjust the wheelbase: short for faster handling or long for more tire clearance (up to 53 mm) and greater stability. The frame also allows you to choose the type of seatpost, so you can use either the Giant D-Fuse seatpost for greater comfort or a standard round (i.e., telescopic) 30.9 mm seatpost.

Advanced Composite Technology In our own carbon processing factory, we use high-quality raw carbon with a high stiffness-to-weight ratio to produce custom Advanced Composite material. The front triangle of the frame is assembled and cured in a mold as a single continuous piece (monocoque) using a patented manufacturing process called Modified Monocoque Construction.
	D-Fuse Technology The D-Fuse seatpost and handlebars work together as a system to dampen vibrations and absorb shocks from various riding surfaces, making the ride more comfortable and efficient. Thanks to their specific "D" shape, the seatpost and handlebars flex slightly under load without compromising stiffness when cornering, climbing, or riding out of the saddle.
OverDrive The oversize front fork column is designed to increase the stiffness of the front end of the frame set and steering for precise bike control. It includes oversized headset bearings (1 1/4" bottom and 1 1/8" top for road bikes and 1 1/2" bottom and 1 1/8" top for MTB bikes) and a tapered fork steerer tube for optimal steering stiffness.
	Giant Tubeless System Fewer flats. Better tire grip. Less rolling resistance, more comfortable and faster riding. Thanks to the Giant tubeless system, you can enjoy all these benefits. The rims come with tubeless tape and valves already installed, so all you need to do is apply sealant and your wheels are ready for tubeless riding.

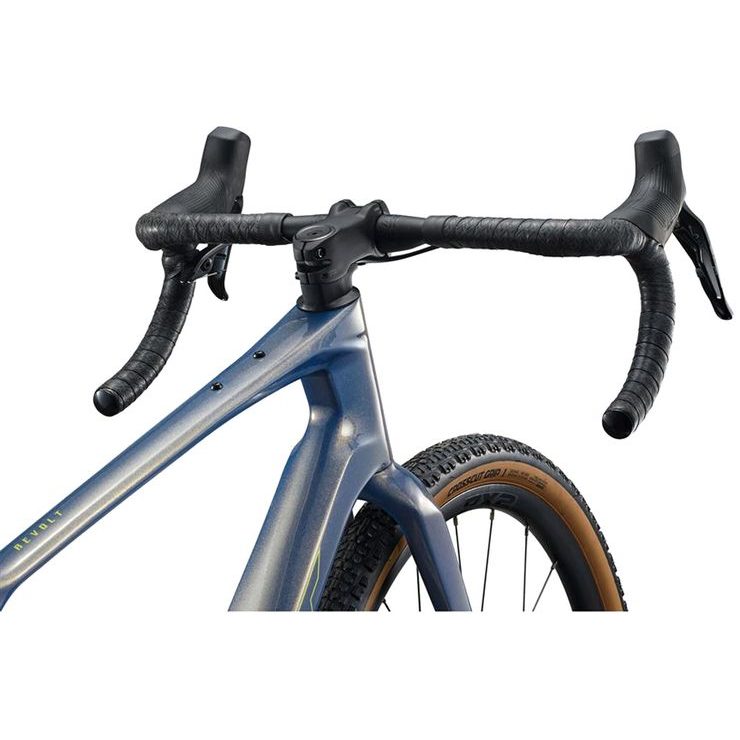

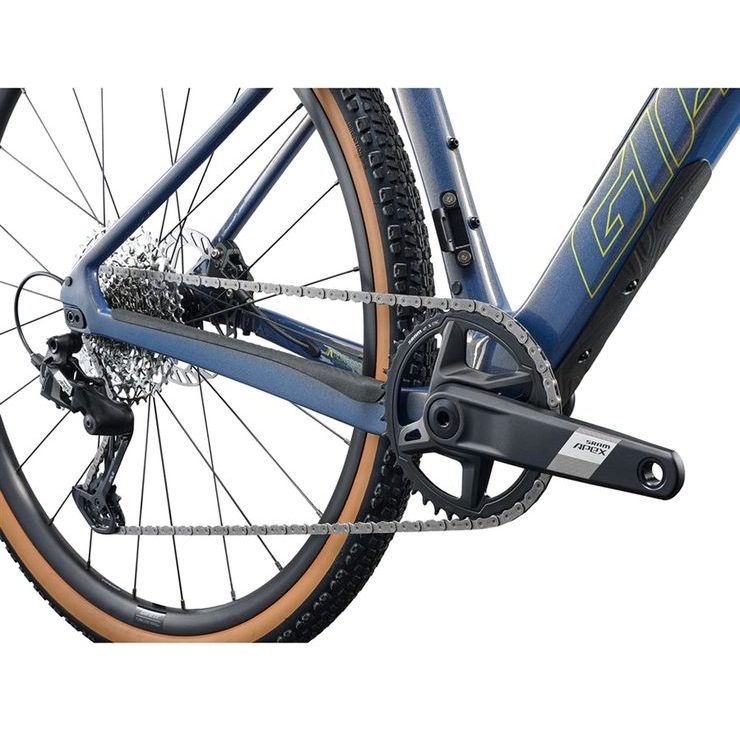

The frame has lower seat stays with a smaller diameter for even better shock and vibration absorption. The D-Fuse carbon seatpost (except for the Revolt Advanced 1 model, which has a telescopic seatpost) and Contact XR D-Fuse handlebars also contribute to greater comfort and thus reduced fatigue on rough roads or long distances – both work together as a system and flex slightly under load, without compromising stiffness when cornering, climbing, or riding out of the saddle. Internally routed cables give the cockpit a clean, aesthetic look and improve aerodynamic performance. Easily accessible storage space in the down tube allows you to safely carry tools, food, and other essentials. Additional integrated mounts on the top tube, fork, and rear triangle make it easy to install bags or fenders. All-new, specially shaped frame protection (under the chain and on the down tube) helps protect the frame from impacts and also dampens noise.
