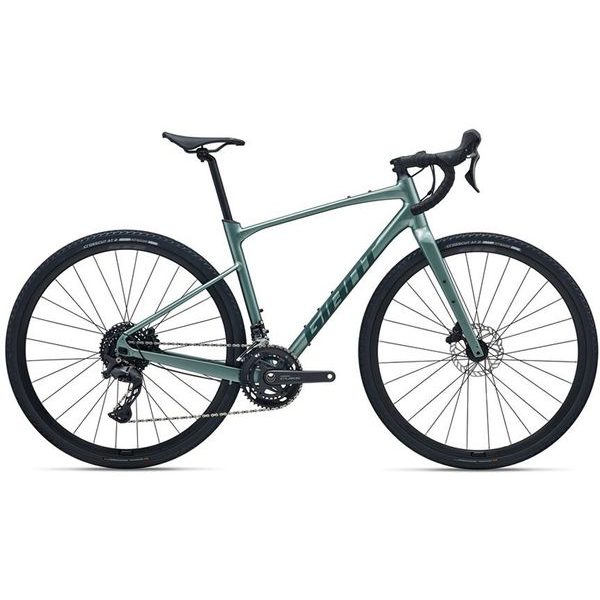

GIANT Revolt 1 Alpine Green
10800141Gravel bike
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
The versatile and comfortable Revolt gravel bike will be the perfect companion for exploring roads and trails you've always thought about but never ridden. Its comfortable aluminum frame with carbon fork offers the option of changing the wheelbase and also the option of using a telescopic seat post.
The lightweight ALUXX aluminum frame, together with the full carbon fork, provides the perfect balance of stiffness for maximum pedaling efficiency and compliance for high comfort. The geometry combines an endurance riding position with a shorter rear end for precise handling, agility, and perfect control over the bike. A longer reach, shorter stem, and lower center of gravity improve stability on rough terrain.
ALUXX Aluminum Technology |  |
 | Flip Chip rear dropouts |
D-Fuse technology |  |
 | OverDrive |
Giant Tubeless System |  |
The frame has lower seat stays with a smaller diameter for even better shock and vibration absorption. The specially shaped D-Fuse seatpost and Contact XR D-Fuse handlebars also contribute to greater comfort – both work together as a system and flex slightly under load, but without reducing stiffness when cornering, climbing, or riding out of the saddle.
The rear dropouts allow you to change the wheelbase thanks to the flip chip system. A shorter wheelbase makes the bike more agile, while a longer wheelbase improves stability at higher speeds and increases rear tire clearance (up to 53 mm). The frame also allows you to choose the type of seatpost – you can use either the Giant D-Fuse "suspension" seatpost or a standard 30.9 mm round seatpost, including a telescopic one.
Founded in 1972, Giant is the largest bicycle manufacturer in the world.
Giant is the world's leading brand of high quality bicycles and cycling equipment. As part of the Giant Group, founded in 1972, the Giant brand combines craftsmanship, advanced technology and innovative design.
Giant has long been one of the leading innovators in cycling. They introduced lighter and stronger aluminium frames at a time when steel was the industry standard. They were the first to make carbon fibre bikes widely available to the world. They defined modern road bike design with Compact Road geometry. And the patented Maestro suspension revolutionized the full-suspension bike segment.
| Sizes | XS, S, M, M/L, L, XL |
| Color | Alpine Green, Bali Bricks |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | cork tape with gel |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 90 mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Grit |
| Shifters | Shimano CUES U6030, 2x10 |
| Front derailleur | Shimano CUES U6030 |
| Rear derailleur | Shimano CUES U6020 |
| Brakes | Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake levers | Shimano CUES U6030 hydraulic |
| Cassette | Shimano CS-LG300, 11x39 |
| Chain | KMC X11 |
| Cranks | Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom bracket | Shimano, threaded |
| Rims | Giant S-X2, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Accessories | tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
| Maximum tire width | 53mm |
| Weight | Unfortunately, there is no standard for weighing bikes that all manufacturers adhere to, and the weights listed are often inaccurate. To find out the exact weight of a bike in a given size, you need to have the bike weighed at the store, as well as a model from a competing brand – this is the only way to get accurate figures for weight comparison. |
