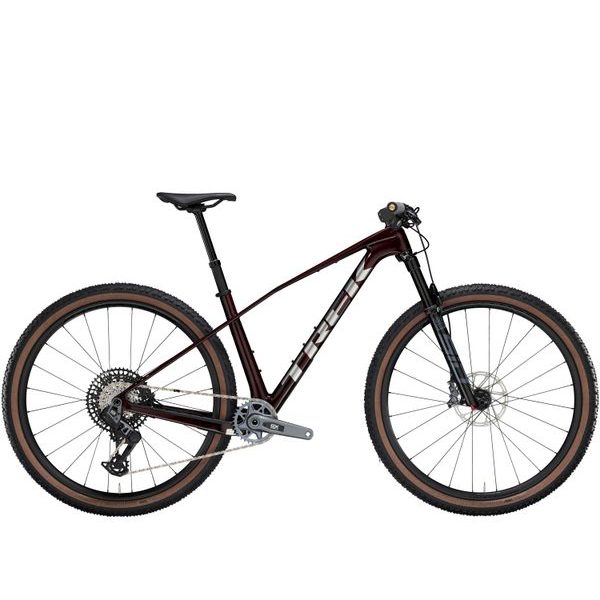

TREK Procaliber 9.7 AXS 29 Carbon Red Smoke
47245Mountain Bike 2025
Ready to ride
The bike is always professionally tuned and ready to go.
We will be happy to advise you
We provide expert advice on selection and configuration.
Free warranty inspection
Free warranty inspection after driving 200–500 km
Official TREK Store
Lifetime warranty on the frame, Crash Replacement, Carbon Care.
The Procaliber 9.7 Gen 3 is a carbon XC made to race. It's made from OCLV mountain bike carbon and fitted with IsoBow technology that not only dampens surface irregularities but also reduces weight. With carbon wheels, an upgraded RockShox fork and SRAM AXS wireless shifting, it's capable of high speeds.
You're counting down the days until your next race and want a bike that's light, powerful and comfortable enough for the long haul. You want upgrades that make a difference, like SRAM's fully wireless shifting and carbon wheels.
The Procaliber 9.7 AXS Gen 3 is an incredibly light, fast and smooth XC hardtail. It offers technologies that will keep you fresh even on the most demanding miles. It has carbon wheels, a carbon handlebar and stem combo, and fully wireless shifting that's accurate even under load.
- With IsoBow vibration damping technology, you'll get the hardtail performance you crave.
- The OCLV carbon mountain bike construction is lightweight, durable, stiff and supple enough to be comfortable in demanding conditions.
- Everything is carbon: the frame, the wheels and the handlebar and stem combination.
- It has a 120mm suspension fork that handles the rough obstacles of modern XC racing trails with ease.
- Another advantage is the SRAM GX AXS wireless shifting, which makes shifting precise, especially under load.
In our e shop you will find cycling equipment from TREK such as cycling jerseys, kneesocks, trunks, cycling computers, bike bottles, rain jackets and thousands of other small items. In bikes we offer a comprehensive range which includes mountain bikes, trekking bikes, bmx bikes and kids bikes.
TREK is headquartered in Waterloo, Wisconsin. The family-owned business was founded by Richard Burke in 1976, starting out in a small steel bicycle factory with just five employees. Within a few short years, the company caught on to bicycle trends and continued to grow. In the early 1990s, it began producing bicycles in a then-new material - Carbone. Today, TREK sets the trends in bicycle development and is also considered a leader in the processing of Carbone. Its proprietary processing technology, called OCLV, has been applied in production with many innovations for more than 17 years. TREK bikes have celebrated success at major world races and have been associated with names such as Lance Armstrong, Alberto Contador, Chris Lieto, Roland Green, Chris Eatough, Andrew Shandro and Travis Brown. TREK is a premium brand you can always rely on.
Frame | |
|---|---|
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal cable routing, balanced Post Mount brake mounts, Boost148 |
| Fork | RockShox SID, DebonAir spring, Rush RL damping, remote lockout, tapered steerer, 44 mm offset, Boost120, Maxle Stealth 15 mm, 120 mm travel. |
| Maximum compatible fork travel | 120 mm |
Wheels-rims | |
| Front wheel | Bontrager Kovee Elite 30, OCLV mountain bike carbon, tubeless ready, 6-hole, Boost110, 15mm thru axle, 29 inches |
| Rear wheel | Bontrager Kovee Elite 30, OCLV mountain bike carbon, tubeless ready, Rapid Drive, Boost148, 12mm thru axle, 29 inches |
| Tire | Bontrager Sainte-Anne RSL XR, tubeless ready, dual compound, aramid bead, 220 tpi, 29 x 2.40 inches |
| Tire component | Bontrager TLR sealant, 6 oz. |
| Rim tape | Bontrager TLR |
| Maximum tire size | Frame: 29 x 2.4 inches, fork: see manufacturer. |
E-system | |
| Battery | SRAM eTap, battery kit (with charger). |
Drive | |
| Shifters | SRAM AXS POD |

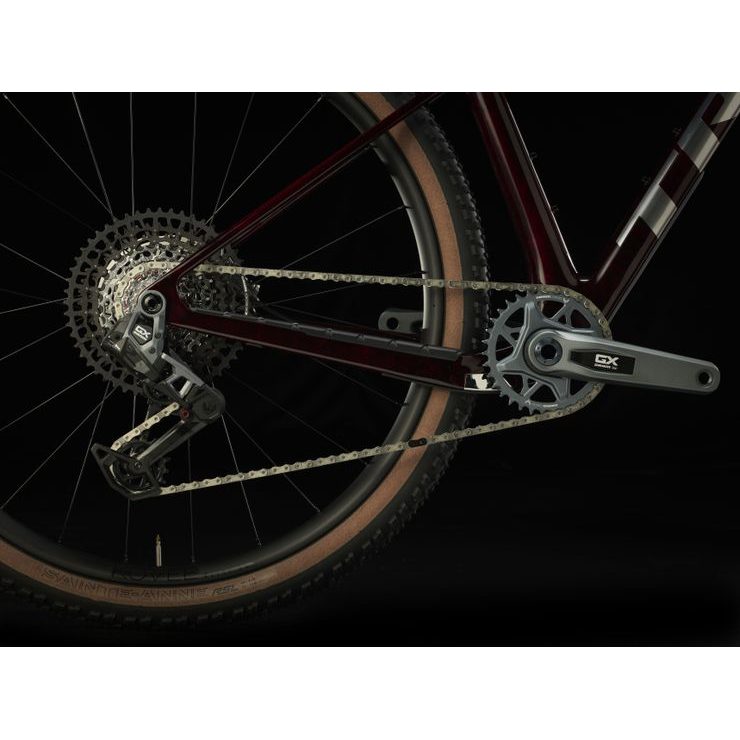

| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crankset | Size: S, M, ML SRAM GX Eagle, DUB, T-Type, 34 teeth, chainline 55 mm, length 170 mm. |
| Size: L, XL SRAM GX Eagle, DUB, T-Type, 34 teeth, chainline 55 mm, length 175 mm. | |
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speeds |
| Chain | SRAM GX Eagle, T-Type, 12 speeds. |
| Maximum chainring dimensions | 1x: 38T |
Components | |
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width. |
| *Seatpost | Size: S Bontrager Line dropper seatpost, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length. |
| Size: M, ML, L Bontrager Line dropper seatpost, 150 mm travel, MaxFlow, internal routing, 31.6 mm, length 410 mm. | |
| Size: XL Bontrager Line dropper seatpost, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length. | |
| *Integrated handlebars/stem | Size: S, M, ML Bontrager RSL integrated handlebars/stem, OCLV carbon, 0 mm bend, 750 mm width, -13-degree stem angle, length 70 mm. |
| Size: L Bontrager RSL integrated handlebar/stem, OCLV carbon, 0 mm handlebar bend, 750 mm width, -13 degree stem angle, 80 mm length. | |
| Size: XL Bontrager RSL integrated handlebar/stem, OCLV carbon, 0 mm handlebar bend, 750 mm width, -13-degree stem angle, 90 mm length. | |
| Grips | ESI Chunky. |
| Headset | FSA IS-2, 1-1/8 inch top, 1.5 inch bottom. |
| Disc dimensions | Maximum brake disc sizes – frame: 180 mm, fork: see manufacturer. |
Weight | |
| Weight | M ‒ 10.58 kg (with TLR sealant, without inner tubes) |
| Weight limit | The bike has a maximum total weight limit of 136 kg (combined weight of bike, rider, and cargo). |
