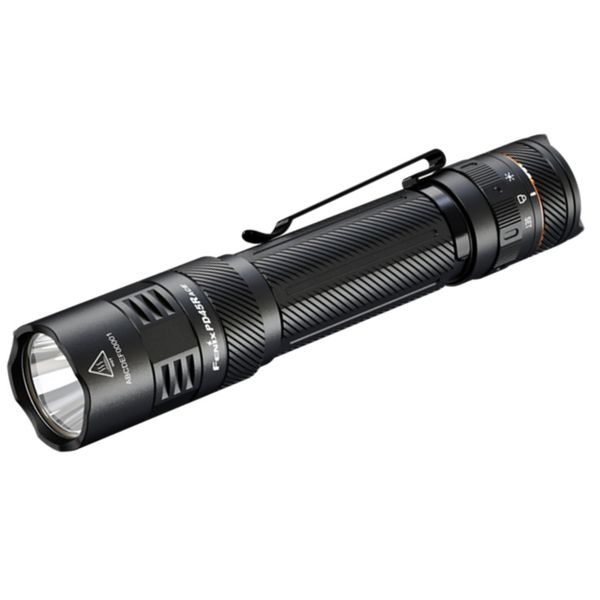

The Fenix PD45R ACE Rechargeable Flashlight delivers extreme power up to 3200 lumens and a range of up to 410 meters. With programmable modes, you choose only the features you really need - no delays, just immediate and efficient use in the field.

With up to 57 hours of battery life, rugged craftsmanship and convenient USB-C charging, it's the perfect choice for professionals, armed forces and discerning outdoor enthusiasts.

Package contents: battery, USB-C cable, strap, case, o-rings

1. Programmable modes for absolute visibility.
   From emergency mode to strobe, you can customize the flashlight to your exact needs thanks to the rotary dial and programming options.
2. Long lasting and fast charging.
   The integrated 6000 mAh battery can handle up to 57 hours of use, and you can easily recharge it wherever you are via the modern USB-C connector.

• Light output up to 3200 lumens
• Range up to 410 meters
• 6 modes + strobe
• Programmable light modes
• Tactical rear switch
• Lockable rotary dial
• Up to 57 hours of battery life
• USB-C charging with cap
• Last mode memory
• Emergency impact rim
• Waterproof to IP68 (2 m, 30 min)
• Impact resistance from 1 m

Specifications:

Light Source: Luminus SFT-70X
Maximum Output: 3200 lm (ANSI)
Lumen Range: up to 410 meters (41,900 cd)
Modes: 30 / 100 / 300 / 600 / 1400 / 3200 lm + strobe
Power: 1× Li-ion battery 21700 (ARB-L21-6000)
Duration: up to 57 hours (30 lm)
Charging: USB-C (covered port)
Dimensions: 157.7 mm × 25.9 mm × 30 mm
Weight: 200.5 g including battery
Material: aircraft aluminum, Type III hard anodization
Waterproof: IP68 (submersion up to 2 meters)
Drop resistance: 1 meter
Controls: Tactical Rear Switch + Rotary Mode Selector

Fenix PD45R ACE Flashlight Controls
On/Off - When the flashlight is unlocked, depress the tactical switch on the end of the flashlight to momentarily turn the light on silently, when released the light will turn off. Fully depress the tactical switch to permanently turn the light on/off. With the torch on, the power modes can be switched in the following order by pressing the tactical switch: Eco → Low → Medium → High → Very High → Turbo. The number of modes that can be switched depends on the mode you select.
Strobe Activation - With the flashlight on, hold the tactical switch for 0.5 seconds to turn on the strobe. Press the tactical switch again briefly to return to steady illumination.
Setting Power Modes - The "SET" position allows you to select between 6 modes, which contain different groups of power modes see table below. Turn the switch to the "SET" position to move to the settings. The lamp will flash according to the currently set mode, the number of flashes of the lamp corresponds to the last selected mode number. For example, the flashlight will flash 6 times if mode 6 was last selected, and will flash 5 times if mode 5 was last selected. Press the tactical switch fully to select the mode, the number of presses must correspond to the number of the mode you want. The flashlight will then flash as many times as the number of the currently selected mode to confirm the selection. When the mode selection is complete, the flashlight will automatically remember your choice. Turn the switch to the unlocked position and use the modes according to the mode you selected.
Lock/Unlock - With the light on, set the rotary switch to the "lock" position to lock the current light mode. In this state, the flashlight does not respond to pressing or depressing the tactical switch and cannot be turned off or power changed. With the light off, set the rotary switch to the "lock" position to lock the tactical rear switch. In this condition, the flashlight cannot be turned on. Turn the switch from the "lock" position to any other position to unlock the tactical rear switch and use the flashlight normally.
Memory for last power mode set - The flashlight has memory for both the last power mode set and the power mode set, so it will always turn on in the last power mode set except for the strobe.
Changing the Battery - Unscrew the flashlight end cap and insert the battery with the plus side toward the reflector. Then fully tighten the end cap again.
Charging- Unscrew the protective nut under the flashlight head to expose the charging port and plug the USB-C charging cable into the charging port. Tighten the nut again when charging is complete. During charging, the indicator opposite the charging connector glows red. When fully charged, it will light up green. The flashlight cannot be used while charging. The normal charging time for a fully discharged ARB-L21-6000 battery is approximately 3 hours when using an 18 W USB power supply.
Battery charge status indication - Each time the battery is switched on, the indicator LED opposite the charging connector is activated for three seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing indicates 50-85% capacity. If the LED is red, the battery is charged to 25-50%. Red flashing indicates less than 25% of capacity remaining.
Intelligent Overheat Protection - If the flashlight temperature exceeds 60°C, the power will be automatically reduced. Once the temperature drops below 60°C, the output will gradually increase again.
Discharged Battery Warning - If the voltage drops below the set level, the flashlight will reduce the brightness to a lower level. When the lowest power level is reached, the battery charge indicator will flash red to remind you to recharge or replace the battery.

Warning
Use only high quality 21700 type rechargeable batteries with protective electronics.
Insert batteries with the positive terminal facing the flashlight head.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
- The battery is dead - charge or replace it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The head, body or back of the flashlight is loose, tighten them.
