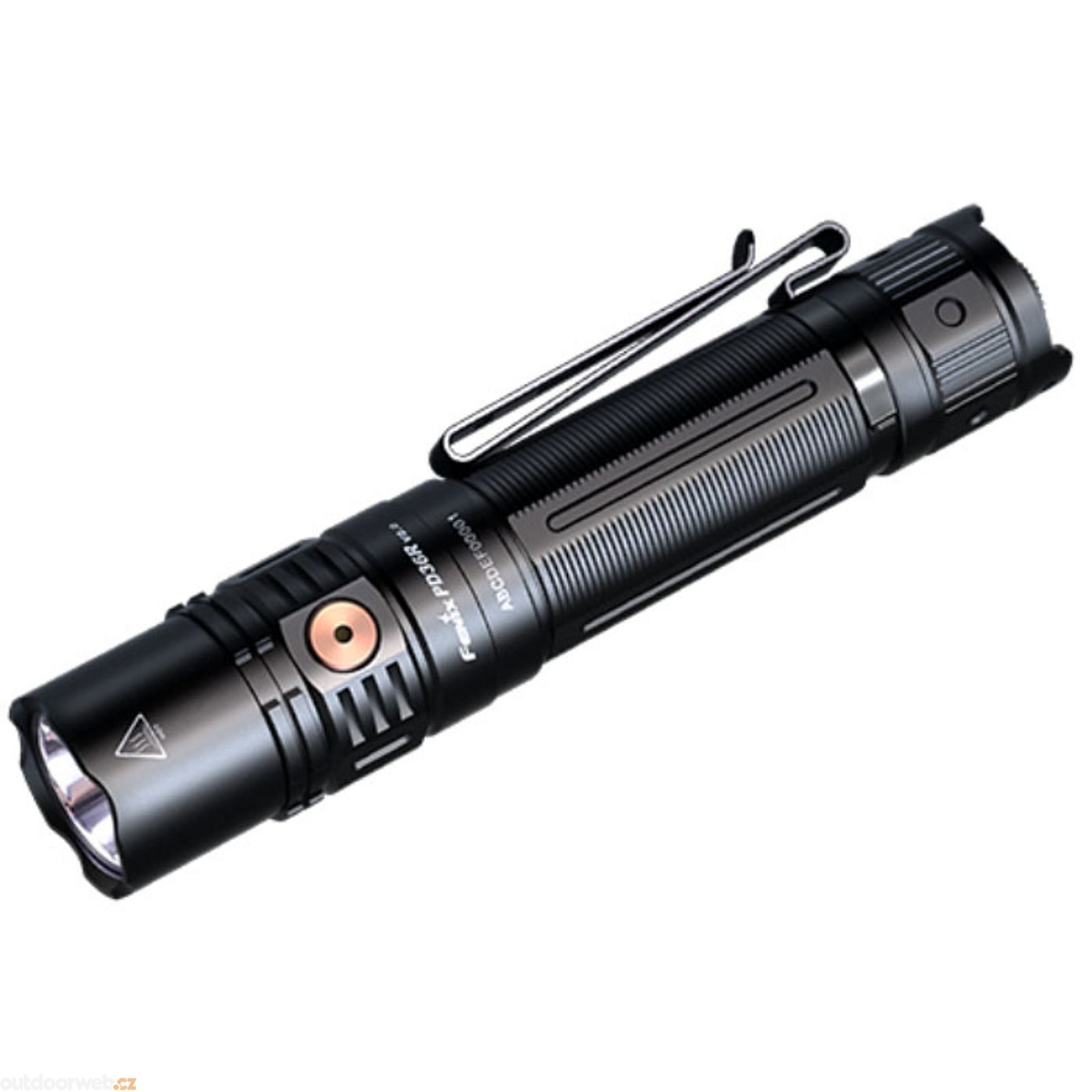

FENIX PD36R V2.0 - Rechargeable tactical flashlight

We present the Fenix PD36R V2.0, a rechargeable tactical flashlight with modern LED LUMINUS SFT-40. This flashlight offers up to 1700 lumens of light output and a range of up to 396 meters, making it ideal for tactical and security applications, but also for everyday use.

A unique feature is the ability to choose between six light modes to optimize light output and battery life. On the lowest mode, the flashlight can shine for up to 482 hours, which is an incredible 20 days of continuous light.

The Fenix PD36R V2.0 features a modern USB-C connector for fast and convenient charging, and supports fast charging protocols up to 18W. The battery charge indication in the side button allows you to easily monitor the status of the flashlight. The flashlight is compact, lightweight and with a huge light output, making it ideal for demanding activities and professional use.

Don't let the darkness stop you. Make the click that lights up your world - order your Fenix PD36R V2.0 today!"

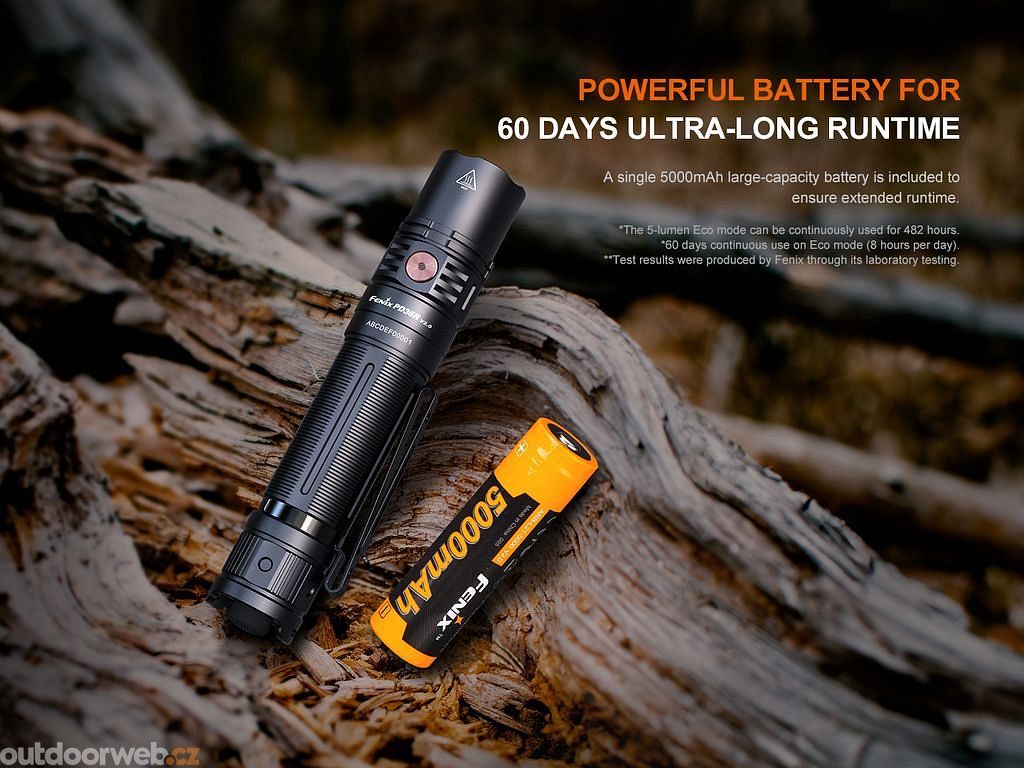

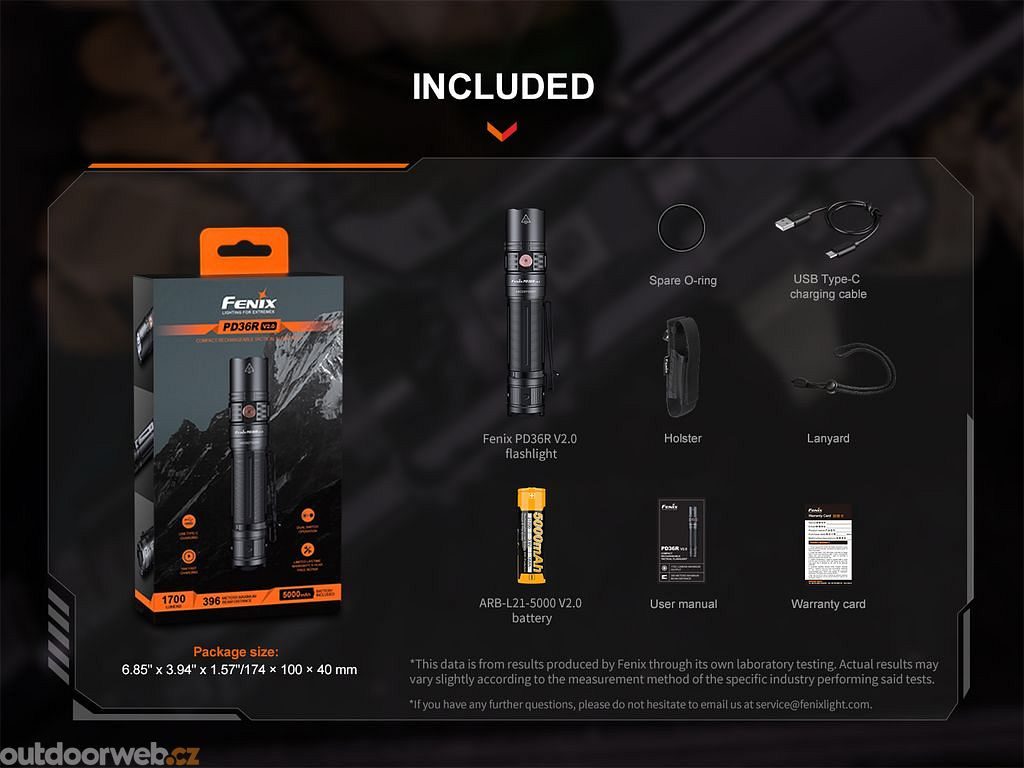

Package Contents: Flashlight, wrist lanyard, belt pouch, Fenix 21700 5000 mAh battery, USB-C cable and replacement o-ring

Warranty: Five years on flashlight, two years on battery

1. High lumen output and range:
   Offers up to 1700 lumens of lumen output and a range of up to 396 meters.
2. Six light modes:
   Allows you to choose between high light output and long lasting.
3. Fast-charging protocols and charge status indication:
   The flashlight supports fast-charging protocols up to 18W and features a battery charge status indication.
4. Compact and Powerful:
   Fenix PD36R V2.0 impresses with its compact size and great light output.

• A top performance LUMINUS SFT-40 LED with a lifetime of 50000 hours is used.
• Six lighting modes
• Lumen output and runtimes are measured with the included Li-ion 21700 battery with 5000 mAh capacity.
• The flashlight is equipped with intelligent overheat protection.
• Digital power control, low battery warning.
• Anti-accidental reverse battery insertion (reverse polarity) protection.
• Smooth parabolic reflector for light cone with reach of 396 meters (39240 cd).
• Weight 167 grams including battery.
• Made of aerospace-grade hardened aluminum, durable surface - Type III hard anodized.
• Impact resistant to drops from a height of 1 meter.
• The flashlight has memory and will always turn on in the last mode set (not applicable for flash mode).
• Light-gauge threads with increased wear resistance.
• Substantial surface grooves for better grip, design prevents the flashlight from rotating on uneven surfaces.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Removable two-way steel clasp.
• Hardened ultra clear glass lens with anti-reflective surface.
• Tactical switch at the end of the flashlight (momentary on/off function).

Lighting modes:

Six lighting modes: Turbo 1700 lumens (3.5 hours) -> 800 lumens (4.25 hours) -> 350 lumens (7.75 hours) -> 50 lumens (50 hours) -> 5 lumens (482 hours) - Strobe 1700 lumens (variable frequency strobe).

Specifications:

Lumen output: 1700 lm
Range: 396 m
Max endurance: 482 hrs
Power: 1x 21700
Number of modes: 6
Waterproof: IP68 (2 m immersion)
Light color: Daytime white (5500-6500 K)
Light source: Luminus SFT-40
Weight: 167 g
Dimensions: 4.1 cm (length) x 2.65 cm (reflector diameter) x 2.55 cm (body diameter)
Material: Aerospace hardened aluminum, durable surface - Type III hard anodized

Use:
From the factory, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.
To turn on, press the switch located on the end of the flashlight, press the button for immediate activation. Press the side button near the head of the flashlight to switch between power modes at any time during operation. To switch to strobe mode, hold the side button for approximately 0.5 seconds.
Intelligent Overheat Protection- As the flashlight reaches high power, it experiences a temperature rise. If the temperature exceeds 60°C, the power is automatically reduced. As soon as the temperature drops below 60°C, the highest power output can be used again.
Battery charge indication - each time the flashlight is switched on, the indication LED in the side button of the flashlight is activated for three seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing means 50-85% capacity. If it glows red, it is 25-50% charged. Red blinking indicates less than 25% of battery capacity remaining.
Charging - Unsnap the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer, or USB adapter to the mains or car. During charging, the side button lights up red. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 2.5 hours depending on the adapter used. During charging, the flashlight can be used, but only in the 5 lumen light mode.
Drained Battery Warning - the flashlight gradually switches automatically to the lowest mode and the indicator LED in the side button starts flashing red.

Warning
Do not disassemble the sealed parts in the flashlight head yourself, this will void the warranty.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
- The battery is dead, charge it.
- The contacts inside the flashlight are clogged - clean them with a cotton swab dipped in alcohol.
- The head, body or back of the flashlight is loose, tighten them.
