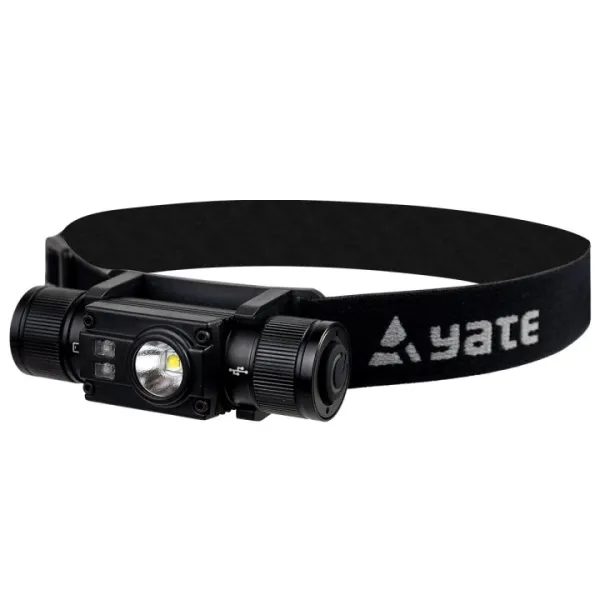

The YATE NAVI headlamp offers performance, durability and versatility all in one. With a powerful LED, two red LEDs and a rugged aluminum body, it's a great choice for outdoor activities and challenging conditions.

1. Upto 12 hours of light on a single charge.
2. IP67 protection for intense outdoor conditions.

• 500 lm luminous flux
• Battery status indication
• Multiple light modes including SOS
• Aluminum body
• USB-C charging
• Accidental power on protection

Specifications:

Material: Aluminum
Luminous Flux: 500 lm
Light Mode: Full Power, ½ Power, ¼ Power, Red LED, Flashing, Dimming, SOS
Light Time: Approx. 12 hours
Charging Time: 4 hours
Battery: Rechargeable Li-Ion 18650 2000 mAh
Resistance: IP67
Package Contents: flashlight with strap, 18650 battery, charging cable

Instructions for use:
The battery status is indicated by a lighted switch. Green indicates a charged battery, red indicates a discharged battery.
Charging the battery: unscrew the socket cover until the charging input (USB-C) appears. Insert the cable into the socket, connect the other end of the cable to a power source (computer, powerbank, etc.). Charging is indicated by a red LED that will glow green when charged. After disconnecting the cable, screw the cover to prevent moisture and dirt from entering the socket.
Replacing the battery: unscrew the battery cover, remove the battery and insert a new one. Make sure the correct polarization is used. Use only 18650 rechargeable batteries. Screw the cover properly to prevent moisture from reaching the battery.
Switching on and off is done with the switch on the side. Lighting modes:
Main light: full power / ½ power / ¼ power / red LEDs on / flashing / off. Dimming mode: when the main light is on, hold the switch down for approximately 3 seconds, the main light will start to dim gradually (8 degrees). Double press: SOS.
