When it’s time to refresh your trusted bike, Trek genuine replacement parts are here for you.

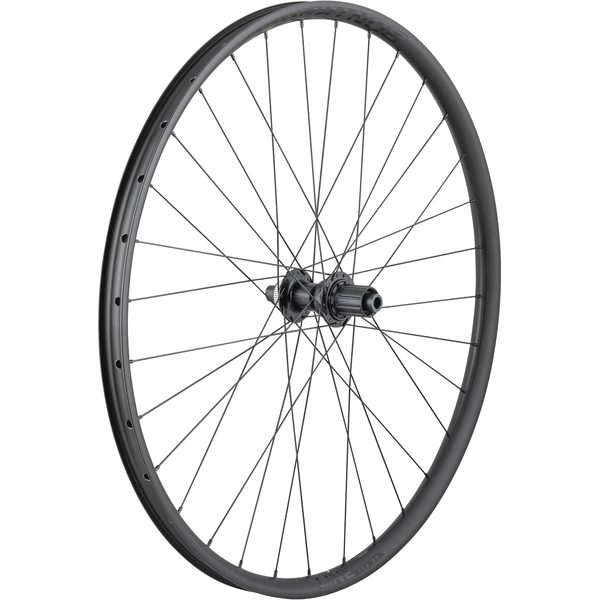

- Genuine replacement Bontrager Line TLR 30 wheel
- Line TLR 30 rim with Shimano Deore hub
- Convert to tubeless with TLR rim tape and valve, sold separately
- Durable symmetrical alloy rim with 28.5 mm internal width and 33 mm external width
- Does not include quick release, reflector, rim strip, valve or owner’s manual
- Wheels are supplied as photographed
| Size | Front, without cassette | Rear, Shimano HG 8/9/10-speed | Rear, Shimano Micro Spline 12-speed |
| FT/RR/PR | Front | Rear | Rear |
| Diameter | 29" | 29" | 29" |
| Type | Tubeless Ready (TLR)/clincher | Tubeless Ready (TLR)/clincher | Tubeless Ready (TLR)/clincher |
| Cassette compatibility | Without cassette | Shimano HG 8/9/10-speed | Shimano Micro Spline, 12-speed |
| Hub OLD | 110 mm | 148 mm | 148 mm |
| Holes | 28 | 32 | 28 |
| End | 14 | 14 | 14 |
| Cross section | Rounded | Rounded | Rounded |
| Brake type | Centerlock disc | Centerlock disc | Centerlock disc |
| Attachment | Thru axle | Thru axle | Thru axle |
| Locking nipple type | Brass | Brass | Brass |
| Valve | Presta | Presta | Presta |
| Hub engagement (rear) | Not applicable | 28 | 28 |
| Rim width (internal) | 26–30 mm | 26–30 mm | 26–30 mm |
| Rim depth | Not applicable | Not applicable | Not applicable |
| Rim material | Aluminium | Aluminium | Aluminium |
