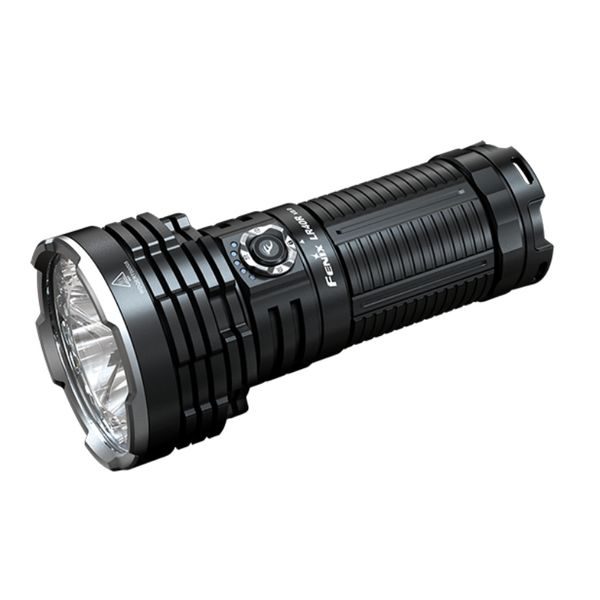

FENIX LR40R V2.0 - Rechargeable LED flashlight

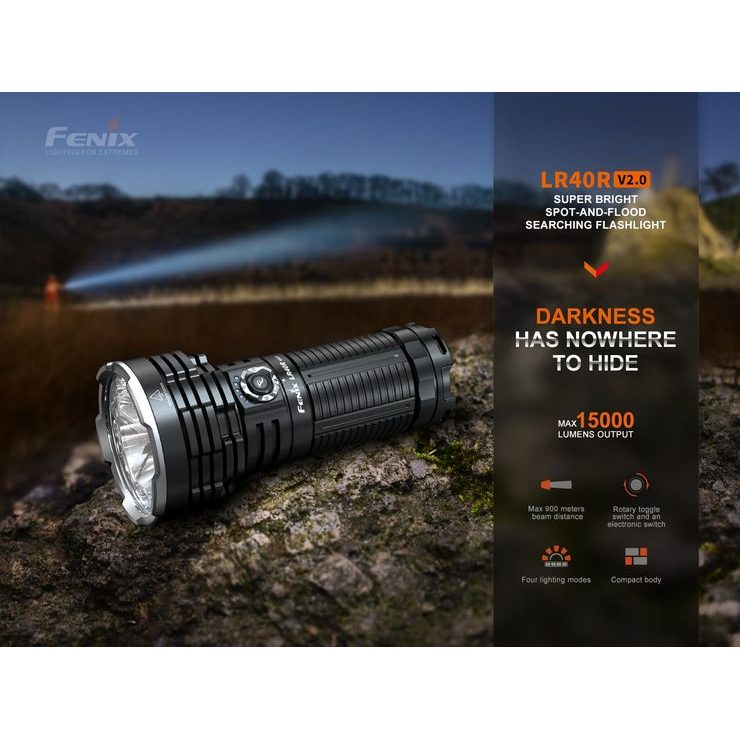

The ultra-powerful Fenix LR40R V2.0 rechargeable flashlight delivers extreme light output of up to 15,000 lumens (ANSI) and a range of up to 900 meters. It achieves its performance with one premium Luminus SFT-70 LED and sixteen Lumileds HL2X LEDs, which are powered by an internal high-current Li-ion battery with a capacity of 54 Wh (5000 mAh /10.8 V).

The battery is recharged directly in the flashlight via a modern USB-C connector. The flashlight is controlled by a rotary dial that can be used to select between wide cone (up to 12,000 lm) and high beam (up to 3,000 lm) illumination, or a combination of the two (15,000 lm combined). In addition, there is a strobe and SOS for emergency situations.

The flashlight is equipped with five indicator LEDs that show the battery charge status. In addition, the flashlight can also be used as a power bank for emergency use and to charge other USB devices.

Despite its enormous power, the flashlight retains a surprisingly compact size, measuring just 17.5 centimeters in length and weighing 843 grams including the battery. This searchlight is suitable for applications such as large premises security, service use or reconnaissance and rescue operations and for all flashlight enthusiasts.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

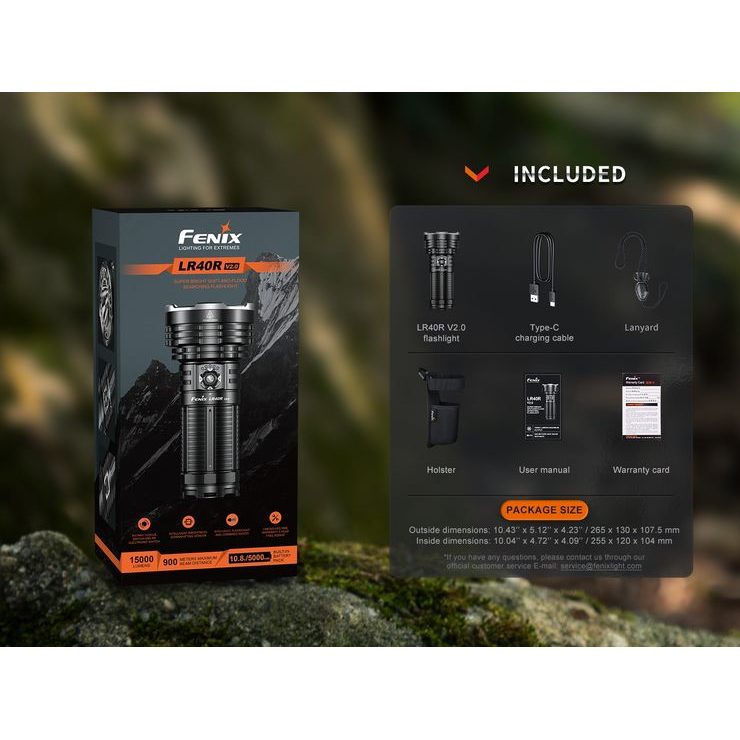

Package contents: flashlight, USB-C charging cable, belt pouch and wrist strap.

Warranty: 2 years

1. The light source is one powerful Luminus SFT-70 LED and sixteen Lumileds HL2X LEDs with a lifetime of 50,000 hours.
2. Charging via USB-C with support for PD2.0 and QC2.0 fast charging protocols. Charging time approx. 4 hours depending on the power source used.
3. The center driving reflector and the combined mode of both reflectors offer a range of up to 900 meters (203,568 cd), the wide reflectors reach up to 340 meters (28,189 cd).
4. The electronics feature a protection function to prevent the battery from discharging too deeply, automatically switching to a lower power mode when the voltage drops below a certain threshold.
5. The power supply uses a high-current built-in Li-ion battery with a capacity of 5000 mAh/10.8 V (54 Wh).

• Total of 16 lighting modes
• Digital power control, overheat protection.
• Battery charge status indication.
• Made of aerospace hardened aluminum, the spotlight is completed with a striking rim.
• Hard scratch-resistant surface - Type III hard anodized.

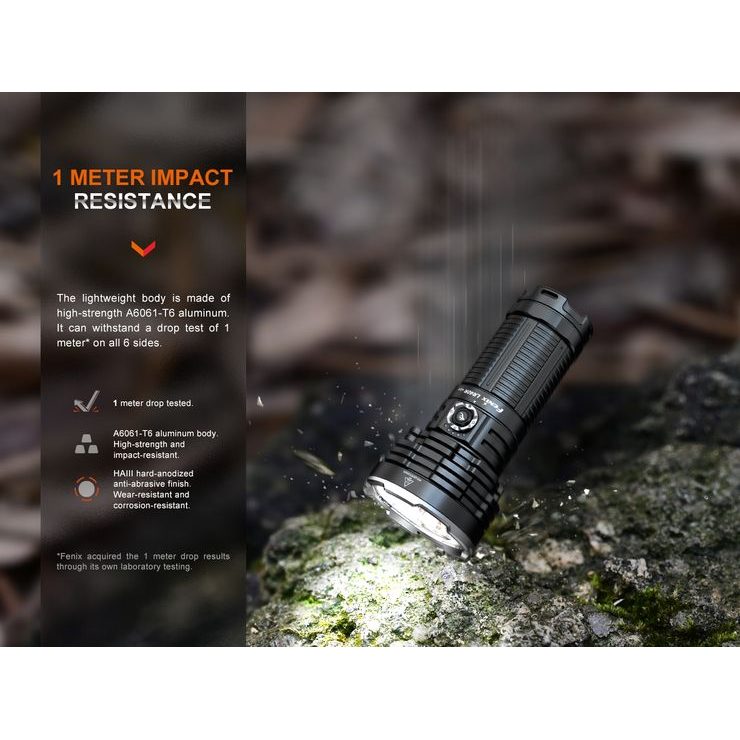

• Resistant to drops from a height of 1 meter.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 4 hours).
• Hardened ultra clear glass lens with anti-reflective surface.
• Capable of standing alone on a flat surface and serving as a candle.

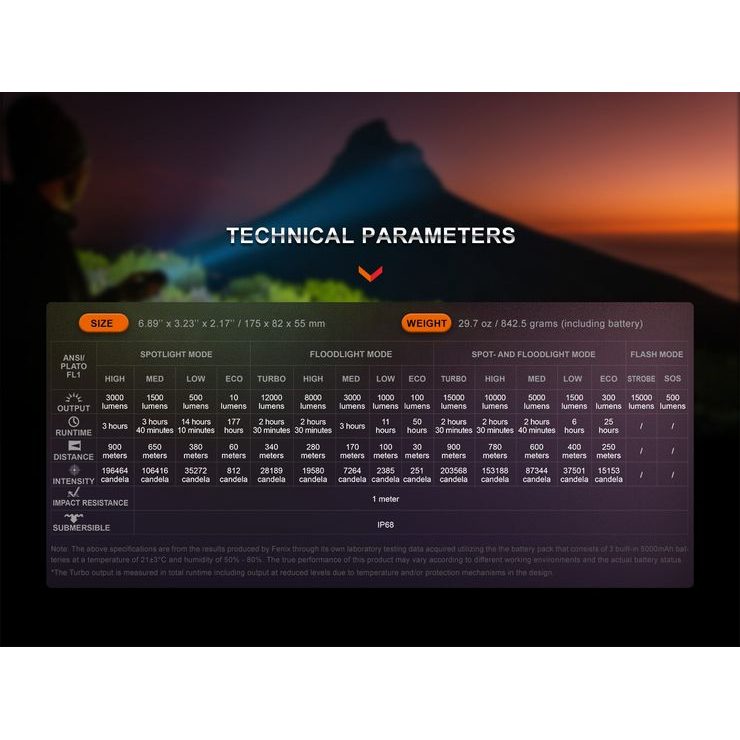

16 lighting modes:
Range cone: 3000 lumens (3 hours)-> 1500 lumens (3.7 hours)-> 500 lumens (14.1 hours)-> 10 lumens (177 hours).
Wide cone: 12000 lumens (2.5 hours) -> 8000 lumens (2.5 hours) -> 3000 lumens (3 hours) -> 1000 lumens (11 hours) -> 100 lumens (50 hours).
Combination cone: 15000 lumens (2.5 hours) -> 10000 lumens (2.5 hours) -> 5000 lumens (2.67 hours) -> 1500 lumens (6 hours) -> 300 lumens (25 hours).
Flash modes: strobe (15000 lumens) -> SOS (500 lumens).

Specifications:

Lumen output: 15000 lm
Range: 900 m
Dimensions: 17.5 cm (length) x 5.5 cm (body diameter) x 8.2 cm (diameter at reflector)
Weight: 843 grams
Material: aerospace hardened aluminum

Use
The flashlight has a rotary dial that has four positions: off - remote cone on - wide cone on - combination cone on. When the rotary dial is in the locked position, turning it to the appropriate mode will turn the flashlight straight on - the main beam on the lowest mode, the wide beam and a combination of the two in the last mode used. Short presses of the centre button cycles through the power modes of the respective reflectors. The strobe is switched on by holding the centre button for at least 1.2 seconds, another short press to switch to SOS and another press to return to the last selected steady light mode. If the rotary selector is not in the lock position, the lamp is switched off and on by holding down the centre button for approx. 0.5 seconds.
The control buttons can be locked by switching the rotary selector to the lock position to prevent spontaneous switching on e.g.
The proximity sensor in the reflector will automatically reduce the output to 50 lumens when the flashlight comes closer to an object than approx. 6-8 centimeters (prevents damage to the object from strong light and glare from reflected light). This feature can be turned on/off by holding the center button for at least 10 seconds with the flashlight unlocked.

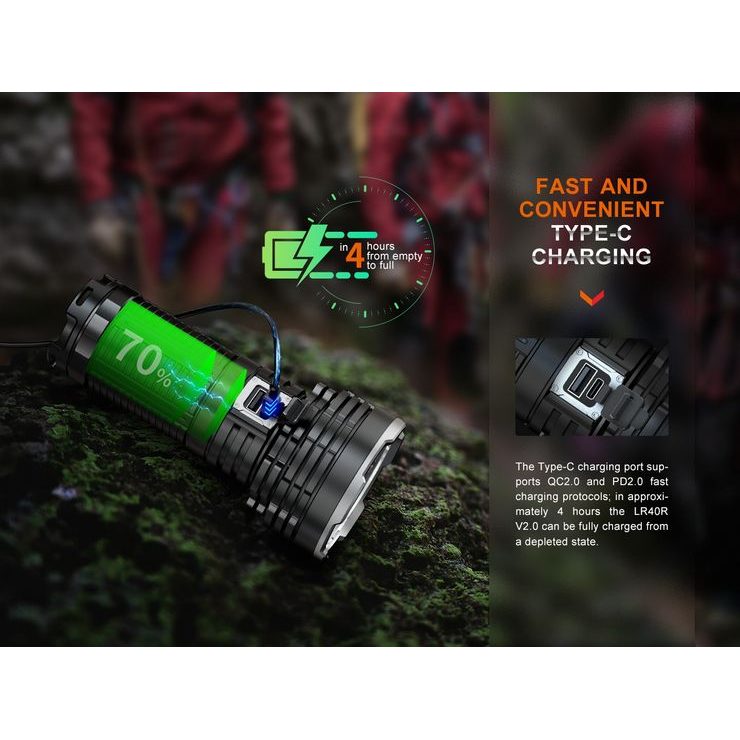

Charging - flip off the rubber cap of the charging connector and plug the cable into the USB-C connector on the flashlight. The indicator LEDs will flash from left to right to indicate charging status. Once they all stay lit, the flashlight is fully charged. Only the wide cone can be turned on in the lowest 100 lumen mode while charging. When charging is complete, seal the connector thoroughly with the rubber cap. Not only common USB adapters and power banks can be used for charging, but also fast charging adapters with QC2.0 and PD2.0 protocol will be automatically detected. Charging time is around 4 hours, depending on the power of the power supply used.

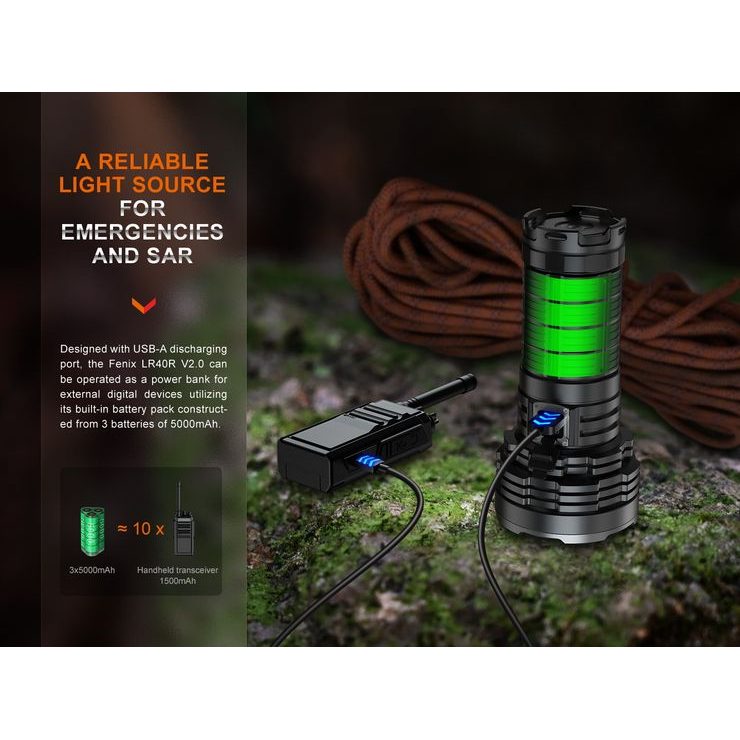

Charging external USB devices (powebank function) - flip off the rubber cap of the USB connector and connect the device you want to charge to the USB-A connector of the flashlight with a suitable USB cable. To activate the powerbank function, press the centre button briefly. Once charging has started, the indicator LEDs will start flashing from right to left to show the battery level. You can use all flashlight modes while charging. When charging is finished, be sure to properly seal the USB connector with the rubber cap.

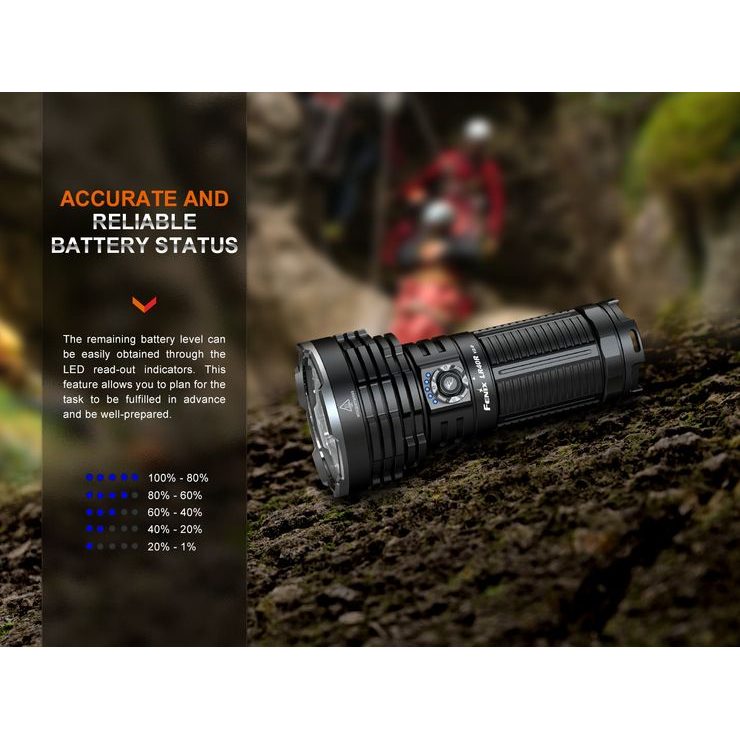

Battery charge status indication - after briefly pressing the center button, the indication LEDs will light up for 3 seconds to show the battery charge status. Five lit LEDs indicate that the battery is over 80% charged, four lit 60-80%, three lit 40-60%, two lit 20-40% and one LED indicates that the battery is less than 20% charged.
Intelligent overheat protection - when the temperature exceeds 60 °C, the flashlight will automatically reduce the power in small steps, after cooling down you can increase the power again.

Warning
Do not disassemble the sealed parts of the flashlight yourself, it will break the warranty.
Place this flashlight out of the reach of children!
Do not point the flashlight directly into anyone's eyes!
Turn off and lock the flashlight to prevent accidental activation when the flashlight is placed in an enclosed and flammable environment,
such as pockets and backpacks.
If the flashlight flashes, does not switch to higher power modes, or does not light up, the following may be the reason:
- The battery is dead, charge it.
