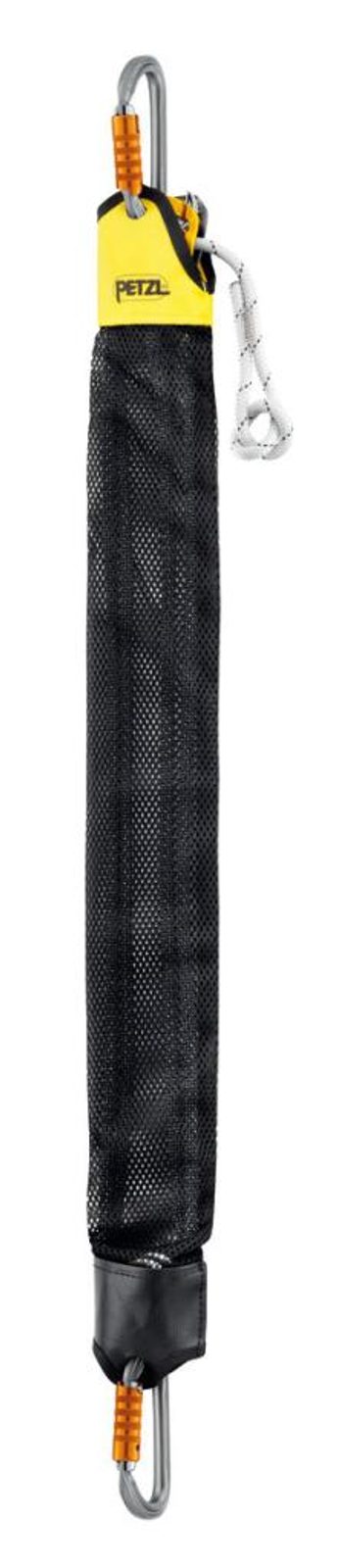

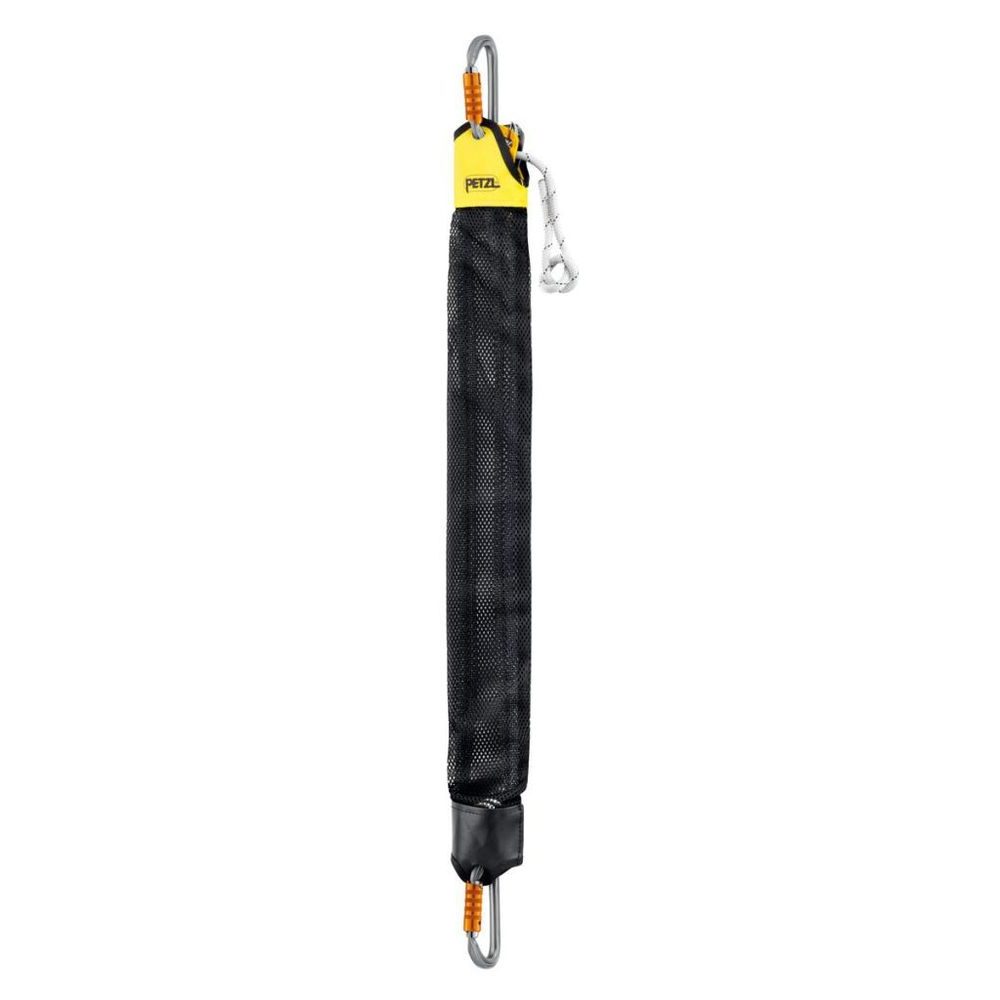

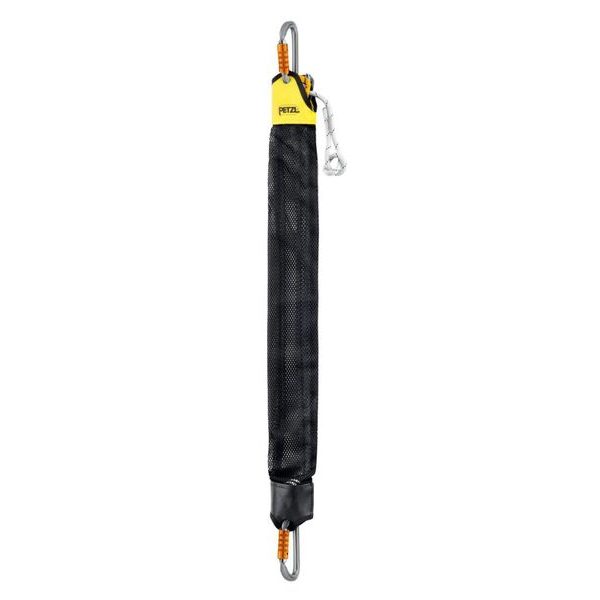

The JAG SYSTEM complete hoist is designed to relieve and release a person who, after a fall, is left hanging in their catching system and cannot free themselves. This hoist can also be used as a tensioning system for rope bridging. With a mechanical ratio of 4:1 and high efficiency pulleys with encapsulated ball bearings, it provides excellent performance.

The packed set is very compact, which allows it to be used even at a short distance from the anchor point. The JAG SYSTEM is quick and easy to install: it is ready for immediate use thanks to a flexible sleeve that eliminates the risk of entanglement. The end to be pulled out is colour coded for easy identification. Available in three lengths: 1, 2 and 5 metres.

1. The JAG SYSTEM allows quick and easy release of persons left dangling after a fall, greatly increasing safety.
2. Thanks to its compact design, the system can be used at a short distance from the anchor point, increasing its versatility.
3. The high efficiency of the pulleys with encapsulated ball bearings ensures a fourfold reduction in retrieval effort.
4. Colour coding of the end to be pulled out allows immediate identification and increases work efficiency.

• Mechanical ratio 4:1
• Encapsulated ball bearings
• Compact design
• Colour-coded end marking
• Easy installation
• Universal use

Quick and easy to install:
The hammerlock is always ready for immediate use thanks to the flexible sleeve that prevents the risk of tangling
The end to be pulled out is immediately identifiable thanks to the yellow colour of the end of the lanyard
The sleeve ends keep the couplings in the correct position to facilitate their engagement
Supplied with two Am'D TRIACT-LOCK couplings with automatic lock

JAG and JAG TRAXION pulleys can be purchased separately for making long pullout systems (e.g. pulley systems for lowering/lifting in confined spaces)
