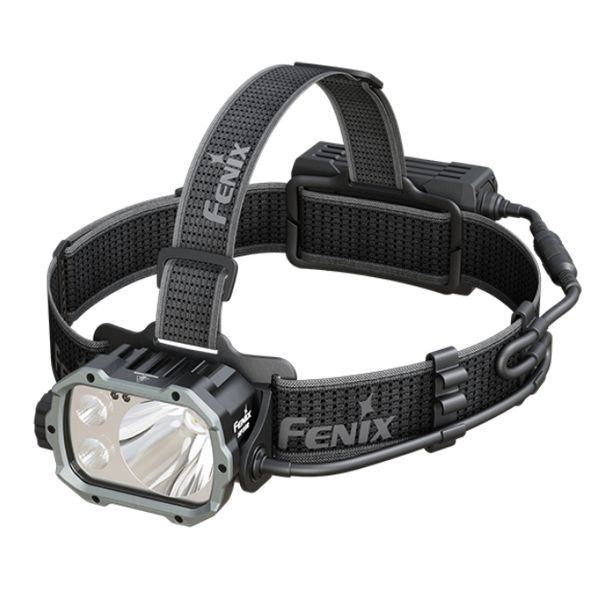

The Fenix HP35R headlamp offers up to 4000 lumens of power and a range of 450 meters thanks to the powerful Cree XHP70 neutral-tint LED and two Luminus SST-20 warm-tint LEDs with a high CRI 94.5. It excels in its ability to penetrate fog, rain and snow, ideal for bad weather. Equipped with a combination reflector for wide and long range, intuitive controls and the ability to use the lights individually or in combination.

Comfort and accessories. A special HP35R SAR version is available for helmet wear.

Power and endurance. USB-C charging connector doubles as a power bank. The battery case also includes a red safety light.

Modes and materials: Offers 12 power modes, with an extreme battery life of up to 500 hours on the lowest setting. The aerospace aluminum body ensures durability and efficient cooling.

Ideal for rescuers, cavers, ski mountaineers and all outdoor enthusiasts, the headlamp meets ANSI/NEMA FL 1-2009 standards for light output, durability and water resistance.

Package contents: headlamp with fabric perforated strap, 3 plastic clips to attach the cable to the head strap, 4 brackets to attach the head strap to the helmet, extension cable to the battery case and USB-C charging cable.

Warranty: 5 years on the headlamp and 2 years on the battery.

1. A powerful Cree XHP70 LED with 4500K neutral hue and two Luminus SST-20 LEDs with 3000K warm hue and high CRI of 94.5 are used, all with a lifetime of 50,000 hours.
2. The combined mode produces a light cone with a range of 450 metres (50853 cd), the main reflector shines up to 440 metres (48518 cd) and the wide reflector shines up to 122 metres (3746 cd).
3. The battery case features a battery level indicator and a red light with flashing (5 lumens) and steady light (20 lumens) functions.
4. It uses a 10,000 mAh Li-ion battery for power, which is built into a separate charging case with a rear red light.
5. Powerbank features - USB-C output for charging additional USB devices with up to 20W of power (PD3.0/PD2.0 protocols).
6. Intelligent overheat protection and proximity sensor to avoid potentially dangerous situations.

• Twelve lighting modes
• Digitally controlled for constant brightness.
• Battery pack, can be placed on the back of the neck, on a belt, in a pocket or backpack.
• Charging via modern USB-C connector. Charging time of 2 hours with a USB power source of at least 27W.
• The headlamp can be tilted in several steps to set the desired direction of light.
• The body of the headlamp is made of aluminium alloy used in the aerospace industry.
• Shockproof against falls from a height of 2 metres.
• Weight of the complete headlamp 433 grams (including straps and battery).
• Dustproof and waterproof to IP66 standard (spraying with strong jets of water from all directions).

Light modes:

Spotlight: 3000 lumens (5.7 hours) -> 800 lumens (11.7 hours) -> 350 lumens (28.4 hours) -> 50 lumens (120 hours).
Wide spotlight: 1200 lumens (8 hours) -> 400 lumens (30.8 hours) -> 50 lumens (120 hours) -> 5 lumens(500 hours).
Combination mode: 4000 lumens (4.3 hours) -> 1200 lumens (8 hours) -> 400 lumens (18 hours) -> 50 lumens (120 hours).

Specifications:

Power: 4000 lm
Range: 450 m
Max life: 500 hrs
Power: External battery
Number of modes: 12
Light color: Neutral White (4000-5000 K), Warm White (3000-4000 K), Red
Waterproof: IP66 (heavy rain)
Light Source: Cree XHP70, Cree XP-G3, Cree XHP50, Luminus SST-20
Weight: 433 g
Headlamp dimensions: 9.41 cm x 5.74 cm x 4.87 cm
Battery case dimensions: 9.53 cm x 5.58 cm x 4 cm

Using the Fenix HP35R Headlamp
The headlamp is switched on and off with the rotary switch on the right side. In the first position the headlamp is off, turning it to the second position switches it to the main reflector mode, turning it to the third position switches it to the wide reflector mode and turning it to the fourth position switches it to the combination of both reflectors. The power modes in each position are cycled by pressing the button on the side of the rotary switch.
The red light on the battery case is activated by holding the button on the battery case for approx. 0.5 s. Individual presses are then used to switch between flash (5 lumens) and steady light (20 lumens).
Memory for last set power mode - the headlamp has a memory and will always switch on in the last set power mode of the selected reflector except for the highest power modes of the main and wide reflectors, instead it will switch on in the second highest mode of that reflector.
The length of the cable connecting the headlamp to the battery case can be increased using the extension cable included in the package.
Battery status indication - pressing the button on the battery case activates the battery capacity indicator (four lit LEDs 80-100%, three LEDs 60-80%, two LEDs 40-60%, one LED 20-40%, one flashing LED indicates less than 20% remaining battery capacity).
Charging - Unsnap the rubber cap of the USB-C connector on the battery case and plug it into a computer, mains USB adapter or car USB adapter using the included USB-C cable. Alternatively, any mobile phone charger with a USB-C connector can be used for charging. The indicator LEDs on the battery case flash during charging, and are permanently lit when fully charged. Charging of a fully discharged battery takes approx. 2 hours when using a USB power supply of at least 27 W. If a weaker power supply is used, the charging time will be extended.
Activate the USB output (power bank function) - connect the device you want to charge. Activation of the USB output is indicated by flashing LEDs on the case.
Intelligent overheat protection - if the temperature of the headlamp rises above 55°C, it will automatically start to reduce power until its temperature stabilizes. Once the temperature drops below 55°C, the power will automatically increase again.
Intelligent Power Reduction - The headlamp has a built-in protection circuit. When the spotlight approaches the illuminated object (less than 60 mm) for more than 1 s, it will automatically reduce the power to low mode to prevent damage to the object from strong light and glare from reflected light. When the reflector is away from the illuminated object, the headlamp automatically resumes the previously used power level. Turning the Intelligent Proximity Sensor on/off - Press the side button on the headlamp when it is off for 6 seconds. The headlamp will indicate the feature is on with two blinks in low mode. Turning the feature off is indicated by the headlamp flashing eight times in low mode.

Caution
Do not disassemble sealed parts yourself, this will violate the warranty.
If the headlamp flashes, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
- The battery is dead - charge it.
- Make sure the connector on the cable between the headlamp and the battery case is firmly connected.
