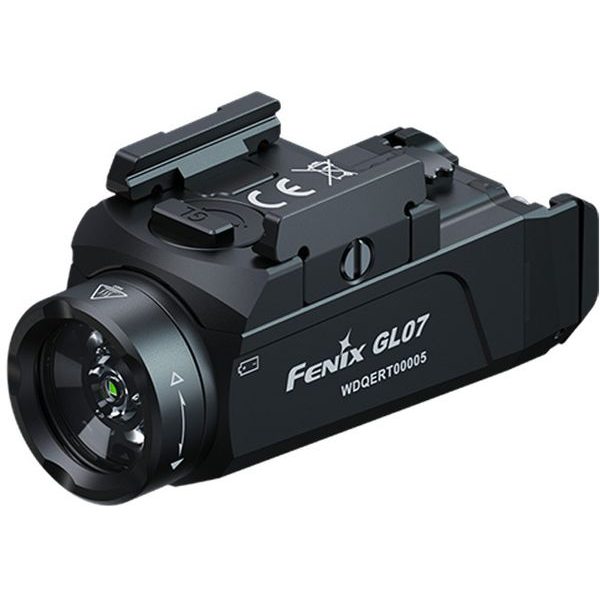

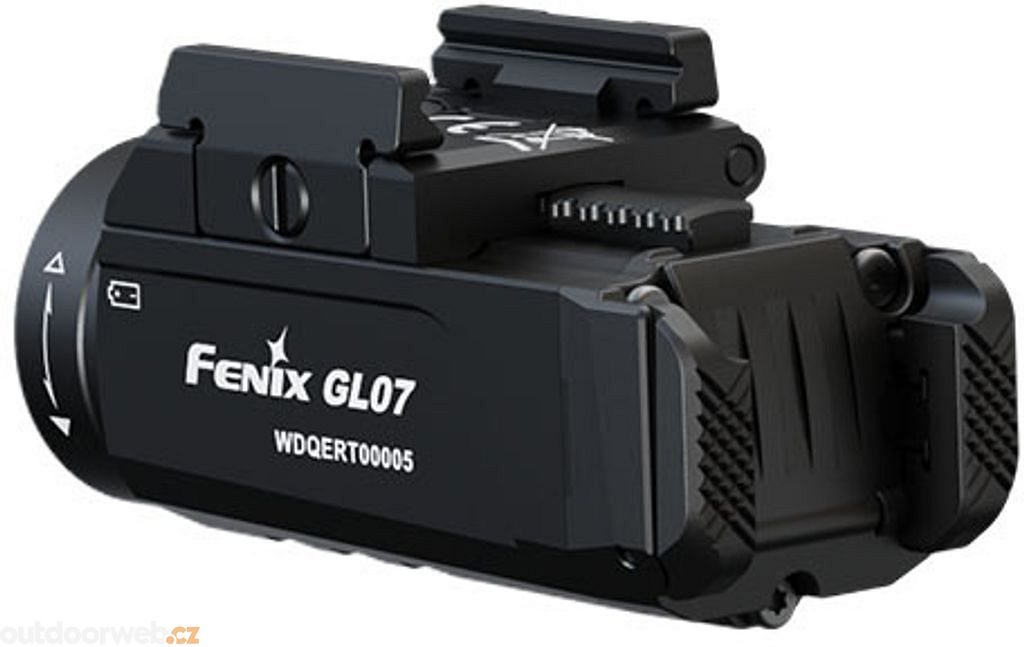

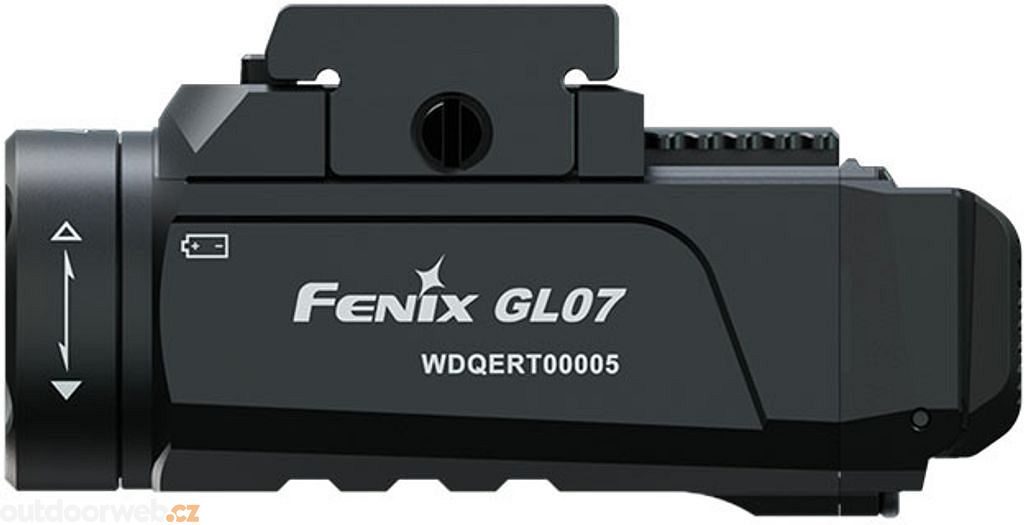

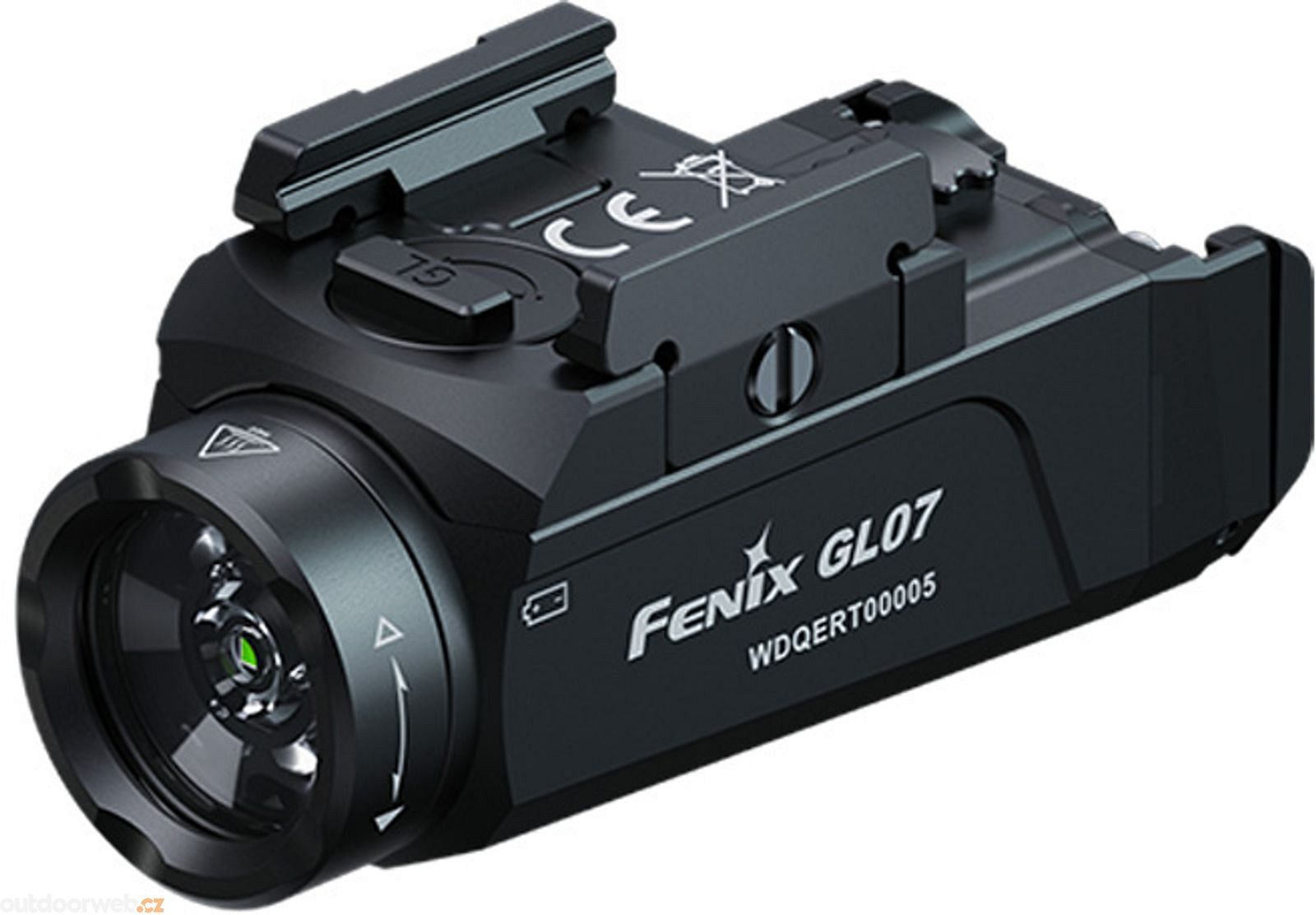

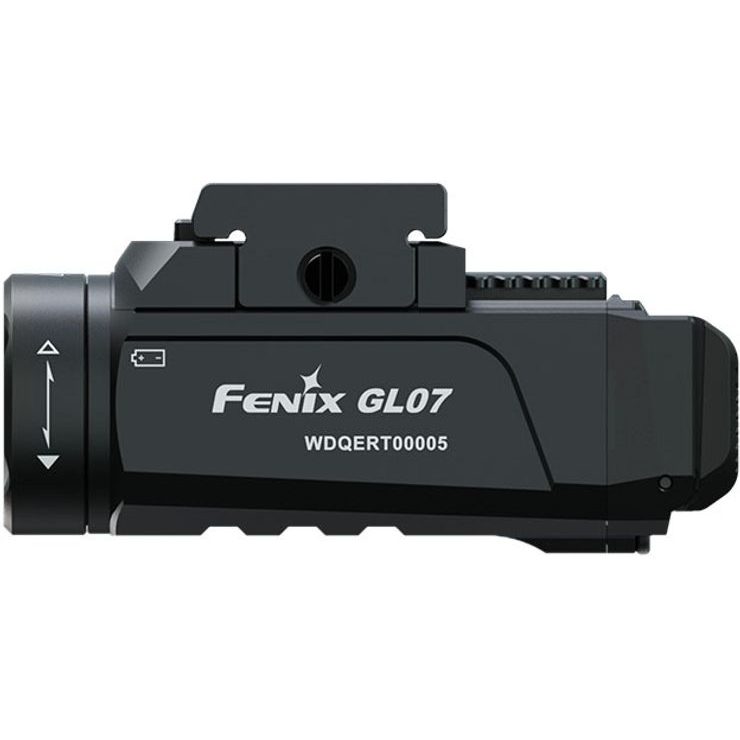

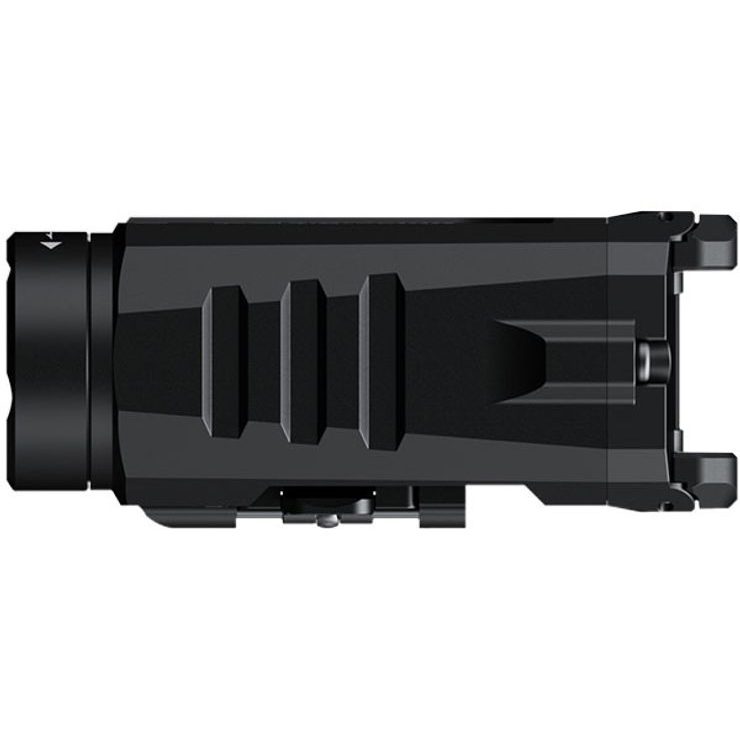

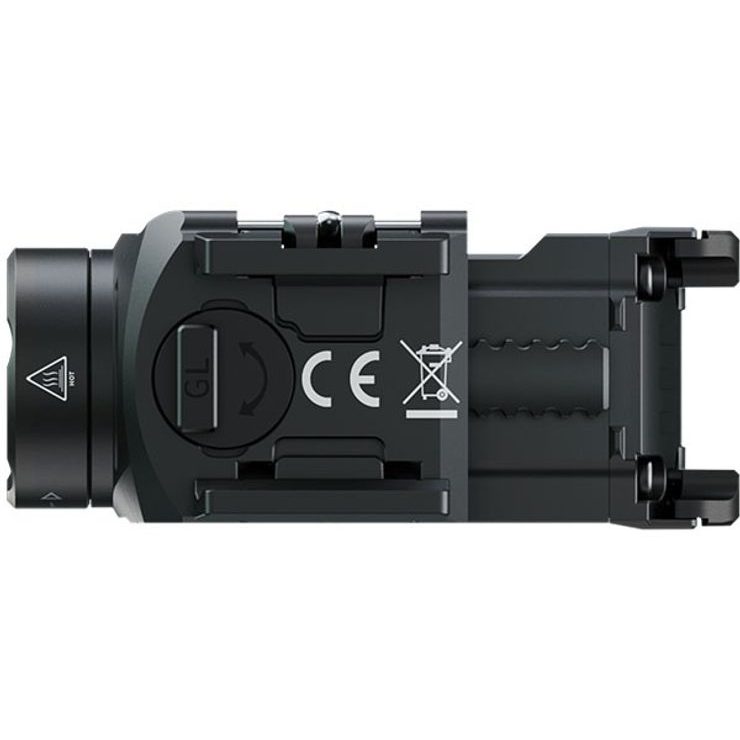

The Fenix GL07 pistol LED torch is a professional tactical light designed specifically for handguns, meeting the highest demands of police officers, soldiers and sport shooters. With a maximum output of 700 lumens and a beam distance of up to 240 metres, it provides reliable illumination even in the most demanding situations.

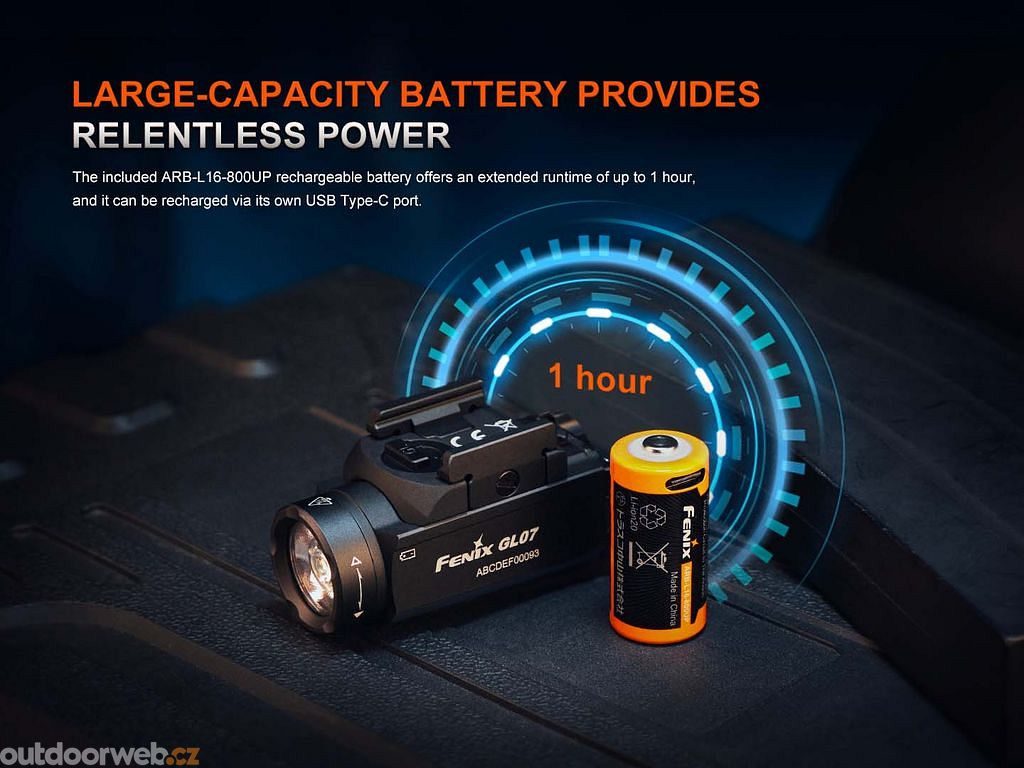

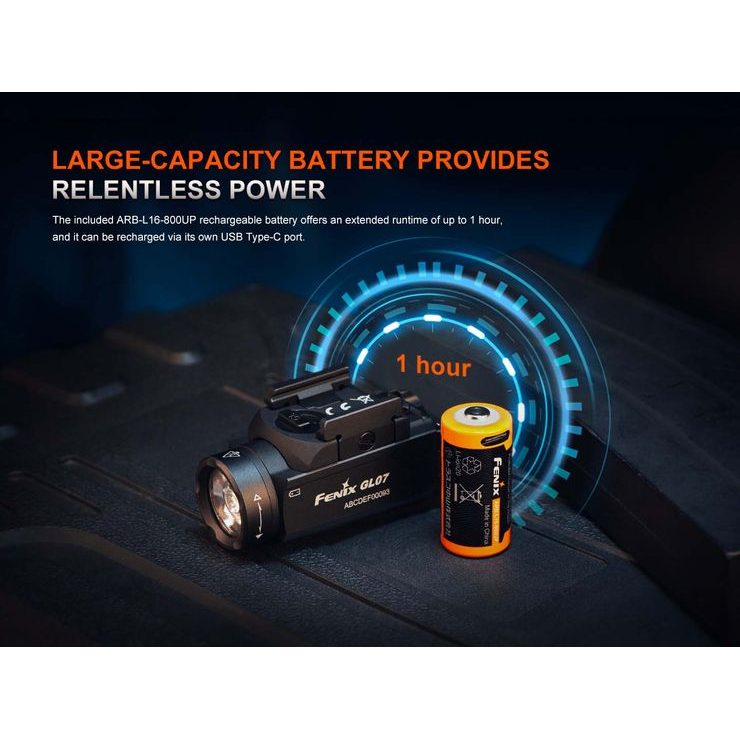

The torch uses a premium Luminus SFT-12R LED with a lifespan of 50,000 hours and is powered by a Fenix ARB-L16-800UP Li-ion rechargeable battery charged via a USB-C connector; both the battery and cable are included. All parameters are measured in accordance with the ANSI/NEMA FL 1-2009 standard, so the stated values are verified and trustworthy.

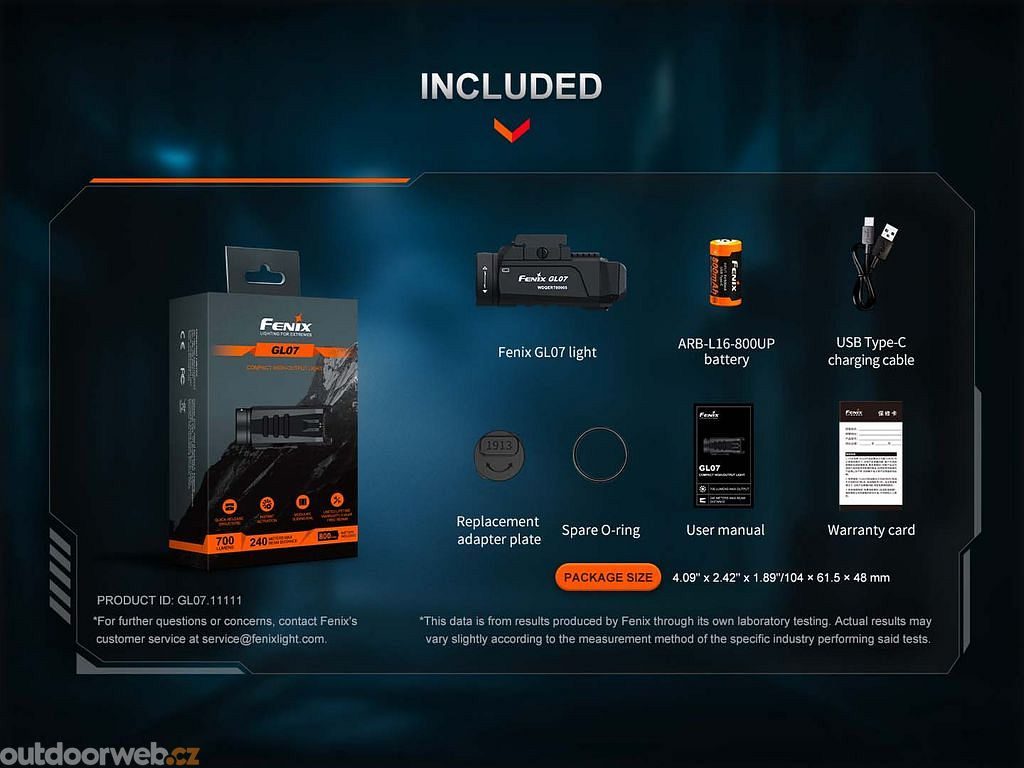

Package contents: torch, ARB-L16-800UP battery, USB-C cable, Picatinny latch, spare O-ring, manual

Warranty: five years for the torch. Two years for the battery.

1. Lightning-fast tool-free mounting

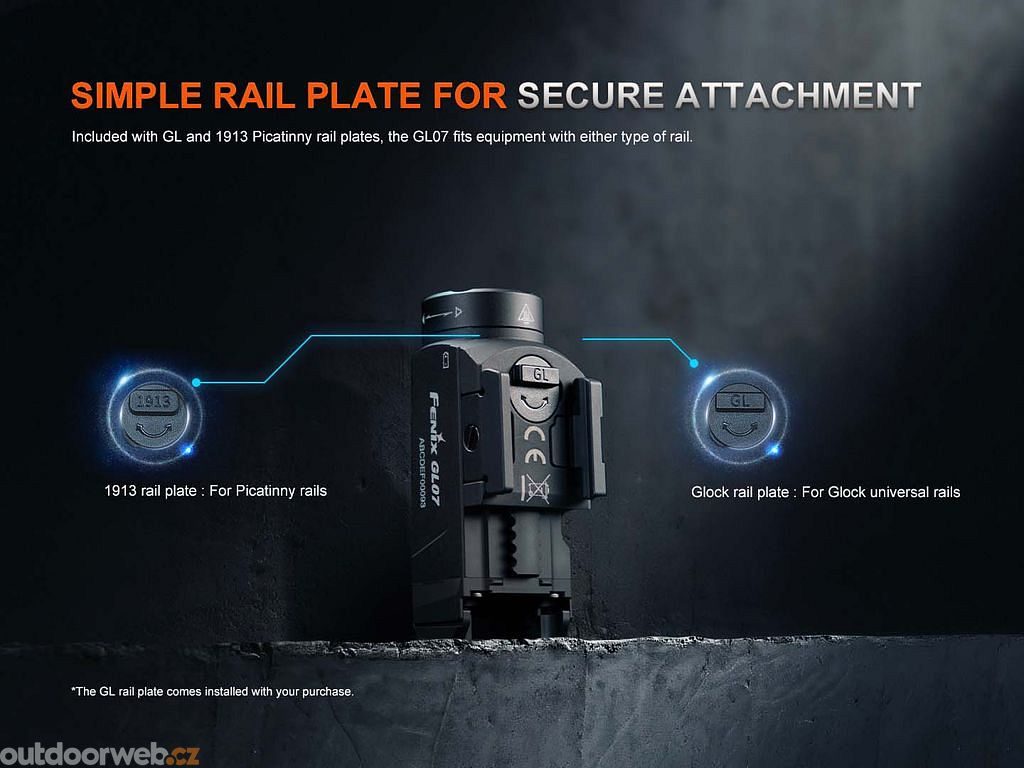

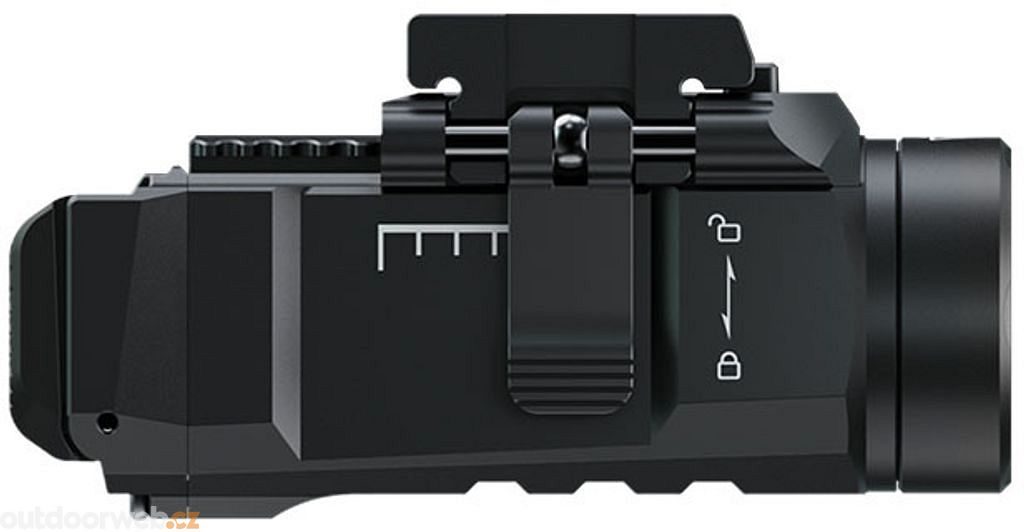

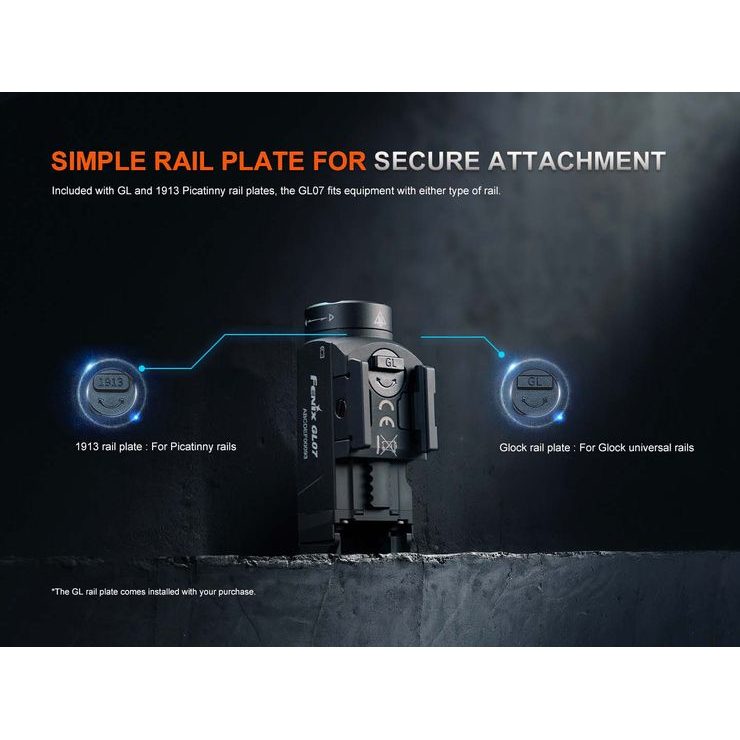

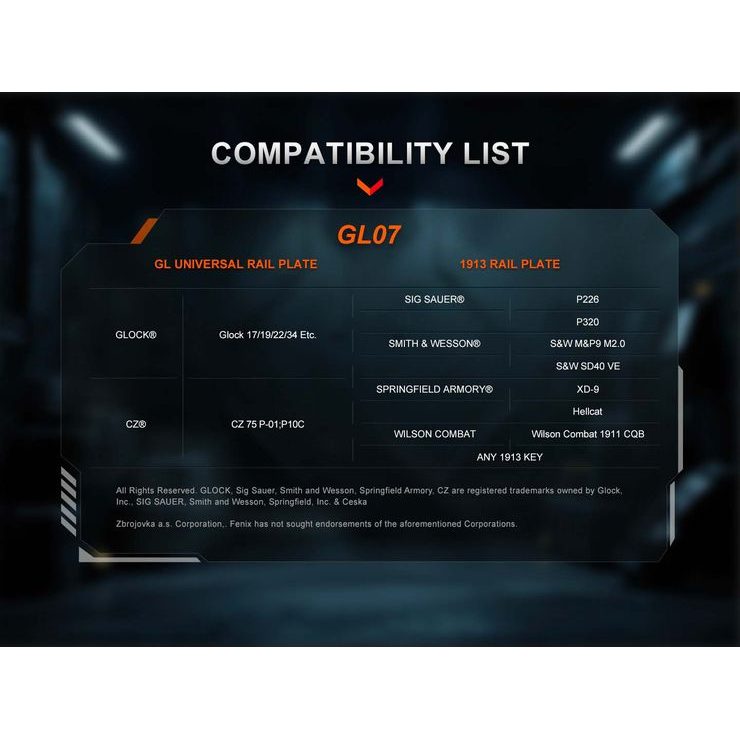

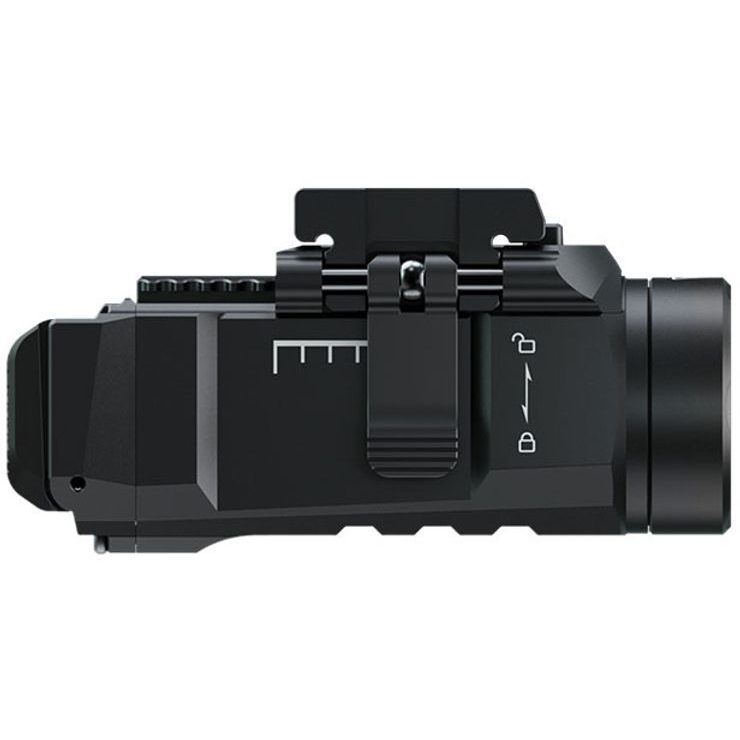

   Thanks to the quick-release design and modular sliding rail, the torch can be easily slid on, secured and precisely adjusted forwards or backwards to fit a specific firearm perfectly – ensuring broad compatibility with various models, including Czech Police service pistols (CZ 75D), and supporting both Picatinny MIL-STD-1913 and GLOCK standards.
2. Fully ambidextrous controls for every situation
   Both switches are positioned symmetrically so the torch can be comfortably operated one-handed by both right- and left-handed users. In addition to standard on/off, a single movement can activate strobe or momentary-on, which is a key advantage in tactical situations.

• Maximum output 700 lumens (1 hour)
• Beam distance up to 240 metres (12,000 cd)
• Luminus SFT-12R LED, 50,000-hour lifespan
• Powered by Li-ion ARB-L16-800UP or CR123A
• Charging via modern USB-C connector
• Waterproof to IPX7 – submersible to 1 metre
• Impact resistant – drops from 1 metre
• Intelligent overheat protection (55 °C)

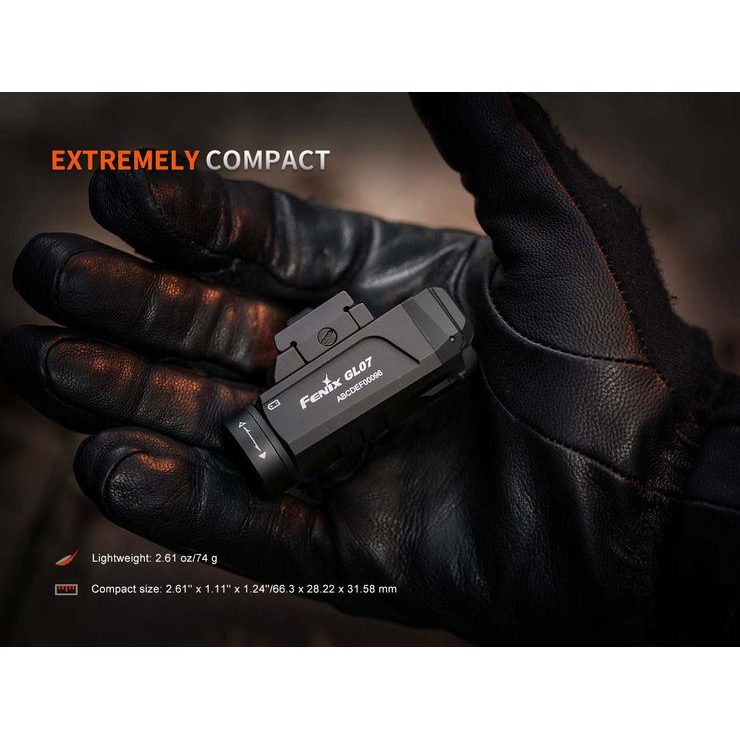

• Weight only 74 grams with battery
• Body made from aerospace-grade hardened aluminium (Type III)

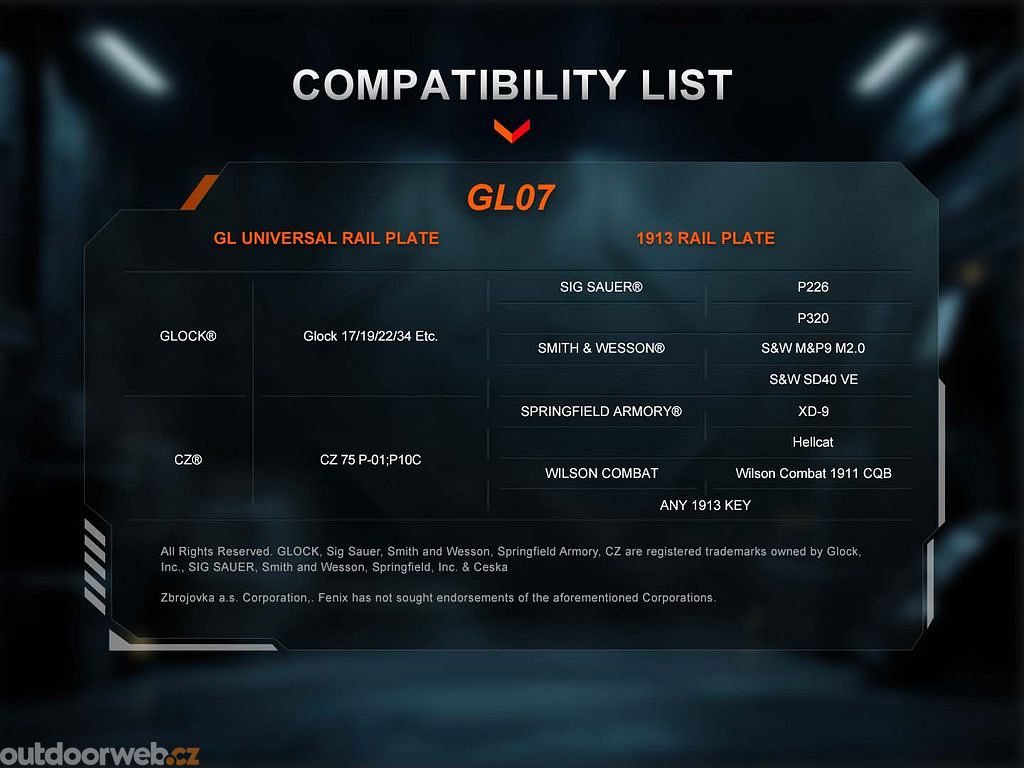

• Compatible with Picatinny MIL-STD-1913 and GLOCK
• Fits the CZ 75D service pistol (Czech Police)

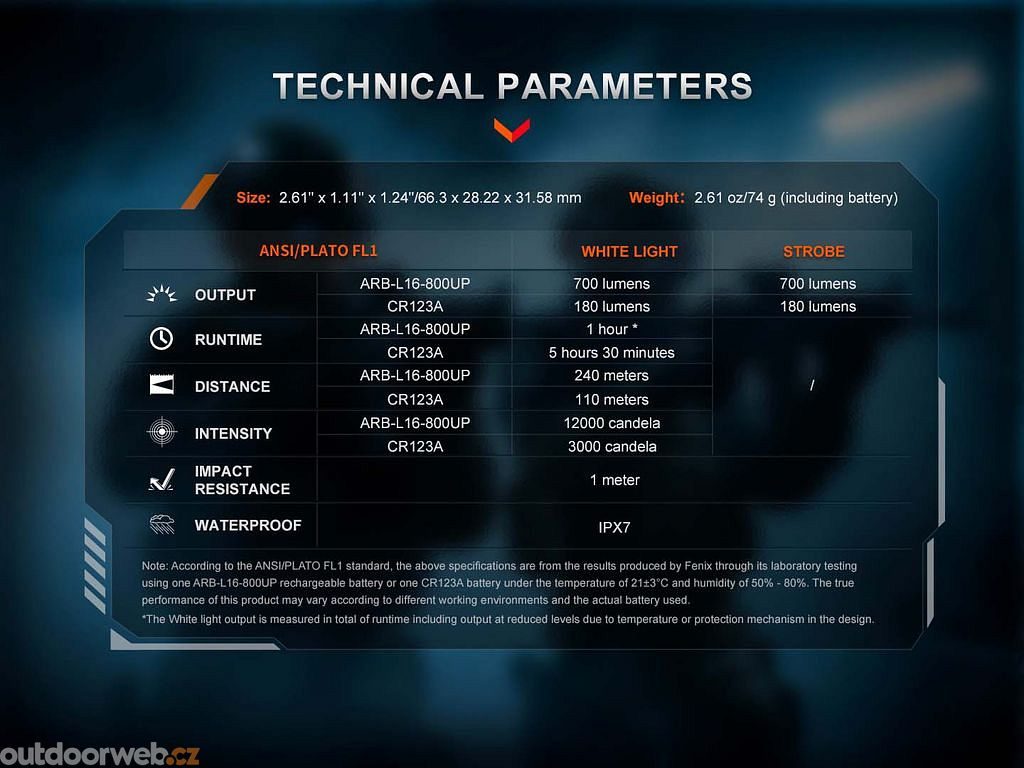

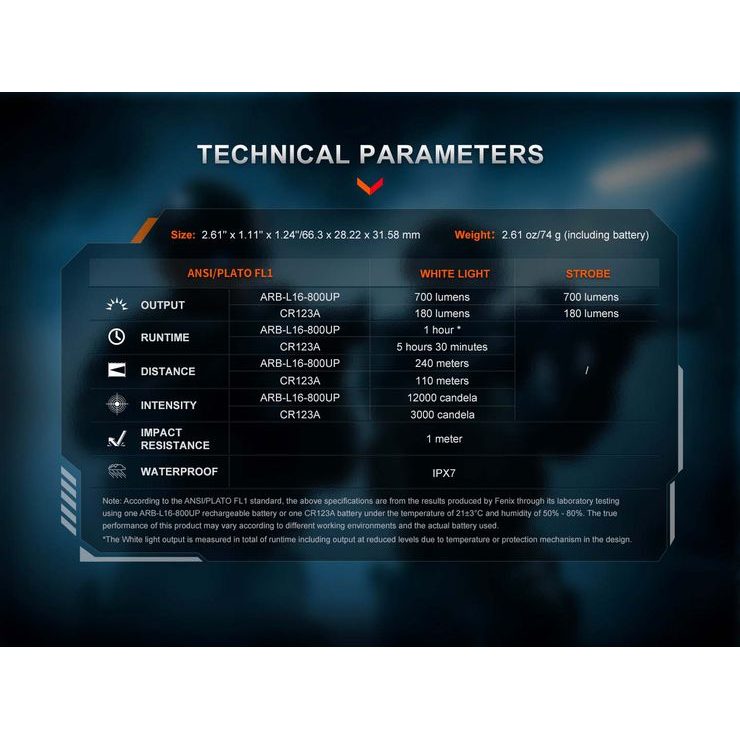

Specifications:

Luminous flux: 700 lumens (ARB-L16-800UP) / 180 lumens (CR123A)
Beam distance: 240 metres (12,000 cd)
Light source: Luminus SFT-12R
LED lifespan: 50,000 hours
Lighting modes: 2 (full output + strobe)
Battery life: 1 hour (700 lm) / 5.5 hours (180 lm)
Power: 1× Li-ion ARB-L16-800UP (included) or 1× CR123A
Max. battery diameter: 16.8 mm
Max. battery length: 35.2 mm

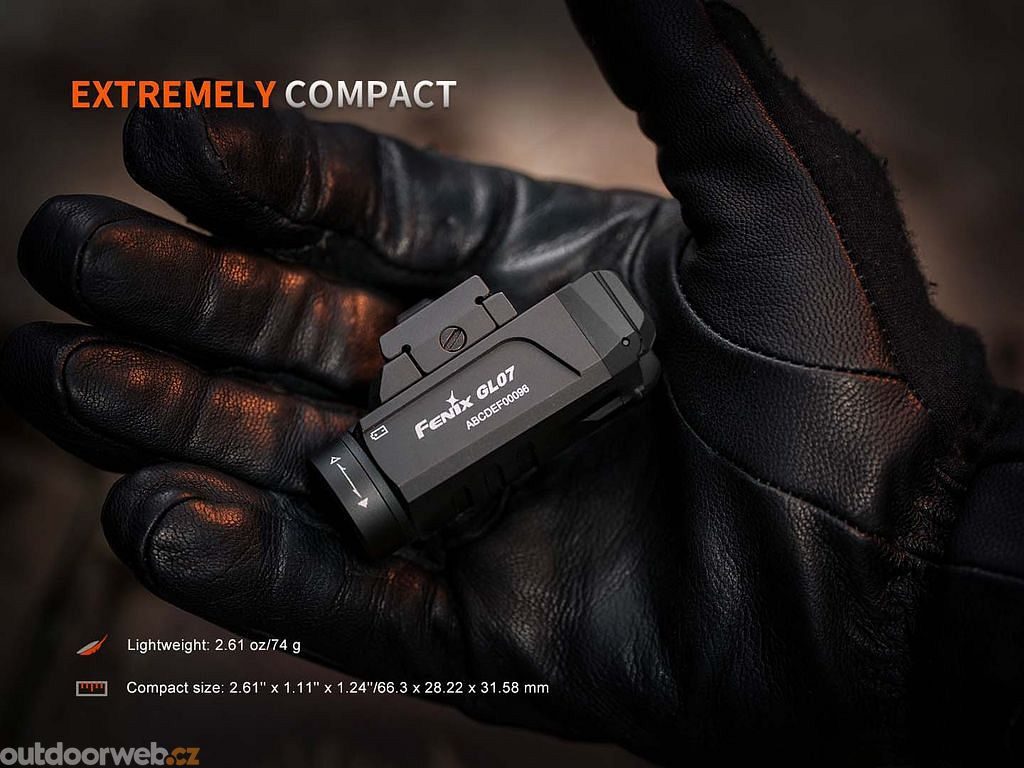

Dimensions: 6.63 cm × 2.82 cm × 3.16 cm
Weight: 74 g (including battery)

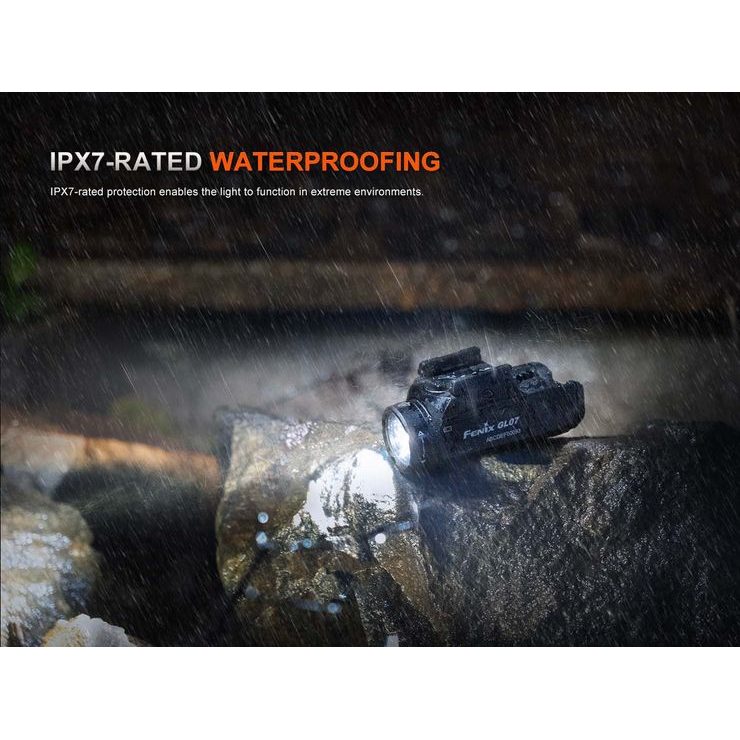

Water resistance: IPX7 (1 metre, 30 minutes)
Impact resistance: drop from 1 metre
Finish: Type III hard anodised
Rail compatibility: Picatinny MIL-STD-1913, GLOCK
Light colour: daylight white (5,500–6,500 K)

Operating the Fenix GL07 torch
From the factory, there may be an insulating cover inside the torch on the battery. Before first use, remove it from the battery.
Single click on either switch turns the light on/off.
Momentary-on – press and hold either switch. The torch will stay on while held and will turn off again when released.
Strobe activation - Pressing both switches simultaneously activates strobe. Strobe can also be activated by pressing and holding one switch and clicking the other switch. Press either switch again to end instant strobe mode, or press both switches simultaneously to return to the last-used output.

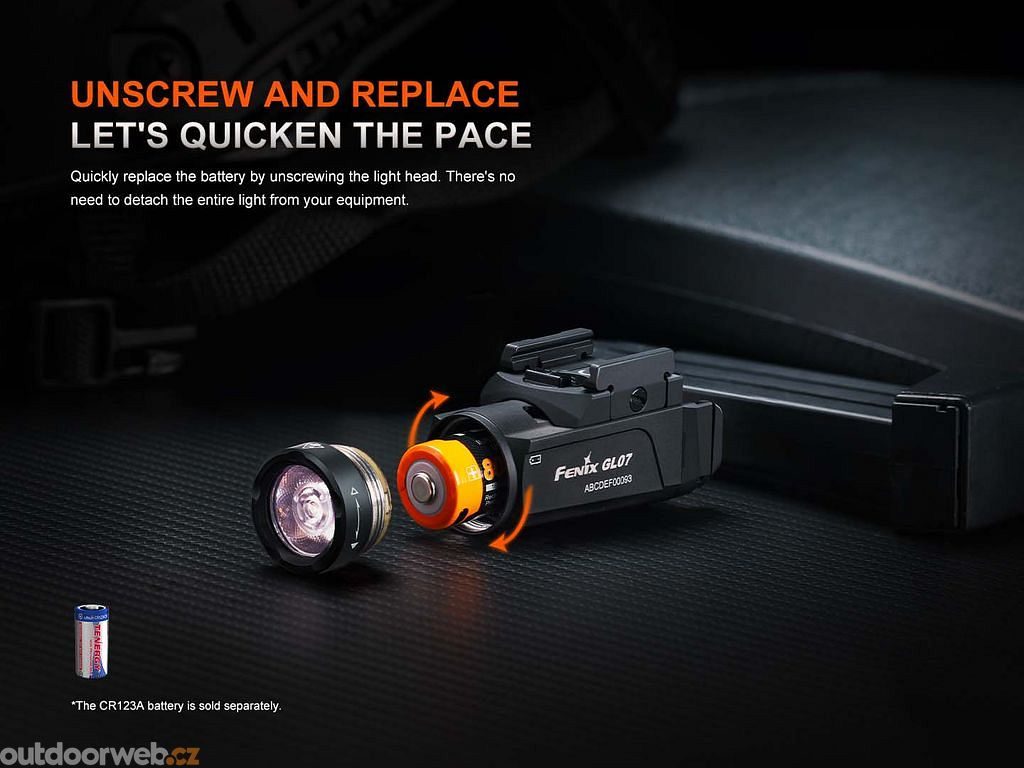

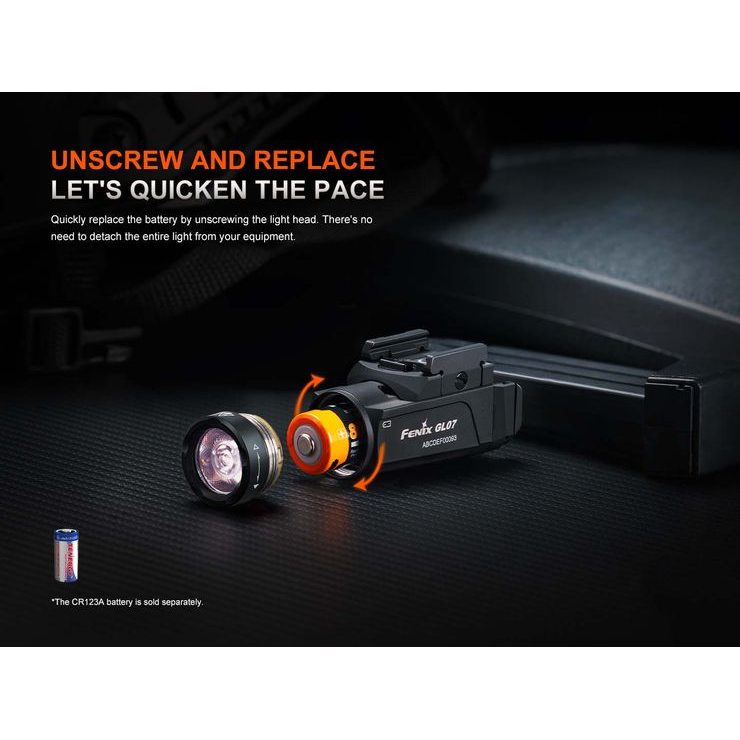

Battery replacement - Unscrew the torch head and insert the battery with the positive pole (+) towards the head, then screw the head back on.
Intelligent overheat protection - During prolonged use, a large amount of heat builds up. When the light reaches 55 °C or higher, it automatically reduces output by a few lumens to lower the temperature. When the temperature drops below 55 °C, it returns to standard output.
Low battery warning - If the rechargeable battery voltage drops below the set level, the torch automatically reduces output. If the battery voltage drops below 3 V, the torch flashes three times every 2 minutes to remind you to recharge or replace the battery.
Note: This function is active only when using rechargeable batteries.

Warning
Do not disassemble the sealed parts in the torch head yourself; this will void the warranty and may cause damage.
Fenix recommends using only high-quality batteries.
If you will not use the light for a long period, remove the battery.
If the torch lens is contaminated with combustion residue after shooting, try cleaning it with fine steel wool, or try using gun cleaning paste.
Long-term use may result in O-ring wear. To maintain proper water sealing, replace the ring with the spare one.
As firearm maintenance requires the use of organic solvents, avoid contaminating key torch components. This could damage the torch and void the warranty.
Regular cleaning of the electrical contacts ensures trouble-free operation, as dirty contacts can cause the torch to flicker, shine intermittently or not light at all for the following reasons:
- The battery is discharged – replace or recharge it.
- The contacts inside the torch are dirty – clean them with a cotton swab soaked in alcohol.
