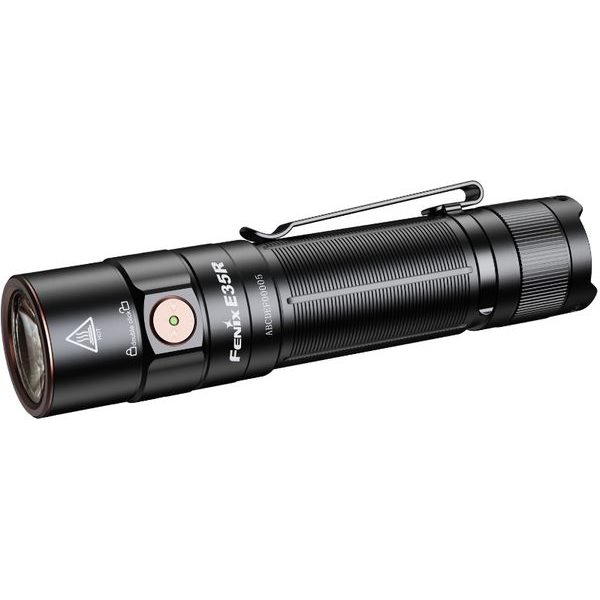

FENIX E35R - Rechargeable LED flashlight

The Fenix E35R rechargeable pocket flashlight offers up to 3100 lumens (ANSI) and a range of up to 260 meters. Excellent performance has been achieved using the advanced Luminus SST-70 LED. A high-capacity 21700 type Li-ion battery with a 5000 mAh capacity is used to provide power.

It is recharged via a USB-C connector on the side of the flashlight. The E35R replaces the successful E35 V3.0 flashlight, and has a built-in charging connector and magnetic end to counter it. The flashlight was designed with ease of use and broad applicability in mind.

The six light functions allow you to choose between high power and more than two and a half days of runtime. There is also a blinding strobe for emergency situations. The Fenix E35R is powered by digitally controlled constant current to guarantee constant light output even when the batteries are low (slowly discharging).

The flashlight features an ultra-thin collimator that is made using technology from the auto industry. Switching on and switching modes is done by a button ergonomically placed on the side. A magnet in the end cap is handy, the flashlight can be attached to iron objects.

This flashlight is an ideal light tool with an excellent ratio of high performance, quality and price. It can be recommended for a wide range of outdoor, sporting, work and professional activities.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

Package contents: flashlight, Fenix ARB-L21-5000 V2.0 battery, USB-C charging cable, wrist lanyard and replacement o-ring.

Warranty.

1. Six Power Modes: 3100 lumens (2.5 hours) -> 1000 lumens (3.67 hours) -> 350 lumens (9.3 hours) -> 150 lumens (21.3 hours) -> 30 lumens (69 hours) - Variable frequency strobe (3100 lumens).
2. The flashlight has a memory and will turn on in the last mode selected (applies to 30, 150 and 350 lumen modes only).
3. Made of T6 aircraft-grade hardened aluminum, the flashlight is impact resistant to drops from a height of 1 meter.
4. Unique super-thin collimator for a perfect light cone with a range of 260 meters (15103 cd).

• Premium Luminus SST-70 LED with a lifetime of 50000 hours is used.
• Lumen output and run times are measured with the included 21700 5000 mAh Li-ion battery
• Digital constant regulation electronics and intelligent overheat protection
• Anti-accidental reverse battery insertion (reverse polarity)
• Bottom surface - Type III hard anodized
• Battery charge status indication built into the button
• Waterproof to IP68 standard (tested underwater at 2 meters depth)
• E-Series models are supplied without case. This base case can be purchased separately
• The LockBlocks bike mount, BikeBlock bike helmet mount are also compatible with the flashlight

Specifications:

Range: 260 m
Lumen output: 3100 lm
Weight: 148 g
Number of modes: 6
Maximum endurance: 69 h
Dimensions: 12 x 2.65 cm

Using the Fenix E35R Work Flashlight
From the factory, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use. To turn on or off, hold the side button for approximately 0.5 seconds, the flashlight will always turn on in the last selected mode except for the two highest modes (turbo and high). You can switch power modes at any time during operation by pressing the side button. The strobe can be activated by holding the button for 1.2 seconds. When the button is released, the strobe will turn off.
Charging - flip off the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer or USB adapter to the mains or car. During charging, the indicator LED lights red. When fully charged, it will light up green. Charging a fully discharged battery takes about 3 hours (with a 2A power supply). 30, 150 and 350 lumen modes can be used during charging.
Intelligent overheat protection - If the temperature exceeds 60°C, the power will be automatically reduced. Once the temperature drops below 60°C, the highest power can be used again.
Battery charge indication - After a short press of the button (the flashlight must be switched off), the LED indicator in the button is activated. If the indicator LED is green the battery is charged to more than 85%. Green flashing means 50-85% capacity. If it is red, it is 25-50% charged. Red flashing indicates less than 25% battery capacity remaining.
Button lock - if you want to prevent the flashlight from being accidentally turned on in your luggage, press the button twice quickly within 0.5 seconds (the flashlight must be off), the flashlight will then flash twice in low mode and cannot be turned on. Unlocking is done by pressing the button again quickly twice. Unintentional switching on can also be prevented by loosening the flashlight body.
Discharged battery warning - the side button starts flashing red and the flashlight gradually switches automatically to the lowest mode.

Warning
Do not disassemble the sealed part in the flashlight head yourself, it will break the warranty.
Use only high quality 21700 Li-ion batteries to avoid damaging the flashlight, for example due to battery leakage.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers, does not switch to higher power, or does not light up, it may be due to one of the following reasons
- The battery is dead, charge it.
- The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
- The flashlight body is loose, tighten it.
