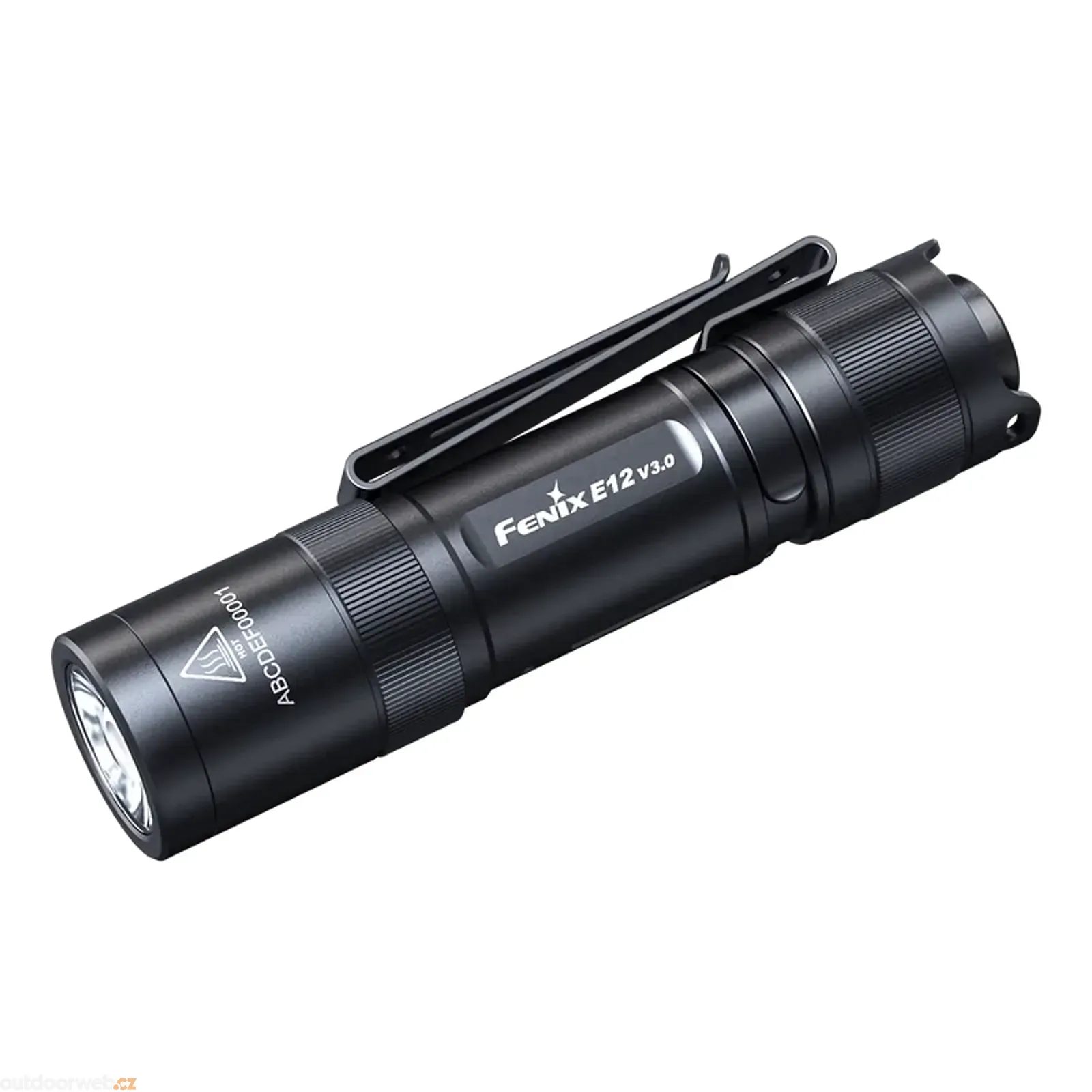

Meet Fenix E12 V3.0, the third generation of the popular pocket flashlight. Powered by a single AA battery, this model provides up to 200 lumens of ANSI standard light output.

Weighing just 53.9 grams including battery, its compact size makes it ideal for everyday carry. The flashlight features a TIR collimator that generates a wide light cone with a range of up to 78 meters. It offers three power modes with a maximum run time of up to 100 hours and meets IP68 durability and waterproof standards.

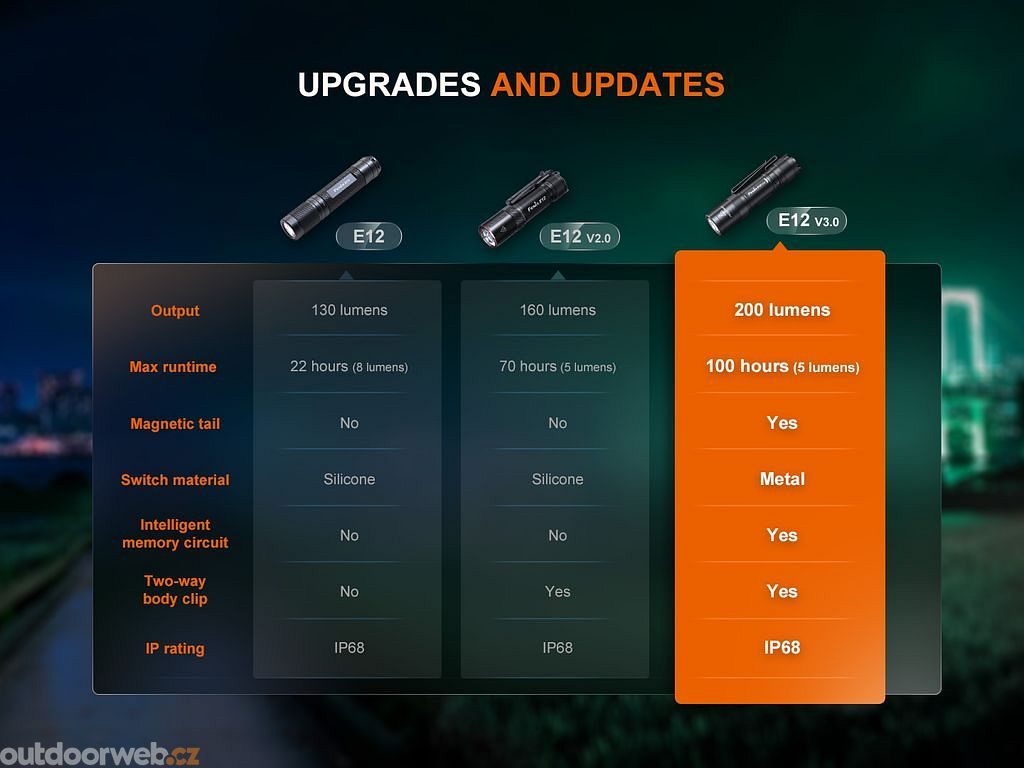

New features include a metal switch with integrated magnet, allowing the flashlight to be attached to any iron surface and the ability to stand on an end cap for use as a candle. All key parameters of the flashlight comply with ANSI/NEMA FL 1-2009 standard, which guarantees its high quality and reliability.

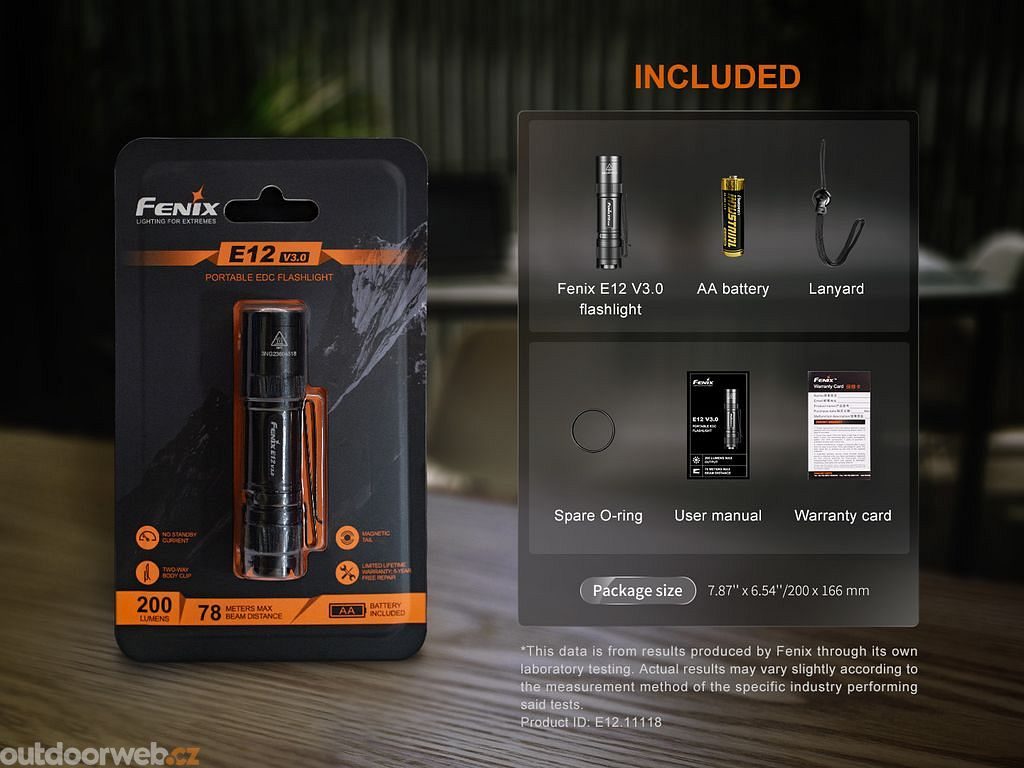

Package contents: hand strap, alkaline battery and replacement o-ring.

Warranty: 5 years

1. Energizer L91 Ultimate Lithium pencil batteries (especially suitable for extreme conditions and expeditions) will provide the longest battery life.
2. Uses a single pencil battery (AA type - alkaline, lithium or rechargeable NiMH). These batteries are inexpensive and widely available.
3. Three power modes: 200 lumens (1 hour) -> 30 lumens (15 hours) -> 5 lumens (100 hours).
4. Sturdy steel double-sided clip for safe and easy carrying of the flashlight (removable).

• Powerful LED SST-20 with a lifetime of 50000 hours is used.
• Endurance times are measured with the included alkaline battery.
• Protection against accidental insertion of the battery in reverse (reverse polarity).
• Flashlight has memory and always turns on in the last used mode.
• Light cone with a range of up to 78 metres (1533 cd).
• Metal switch with integrated magnet.
• Made of aircraft hardened aluminum type T6, durable surface - Type III hard anodized.
• Shockproof against falls from a height of 1 meter.
• Waterproof to IP68 standard (tested underwater at a depth of 2 metres).

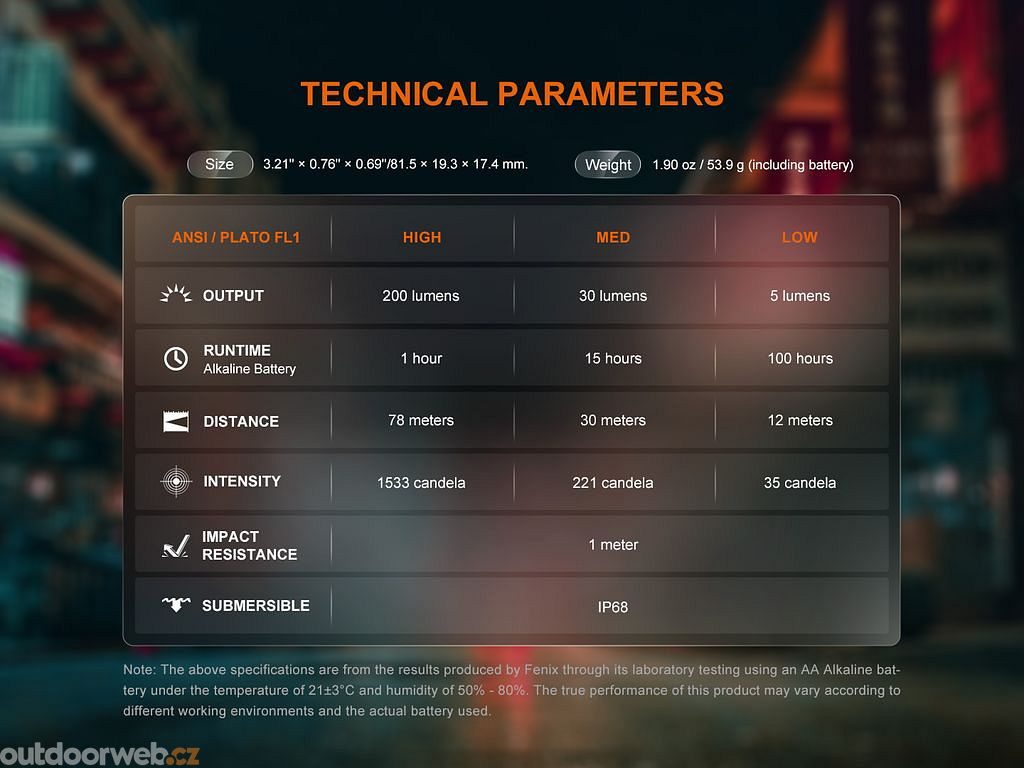

Specifications:

Power: 200 lm
Range: 78 m
Max life: 100 hrs
Power: 1x AA
Number of modes: 3
Waterproof: IP68 (2 m immersion)
Light colour: Daylight white (5500-6500 K)
Light source: Luminus SST-20
Weight: 59.3 g (including alkaline battery)
Dimensions: 8.15 cm (length) x 1.93 cm (head diameter) x 1.74 cm (body diameter).

Using the Fenix E12 V3.0

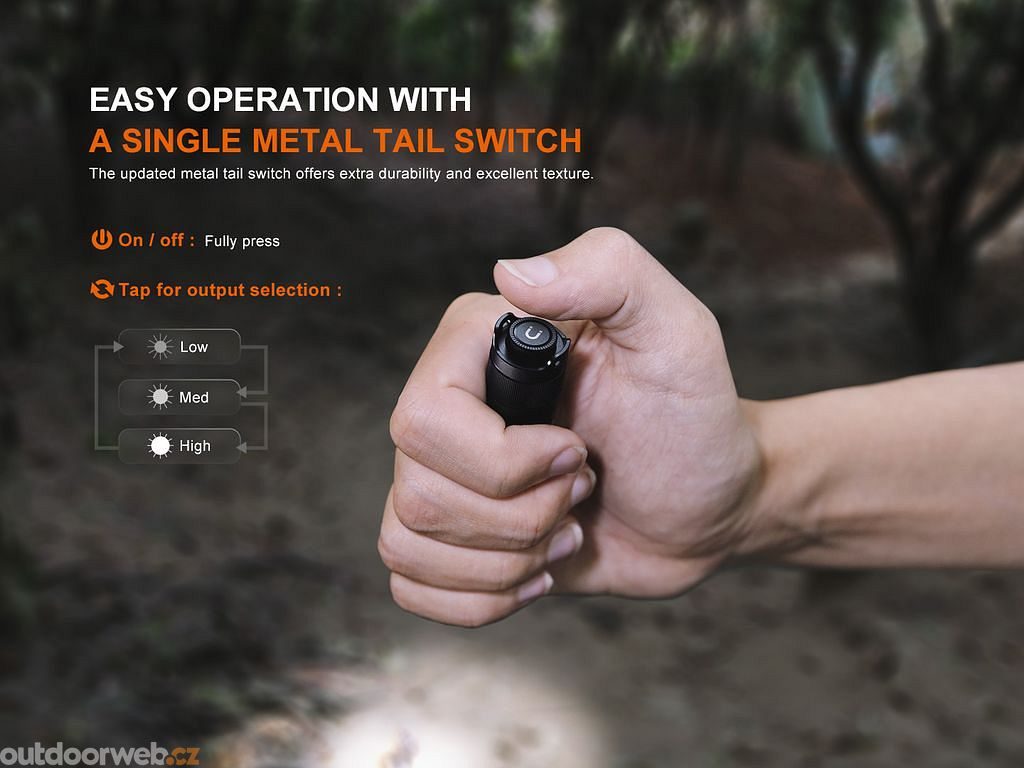

To turn on, press the power switch located at the end of the flashlight. The flashlight has memory and will always turn on in the last mode used. With the flashlight on, you can change power modes at any time by pressing the button (cycles through low - medium - high).

Warning
Do not disassemble the sealed part in the head of the flashlight yourself, this will violate the warranty.
Use only high-quality pencil batteries to avoid damaging the flashlight, for example due to battery leakage.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers or does not light up, it may be due to one of the following reasons:
- The batteries are almost dead - replace them.
- The contacts inside the flashlight are clogged - clean them with a cotton swab dipped in alcohol.
- The flashlight body is loose, tighten it.
