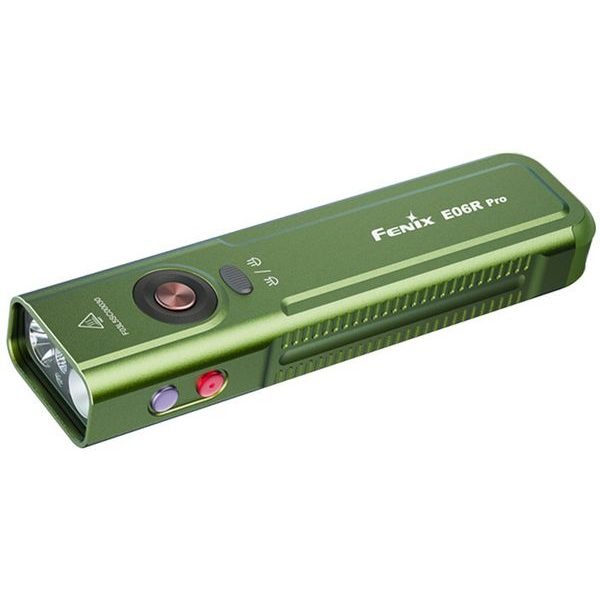

Fenix E06R PRO is a revolutionary torch that combines extreme performance with a compact body. Two top-end LED chips, a UV LED and a laser fit in your pocket without getting in the way. Up to 1600 lumens, 160 metres of range and a battery that lasts 111 hours – this is EDC on the next level.

In the box: torch, wrist lanyard, USB-C charging cable.

Warranty: 2 years

1. Two separate high-performance light sources
   The long-range spotlight with cool white light and the wide floodlight with neutral light can be switched instantly. Each has five output levels, a turbo mode and strobe.
2. Multifunction controls with night mode
   Ultraviolet, laser, discreet colour pulsing and “breathing” button illumination make it a versatile tool. Four buttons allow precise control without complications.

• Flat design, 104 grams, pocket size
• USB-C charging directly in the torch body
• Battery status indicator in the button
• Last-mode memory
• IP66 water resistance, 1-metre drop without damage
• Intelligent thermal protection
• Two tactical modes for emergency situations

Specifications:

Light output: 1600 lumens (ANSI) in turbo mode
Range: 160 metres (6234 candela)
Battery: 1650 mAh internal lithium-polymer
Runtime: up to 111 hours (lowest mode)
Modes: 19 total (white, UV, laser, coloured)
Dimensions: 12.3 x 3.1 x 2.1 cm
Weight: 104.1 g
LED emitters: Luminus SST-20 and SFT-25
UV wavelength: 365 nanometres (1300 mW)
Laser: 0.39 mW / 650 nanometres (Class 1)
Charging: USB-C, 5 V / 1 A
Waterproof rating: IP66 (heavy rain)
Impact resistance: 1-metre drop, aluminium with Type III coating

Use
To switch the white light on/off, press and hold the main or tail button for about 0.5 seconds. The four basic output levels are then switched by pressing the same button. Turbo mode is activated by holding the tail button for 0.8 seconds. Strobe can be activated by holding the main button for 1.2 seconds. Switch between the long-range and wide reflector by pressing the oval switching button.
UV light is switched on/off by holding the purple button on the side of the torch for about 0.5 seconds.
Red laser is switched on/off by holding the red button on the side of the torch for about 0.5 seconds.
Coloured button backlight and the light in the base - the 3D light ring around the main button incl. the lights in the base of the torch can be turned on by a quick double press of the main button when the torch is off. Subsequent presses cycle through five functions – red flashing → blue flashing → red and blue flashing → RGB light → Aurora. The light ring can be turned off again by holding the main button for 0.5 seconds.
Last-mode memory - when switching on the white light, the torch always turns on in the last selected output level.
The control buttons can be locked to prevent accidental activation, e.g. during transport in luggage - to lock, switch the torch off and hold the red and purple side buttons simultaneously for 2 seconds. The torch will then flash to indicate lockout. To unlock, hold them again for 2 seconds.
Battery charge indication - with the torch switched off, briefly press the main button once; the small LED in the button will then light for three seconds. Green indicates 100–85%, flashing green 85–50%, red indicates 50–25% and flashing red indicates less than 25%. The number of available white-light modes may vary depending on the current charge level.
Overheat protection - if the torch temperature exceeds 60 °C, output will be reduced automatically. Once the temperature drops below 60 °C, output will increase again.
Low battery warning - the torch will gradually switch automatically to the lowest output level and the indicator LED in the switching button will start flashing red.

Charging
Connect the torch via the USB-C cable to a computer, a mains USB adapter or a car USB adapter. Any mobile phone charger with a USB-C connector can also be used for charging.
During charging, the indicator LED in the button lights red; once fully charged it lights green.
Charging voltage: 5 V, max charging power 5 W (5 V / 1 A).
During charging, the torch can be used except for turbo mode and coloured modes. The number of available white-light modes may vary depending on the current charge level.
The battery used does not suffer from memory effect, so the torch can be recharged at any time.

Warning
Do not disassemble sealed parts yourself; this will void the warranty.
If the torch does not switch to higher output levels, or does not turn on, the battery is discharged - put the torch on charge.
