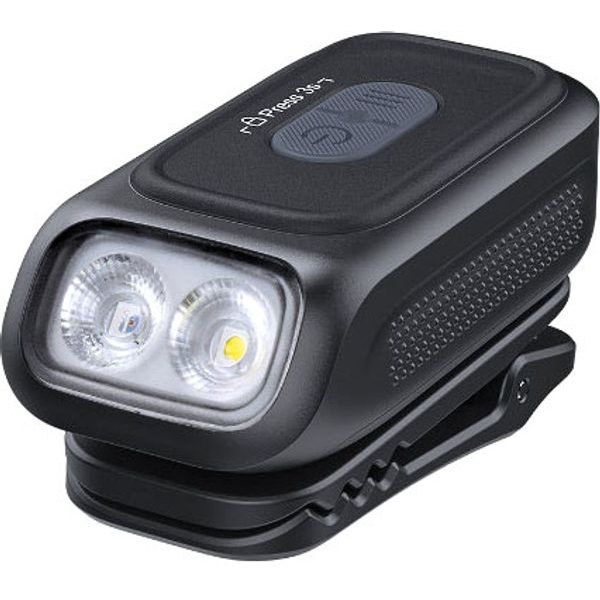

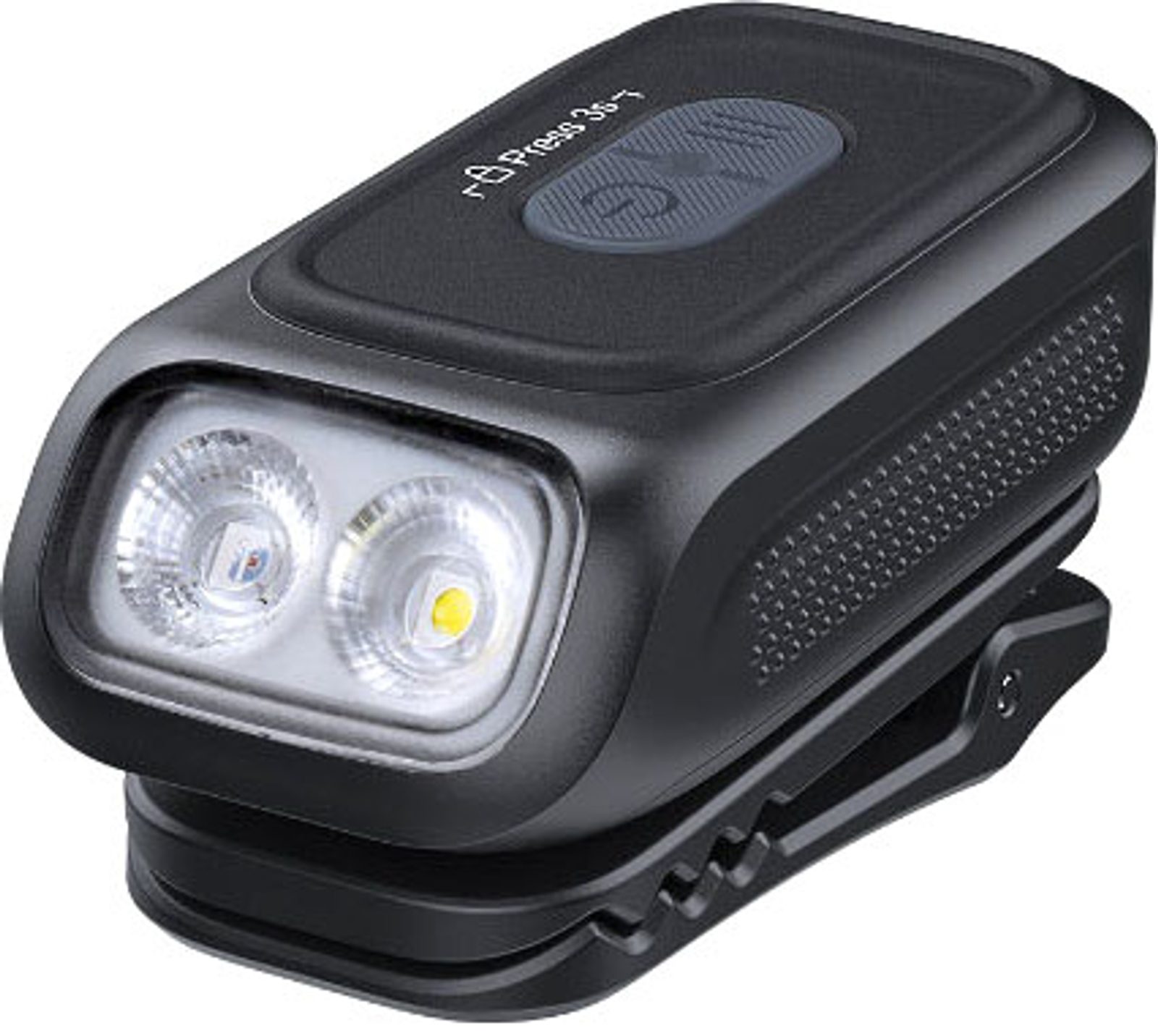

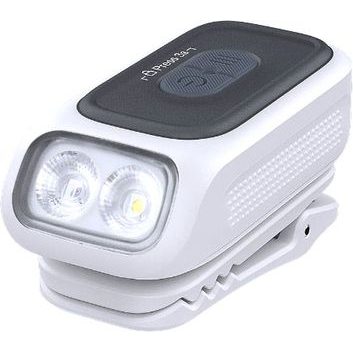

Fenix E04R is a multifunctional rechargeable torch designed for everyday carry as well as demanding outdoor situations. Thanks to its compact dimensions and weight of just 41 grams, you will always have it to hand without even noticing it.

The torch combines powerful white light with a beam distance of up to 46 metres, a main light and a side warning light, covering a wide range of uses – from hiking and running to cycling or DIY work. Charging via a modern USB-C connector directly in the torch ensures convenient and fast operation without the need to replace batteries.

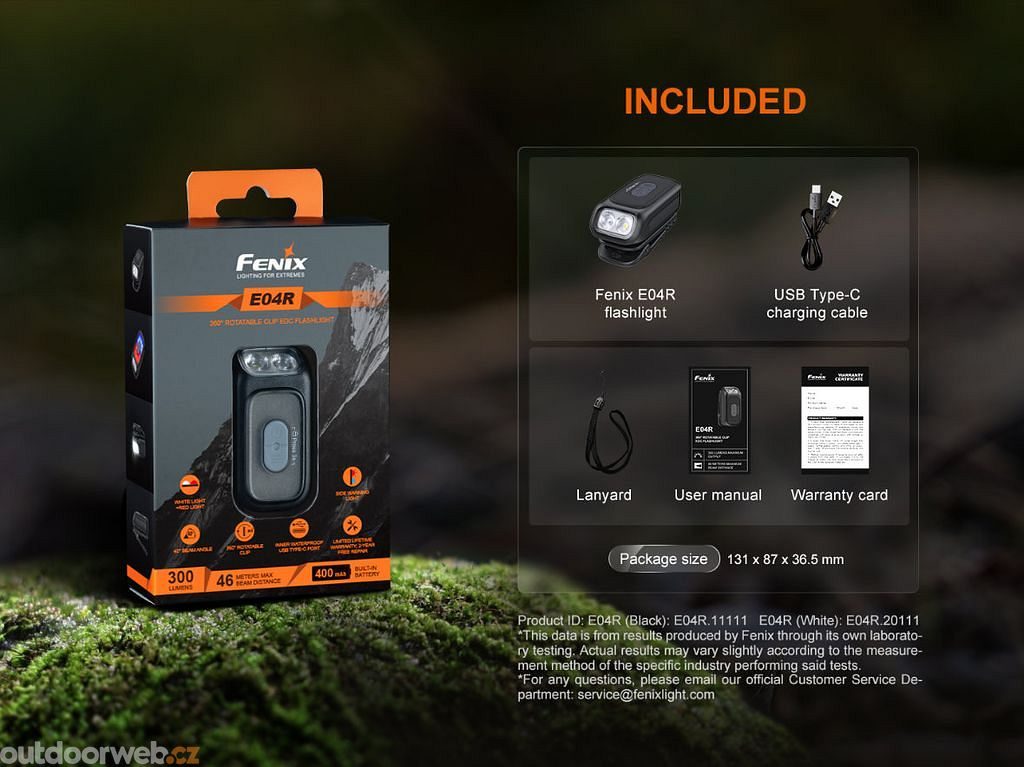

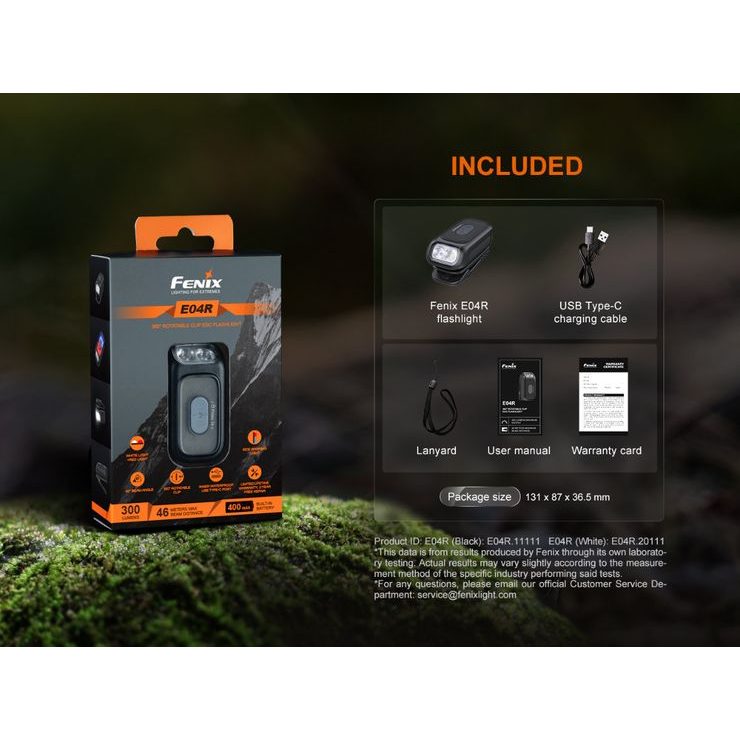

Package contents: torch, USB-C charging cable, wrist lanyard

Warranty: 2 years

1. Versatile carry and mounting options

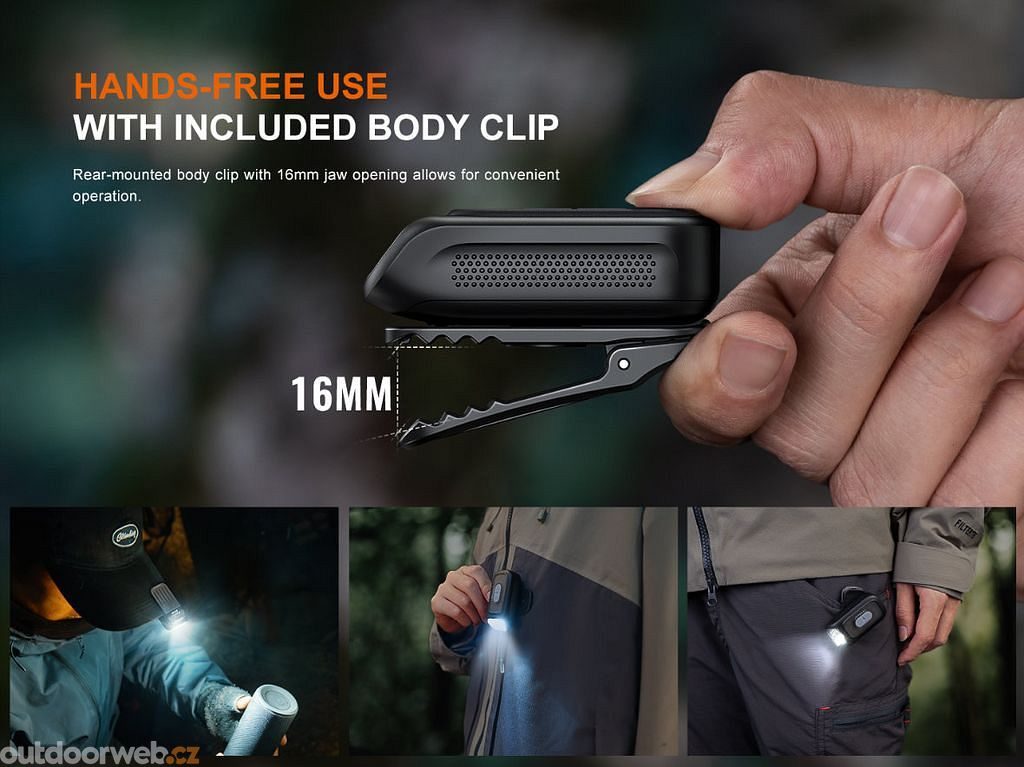

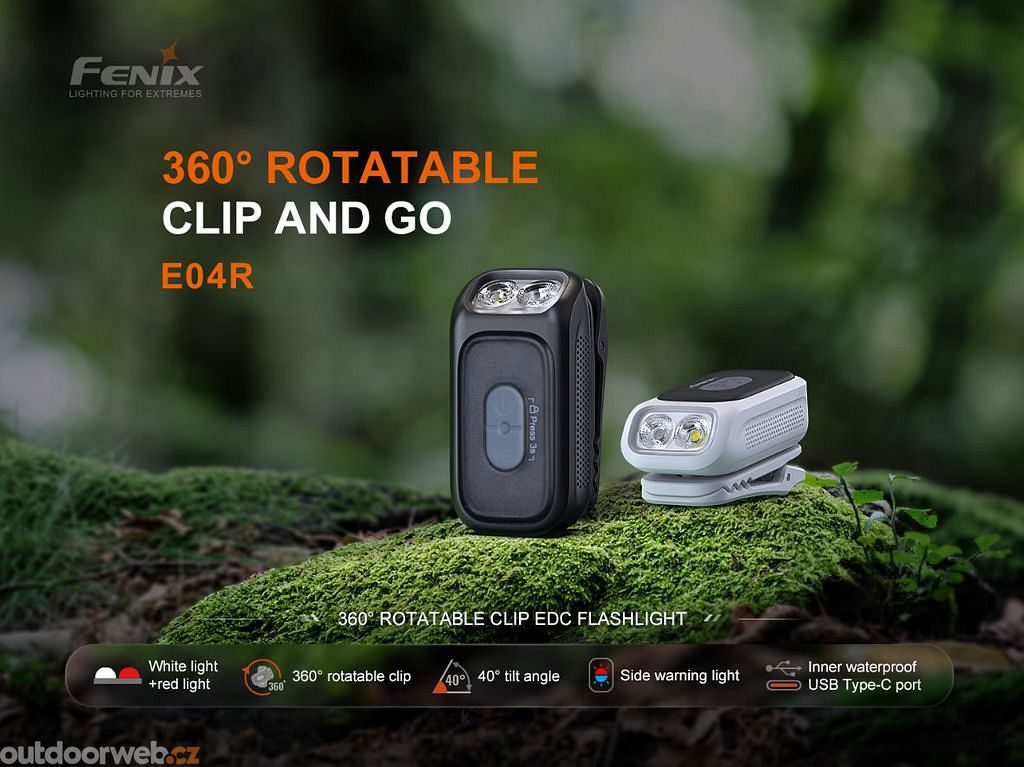

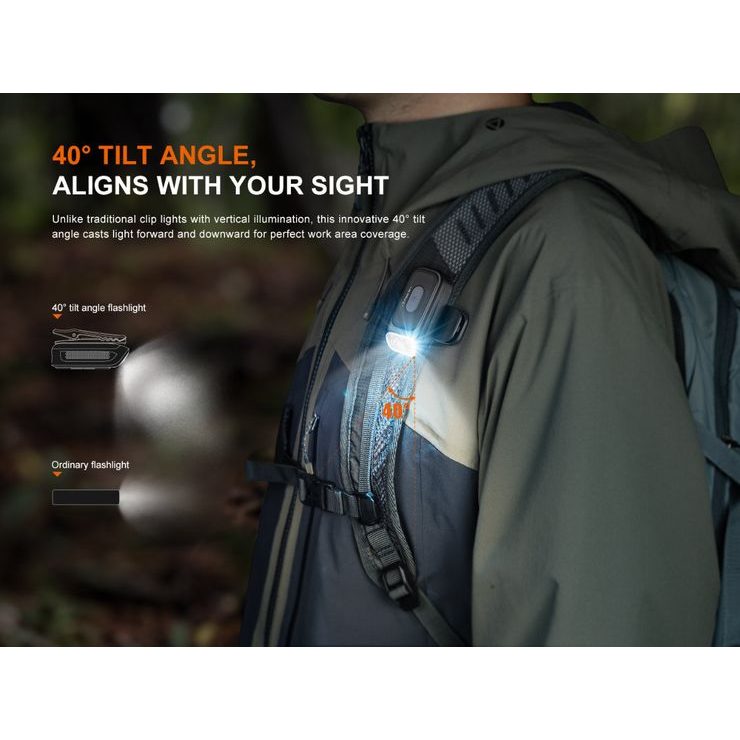

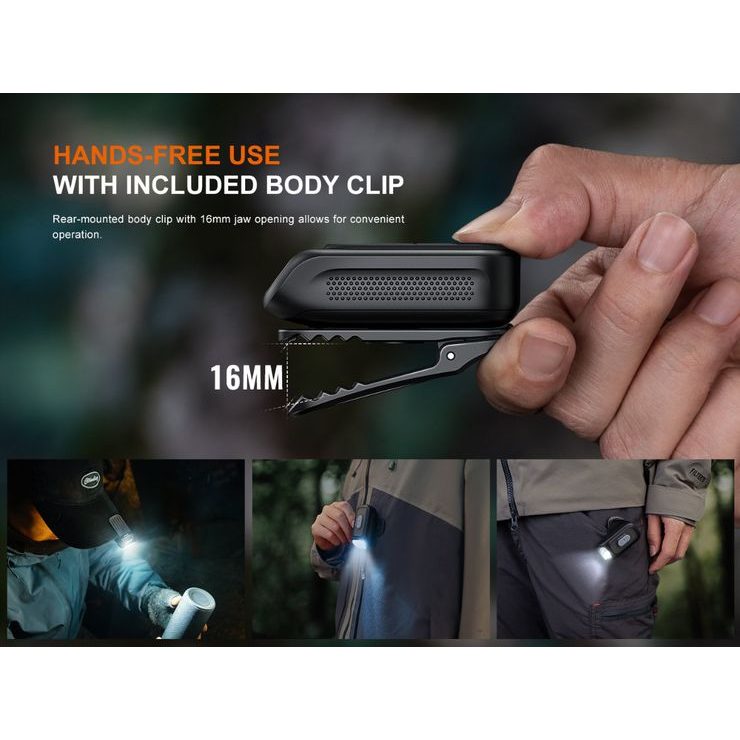

   Integrated 360° rotating clip together with the option to tilt the beam direction by 40° lets you attach the torch virtually anywhere – to a cap brim, belt, backpack strap, pocket, MOLLE webbing or a headlamp strap, so every user can adapt it exactly to their needs.
2. Long runtime and reliable protection
   The built-in 400 mAh rechargeable battery provides up to 87 hours of runtime in the lowest white-light mode. The torch is equipped with protection against overcharging, full discharge and overheating, and meets the IP66 standard for water and dust resistance, so even strong jets of water from all directions won’t stop it.

• Output up to 300 lumens of white light
• Beam distance up to 46 metres (683 cd)
• Six constant lighting modes (white and red)
• Five flashing and pulsing modes of the side light
• Runtime up to 87 hours (lowest mode)
• USB-C charging directly in the torch
• 400 mAh battery with no memory effect
• Battery charge status indication (4 levels)
• Overheating, overcharge and over-discharge protection

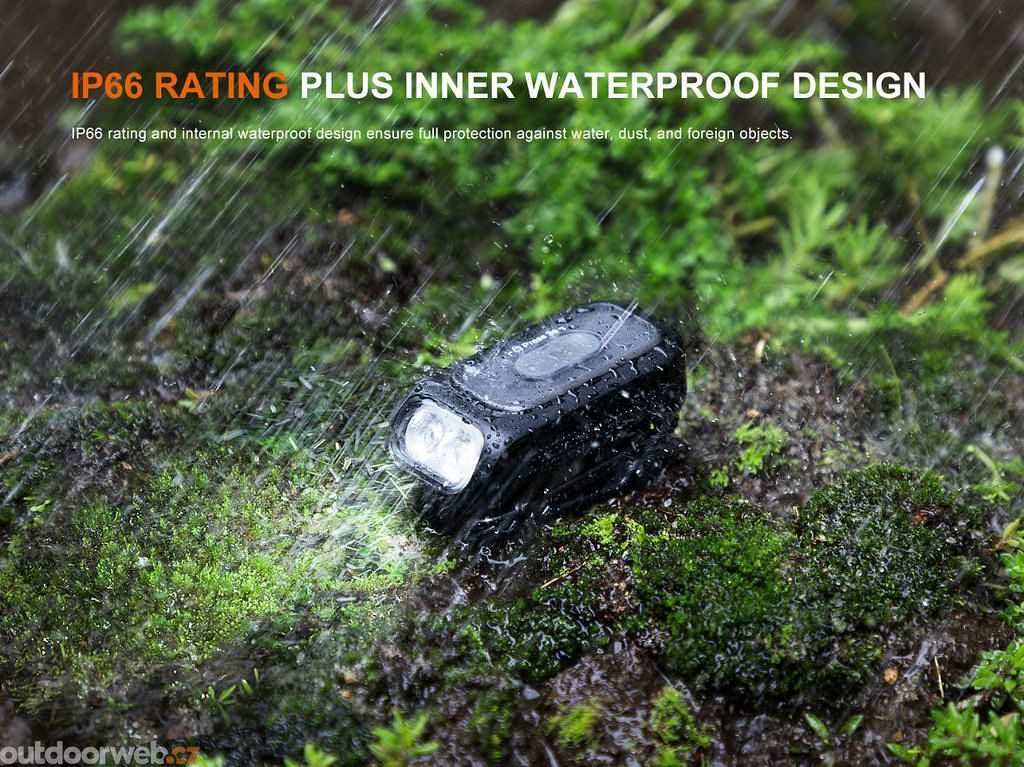

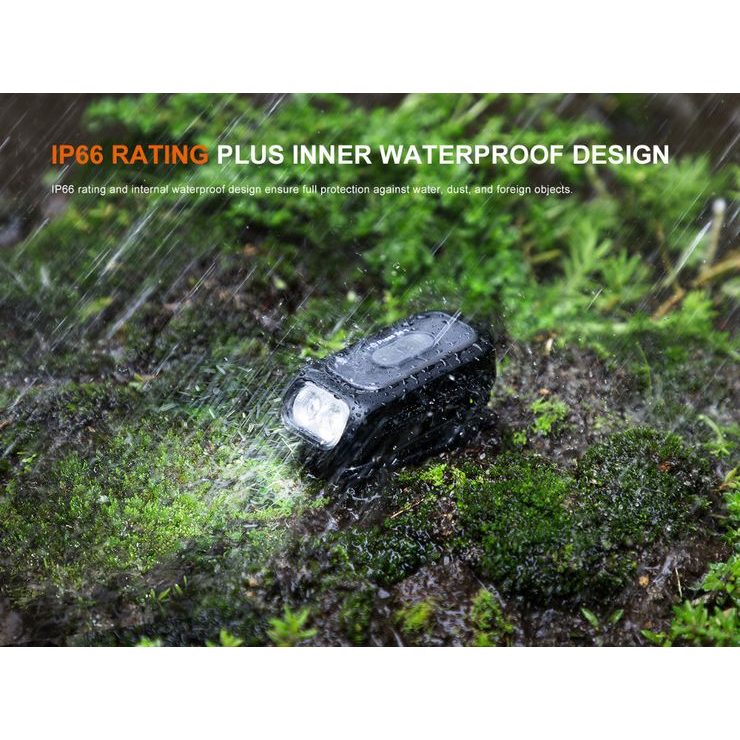

• IP66 water and dust resistance
• Impact resistance: 1 metre drop
• Weight only 41 grams including the battery

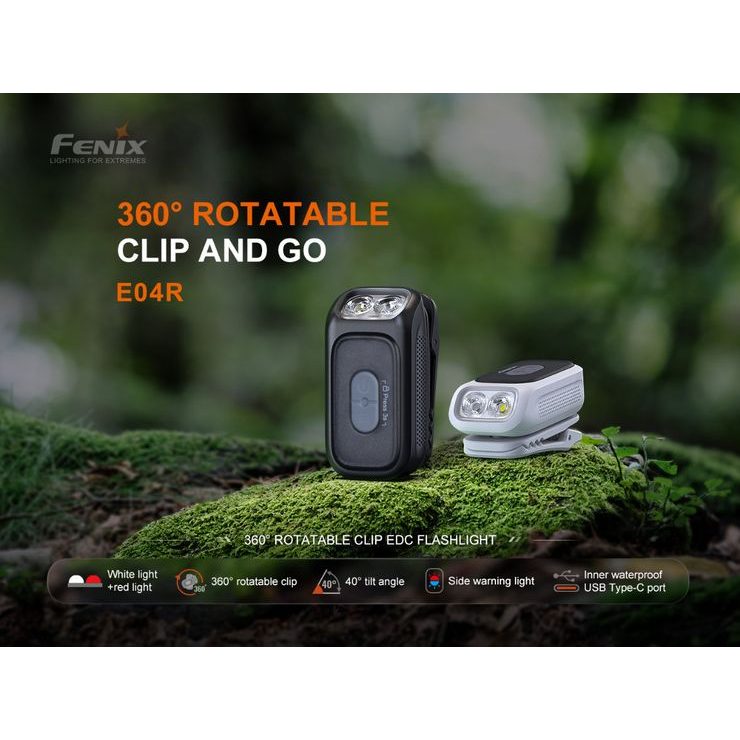

• 360° rotating clip, 40° beam tilt
• Two buttons for clear operation
• Lockout to prevent accidental activation
• LED lifespan 50,000 hours

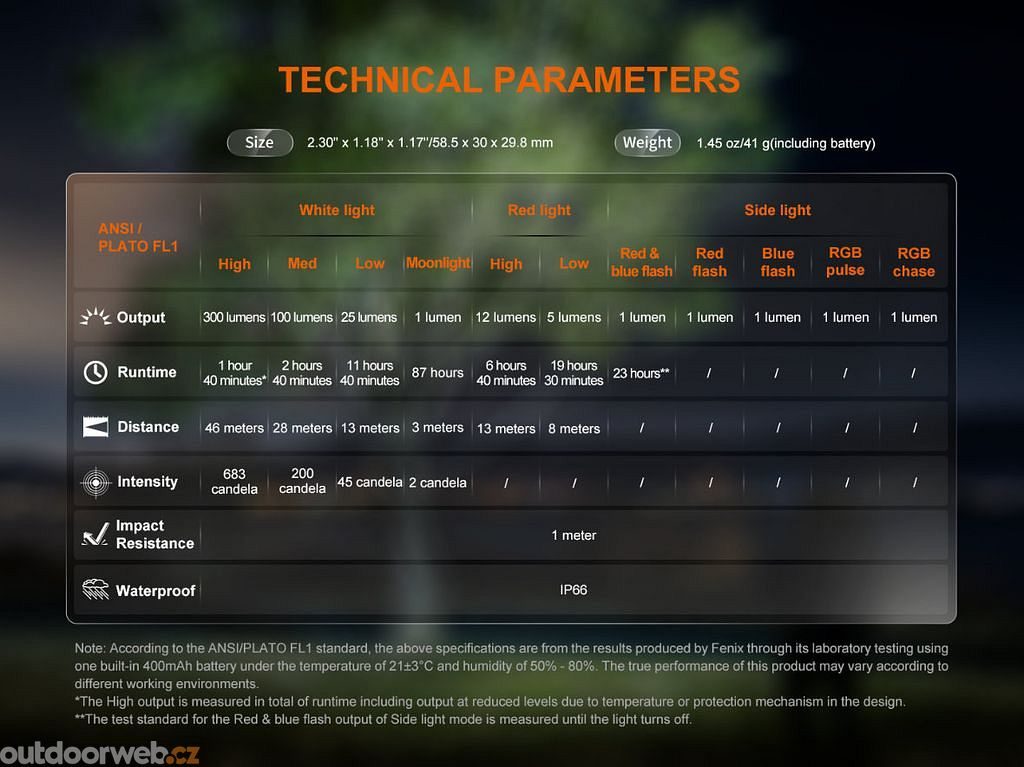

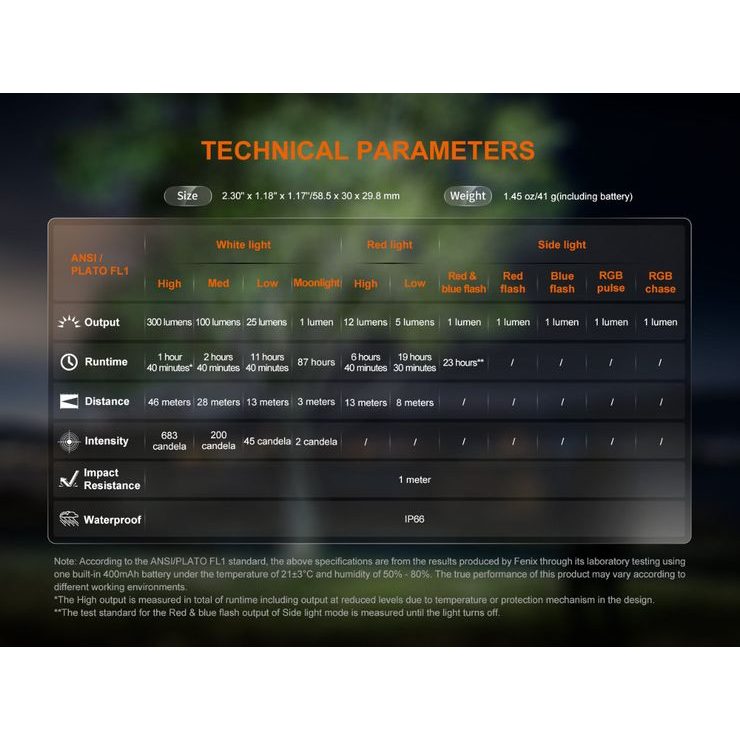

Specifications:

Light source (white): Luminus SST-12
Maximum luminous flux: 300 lumens
Beam distance: 46 m (683 cd)
White light modes: 300 lm (1 h 40 min) / 100 lm (2 h 40 min) / 25 lm (11 h 40 min) / 1 lm (87 h)
Red light modes: 12 lm (6 h 40 min) / 5 lm (19 h 30 min)
Side light – modes: red-blue flashing / flashing / flashing / RGB pulsing / RGB rotation (runtime up to 23 h)
Battery capacity: 400 mAh (Li-pol, integrated)
Charging: USB-C, approx. 2 hours at 5 V / 1 A
Water resistance: IP66
Drop resistance: 1 metre
Dimensions: 5.85 cm × 3.0 cm × 2.98 cm
Weight: 41 g (including battery)
LED lifespan: 50,000 hours

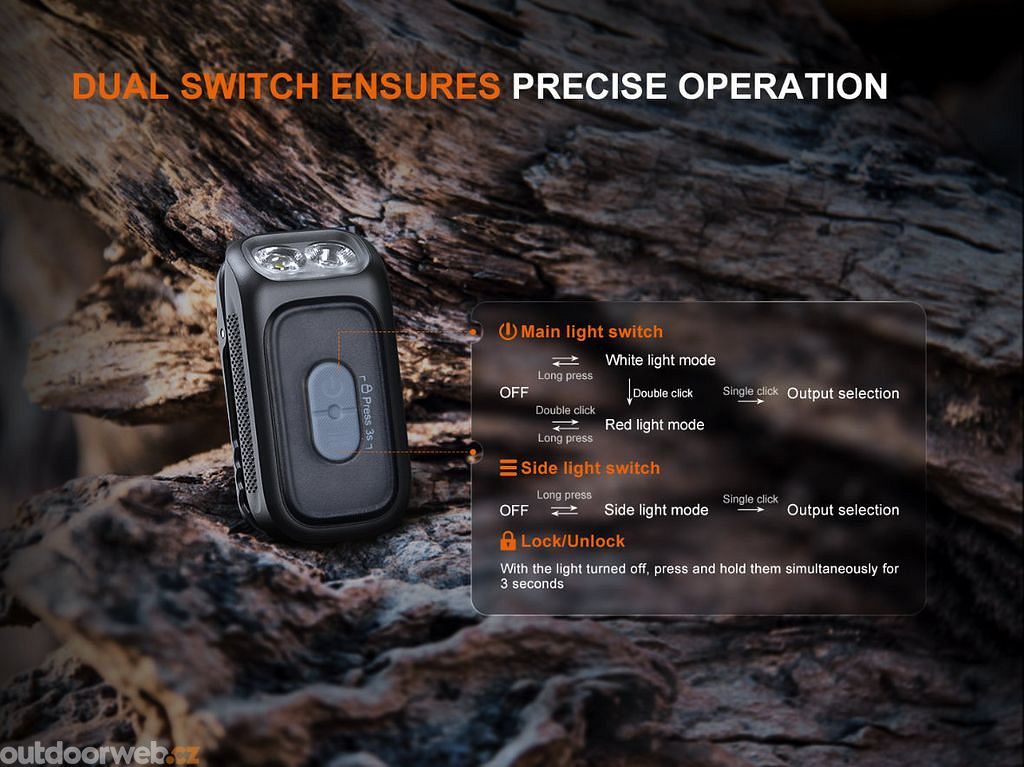

Operation and activation of warning signals

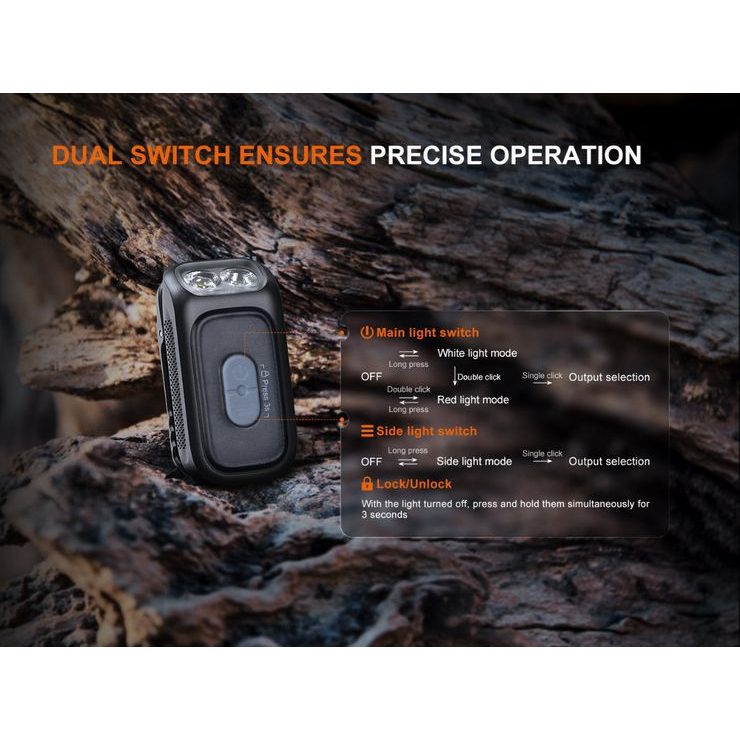

For maximum clarity, the torch is equipped with two buttons (one for the main white/red light, the other for the side warning light).
On/off: To switch the white light on or off, press and hold the main light button for about 0.5 seconds. Double-press the main light button to activate red light mode. To switch on the side coloured light, press and hold the side light button for 0.5 seconds. The torch has memory and will switch on at the last selected output of the white or side light.
Switching output modes: Modes of the active light are switched with a short press of the corresponding button. White light cycles in the order 1 - 25 - 100 - 300 lumens. Red light cycles in the order 5 - 12 lumens. The side light switches in the order: red-blue flashing - red flashing - blue flashing - RGB pulsing - RGB rotation.
Locking the torch - with the light switched off, press and hold both buttons simultaneously for 3 seconds. The light will flash twice to indicate it has entered the locked state. To unlock, press and hold both buttons simultaneously for 3 seconds again; the torch will unlock and turn on in the lowest white-light mode.
Battery capacity indication - at every switch-on, or after a short press of the button when the torch is off, the indicator LED in the button activates for three seconds. Solid green indicates 85 - 100% charge, flashing green indicates 50 - 85%, solid red indicates 25 - 50%, and flashing red indicates an almost depleted battery (less than 25%).
Low battery warning - if the battery voltage drops below the set level, the torch will automatically reduce brightness to lower levels. After reaching the lowest output, the battery status indicator will start flashing red. In this case, we recommend charging the torch as soon as possible to prevent the protective electronics built into the battery from switching off and the light going out.
Overheating protection - if the torch temperature rises to 60°C or more, it will automatically reduce output in small steps to lower the temperature. Once the temperature drops below 60°C, the torch will gradually restore the preset output.

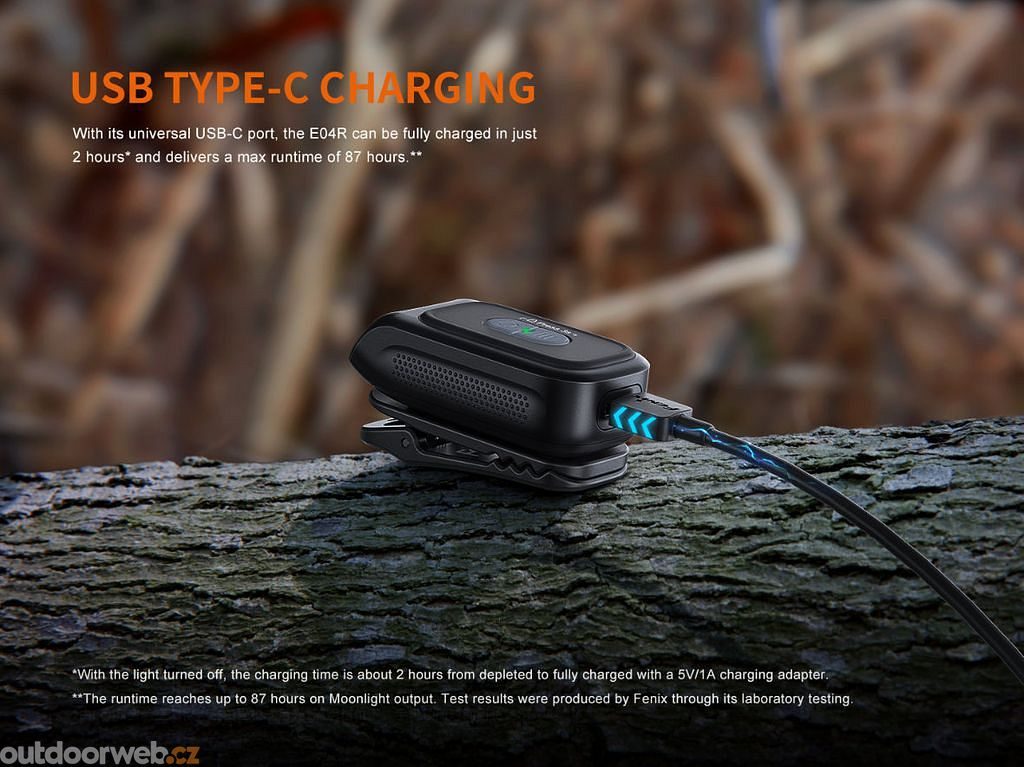

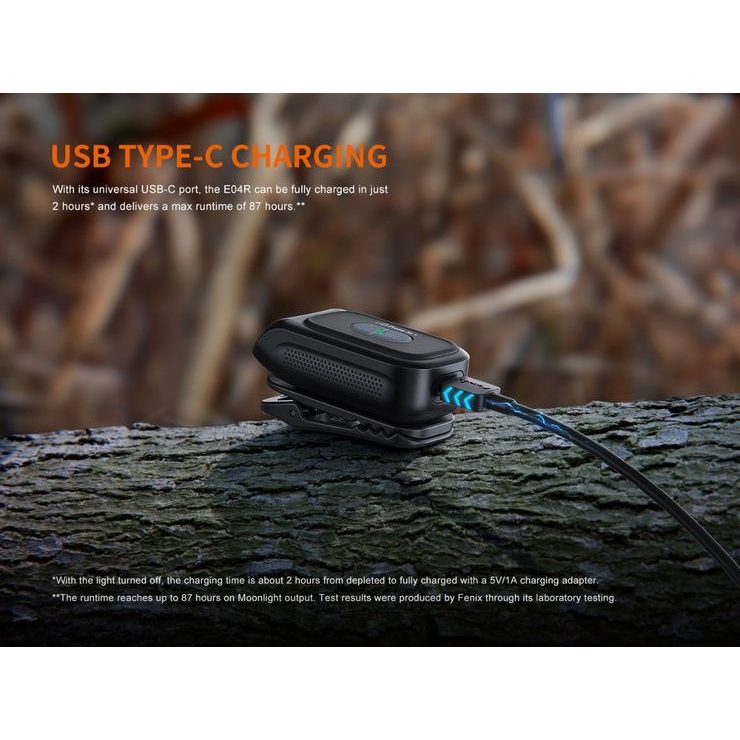

Charging
Connect the USB-C connector of the charging cable to the side charging port of the torch and plug the other end into a computer, power bank, mains USB adapter or car USB adapter.
During charging, the indicator light glows red; once fully charged it turns green.
Typical charging time is approx. 2 hours when using a 5V/1A source. The battery used does not suffer from memory effect, so the torch can be recharged at any time.
The torch can be used while charging, except at the highest output in white light mode.

Warning
Do not disassemble sealed parts yourself; doing so will void the warranty.
If the torch flashes, does not switch to a higher mode, or does not turn on, it may be due to one of the following reasons:
- The battery is discharged – recharge it.
- The torch is locked – press and hold both buttons simultaneously for 3 seconds to unlock it.
