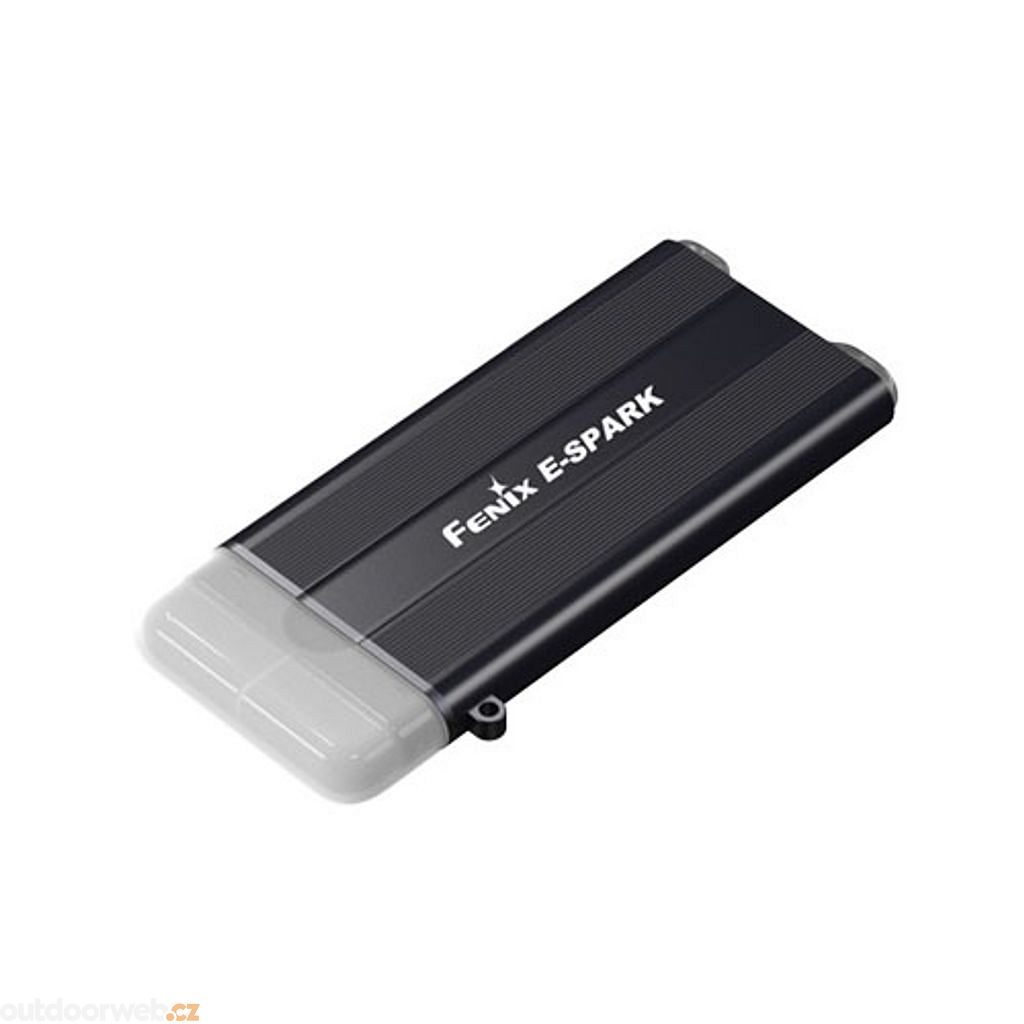

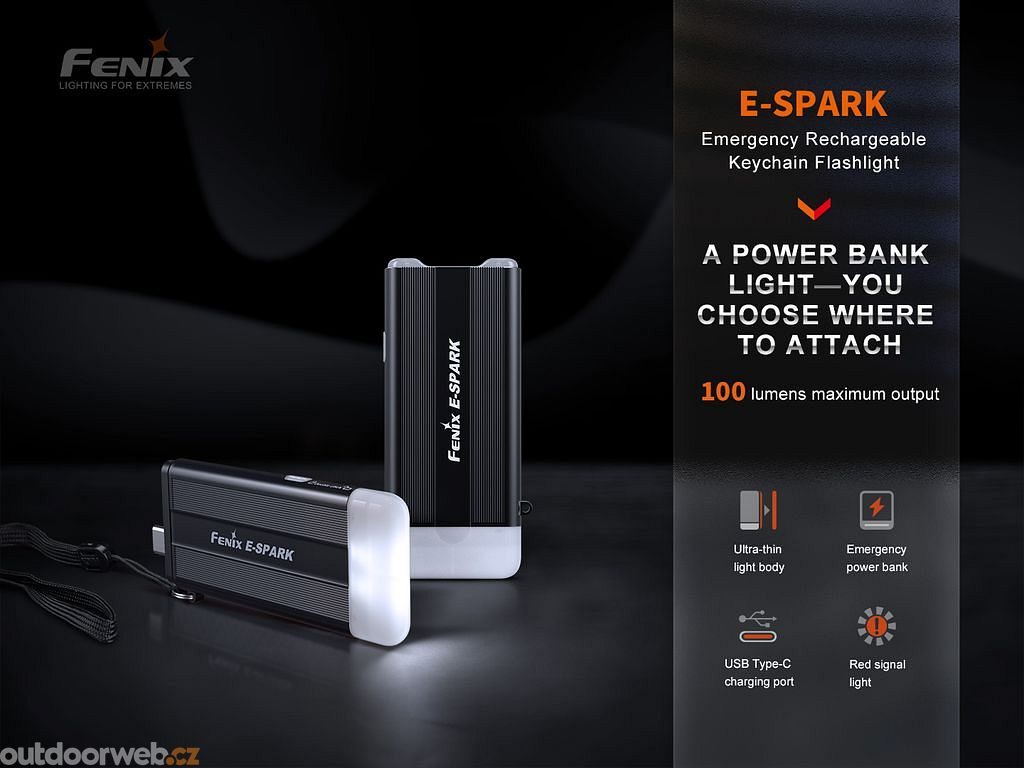

FENIX E-SPARK - Mini lantern

Phenix E-SPARK is a rechargeable mini lantern with up to 100 lumens of power and the ability to clip onto your keys. It combines lantern function and powebank to recharge your USB-C phone for emergency use. Power is provided by a built-in Li-pol 800 mAh battery that recharges via a modern USB-C connector.

In addition to a white light with a range of up to 30 meters, the flashlight offers a steady red light and red flashing light that you can use to signal in an emergency or increase your visibility in traffic. Thanks to its flat shape and small size, you can keep the Fenix E-SPARK on your keys, in your pocket or purse at all times.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

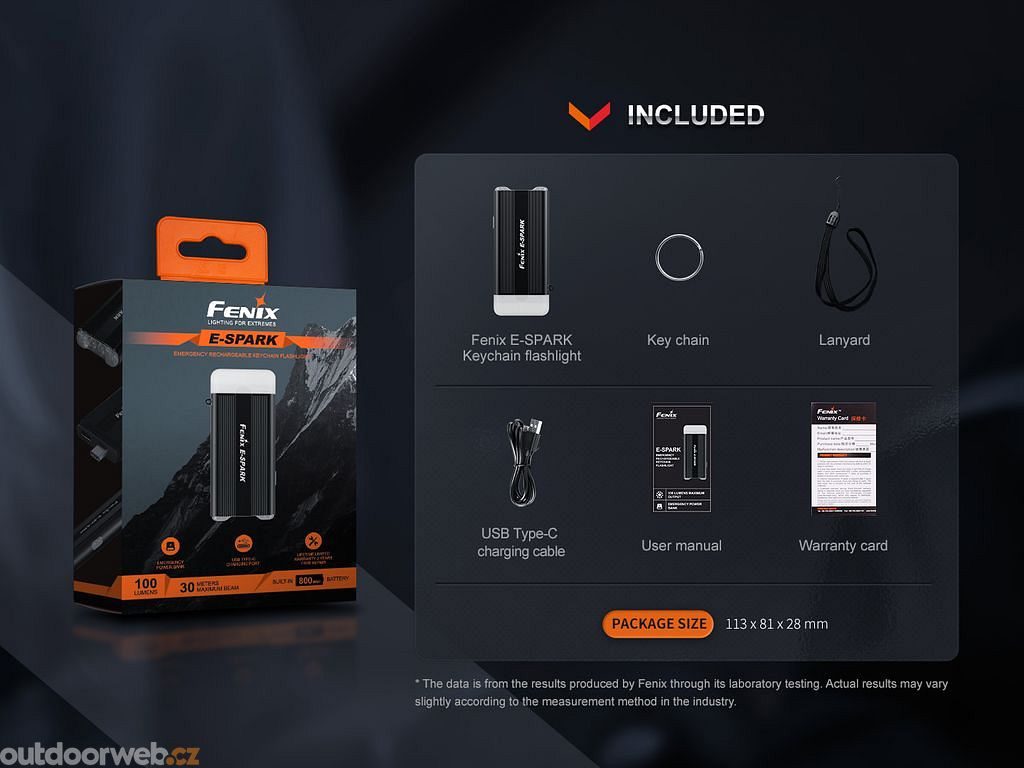

Package Contents: Flashlight, key ring, hand strap and USB-C rechargeable cable

Warranty: Two years

• Four high quality LEDs with a lifetime of 50000 hours
• Three white light power modes
• Two red light modes: 5 lumens (14 hours)-> 5 lumens flashing.
• Power is provided by a built-in Li-pol battery with 800 mAh capacity.
• Battery recharging via USB-C cable.

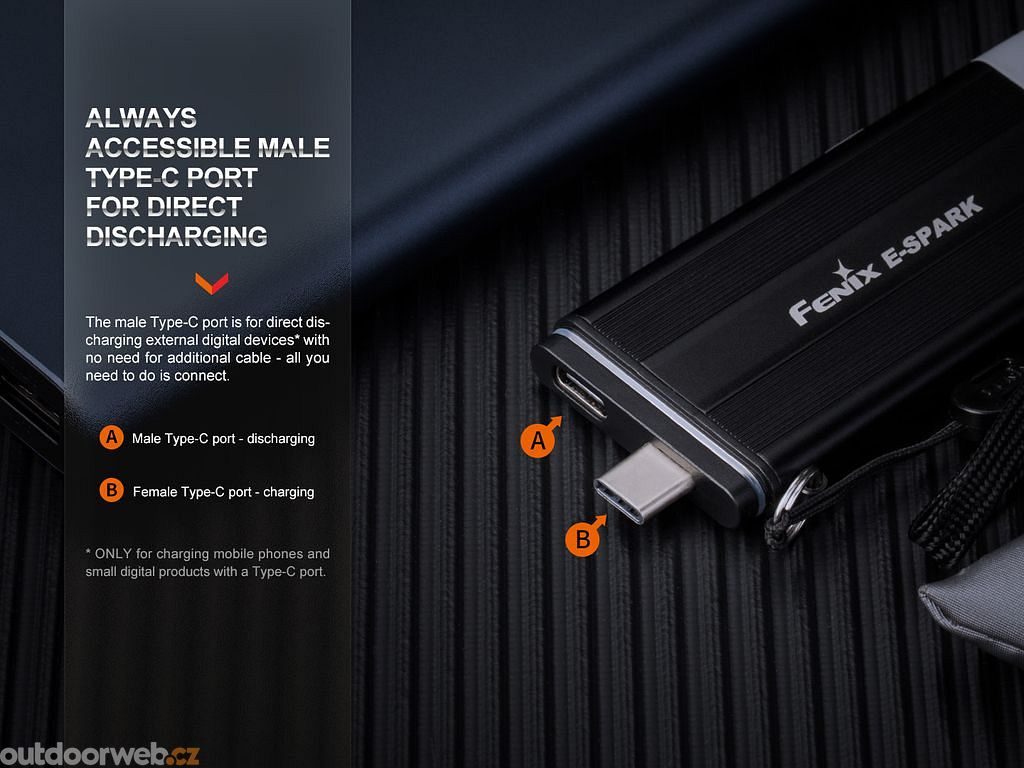

• Rechargeable USB-C port (male to male) for powerbank function (when fully charged, it will recharge the phone by 500 mAh capacity, which is about 10-15% of the phone's battery capacity).
• Range up to 30 meters (225 cd).

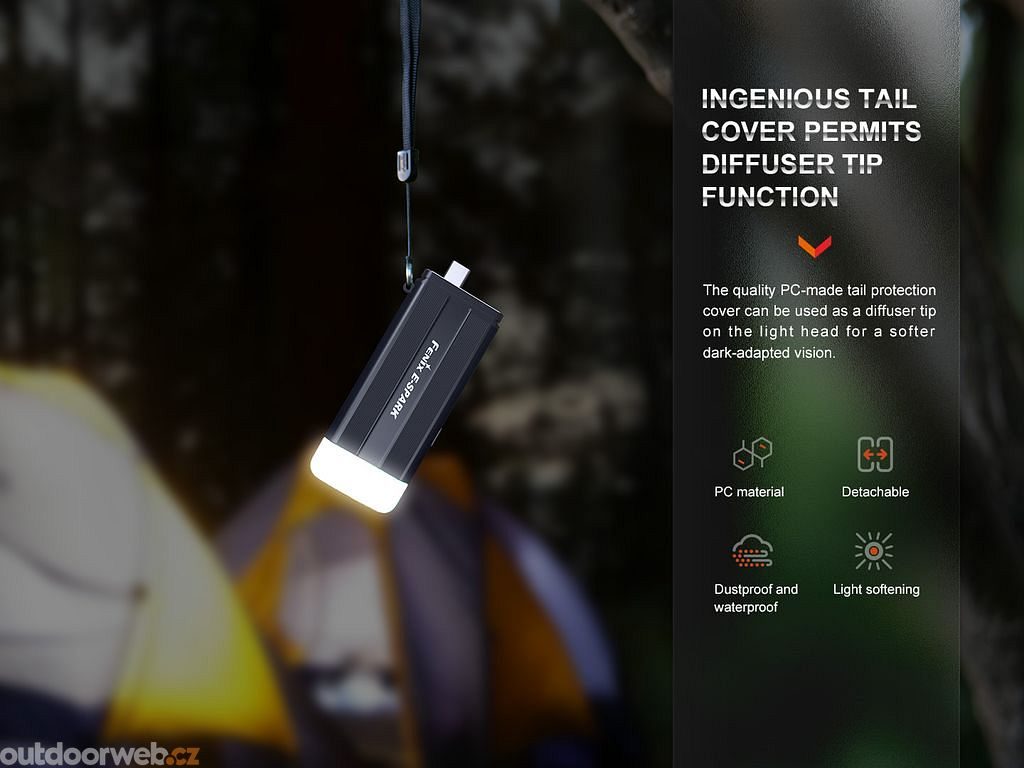

• Back cap serves as a white diffuser for diffused soft light when placed in front of the LEDs.
• The flashlight has memory and turns on in the last set mode.
• Rainproof and waterproof to IP24 standard (rain).
• Resistant to drops from 1 meter.

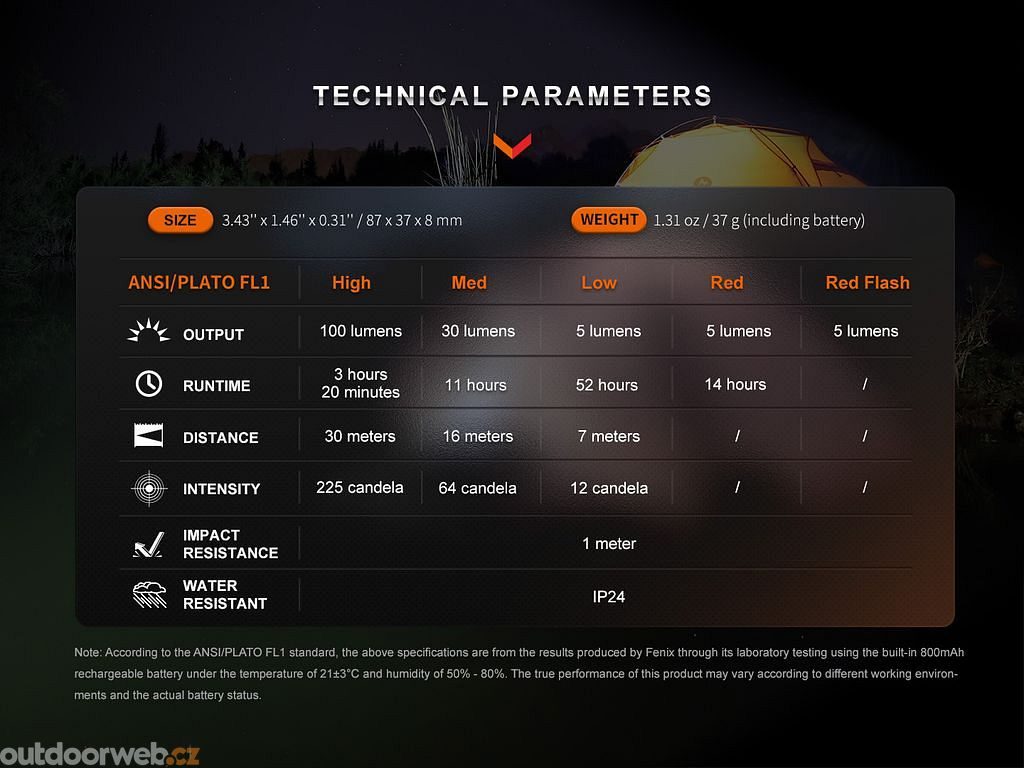

Power modes
Three white light power modes: 100 lumens (3.3 hours)-> 30 lumens (11 hours)-> 5 lumens (52 hours)

Lumen output: 100 lm
Range: 30 m
Dimensions: 87 x 37 x 8 mm
Weight: 37 grams (including battery)

Use
To turn on/off the flashlight, press the side button for 0.5 seconds. With the flashlight on, simply press the side button to cycle through the modes: 5 lumens -> 30 lumens -> 100 lumens -> red light -> red flash.
The control button can be locked to prevent spontaneous switching on, e.g. when transporting in luggage - press the control button twice quickly (within 0.5 seconds). To unlock, press the button again twice quickly.
Battery charge indication - simply press the side button to trigger the battery charge indicator in the button for 3 seconds: steady green indicates sufficient charge (100% - 85%), flashing green (85% - 50%), steady red (50% - 25%) and flashing red indicates critically low battery (25% - 1%). If the battery is low, the flashlight will gradually switch to lower power modes automatically.
Charging the battery - remove the rear connector cap and plug the included cable into the flashlight (USB-C - female connector), plug the other end of the cable into a computer or a USB mains or car adapter (not included). During charging, the indicator LED in the button glows red and turns green when fully charged. After charging the flashlight, put the connector cap back on. Charging a fully discharged battery takes approximately 2 hours using a 5V/1A power supply. The flashlight can be fully used while charging, this will extend the charging time.
Powerbank function - turn off the flashlight and remove the rear connector cap. Plug the USB-C port (male to male) of the flashlight into the device you need to charge. A simple press of the side button will start charging. When using the power bank, the flashlight's discharge indication lights up and the flashlight cannot be used for illumination. When the process is complete, unplug the device being charged and replace the protective connector cap.

Caution
Do not disassemble the sealed parts of the flashlight yourself, it will violate the warranty.
Use the control lock when carrying the flashlight in your luggage or pocket, or when storing it.
