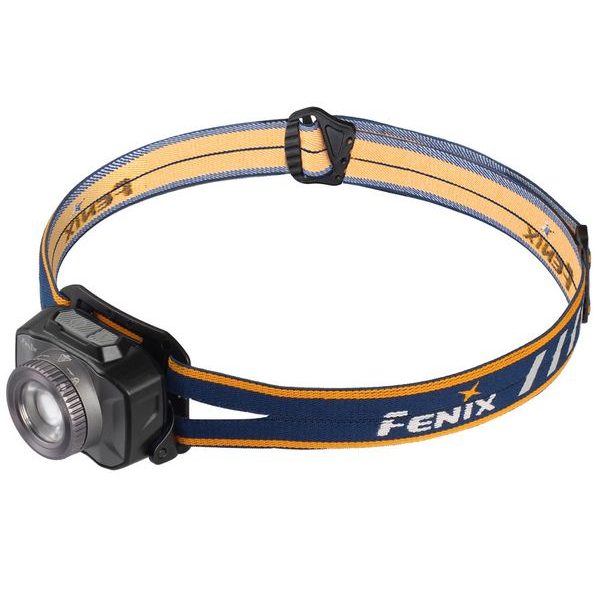

FENIX HL40R, šedá - Rechargeable focusing headlamp

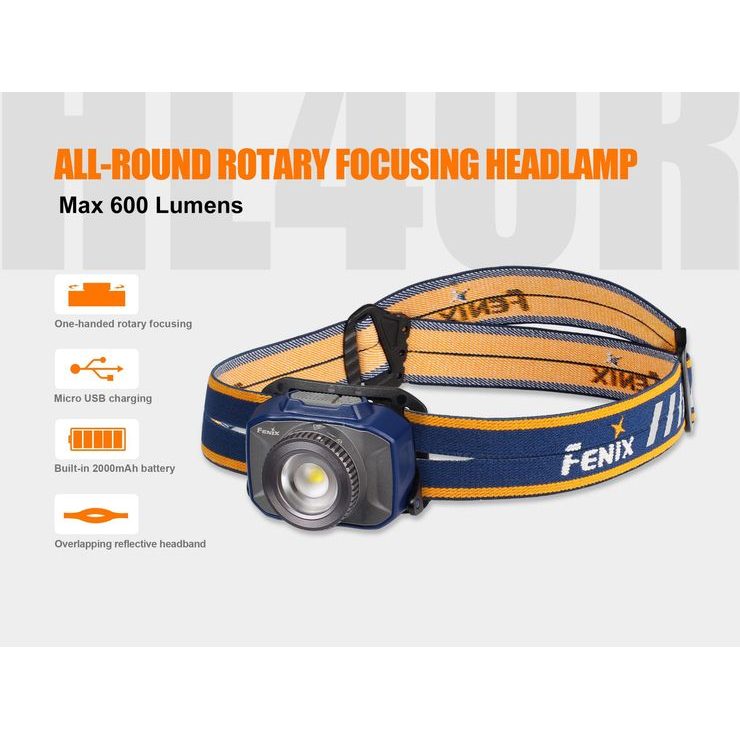

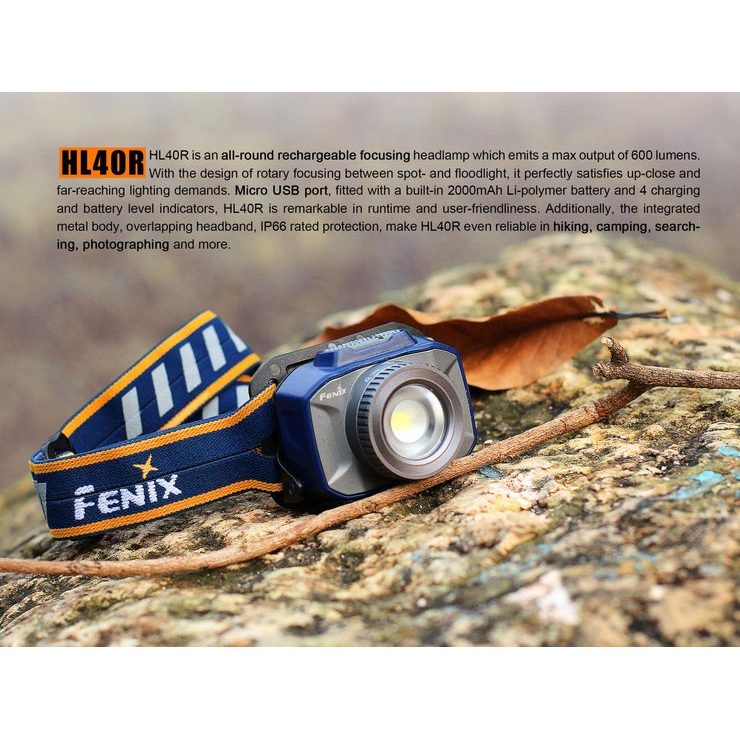

The Fenix HL40R rechargeable headlamp delivers up to 600 lumens (ANSI) and a range of up to 147 meters. Power is provided by a built-in 2000 mAh lithium polymer battery that charges via a micro-USB connector directly in the headlamp. The light source is a modern LED Cree XP-L HI V2, its light is directed by special TIR (Total Internal Reflection) optics with the possibility of adjusting the width of the light cone (zoom function).

A total of 7 power modes are available, including a flash SOS mode for emergency situations. Despite the adjustable optics, the head torch retains its IP66 waterproof rating, so it can withstand heavy rain without problems. The headlamp strap is equipped with reflective elements that ensure good omnidirectional visibility when moving on the road.

Weighing just 130 grams, the Fenix HL40R is perfect for hiking, search and rescue, as a headlamp for running, camping, photography, headlamp for fishing and other activities. All headlamp parameters (lumen output, battery life, waterproofing, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

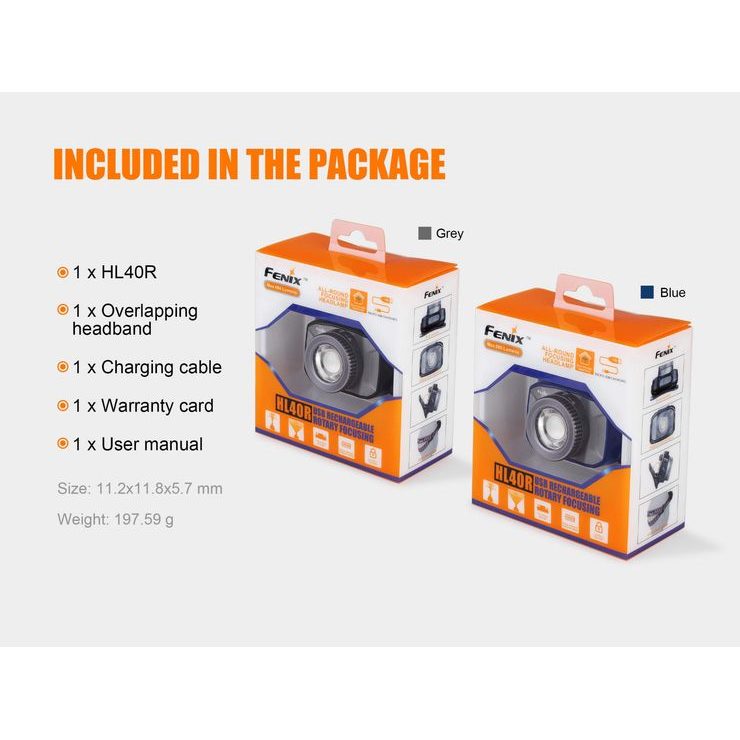

Package contents: Headlamp, strap, USB charging cable

Warranty: 2 years

Parameters:

• Powerful white LED Cree XP-L HI V2 with 50000 hours lifetime is used.
• Seven light modes
• TIR optics with focusing function creates a cone with a range of 43-147 meters
• Digitally controlled for constant brightness

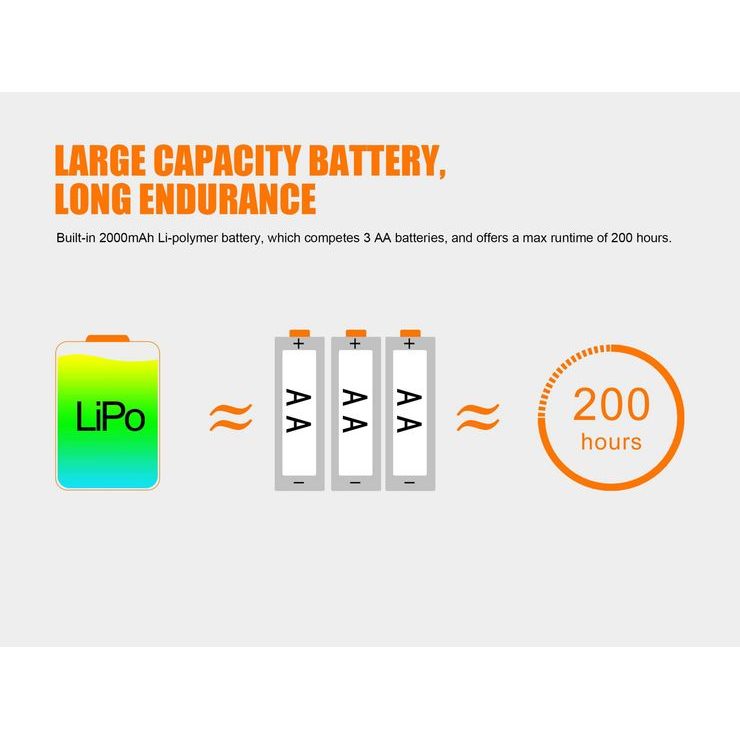

• Uses a built-in 2000 mAh lithium polymer battery.
• Four-part battery charge indicator
• Rechargeable via micro USB connector
• Convenient dual switch control

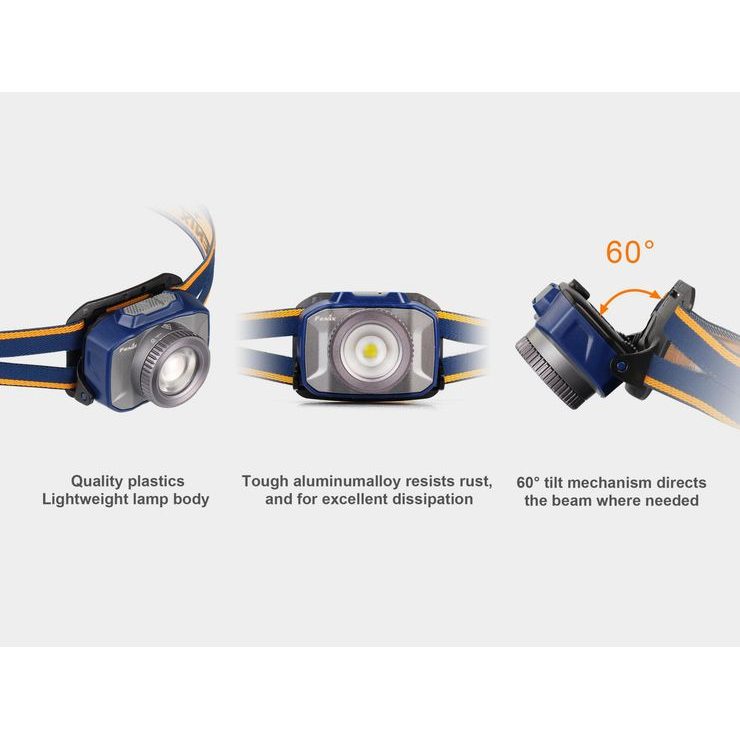

• The headlamp can be tilted in the holder to set the desired direction of illumination
• Strap with reflective elements increases passive safety
• Raised back increases the comfort of wearing on the head.
• Resistant to falls from a height of 1 metre.

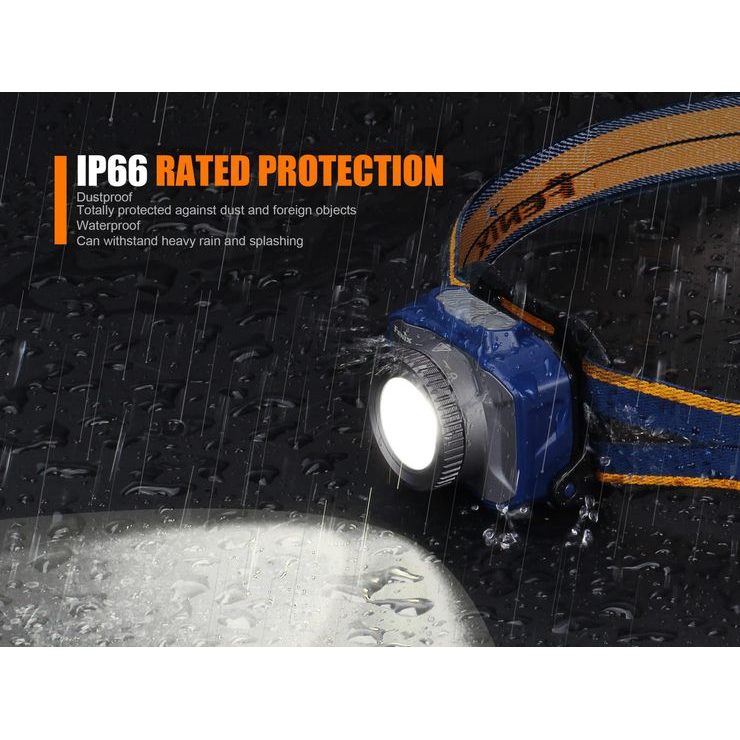

• Waterproof and dustproof to IP66 standard

Power Modes:

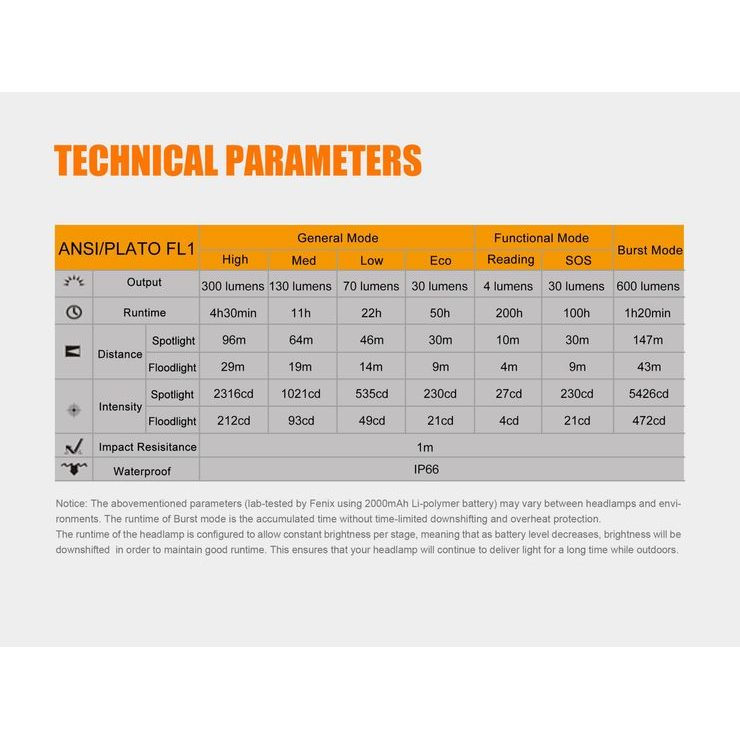

Seven lighting modes: BURST 600 lumens (switches to previous light mode after 1 minute) -> 300 lumens (4.5 hours) -> 130 lumens (11 hours) -> 70 lumens (22 hours) -> 30 lumens (50 hours) -> 4 lumens (200 hours) -> SOS 30 lumens (100 hours).

Material: durable plastic and aerospace aluminum alloy
Dimensions: 6.8 cm x 5.4 cm x 4.2 cm
Weight: 130 g (including battery and straps)
Luminous flux: 600 lm
Range: 147 m

Use

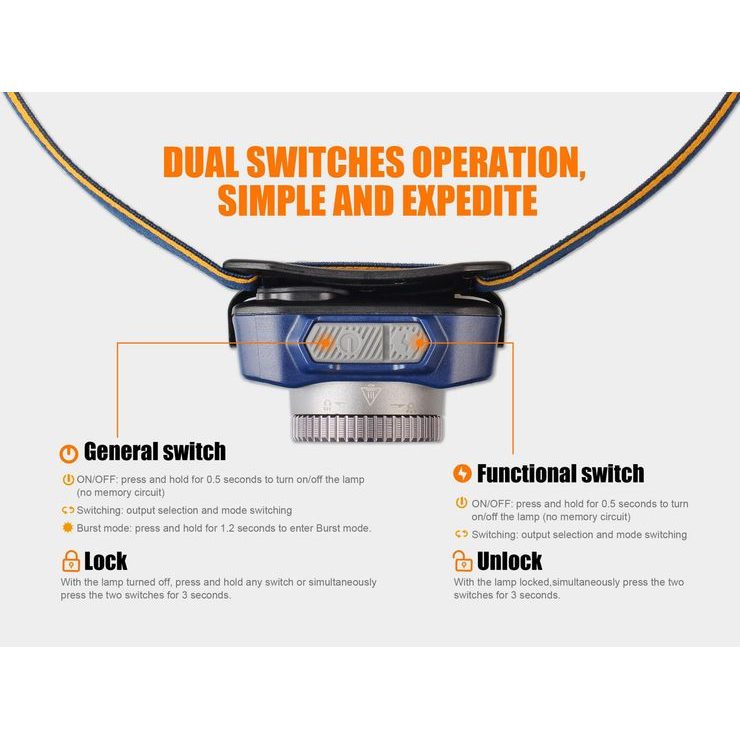

Holding the right (main) button for 0.5 seconds will always turn the headlamp on to 70 lumens mode. Further presses of this button can be used to switch between 30 - 70 - 130 - 300 lumen modes at any time during operation. Burst mode (600 lumens) is activated by holding the right button for 1.2 seconds (even when the headlamp is switched off). Pressing the right button again returns the headlamp to the original mode.
Holding the left (smaller) button for 0.5 seconds always switches the headlamp to the 4 lumens mode (suitable for reading, for example). Further presses of this button can be used to switch between 4 lumens and SOS modes.
The cone width is adjusted by rotating the ring around the optics. Clockwise rotation narrows the cone, counterclockwise rotation widens it.
Battery charge indication - after a short press of the left button (the headlamp must be switched off) the LED battery indicator on the top of the headlamp is activated. Four lit LEDs indicate that the battery is charged to more than 80%, three lit 60-80%, two lit 40-60%, one lit 20-40% and one blinking LED indicates that the battery is charged to less than 20%.
Overheat protection - operation on Burst mode is limited to 1 minute at a time, then the headlamp returns to the previous lighting mode.
The control buttons can be locked to prevent spontaneous switching on e.g. when transporting in luggage - hold both buttons down for 3 seconds. The flashlight will then flash. To unlock, hold both buttons again for 3 seconds.

Charging
Unclip the rubber cap of the micro USB connector on the back of the headlamp and use the included USB cable to plug it into a computer, USB AC adapter or USB car adapter. Alternatively, any mobile phone charger with a micro USB connector can also be used for charging.
During charging, the four indicator LEDs on the top gradually light up, after a full charge they all light up permanently.
Charging time for a fully discharged battery takes approximately 4 hours.
The battery used does not suffer from memory effect, so the headlamp can be recharged at any time.
Seal the USB connector cap thoroughly after each charge.
The headlamp can be switched on during charging, but only in 4 lumens mode.

Caution
Do not disassemble the sealed parts yourself, it will violate the warranty.
If the headlamp blinks, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
The battery is almost dead - charge it.
