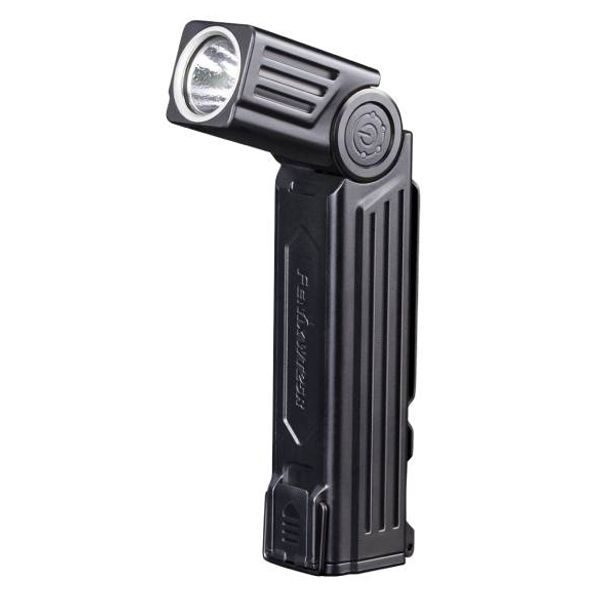

FENIX WT25R - Rechargeable work torch

Fenix WT25R is a universal rechargeable work light with a unique articulating design with a tilting reflector that uses Cree XP-L HI LEDs with up to 1000 lumens and a range of up to 220 meters (ANSI). The 105-degree tilting head ensures maximum versatility.

The Fenix WT25R flashlight also features a rigid steel clip for easy carrying on a belt or work clothes and a magnetic end cap that can easily attach to anything metal. Its variability makes the flashlight especially useful for work use, camping, outdoor activities and many other activities.

The flashlight is powered by a lithium-ion battery type 18650 with a capacity of 3400 mAh, which is included in the package and is charged by a USB cable with a magnetic connector directly in the flashlight. The Fenix WT25R features six levels of illumination, including strobe and SOS signal, allowing users to choose a suitable compromise between illumination intensity and run time. For all its functionality, the flashlight retains its small size and light weight of 137 grams including battery.

All flashlight parameters (lumen output, battery life, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

Package Includes: Flashlight with Fenix 18650 3400 mAh rechargeable battery, USB cable with magnetic end, wrist lanyard and replacement O-ring.

Warranty: five years on flashlight, two years on battery

• Powerful Cree XP-L HI LED with a lifetime of 50,000 hours is used.
• Six power modes
• Digitally controlled for constant brightness, electronics remember the last mode set.
• Uses one Fenix 18650 Lithium-ion battery with a capacity of 3400 mAh.
• Battery charge status indication.
• Charging via magnetic connector on the flashlight.
• Textured reflector for light cone with output 220 meters (11905 cd).
• Made of aircraft-grade hardened aluminum and impact-resistant plastic.
• Metal parts hard anodized Type HA-III.
• Dimensions 13.53 cm (length) x 2.94 cm (width) x 2.41 cm (height).
• Weight 137 grams (including battery).
• Electronics with reverse battery insertion protection.
• Resistant to falls from a height of 1 meter.
• Waterproof to IP66 standard.
• Magnetic end cap - the flashlight can be attached to anything metal.
• Hardened ultra clear glass lens with anti-reflective surface.
• Capable of standing independently on a flat spot, the head can be tilted 105° in several steps.
• A USB mains adapter and a USB car adapter can also be purchased with the flashlight.

Power Modes:
Continuous Light Modes: 1000 lumens (3.66 hours)-> 400 lumens (4.83 hours)-> 150 lumens (11 hours)-> 50 lumens (29 hours).
Flash Modes: strobe (1000 lumens) -> SOS signal (50 lumens).

Luminous flux: 1000 lm
Range: 220 m

Controls
The flashlight is switched on and off by holding the button for 0.5 seconds and once on, the light modes are switched by briefly pressing it. To switch to strobe mode, hold the button for 1.2 seconds, another short press of the button will then turn on the SOS signal. The flashlight remembers the last selected lighting mode (except for flash modes).
The control button can be locked to prevent spontaneous switching on, e.g. when transporting in luggage - press the control button twice quickly (within 0.5 seconds), the flashlight then flashes twice to signal locking. To unlock, press the button again twice quickly.
Overheating protection - due to the fact that the flashlight reaches a high power of 1000 lumens, it experiences a temperature rise in the highest mode when lit for longer periods. If the temperature exceeds 60°C, the power is automatically reduced. Once the temperature drops below 60°C, the highest power can be used again.
Charging: plug the charging cable into the USB connector of your computer, USB mains adapter or car. Attach the cable to the charging plate on the flashlight, it will attach itself with magnets. The indicator light on the cable glows red during charging, and glows green when charging is complete. Charging a fully discharged Fenix ARB-L18-3400 battery takes approximately 4.5 hours.
Charge status indication (works only with original battery) - After a short press of the button (the flashlight must be turned off), the LED battery charge status indicator in the button is activated. Four lit LEDs indicate the battery is over 80% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates the battery is less than 20% charged.

Caution
Do not disassemble the sealed part in the head of the flashlight yourself, it will violate the warranty.
If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers or does not light up, it may be due to one of the following reasons:
The battery is dead, charge it.
The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
