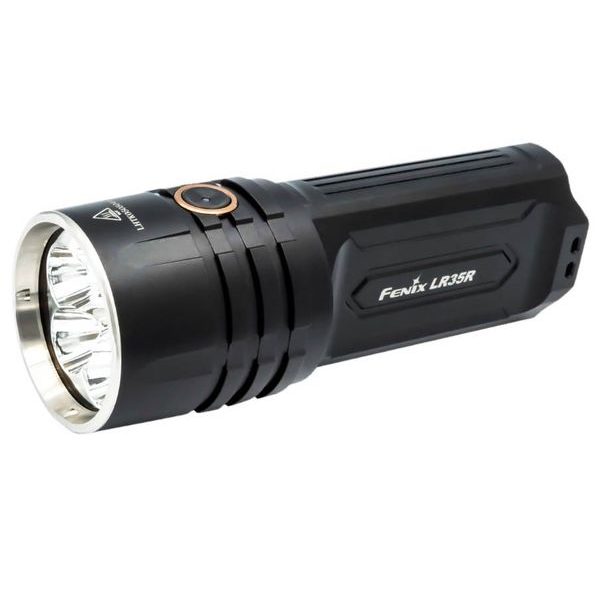

FENIX LR35R - rechargeable flashlight

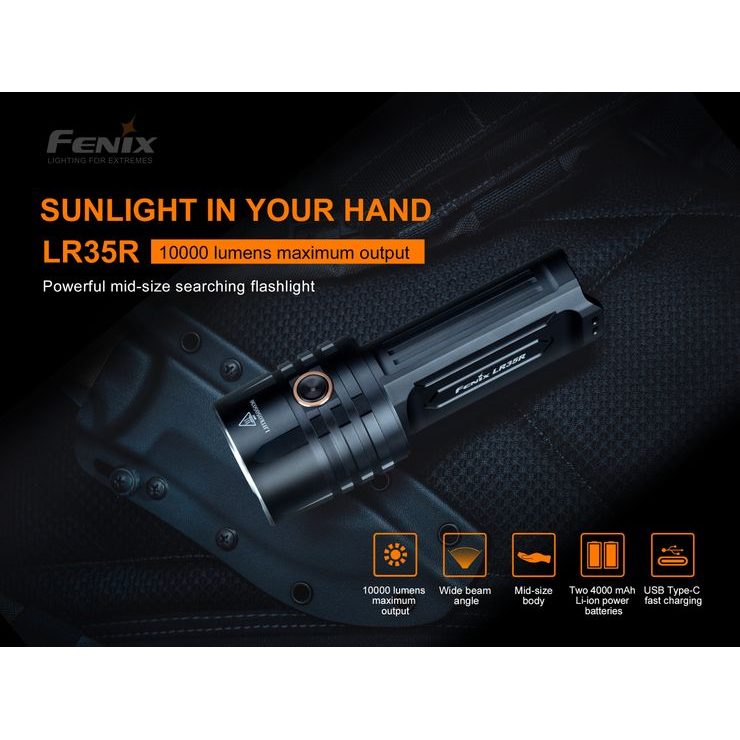

The Rechargeable Fenix LR35R Flashlight delivers extreme lumen output of up to 10,000 lumens (ANSI) and a wide continuous cone with a range of up to 500 meters. The flashlight is powered by two high-current Li-ion batteries type 21700 (included), which can be charged directly in the flashlight via a modern USB-C connector.

The extraordinary luminous flux has been achieved by using six high-power Luminus SST-40 LEDs. There are five levels of illumination and a blinding strobe flash mode for emergency situations. The side-by-side battery arrangement makes the flashlight surprisingly short and fits perfectly in the hand.

Control is convenient and quick with a single side button. It can also be used to lock the flashlight for transport in luggage. The flashlight is especially suitable for moving in difficult terrain, search operations, surveillance, object protection and anywhere you need to strongly illuminate large areas.

All flashlight parameters (luminous flux, battery life, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

Warranty: Five-year warranty on the flashlight and two years on the batteries.

• Six powerful Luminus SST-40 LEDs with a 50,000-hour lifetime are used.
• Total of six power modes
• Lifetimes are measured with the included high-current batteries.

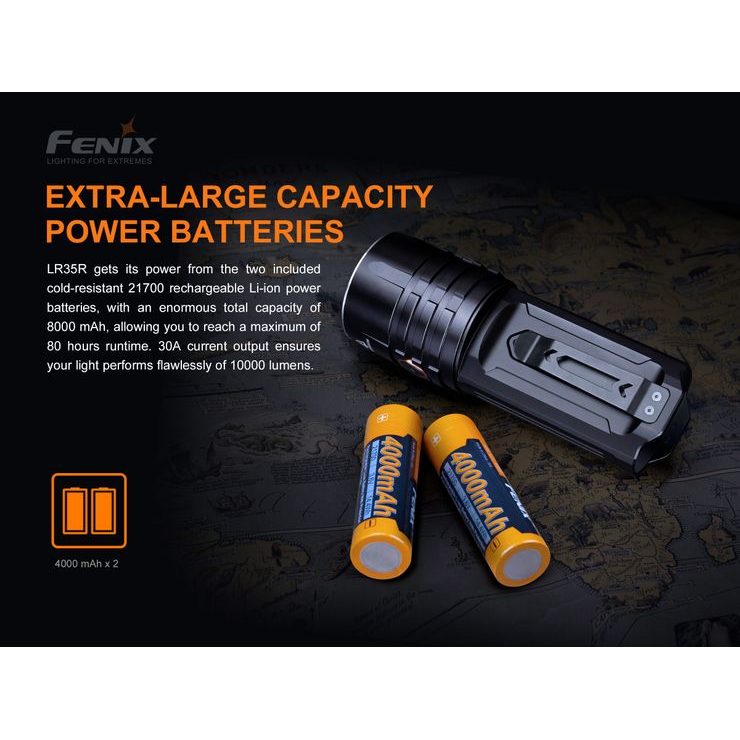

• The flashlight is powered by two 4000 mAh Li-ion 21700 batteries (Fenix ARB-L21-4000P), which are included.
• In an emergency, only one 21700 battery can be used, the power will then be half (only 3 LEDs are lit).
• The flashlight must use high current Li-ion batteries that can handle up to 15 A. Otherwise, the highest mode will not be available (in weak batteries, the anti-short circuit protection may trip).
• Power in the highest modes is regulated by overheat protection.
• Batteries can be recharged via the fast USB-C connector directly in the flashlight.
• Charging time with a powerful USB power supply is approximately 3.5 hours. It can be longer with weaker power supplies.
• Six-part smooth reflector for a smooth wide cone with a range of up to 500 meters (63,200 cd).
• Digitally controlled for constant brightness.
• Intelligent overheat protection, battery charge indication.
• Light has memory and will always turn on in the last mode set (not valid for strobe).
• Protection against accidental insertion of batteries in reverse (reverse polarity).
• Solid metal clip.

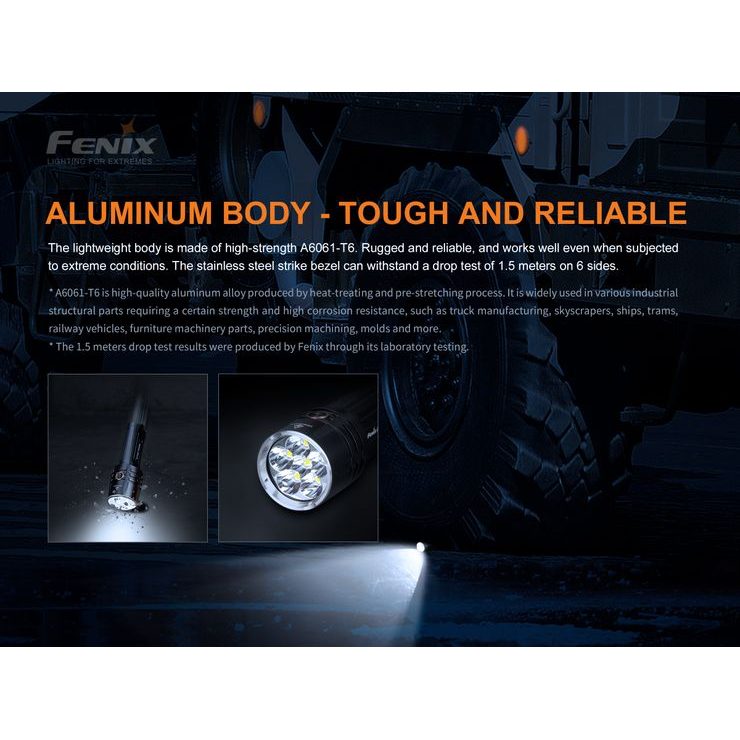

• Made of aerospace hardened aluminum. Highly wear-resistant, flat-running threads.
• Hard scratch resistant finish - Type III hard anodized.
• Resistant to drops from a height of 1 metre.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Hardened ultra clear glass lens with anti-reflective surface.

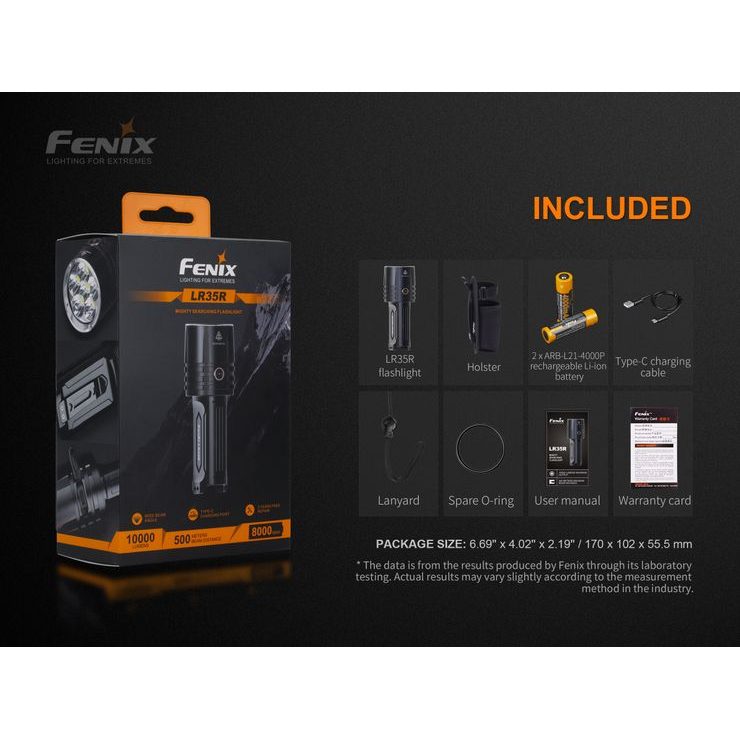

• The flashlight comes with a hand strap, carrying case, spare o-ring, 2x Fenix ARB-L21-4000P battery and USB-C charging cable.
• The flashlight can also be purchased with a USB mains adapter and USB car adapter, a USB adapter supporting fast charging and a colour USB-C cable.

Power Modes:

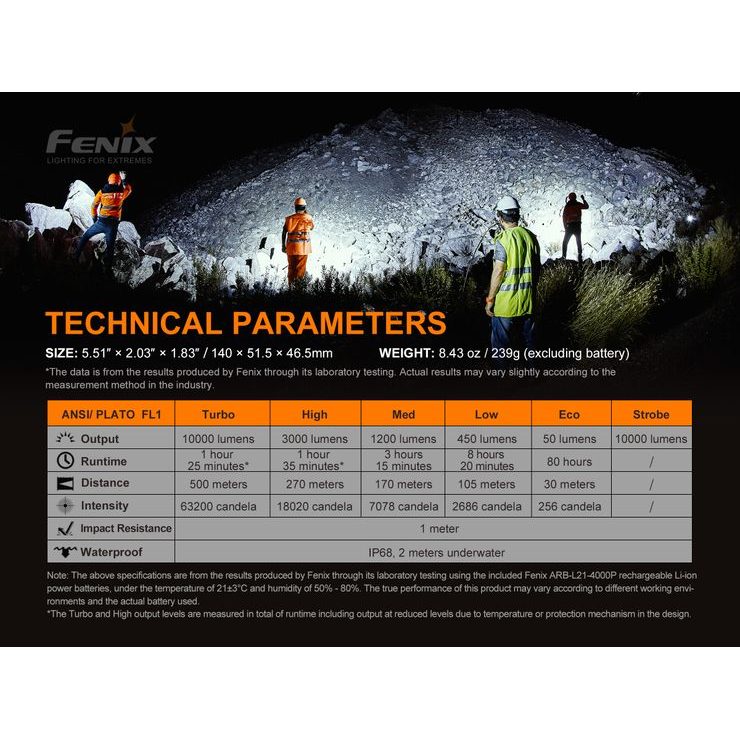

Total of six power modes: 10,000 lumens (1.4 hours) -> 3,000 lumens (1.6 hours) -> 1,200 lumens (3.25 hours) -> 450 lumens (8.3 hours) -> 50 lumens (80 hours) -> Strobe 10,000 lumens.

Luminous flux: 1000 lm
Range: 500 m

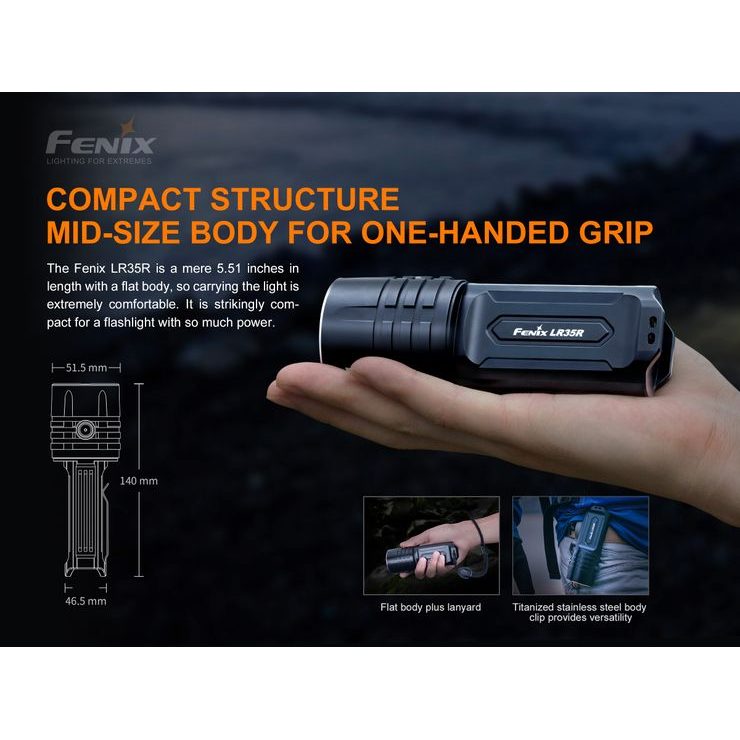

Dimensions: 14 cm (length) x 5.15 cm (head diameter) x 4.65 cm (largest diameter of oval body).
Weight: 239 grams without batteries, 383 grams including batteries.
Material: aerospace hardened aluminum

Using the Fenix LR35R
The flashlight can be turned on or off by holding the side button for half a second. The light modes can then be cycled from lowest to highest with a short press of the button. Holding the button for 1.2 seconds activates the strobe, from which it is possible to return to the originally selected mode by briefly pressing the button. The control button can be locked to prevent spontaneous switching on, e.g. when transporting in luggage - press the control button twice quickly (within 0.5 seconds). To unlock, press the button again twice quickly. Unintentional switching on can also be prevented by loosening the body of the flashlight.
Intelligent overheating protection - when the temperature exceeds 65 °C, the flashlight automatically gradually reduces the power, and when it cools down below 65 °C, it automatically increases the power again.
Charging -Open the charging connector cover on the side of the flashlight and plug the included cable into the USB-C connector, plug the other end of the cable into a computer, USB mains adapter, USB car adapter or power bank (not included). The LED in the button flashes red while charging and turns green when fully charged. Charging fully discharged batteries takes approximately 3.5 hours using a 3A power supply. During charging, the flashlight can only be used in the lowest mode.
Battery capacity indication - after switching on the flashlight, the indicator in the button lights up for 3 seconds. If the indicator LED is green the batteries are more than 85% charged. Green flashing means 50-85% capacity. If the light is red, they are 25-50% charged. Red flashing indicates less than 25% capacity remaining.
Battery Low Warning - The flashlight will automatically switch to the lowest power mode and the indicator LED in the button will flash red.

Warning
Do not disassemble the sealed parts of the flashlight yourself, it will violate the warranty.
Never use differently discharged batteries or batteries with different capacities.
Use only high-current Li-ion batteries type 21700 with protective electronics, otherwise the flashlight may not work properly.
If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
The batteries are almost dead - replace them or charge them.
The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
The body of the flashlight is loose - add lubricant to the sealing rings and tighten.
