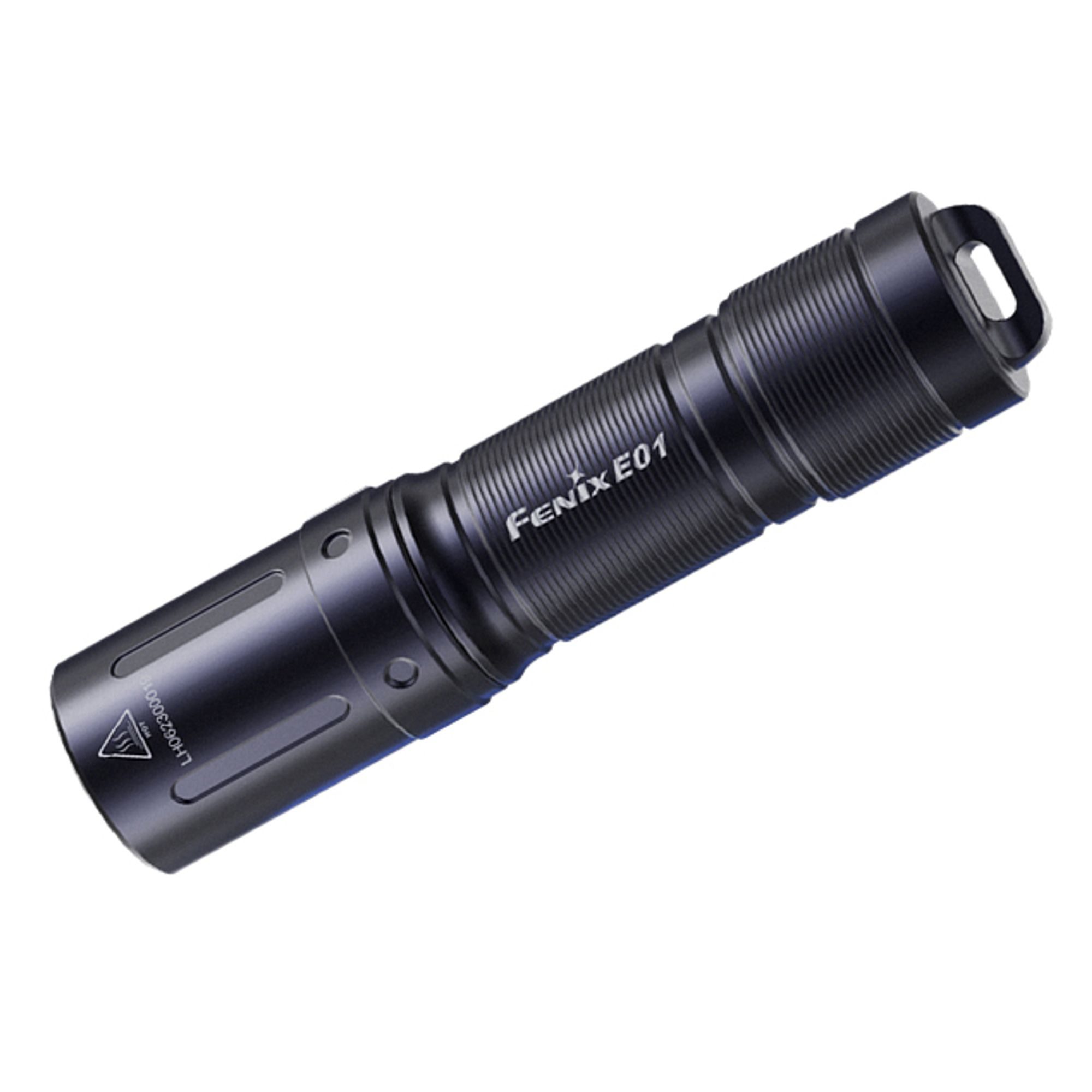

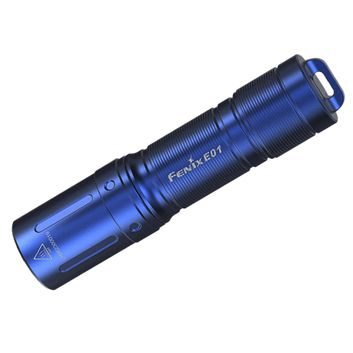

The second generation of the popular Fenix E01 V2.0 mini flashlight offers three power modes with up to 100 lumens (ANSI). Its negligible size makes it an ideal representative of the EDC (Every Day Carry) category, and it can be carried with you at all times, whether in your pocket, on your keys or in your wallet.

The flashlight isn't much bigger than the AAA micro button battery that powers it. Of course, it is high quality, durable and waterproof. The ultra-thin collimator produces a wide light cone with a range of up to 35 meters. The flashlight is destined by its features to serve as a small reliable companion that is always at hand. With this useful gift, you will always be happy.

All flashlight parameters (luminous flux, battery life, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

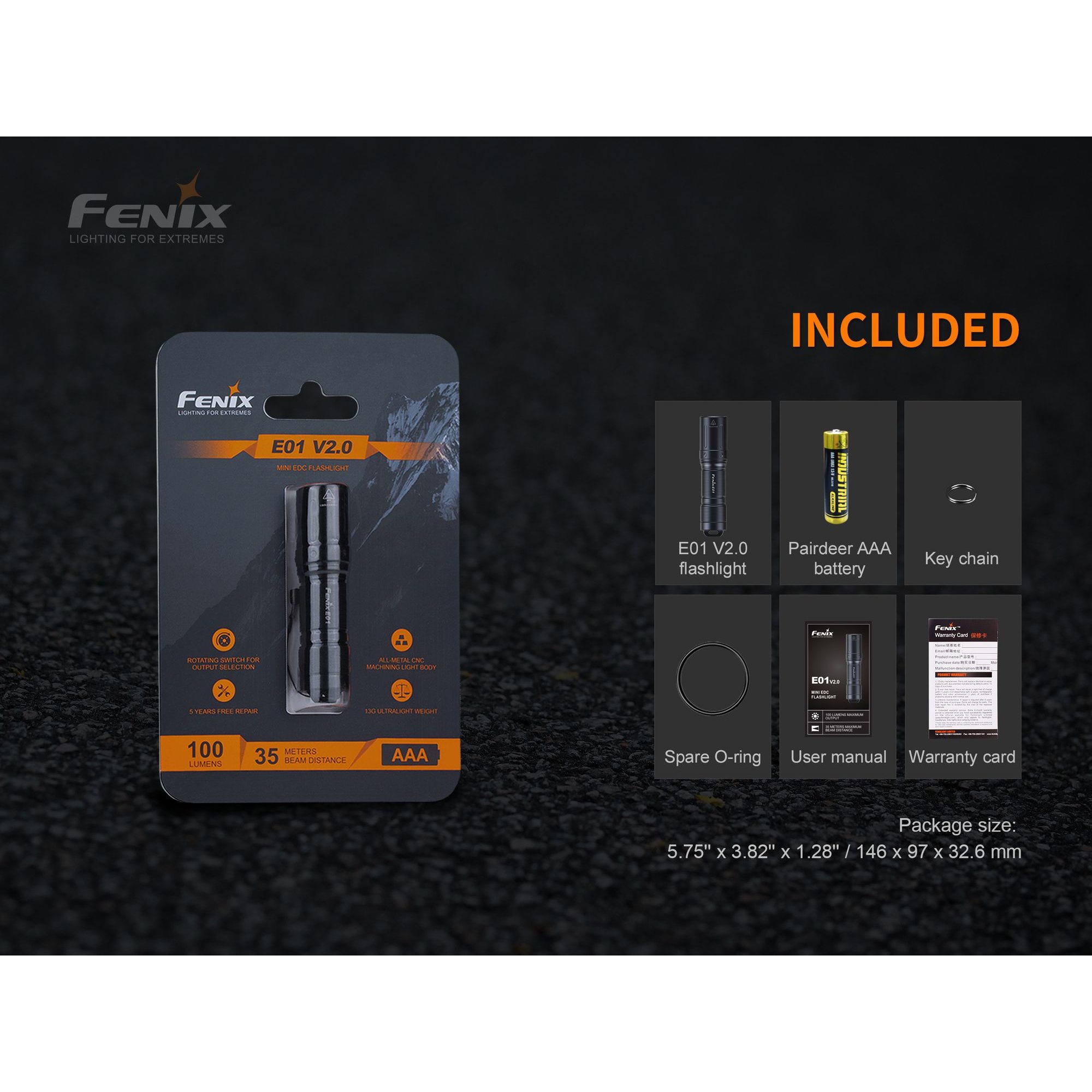

Package Includes: metal ring for hanging on keys, replacement o-ring and micro alkaline battery.

• Powerful Cree XP-G2 S3 LED with 50,000 hours lifetime
• Three power levels
• Uses only one micro button cell battery (AAA type - alkaline, lithium or rechargeable NiMH)
• Energizer L92 lithium micro-rechargeable batteries provide the longest battery life
• Supported battery voltage 0.9-1.7V.
• Wide light cone with a range of 35 meters (304 cd).
• Made of aircraft-grade hardened aluminum.
• Bottom surface - Type III hard anodized.
• Resistant to drops from a height of 1 meter.
• Waterproof and dustproof to IP68 standard.
• Reliable rotary switch.

Power Modes:

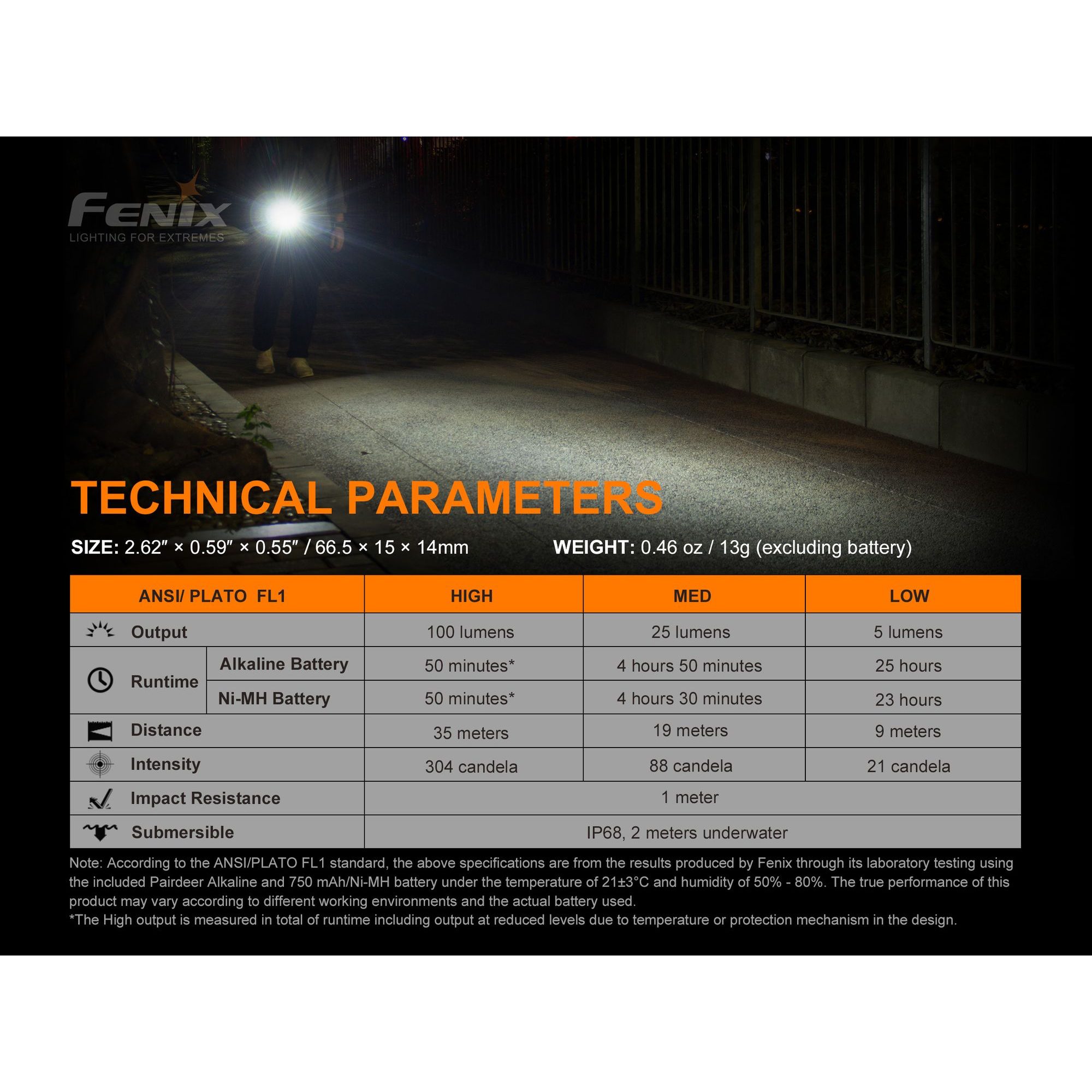

Measured with rechargeable NiMH battery: 100 lumens (50 minutes)-> 25 lumens (4.5 hours)-> 5 lumens (23 hours).
Measured with disposable alkaline battery: 100 lumens (50 minutes) -> 25 lumens (4.8 hours) -> 5 lumens (25 hours).</p

Dimensions: 6.65 cm (length) x 1.5 cm (head diameter) x 1.4 cm (body diameter)
Weight: 13 grams (without battery)
Lumen output: 100 lm
Range: 35 m

Use
To turn on the flashlight, point the reflector away from you and turn it counterclockwise (tighten the head). Turning in the opposite direction turns the flashlight off again (head loosening). To change the brightness, quickly turn the flashlight off and back on from the on state. This will switch the flashlight to the next output level. If you leave the flashlight off for more than 1.5 seconds, it will return to the lowest light mode (5 lumens).
Overheat protection - When operating on the highest mode for extended periods of time, the flashlight may reduce output to achieve optimum temperature and endurance.

Caution
Do not disassemble the sealed part in the head of the flashlight yourself, this will void the warranty.
Do not remove the batteries from the flashlight if you will not be using it for an extended period of time or if the battery is already discharged, especially with alkaline batteries
they risk draining and resulting in a damaged flashlight.
Insert the battery with the positive terminal facing the head of the flashlight.
If the protective rubber rings appear damaged after prolonged use, replace them.
If the flashlight flickers, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
The batteries are almost dead - replace them.
The contacts inside the flashlight are clogged - clean them with a cotton swab dipped in alcohol.
