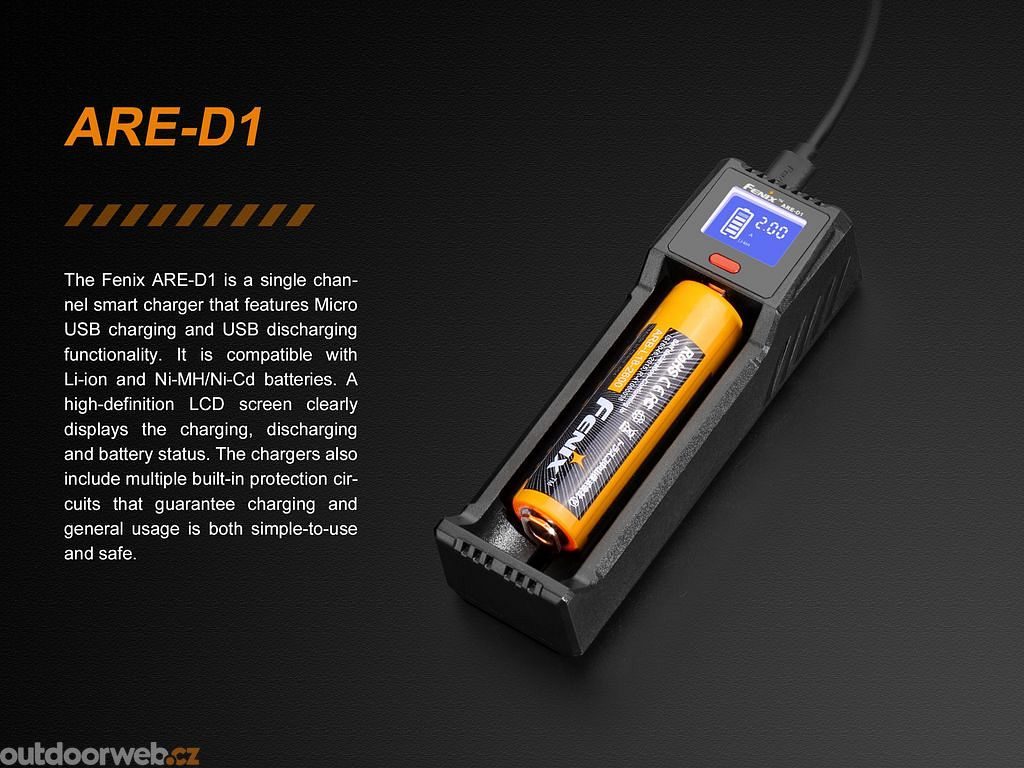

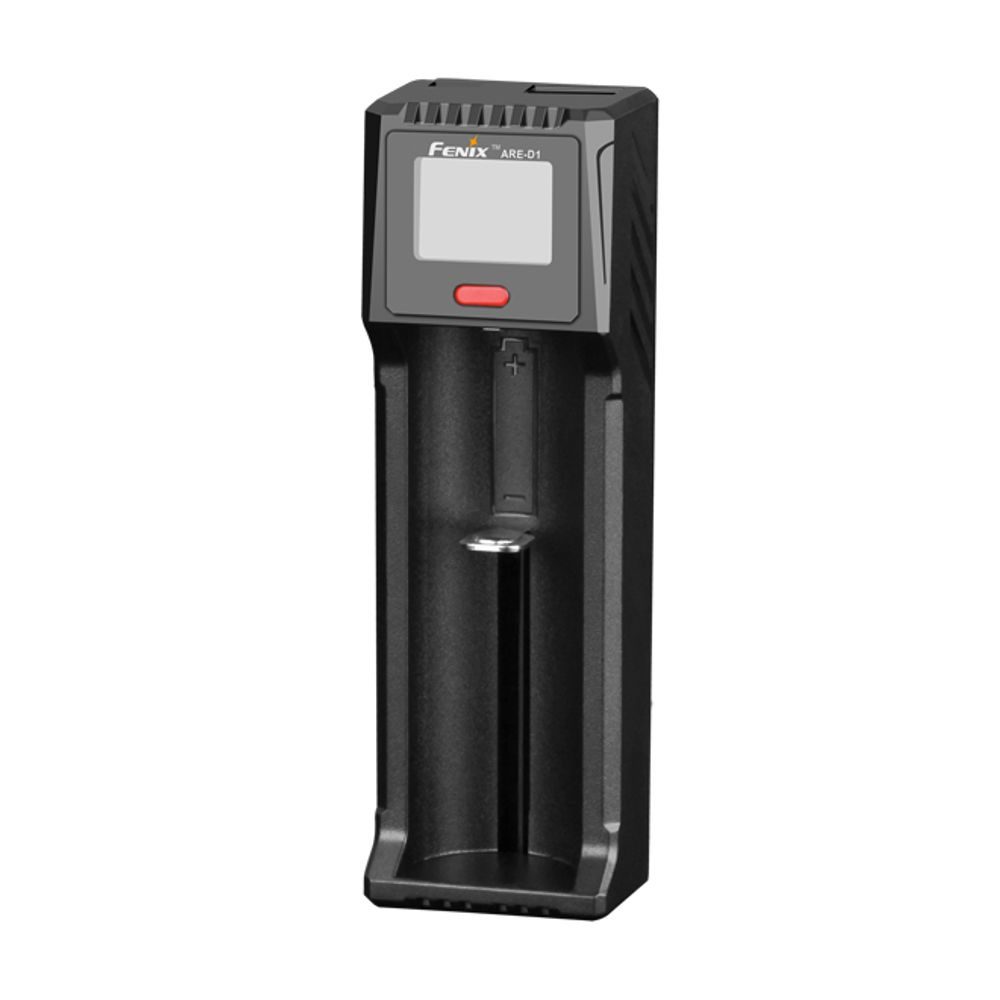

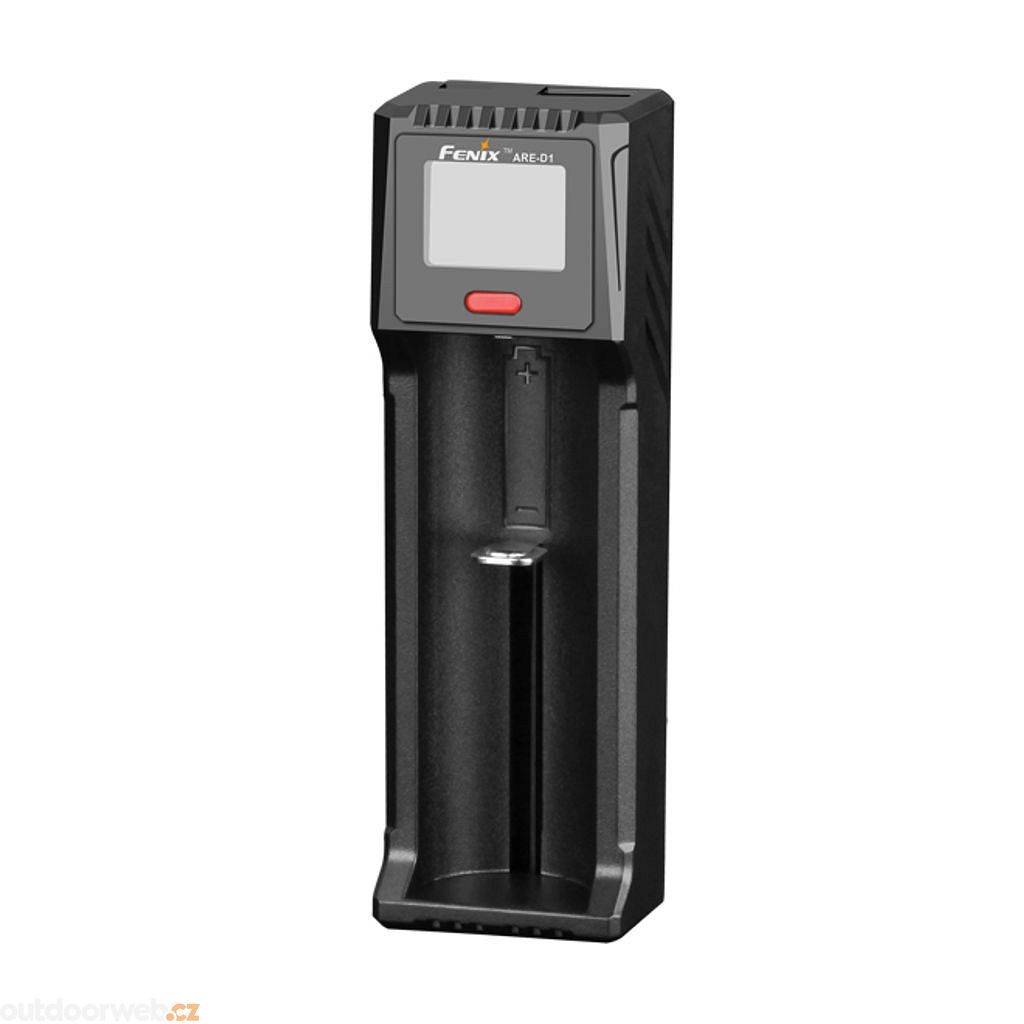

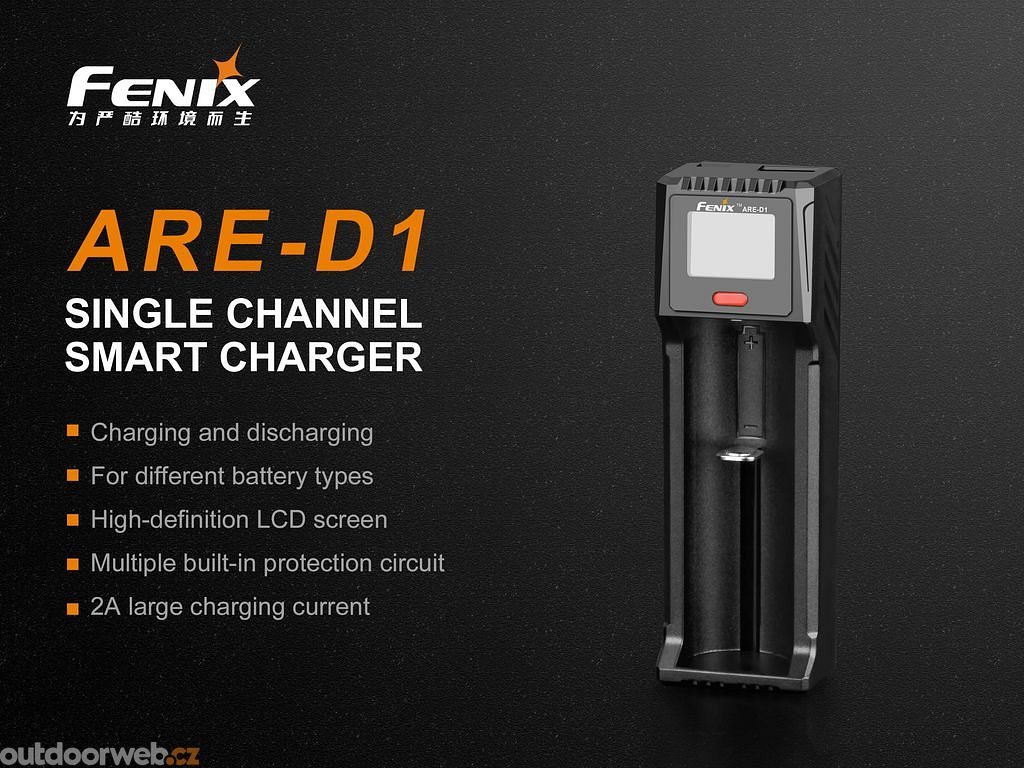

FENIX ARE-D1 (Li-ion, NiMH) - USB charger

Compact universal USB charger Fenix ARE-D1 for one piece of Li-ion or NiMH/NiCd battery. Charging current up to 2000 mA (for NiMh/NiCd the maximum charging current is 1000 mA), depending on the capabilities of the USB source you will have the charger connected to (computer, USB mains power supply, mobile phone charger with micro USB). When a charged battery is inserted, it also functions as a backup power bank for charging USB devices (mobile phones, MP3 players and more).

Thanks to its compact size, the charger is particularly suitable for travel. It automatically detects the inserted battery type and selects the optimal charging algorithm. The charger is equipped with an LCD display, which shows the current battery voltage, the type of batteries being charged and other information.

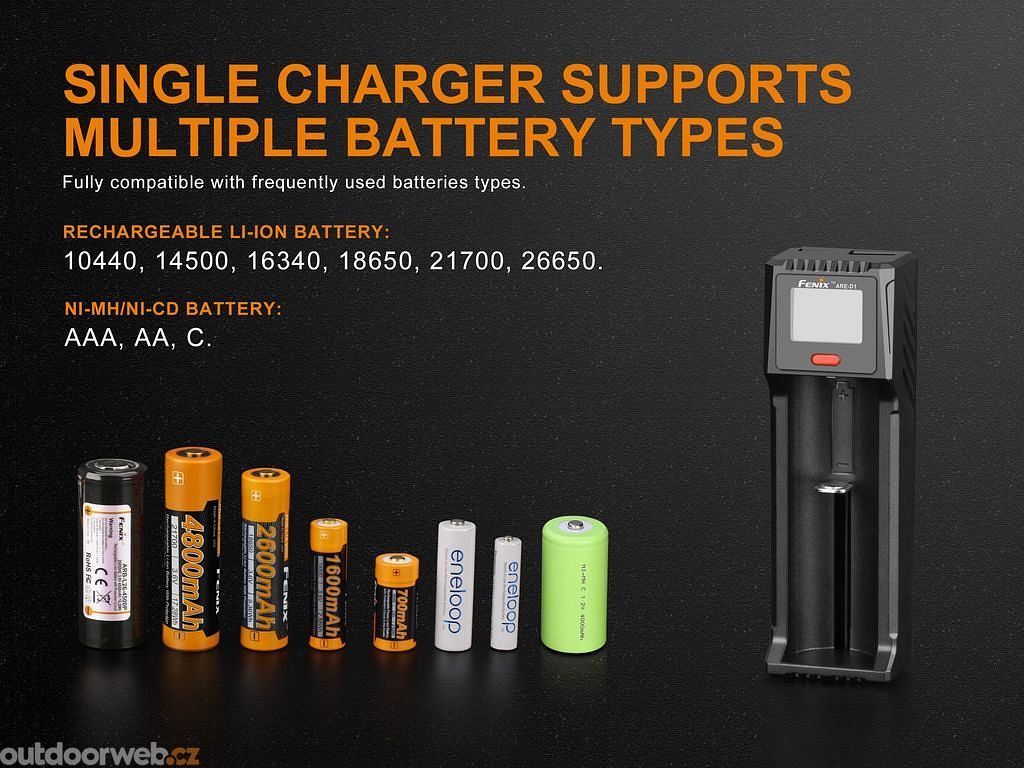

The charger can charge Li-ion batteries of the following types: 26650, 22650, 25500, 21700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123 and NiMH batteries of AAA, AA, C size. Li-ion 21700 and 20700 batteries with protective electronics can also be charged in the charger.

Specifications of USB Li-ion charger

• One charging channel.
• Charge current up to 2000 mA (depending on USB source capabilities). Manually selectable charging current (500 mA, 1000 mA, 2000 mA).
• The following Li-ion batteries can be recharged in the charger: 26650, 21700, 18650 Li-ion, 14500, 16340, RCR123. It is also possible to charge all pencil and micro-plug batteries from our offer.
• Protection against reverse insertion of batteries, short circuit and overcharging.
• LCD display shows charging progress, charging time, charging current and voltage.

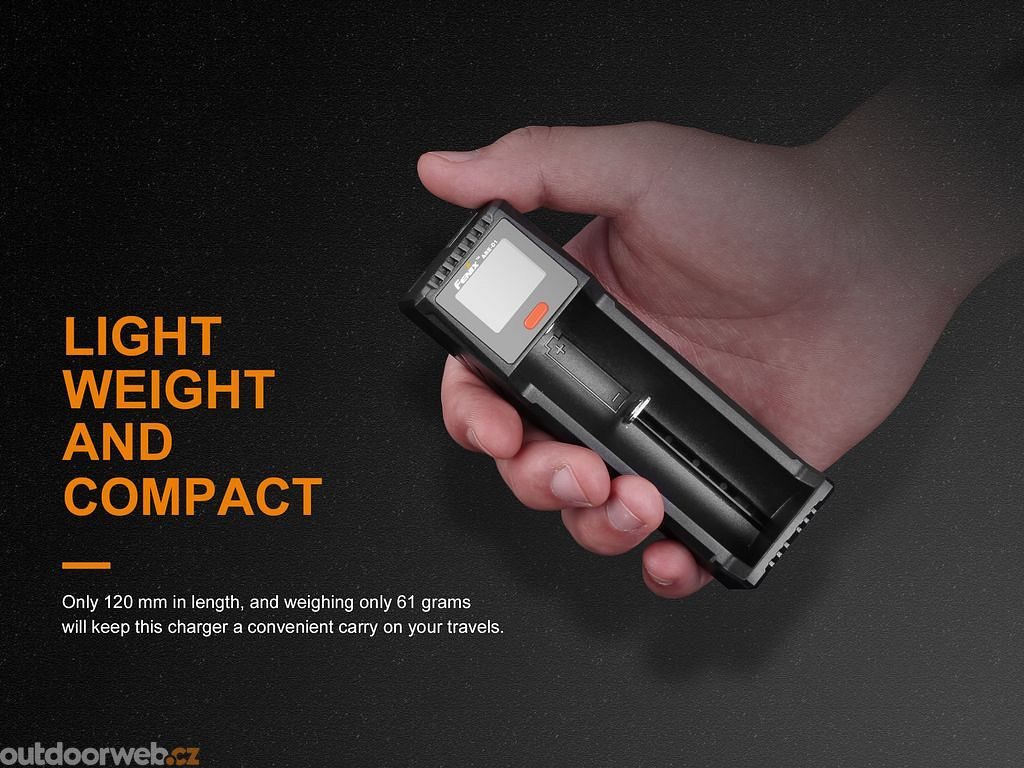

• Dimensions: 30 x 120 x 38 millimeters.
• Weight: 61 grams.

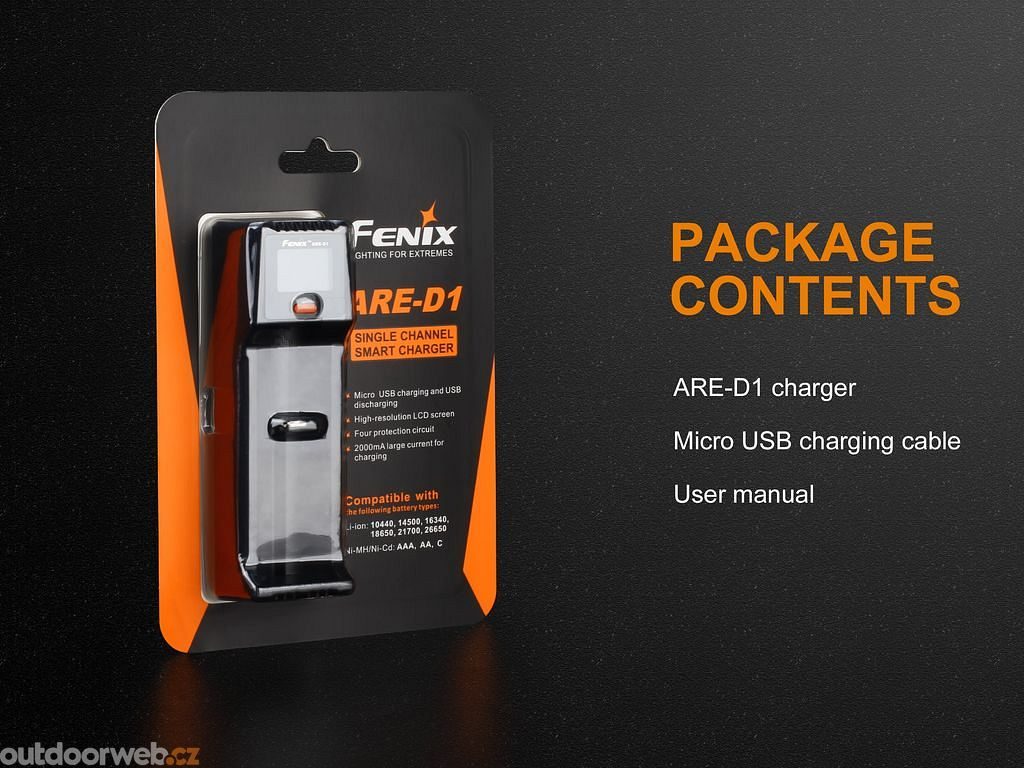

• Includes charger and USB cable.
• A USB AC adapter or USB car adapter (not included) can be purchased with the charger.

Charging batteries
Plug the charger into the USB. The display will light up. When the battery is inserted, the display will show the battery type and charging status. The button is used to switch the charging current in the following order: 1000 mA - 500 mA - 2000 mA. The charging current can be selected during the first 8 seconds of charging (the battery icon flashes on the display).

Powerbank function (USB output)
When a charged Li-ion battery is inserted, it also functions as a backup USB power supply for charging mobile phones and other USB devices.
Standard output current up to 2000 mA (5V voltage).
To activate the power bank, simply insert a charged Li-ion battery pack into the slot and connect the USB cable to the USB output on the charger.
Long press and hold the button to activate the power bank function with output current limited to 100 mA (display flashes "USB 5V").
This mode is suitable for charging small portable electronics. Such as electronic bracelets, watches, headphones, etc.

Caution
Do not charge Li-ion cells that have gone through an over-discharge condition (below 2V).
When using the charger, please observe safety guidelines.
We recommend using quality protected Li-ion batteries.
Not intended for charging LiFePO4 batteries.
